| Manufacturer | Hyundai Wia |
|---|---|
| Model | Hi-MOLD 560/5A |
| Year | 2014 |
| Location | Czech Republic
|
This Hyundai Wia Hi-MOLD 560/5A is a 5-axis vertical machining center manufactured in 2014, designed for high-speed precision milling. It features substantial axis travels with 1000 mm on the X-axis, 560 mm on the Y-axis, and 450 mm on the Z-axis, allowing for versatile machining of various parts. The machine's table measures 1250 mm in length and 600 mm in width, capable of supporting a maximum part weight of 800 kg, making it suitable for medium to large-sized workpieces.
Equipped with a powerful spindle motor rated at 33 kW, this machining center delivers a maximum spindle speed of 24,000 rpm, enabling high-speed machining operations. The spindle uses an HSK-A63 taper, providing secure tool holding and efficient power transmission. The machine includes 24 tool pockets, facilitating a wide range of tooling options and reducing downtime with a chip-to-chip tool change time of approximately 5.5 seconds.
The rapid traverse rate is 50 m/min across all axes, supporting efficient and fast positioning during machining cycles. The spindle torque is specified at 96/72.5 Nm, contributing to its capability to handle demanding cutting tasks.

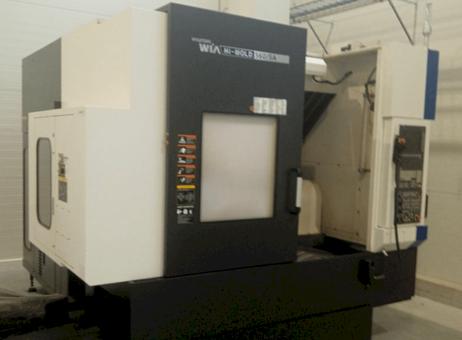

This enclosed machining center includes a door with a window for safe operation while allowing the operator to monitor the machining process. The control panel is mounted on the right side of the machine, providing convenient access for machine operation. The machine is observed to be in clean and good physical condition, reflecting proper maintenance.
Overall, the Hyundai Wia Hi-MOLD 560/5A offers a robust combination of precision, speed, and versatility for high-quality milling applications. For further details or to discuss your machining requirements, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis Hyundai Wia Hi-MOLD 560/5A vertical machining centre was manufactured in 2014. It features a table size of 1,250×600 mm, a maximum load capacity of 800 kg, and a high-speed spindle with 24,000 RPM and 33 kW power. The machine offers rapid feed rates of 50 m/min in all axes and a quick tool change time of 5.5 seconds. If you are looking to get high-quality milling capabilities, consider the Hyundai Wia Hi-MOLD 560/5A machine we have for sale. Contact us for more information.
Spindle speed range: 24000
Spindle motor power: 33/25 kW
Tool taper: HSK-A63
Number of axis: 5
X-Axis Movement: 1000 mm
X-Axis Rapid Traverse: 50 m/min
Y-Axis Movement: 560 mm
Y-Axis Rapid Traverse: 50 m/min
Z-Axis Movement: 450 mm
Z-Axis Rapid Traverse: 50 m/min
Table load: 800 kg
Number of index: 24
Table size: 1250×600 mm
Spindle torque: 96/72. 5 nm
Tool change time (chip to chip): 5. 5 seconds
Machine still under power
