| Manufacturer | Hyundai Wia |
|---|---|
| Model | F500 |
| Year | 2012 |
| Location | Germany
|

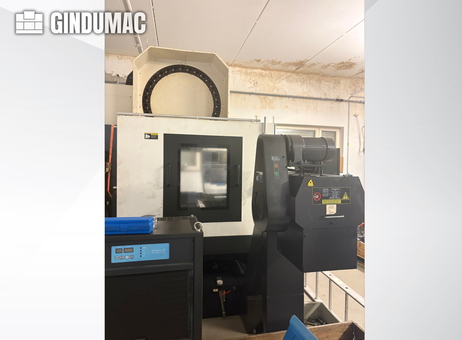

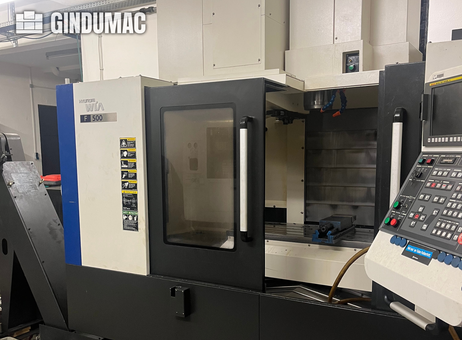

Manufacturer: Hyundai Wia
Model: F500
Year of manufacture: 2012
Machine type: Vertical Machining Centre
Application type: Milling
Location: Germany
Production hours: approx. 12,000 h

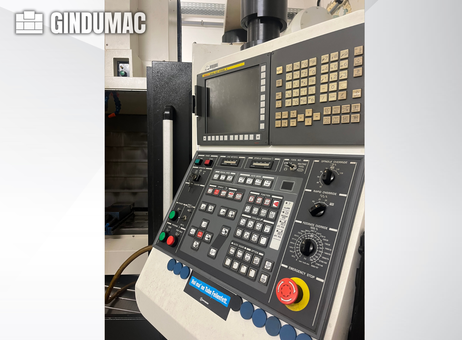

Control system: FANUC Series 32i – MODEL A
Control unit brand: FANUC
Dimensions - Height: 2835 mm
Dimensions - Length: 2800 mm
Dimensions - Width: 2670 mm
Machine weight: 7,700 kg

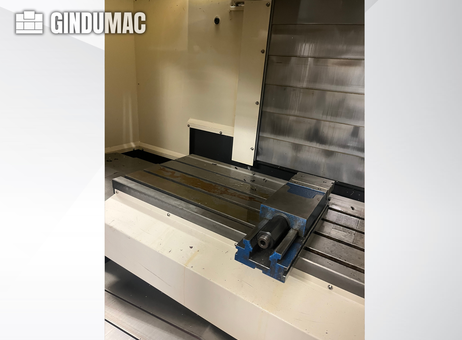

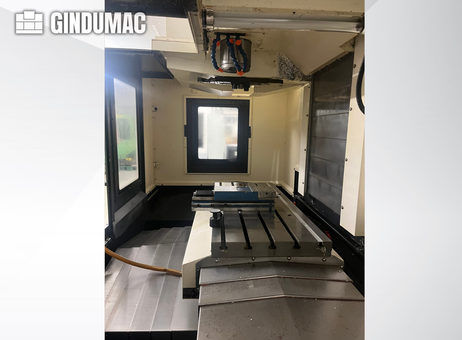

Table size: 1000 × 450 mm
Table load: 600 kg
Movement - Number of axes: 3
X-axis travel: 1060 mm
Y-axis travel: 510 mm
Z-axis travel: 635 mm
Spindle - Speed: 10,000 RPM
Spindle - Power: 15 kW (continuous)
Spindle - Power output (continuous): 15/11 kW (20/15 HP)
Spindle - Power output (maximum): 20/15 kW (25/20 HP)
Spindle - Taper: BT40
Through-spindle coolant: Yes
Tooling - Tool stations: 30
Tooling - Maximum tool diameter: 90 / 150 mm
Tooling - Maximum tool length: 300 mm
Tooling - Maximum tool weight: 8 kg
Tool changer: 30-Position
Tool change times - T-T: 1.8 s
Tool change times - C-C: 5.9 s
Rapid traverse: 32 m/min (X/Y/Z)
Distance from table to spindle nose: 130–650 mm
Distance from column to spindle center: 475 mm

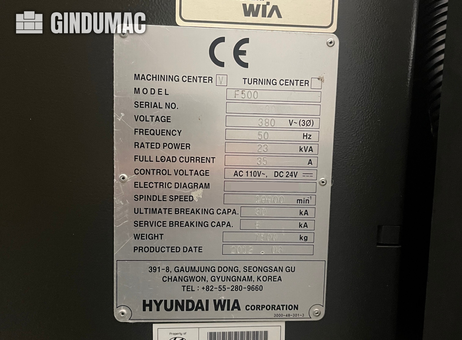

Electrical - Voltage: 380 V (3Ø)
Electrical - Frequency: 50 Hz
Electrical - Rated power: 23 kVA
Electrical - Full load current: 35 A
Electrical - Control voltage: AC 110 V / DC 24 V
Spindle - Spindle nose distance to table: 130–650 mm

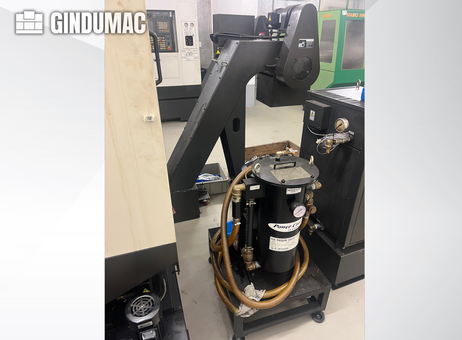

Coolant system - Internal coolant pressure: 20 bar
Coolant system - Tank capacity: 300 L
Lubrication - Tank capacity: 2.6 L
Hydraulic - Tank capacity: 11 L
Air system - Air consumption: 250 L/min
Power requirement: Over 25 kVA
Operating hours: approx. 12,000 h

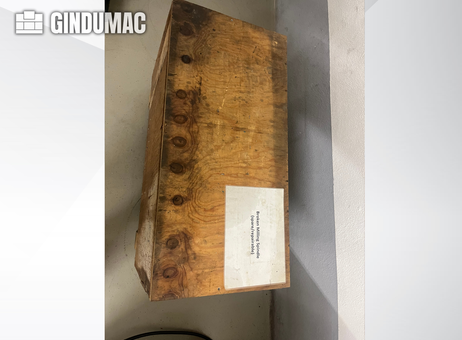

Spare spindle: Optional (not included)

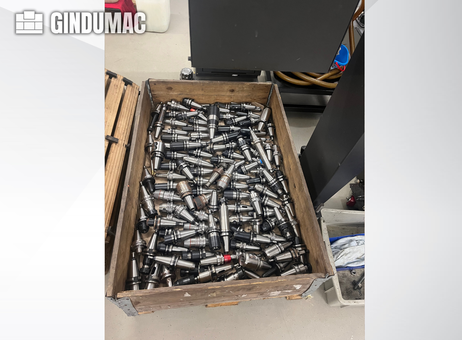

Spare tooling: Approximately 105 tools (Optional, not included)
Condition: as-is, where-is
