Contact us to receive an offer.
| Manufacturer | HYUNDAI KIA |
|---|---|
| Model | 250M |
| Year | 2006 |
| Location | Italy
|

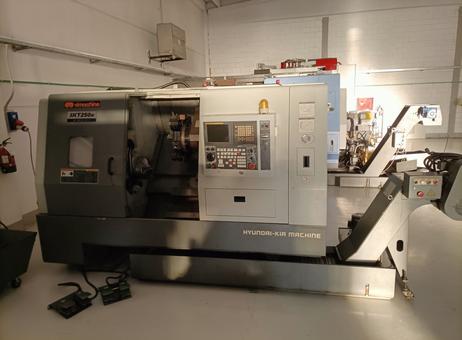

This listing is for a HYUNDAI KIA 250M CNC horizontal lathe, manufactured in 2006. It is a CE-compliant machine designed for precision turning operations. The lathe is equipped with a FANUC Series 21i-T numerical control system, providing reliable and advanced CNC capabilities.
The machine offers a maximum turning diameter of 750 mm above the bed and 410 mm above the transversing slide, with a maximum turning length of 700 mm. The X-axis travel is 290 mm, and the Z-axis travel is 750 mm. It features a spindle bore of 76 mm and a spindle connection size of ASA 8". The spindle motor delivers a power of 22 kW and can reach speeds up to 3500 rpm. The machine's rapid traverse rates are 20 m/min for the X-axis and 24 m/min for the Z-axis.
The lathe includes a 12-position motorized turret for multiple tooling options, enhancing versatility. Accessories included are a chuck, tailstock, chip conveyor, presetter, various driven and fixed tools, as well as manual tools. The machine dimensions are 3350 mm in length, 2000 mm in width, and 2000 mm in height, with a total weight of approximately 6300 kg.

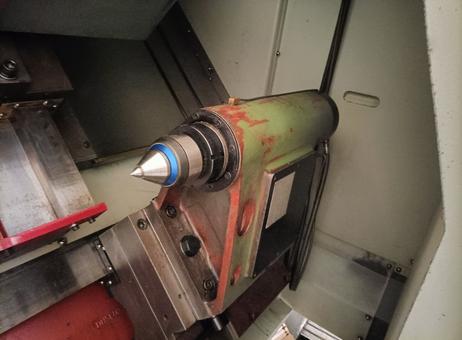

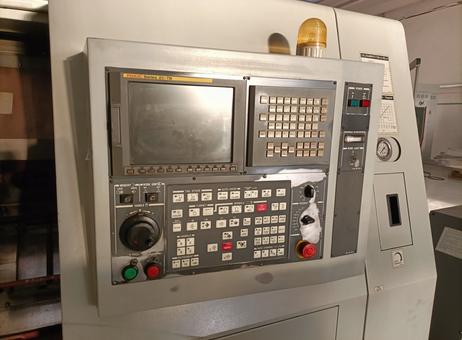

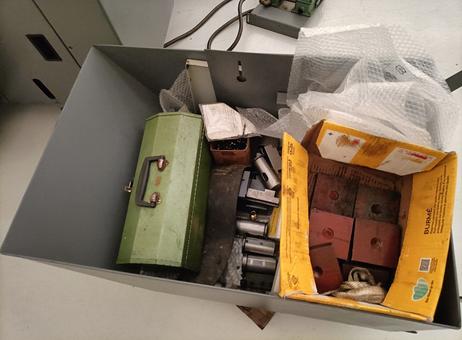

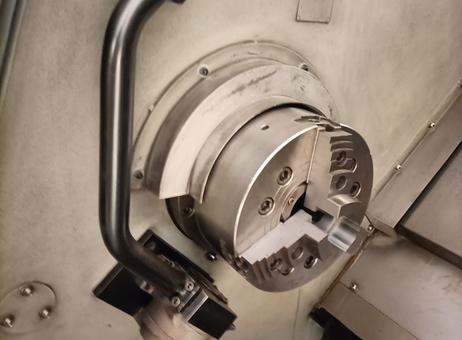

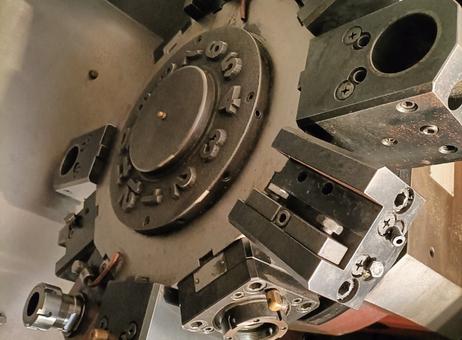

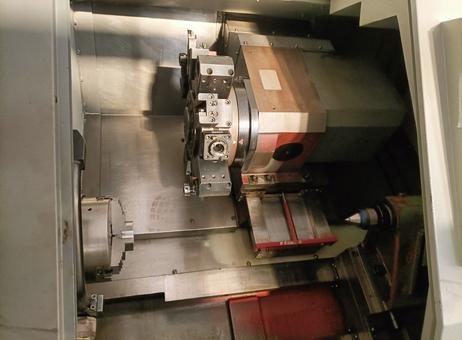

Visual inspection indicates the machine is in good physical condition with no visible major damage. The control panel shows some signs of wear and dirt but remains complete with a screen, buttons, power switch, and emergency stop button. The chuck and tool post show typical signs of use without damage. The tailstock exhibits some paint wear and minor rust spots. The tool turret and interior surfaces display normal wear and some discoloration. A chip conveyor is attached to the right side of the machine. Additionally, a drawer containing various accessories such as a green toolbox, metal parts, and other items is included and appears organized.
Overall, this HYUNDAI KIA 250M CNC lathe is a robust and well-equipped machine suitable for various turning applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC HORIZONTAL LATHES
Used CE-compliant CNC motorized horizontal lathe
Equipped with a FANUC 21i-T numerical control
MACHINE INSTALLATION: Year 2006
MACHINE ACCESSORIES:
- Chuck
- Tailstock
- C-axis
- Chip conveyor
- Presetter
- Various driven and fixed tools
- Manual tools
Maximum turning diameter: 410 mm
Maximum turning diameter: 750 mm
Maximum turning length: 700 mm
X-axis travel: 290 mm
Z-axis travel: 750 mm
Bar passage: 76 mm
Spindle connection: ASA 8"
Number of tools on the motorized turret: 12
Spindle rotation speed: 3500 rpm
Motor power Spindle: 22/18.5 kW
X-Z Axes Rapid Traverse: 20/24 m/min
Machine Dimensions: 3350 x 2000 x 2000 mm
Machine Weight: 6300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
