| Manufacturer | HYD-MECH |
|---|---|
| Model | M-20A |
| Year | 2009 |
| Location | USA
|

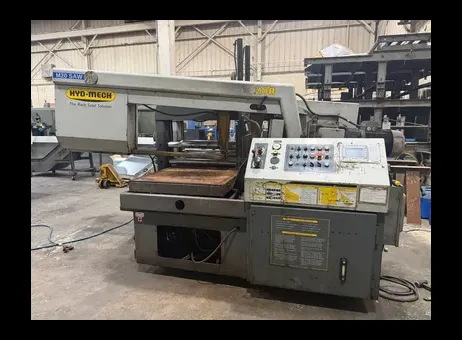

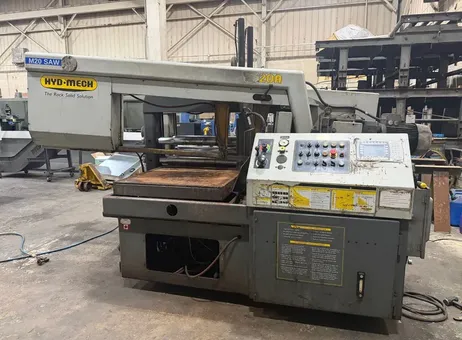

The HYD-MECH M-20A is a heavy-duty automatic mitering horizontal bandsaw, manufactured in 2009, designed for precise cutting of metal materials. This model features a robust 10 kW (approximately 13.4 hp) motor powering the blade, capable of handling substantial cutting tasks. The machine dimensions are approximately 3556 mm in length, 2286 mm in width, and 1676.4 mm in height, with a total weight of 7700 kg.
The bandsaw is equipped with a sizable blade measuring 5232.4 mm in length and 38.1 mm in width. It includes a hydraulic vise system that ensures stable clamping of materials during operation. The machine's control panel features multiple buttons, switches, and a digital display screen, allowing for programmable and automated cutting processes. Power cables and hoses are connected to the machine base, supporting its hydraulic and electrical systems.

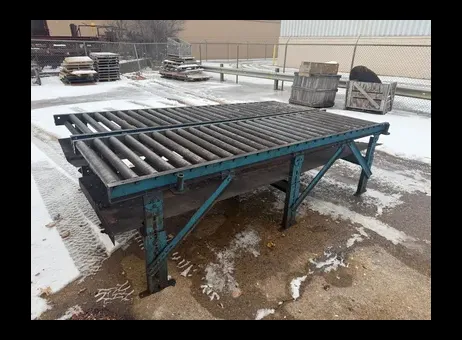

Material handling is facilitated by heavy-duty roller conveyors with multiple metal rollers evenly spaced for smooth movement. These conveyors are mounted on a metal frame painted blue, which shows visible signs of rust and wear but remains structurally sound. The bandsaw's saw arm and blade housing are intact and painted light gray, with hydraulic or pneumatic cylinders positioned above the cutting area to assist in operation.
The machine shows signs of use, including some surface rust on the table area and wear and dirt on the control panel and other surfaces. It is currently wired for 440-volt, 3-phase power supply. This HYD-MECH M-20A bandsaw is suitable for cutting a variety of metal shapes and sizes with programmable mitering capabilities, making it a reliable choice for industrial metalworking applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Type: Saws, Miter
Manufacturer: HYD-MECH
Model: M-20A
Year: 2009
Status: For Sale
Description:
The 2009 HYD-MECH M-20A is an automatic mitering horizontal bandsaw designed for precision cutting with a capacity of 20"x30". This machine features a robust 10 hp motor and is equipped with a PLC 500 controller for enhanced automation. Key features include a hydraulic vise, overhead bundling clamps, and programmable mitering capabilities, making it ideal for bundle cutting of various material shapes and sizes.
Specifications:
Rectangular Cutting Capacity (Width): 30"
Rectangular Cutting Capacity (Height): 20"
Power: 10 hp
Control: CNC
Dimensions: 140” x 90” x 66”
Weight: 7,700 lbs
Max Cutting Capacities:
- 90 degrees, round: 20”
- 45 degrees, round: 20”
- 30 degrees, round: 14”
- 90 degrees, square: 20” x 20”
- 45 degrees, square: 19” x 20”
- 30 degrees, square: 12” x 20”
- 90 degrees, rectangular: 20” x 30”
- 45 degrees, rectangular: 19” x 20”
- 30 degrees, rectangular: 12” x 20”
Max Degree of Miter: 30 degrees
Blade Dimensions: 20’6” x 1-1/2” x .050”
Blade Guides: Carbide
Guide Arm (Manual / Powered): Powered
Blade Speeds: 50 - 350 FPM
Number of Speeds: Infinite
Blade Motor: 10 hp
Blade Drive Type: Motor to gearbox
Blade Tension Type: Hydraulic
Blade Wheel Size: 22”
Hydraulic Motor: 3 hp
Coolant Type: Flood
Coolant Tank Capacity: 9 gallons
Maximum Feed Length: 33”
Table Height: 32”
Vise Type: Hydraulic
Currently Wired: 440 volt 3 phase
Equipped With:
- PLC 500 - fully programmable controller for automatic production of jobs with double angle parts.
- Full Capacity Overhead Bundling - hydraulically powered clamp for effective bundle cutting and vibration dampening.
- Variable Vise Pressure - adjustable clamping pressure for thin wall tubing and light materials.
- Out of Stock Switch - safety feature to prevent operation without material.
- Vertical Rollers - assist in material alignment.
- Heavy Duty Full Stroke Vises - designed for durability and precision.
- Powered Blade Chip Brush and Chip Auger.
- (2) 10' Roller Conveyors for material handling.
This machine has undergone a comprehensive 20 Point Inspection and Repair Process to ensure immediate performance upon installation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 24 |
| Last activity | Oct. 19, 2026 |
Type: Saws, Miter
Manufacturer: HYD-MECH
Model: M-20A
Year: 2009
Status: For Sale
Description:
The 2009 HYD-MECH M-20A is an automatic mitering horizontal bandsaw designed for precision cutting with a capacity of 20"x30". This machine features a robust 10 hp motor and is equipped with a PLC 500 controller for enhanced automation. Key features include a hydraulic vise, overhead bundling clamps, and programmable mitering capabilities, making it ideal for bundle cutting of various material shapes and sizes.
Specifications:
Rectangular Cutting Capacity (Width): 30"
Rectangular Cutting Capacity (Height): 20"
Power: 10 hp
Control: CNC
Dimensions: 140” x 90” x 66”
Weight: 7,700 lbs
Max Cutting Capacities:
- 90 degrees, round: 20”
- 45 degrees, round: 20”
- 30 degrees, round: 14”
- 90 degrees, square: 20” x 20”
- 45 degrees, square: 19” x 20”
- 30 degrees, square: 12” x 20”
- 90 degrees, rectangular: 20” x 30”
- 45 degrees, rectangular: 19” x 20”
- 30 degrees, rectangular: 12” x 20”
Max Degree of Miter: 30 degrees
Blade Dimensions: 20’6” x 1-1/2” x .050”
Blade Guides: Carbide
Guide Arm (Manual / Powered): Powered
Blade Speeds: 50 - 350 FPM
Number of Speeds: Infinite
Blade Motor: 10 hp
Blade Drive Type: Motor to gearbox
Blade Tension Type: Hydraulic
Blade Wheel Size: 22”
Hydraulic Motor: 3 hp
Coolant Type: Flood
Coolant Tank Capacity: 9 gallons
Maximum Feed Length: 33”
Table Height: 32”
Vise Type: Hydraulic
Currently Wired: 440 volt 3 phase
Equipped With:
- PLC 500 - fully programmable controller for automatic production of jobs with double angle parts.
- Full Capacity Overhead Bundling - hydraulically powered clamp for effective bundle cutting and vibration dampening.
- Variable Vise Pressure - adjustable clamping pressure for thin wall tubing and light materials.
- Out of Stock Switch - safety feature to prevent operation without material.
- Vertical Rollers - assist in material alignment.
- Heavy Duty Full Stroke Vises - designed for durability and precision.
- Powered Blade Chip Brush and Chip Auger.
- (2) 10' Roller Conveyors for material handling.
This machine has undergone a comprehensive 20 Point Inspection and Repair Process to ensure immediate performance upon installation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The HYD-MECH M-20A is a heavy-duty automatic mitering horizontal bandsaw, manufactured in 2009, designed for precise cutting of metal materials. This model features a robust 10 kW (approximately 13.4 hp) motor powering the blade, capable of handling substantial cutting tasks. The machine dimensions are approximately 3556 mm in length, 2286 mm in width, and 1676.4 mm in height, with a total weight of 7700 kg.
The bandsaw is equipped with a sizable blade measuring 5232.4 mm in length and 38.1 mm in width. It includes a hydraulic vise system that ensures stable clamping of materials during operation. The machine's control panel features multiple buttons, switches, and a digital display screen, allowing for programmable and automated cutting processes. Power cables and hoses are connected to the machine base, supporting its hydraulic and electrical systems.
Material handling is facilitated by heavy-duty roller conveyors with multiple metal rollers evenly spaced for smooth movement. These conveyors are mounted on a metal frame painted blue, which shows visible signs of rust and wear but remains structurally sound. The bandsaw's saw arm and blade housing are intact and painted light gray, with hydraulic or pneumatic cylinders positioned above the cutting area to assist in operation.
The machine shows signs of use, including some surface rust on the table area and wear and dirt on the control panel and other surfaces. It is currently wired for 440-volt, 3-phase power supply. This HYD-MECH M-20A bandsaw is suitable for cutting a variety of metal shapes and sizes with programmable mitering capabilities, making it a reliable choice for industrial metalworking applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
