| Manufacturer | Hyd-Mech |
|---|---|
| Model | H-14A |
| Year | 2011 |
| Location | USA
|
This listing features a Hyd-Mech H-14A fabrication bandsaw, manufactured in 2011, designed for heavy-duty metal cutting applications. The machine is equipped with a 10-foot roller section that facilitates smooth material feeding and handling. It offers a cutting capacity of 14 inches by 14 inches for square stock and 14 inches for round stock, making it suitable for a variety of metal shapes and sizes.
The bandsaw operates with blade speeds ranging from 49 to 377 surface feet per minute (SFPM), powered by an 8.8 HP blade drive motor. The blade size used is 1-1/4 inches wide by .042 inches thick and 15 feet 2 inches in length, running on 19-inch diameter blade wheels. The shuttle stroke is adjustable from 0 to 24 inches with indexing capability, allowing for precise cutting control. The maximum work load capacity is 3,300 pounds, accommodating substantial material weights.
The machine's overall dimensions are approximately 88 inches long, 63 inches wide, and 78 inches high, with a total weight of 6,250 pounds. It operates on 480V power supply.

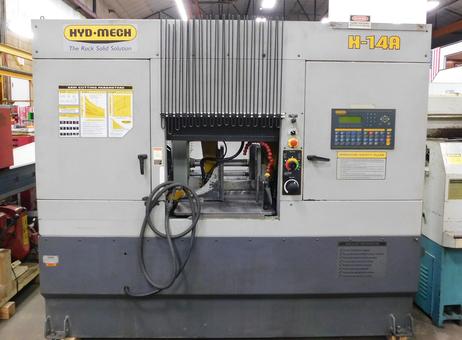

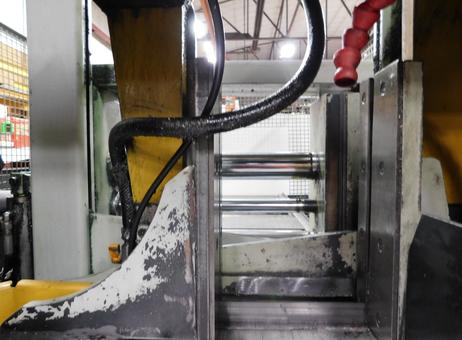

The bandsaw features a control panel with buttons and a display screen for operational control, along with a saw cutting parameters chart for reference. Safety and operational controls include an emergency stop button and rotary knobs. The cutting area includes hydraulic hoses, metal guide rods, and a metal clamping fixture to secure workpieces. A red flexible coolant hose is positioned above the blade area to assist with cooling during cutting.

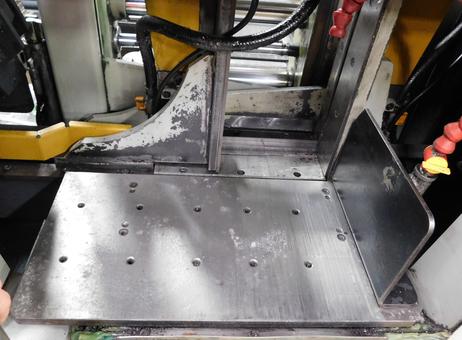

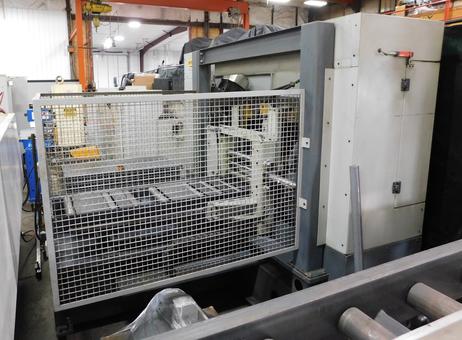

The flat metal table surface has multiple bolt holes for workpiece support and includes a metal side guard or fence. Protective metal mesh guards cover mechanical components and motors, with visible rollers and a conveyor system to facilitate material handling.
The machine shows signs of typical industrial wear, including some paint chipping, surface wear, and metal debris on the table, but appears structurally intact and ready for use in a metal fabrication environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
fabrication
bandsaw
Equipped with:
10’ roller section
Capacity Square: 14" x 14"
Capacity Round: 14"
Blade Speeds: 49-377 SFPM
Blade Drive: 8.8 HP
Voltage: 480V
Blade Size: 1-1/4" x .042 x 15' 2"
Maximum Work Load: 3,300 LBS
Blade Wheel Diameter: 19"
Shuttle Stroke: 0-24 w/indexing
Machine Weight: 6,250 LBS
Machine Dimensions: 88" x 63" x 78"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 109 |
| Last activity | Oct. 15, 2026 |
fabrication
bandsaw
Equipped with:
10’ roller section
Capacity Square: 14" x 14"
Capacity Round: 14"
Blade Speeds: 49-377 SFPM
Blade Drive: 8.8 HP
Voltage: 480V
Blade Size: 1-1/4" x .042 x 15' 2"
Maximum Work Load: 3,300 LBS
Blade Wheel Diameter: 19"
Shuttle Stroke: 0-24 w/indexing
Machine Weight: 6,250 LBS
Machine Dimensions: 88" x 63" x 78"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Hyd-Mech H-14A fabrication bandsaw, manufactured in 2011, designed for heavy-duty metal cutting applications. The machine is equipped with a 10-foot roller section that facilitates smooth material feeding and handling. It offers a cutting capacity of 14 inches by 14 inches for square stock and 14 inches for round stock, making it suitable for a variety of metal shapes and sizes.
The bandsaw operates with blade speeds ranging from 49 to 377 surface feet per minute (SFPM), powered by an 8.8 HP blade drive motor. The blade size used is 1-1/4 inches wide by .042 inches thick and 15 feet 2 inches in length, running on 19-inch diameter blade wheels. The shuttle stroke is adjustable from 0 to 24 inches with indexing capability, allowing for precise cutting control. The maximum work load capacity is 3,300 pounds, accommodating substantial material weights.
The machine's overall dimensions are approximately 88 inches long, 63 inches wide, and 78 inches high, with a total weight of 6,250 pounds. It operates on 480V power supply.
The bandsaw features a control panel with buttons and a display screen for operational control, along with a saw cutting parameters chart for reference. Safety and operational controls include an emergency stop button and rotary knobs. The cutting area includes hydraulic hoses, metal guide rods, and a metal clamping fixture to secure workpieces. A red flexible coolant hose is positioned above the blade area to assist with cooling during cutting.
The flat metal table surface has multiple bolt holes for workpiece support and includes a metal side guard or fence. Protective metal mesh guards cover mechanical components and motors, with visible rollers and a conveyor system to facilitate material handling.
The machine shows signs of typical industrial wear, including some paint chipping, surface wear, and metal debris on the table, but appears structurally intact and ready for use in a metal fabrication environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 109 |
| Last activity | Oct. 15, 2026 |
