| Manufacturer | HWACHEON |
|---|---|
| Model | Hi-Tech 200 B CNC Lathe Turning Center with Box Ways ***Low Hours*** |
| Year | 2012 |
| Location | USA
|

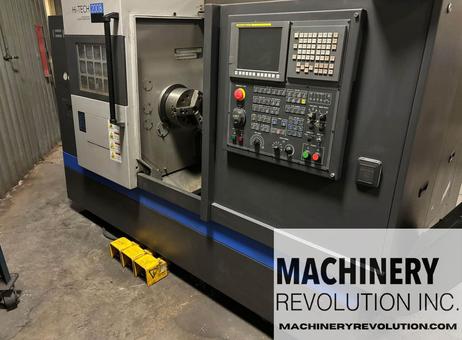

The HWACHEON Hi-Tech 200 B CNC Lathe Turning Center with Box Ways is a precision horizontal turning center designed for high-performance machining applications. Manufactured in 2012, this machine features a robust construction with box ways that provide enhanced rigidity and stability during operation.

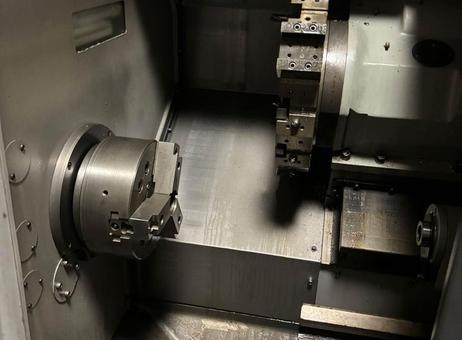

The lathe is equipped with a 12-station BMT-65 turret, allowing for versatile tooling options and efficient tool changes. It supports an A2-6 ASA type spindle nose and offers a maximum spindle speed of 3,500 rpm. The machine's spindle motor power is not specified. It includes a programmable MT4 tailstock, which enhances support for longer workpieces.
This model has a maximum swing over the bed of 500 mm (approximately 19.685 inches) and a maximum cutting diameter of 350 mm (about 13.78 inches). The maximum cutting length is 385 mm (15.1575 inches), with a through spindle hole diameter of 75 mm (2.95 inches). The maximum bar size it can accommodate is 65 mm (2.56 inches). The spindle bearing inner diameter measures 100 mm (3.94 inches).
The machine offers rapid traverse rates of 30 m/min on both the X and Z axes, with maximum strokes of 195 mm and 430 mm respectively. Feed motors provide 1.8 kW and 3.0 kW power on the X and Z axes. The turret indexing time is 0.15 seconds per step, supporting efficient tool changes.

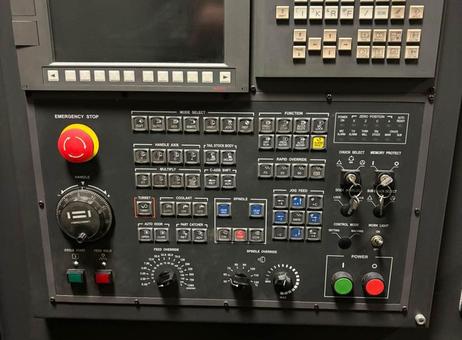

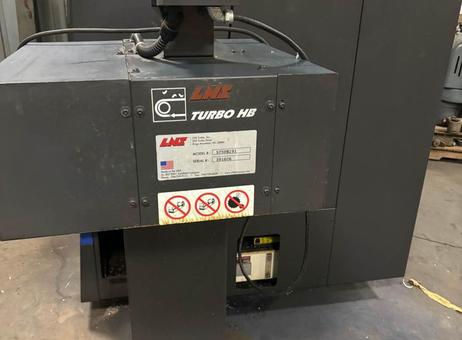

Control is managed via a FANUC Oi-TD CNC system, featuring a control panel with a screen and multiple function buttons, including emergency stop and mode selectors. The control panel appears intact and in good condition. Additional accessories include a coolant tank and pump, as well as an LNS Turbo chip conveyor for effective chip removal.

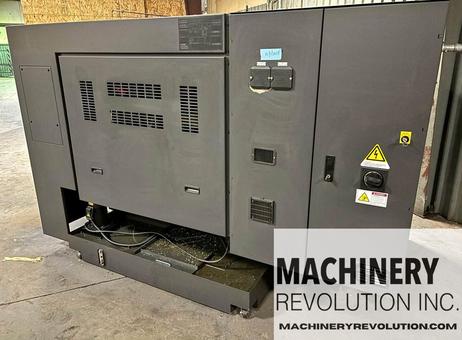

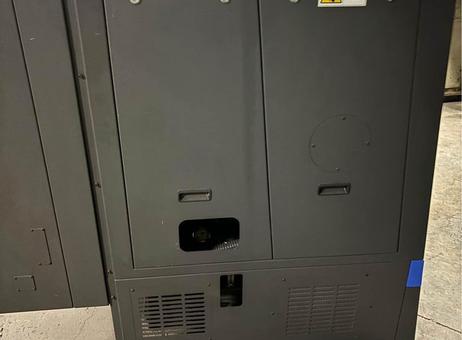

Physically, the machine appears clean and well-maintained with no visible damage. It is supported on yellow foot blocks beneath the base for stability. Overall, this lathe turning center is suitable for precision machining tasks requiring a reliable CNC lathe with advanced control and tooling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
lathes
cnc
Excellent Condition Low Hours
12 Station BMT-65 Turret
A2-6 ASA Type of Spindle Nose
3,500 rpm Max Spindle Speed
MT4 Programmable Tailstock
Box Ways
FANUC Oi-TD Control
Coolant Tank and Pump
LNS Turbo Chip Conveyor
19.685" Ø500mm Swing over bed
13.7795" Ø350mm Max Cutting Diameter
8.26772" Ø210mm Standard Cutting Diameter
15.1575" 385mm Max Cutting Length
2.95276" Ø75 mm Through Spindle Hole Diameter
2.55906" Ø65 mm Max Bar Size
3.93701" Ø100 mm Spindle Bearing Inner Diameter
18.5 / 15 kW Spindle Motor
Turret
□25 ×Ø40 mm Tool Size
(Out Dia x Boring bar size)
0.15 sec/step Turret Indexing Time Axes
30 / 30 m/min Rapid Traverse (X / Z)
195 / 430 mm Max. Stroke (X / Z)
1.8 / 3.0 kW Feed Motor (X / Z)
Tailstock
Ø80 mm Quill Diameter
100 mm Quill Stroke
#4 MT Quill Taper
30kVA Electrical Power Supply
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 181 |
| Last activity | Oct. 24, 2026 |
