Price on request
Make an offer| Axis X | 820 mm |
| Axis Y | 510 mm |
| Axis Z | 510 mm |
| Rotary table (4th axis) | no |
| Type of CNC | SIEMENS 828D SHOPMILL |
| Table length | 1000 mm |
| Table width | 530 mm |
| Max. part weight | 500 kg |
| Number of tool pockets | 24 |
| Spindle taper | ISO40 |
| Max. spindle speed | 10000 rpm |
| Spindle motor power | 15 kW |
| ------------------- | |
| Length x width x height | 4400.0 × 4300.0 × 2900.0 |
| Weight | 6000 kg |
| worked hours | 2586 hours |
| hours under power | 8596 hours |
| state | excellent |
| At local norms | yes |
| status | under power |
| Datasheet | Huron VX8 NVU |
| Last availability date | 12/03/2026 |

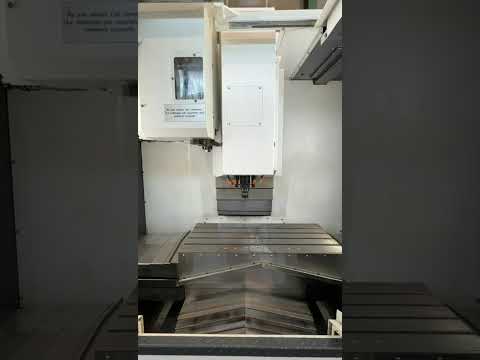

This listing is for a HURON VX8 NVU vertical machining center, manufactured in 2019. The machine features a worktable measuring 1000 mm in length and 530 mm in width, with a maximum part weight capacity of 500 kg. It offers precise machining with axis travels of 820 mm on the X-axis, 510 mm on the Y-axis, and 510 mm on the Z-axis. The spindle can reach speeds up to 10,000 rpm, powered by a 15 kW motor, and includes an ISO40 spindle taper. The machine is equipped with a 24-pocket random arm tool magazine, allowing for efficient tool changes and versatility in machining operations. It operates with a SIEMENS 828D SHOPMILL CNC control system, providing user-friendly programming and operation. Additional features include an air-conditioned cabinet to maintain optimal operating temperatures, an electronic handwheel for manual control, and Ethernet network connectivity for integration with factory systems. Cooling is managed by a high-flow system delivering 50 L/min, with preparation for spindle center cooling. The machine also includes a washing gun and air blowing nozzles to assist with chip removal, as well as a chip conveyor with skip. An isolation transformer is incorporated for electrical safety. The exterior of the machine is clean, with only a minor dent observed on the left side panel. The front access to the machining area is provided through dual doors with large glass windows and red handles, ensuring good visibility and safety during operation. The control panel is mounted on a movable arm and features a screen with multiple buttons for operational control. Overall, this HURON VX8 NVU machining center combines robust construction with advanced features suitable for various machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
• Year 2019
• Spindle hours 2586
• Hours under power 8596
• Table surface 1000 x 530 mm
• Table load capacity 500 kg
• X-axis travel 820 mm
• Y-axis travel 510 mm
• Z-axis travel 510 mm
• Rapid traverse speed 24000 mm/min
• Spindle rotation speed 10,000 rpm
• ISO40 spindle taper
• Spindle motor power
• 24-position random arm tool magazine • SIEMENS 828D SHOPMILL CNC
• Air-conditioned cabinet
• Electronic handwheel
• Ethernet network
• High-flow cooling system 50 L/min
• Preparation for central spindle cooling
• Wash gun
• Air blowing via nozzles
• Chip conveyor + skip
• Isolation transformer
• 28 tool holders and cutting tools
• 2 complete sets of collets
• Set of clamping elements
• Clamping vice
• Technical documentation and CD-ROM
• Perfect condition
• Attractive presentation
