| Manufacturer | Hurco |
|---|---|
| Model | BMC30AP |
| Year | 1994 |
| Location | Germany
|

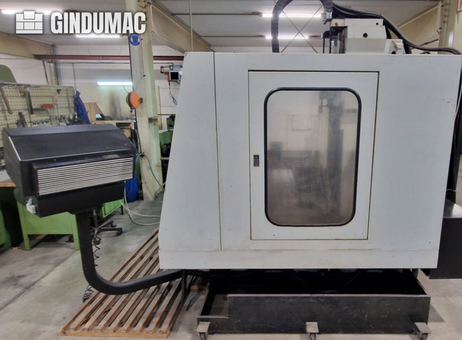

This listing is for a Hurco BMC30AP 3-axis vertical machining centre (manufactured 1994) equipped with an Ultimax 3 control (Ultimax 3 V1.53). Key machine specifications and features provided with the machine are listed below.
Machine and axis data:
- Number of axes: 3
- X travel: 760 mm
- Y travel: 460 mm
- Z travel: 500 mm

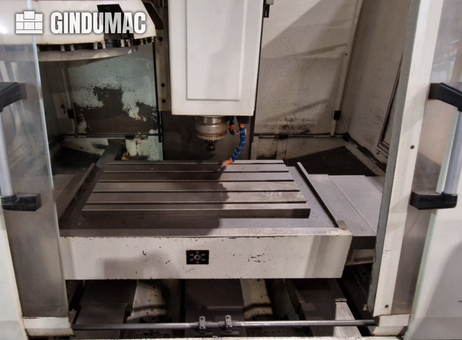

- Table size: 1000 x 450 mm
- Maximum table load: 500 kg
- Machine weight: 4600 kg
Spindle and tooling:
- Spindle power: 7.5 kW
- Spindle speed range: 30 – 6,000 RPM
- Spindle taper: ISO 40

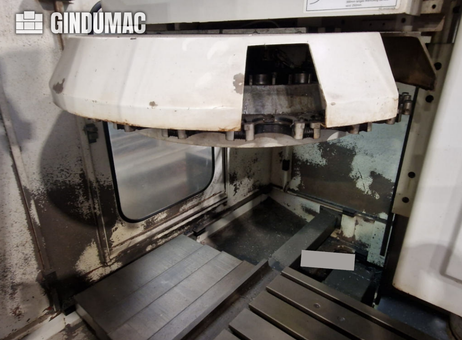

- Tool changer: 24-station umbrella-type automatic
Drive/speed features and motion:
- Two-stage gearbox with infinitely variable adjustment per range
- Rapid traverse rate: 15 m/min
Utilities and options:
- Coolant supply: flood cooling
- Chip conveyor: available
- Compressed air requirement: 6 bar
- Operating voltages supported: 440 / 415 / 380 / 220 V, 3-phase
- Mains frequency / apparent power: 50–60 Hz / 20 kVA
Control, communication and software:
- Control brand/model: HURCO Ultimax 3
- Display: TFT
- DXF option: available on the control and on floppy disk
- Computer connection: 9-pin RS-232 (Port 1)
- Included installed software: Ultimax 3 version 1.53
Included documentation and media:
- Parts listings & wiring diagrams – BMC 30 (1991, English)
- Machine operation and maintenance manual (11/1993 Rev. B, English)
- Options manual Ultimax 4 (2004 Rev. A, German)
- 2× BMC operator manuals: BMC 30 with Ultimax 3 (06/1995 Rev. C, German)
- Included software & backup floppy disks: Optikey utility disks (Security Modifier Mill V1.52–V1.59; DXF option), Ultimax 3 V1.53 Disk 1 and Disk 2, Ultimax 3 machine configuration, backup machine config
Condition and repair notes (as provided):
- The buffer battery has been depleted; the machine currently requires a reboot via the supplied floppy disks.
- One circuit board was repaired by a machine lab (new capacitors and a new Intel processor installed).
No additional components, accessories, or testing status are claimed beyond the information provided above.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Hurco BMC30AP was manufactured in 1994. It features X, Y, and Z travels of 760 mm, 460 mm, and 500 mm, respectively, with a robust table size of 1000 x 450 mm and a maximum table load capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco BMC30AP vertical machining centre we have for sale. Contact us for further details.- Display: TFT
- Spindle Speed Range: 30 - 6,000 RPM
- Gear / Speed Adjustment: Two-stage gearbox; infinitely variable per range
- Tool Changer Type: Umbrella type, automatic
- Coolant Supply: Flood cooling
- Chip Conveyor: Available
- DXF Option: Available on control and floppy disk
- Computer Connection: 9-pin; RS-232 (Port 1)
- Installed Software Version / Hardware: Ultimax 3 V1.53
- Operating Voltages: 440 / 415 / 380 / 220 V, 3-phase
- Mains Frequency / Apparent Power: 50-60 Hz / 20 kVA
- Rapid Traverse Rate: 15 m/min
- Compressed Air Requirement / Operating Pressure: 6 bar
- Included Documentation:
- Parts Listings & Wiring Diagrams - BMC 30 (1991, English)
- Machine Operation and Maintenance (11/1993 Rev. B, English)
- Options Manual Ultimax 4 (2004 Rev. A, German)
- 2x BMC Operator Manual: BMC 30 with Ultimax 3 (06/1995 Rev. C, German)
- Included Software & Backup Floppy Disks:
- Optikey Utility Disk - Security Modifier Mill V1.52-V1.59
- Optikey Utility Disk - Software Option DXF
- Ultimax 3 Version 1.53 - Disk 1 and Disk 2
- Ultimax 3 Machine Configuration
- Backup Machine Config
- Condition & Repair Notes: Machine needs to be rebooted via floppy disks because the buffer battery was depleted. One circuit board was repaired by the machine lab (new capacitors and a new Intel processor installed).
Control Brand: HURCO
Control Model: Ultimax 3
Machine Weight: 4600 kg
Number of Axes: 3
Tool Stations: 24
Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM
Table Length: 1000 mm
Table Load: 500 kg
Table Width: 450 mm
Taper Size: ISO 40
X-axis Travel: 760 mm
Y-axis Travel: 460 mm
Z-axis Travel: 500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
