Contact us to receive an offer.
| Manufacturer | HT MIR |
|---|---|
| Model | RMP 675 |
| Year | |
| Location | Italy
|
This HT MIR RMP 675 injection molding machine offers a robust clamping force of 675 tons (6750 kN), suitable for heavy-duty molding applications. It features a screw diameter of 90 mm and a shot volume capacity of 2608 cm³, with a maximum shot weight of 2300 grams for injectable polystyrene material. The machine’s tie bar spacing measures 890 mm vertically and 820 mm horizontally, accommodating molds with sizes ranging from 300 mm to 830 mm. The external dimensions of the shelves are 1340 mm by 1260 mm.

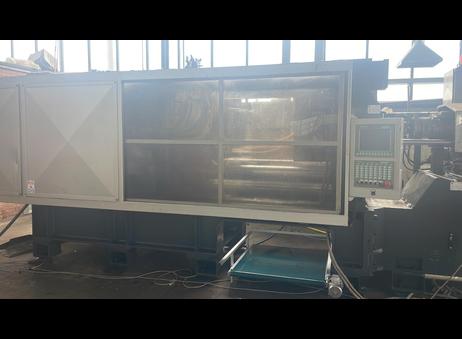

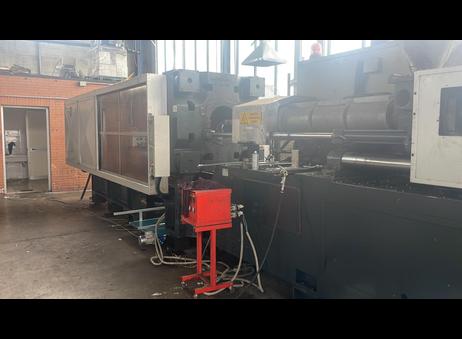

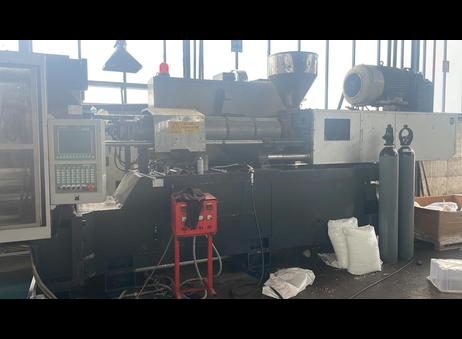

The machine itself measures 11.2 meters in length, 2.2 meters in width, and 2.7 meters in height, with a total weight of 30,000 kg. It is equipped with a protective enclosure and a control panel located on the side, which includes multiple buttons and a display screen for operational control. A red control box on a stand with connected cables is present, along with two upright gas or air cylinders adjacent to the machine.
Additional features include a hopper and motor mounted on top, a hydraulic or mechanical clamping unit at the rear, and a conveyor belt or tray underneath for efficient part collection. Power cables and hoses are connected beneath the machine. The machine is situated in a clean indoor industrial environment, with typical molding environment elements such as plastic pellets and bags nearby.

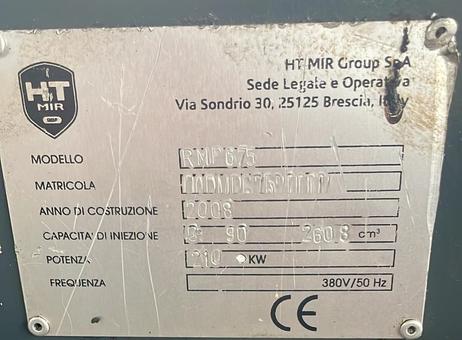

Safety is addressed with warning labels indicating high material temperature and other safety precautions on the enclosure. The machine surface appears intact without visible damage or rust, reflecting good maintenance. The machine operates at 210 kW power and requires a voltage/frequency of 380V/50 Hz. The year of manufacture is 2008.
This injection molding machine is suitable for industrial use where high clamping force and large shot volume are required, supported by comprehensive operational and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Closing force: 6750 kn (675 ton)
Screw diameter: 90
injectable volume: 2608 cm3
Volume of injectable polystyrene material: 2300 gr
Distance between columns: 890 x 820 mm
External dimensions of the shelves: 1340 x 1260 mm
Mold size: min max 300-830 mm
Machine dimensions: 11.2 × 2.2 × 2.7 m
Weight: 30,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 41 |
| Last activity | Oct. 30, 2026 |
Closing force: 6750 kn (675 ton)
Screw diameter: 90
injectable volume: 2608 cm3
Volume of injectable polystyrene material: 2300 gr
Distance between columns: 890 x 820 mm
External dimensions of the shelves: 1340 x 1260 mm
Mold size: min max 300-830 mm
Machine dimensions: 11.2 × 2.2 × 2.7 m
Weight: 30,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This HT MIR RMP 675 injection molding machine offers a robust clamping force of 675 tons (6750 kN), suitable for heavy-duty molding applications. It features a screw diameter of 90 mm and a shot volume capacity of 2608 cm³, with a maximum shot weight of 2300 grams for injectable polystyrene material. The machine’s tie bar spacing measures 890 mm vertically and 820 mm horizontally, accommodating molds with sizes ranging from 300 mm to 830 mm. The external dimensions of the shelves are 1340 mm by 1260 mm.
The machine itself measures 11.2 meters in length, 2.2 meters in width, and 2.7 meters in height, with a total weight of 30,000 kg. It is equipped with a protective enclosure and a control panel located on the side, which includes multiple buttons and a display screen for operational control. A red control box on a stand with connected cables is present, along with two upright gas or air cylinders adjacent to the machine.
Additional features include a hopper and motor mounted on top, a hydraulic or mechanical clamping unit at the rear, and a conveyor belt or tray underneath for efficient part collection. Power cables and hoses are connected beneath the machine. The machine is situated in a clean indoor industrial environment, with typical molding environment elements such as plastic pellets and bags nearby.
Safety is addressed with warning labels indicating high material temperature and other safety precautions on the enclosure. The machine surface appears intact without visible damage or rust, reflecting good maintenance. The machine operates at 210 kW power and requires a voltage/frequency of 380V/50 Hz. The year of manufacture is 2008.
This injection molding machine is suitable for industrial use where high clamping force and large shot volume are required, supported by comprehensive operational and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 41 |
| Last activity | Oct. 30, 2026 |
