| Manufacturer | HPM |
|---|---|
| Model | II-400-A |
| Year | |
| Location | Canada
|
| Category | Miscellaneous presses and forging machines |
| Force | 400 T |
| Length x width x height | 6532.0 × 2987.0 × 2042.0 |
| Weight | 17241.37931 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 18/10/2026 |
| Product id | P2402281581 |
| Language |
None HPM II-400-A
HPM II-400-A
HPM II-400-A None
HPM II-400-A
None HPM II-400-A
USED HPM 400 TON COLD CHAMBER DIE CASTING MACHINE
HPM II-400-A
HPM II-400-A
None HPM II-400-A
HPM II-400-A None
HPM II-400-A
None HPM II-400-A
HPM II-400-A None
HPM II-400-A
HPM II-400-A
None HPM II-400-A
HPM II-400-A
None HPM II-400-A
HPM II-400-A None
HPM II-400-A
|

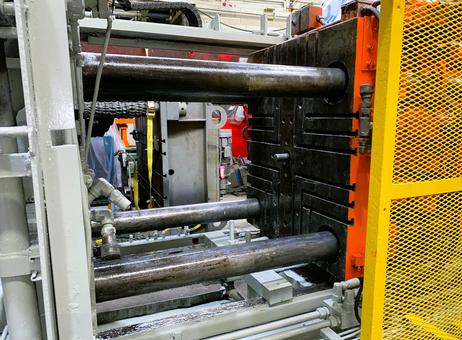

This HPM II-400-A industrial press offers a robust 400-ton locking force, suitable for heavy-duty pressing and forging applications. The machine features a substantial frame measuring approximately 6532 mm in length, 2987 mm in width, and 2042 mm in height, with a total weight of around 17,241 kg. It is designed with three large steel tie bars running horizontally through the frame, each with a diameter of 5 inches, providing structural strength and stability. The distance between the tie bars is 24 by 24 inches, accommodating sizable dies.

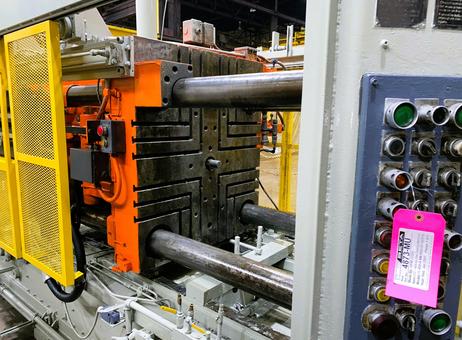

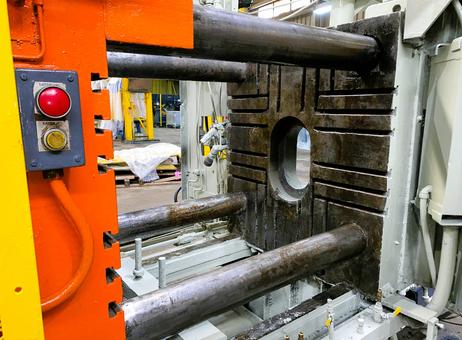

The press includes a moving platen sized at 30 inches by 43.75 inches, equipped with multiple slots and holes for versatile mold mounting. The die thickness capacity ranges from 12 to 30 inches, and the die stroke is 15 inches, allowing for significant material deformation. An ejector system is integrated, featuring a fixed mechanical ejector plate with a stroke of 5 inches and an ejector force of 12.72 tons. The press is powered by a 40 HP main motor.

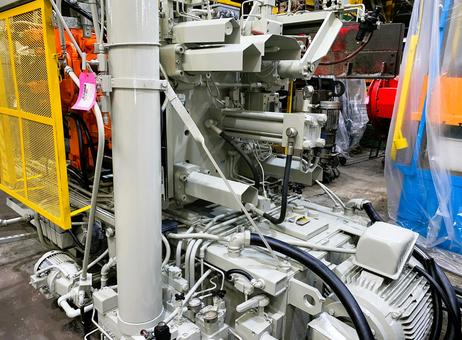

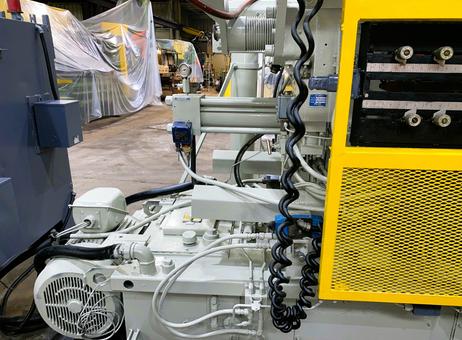

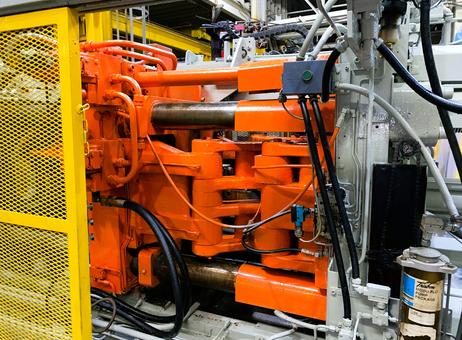

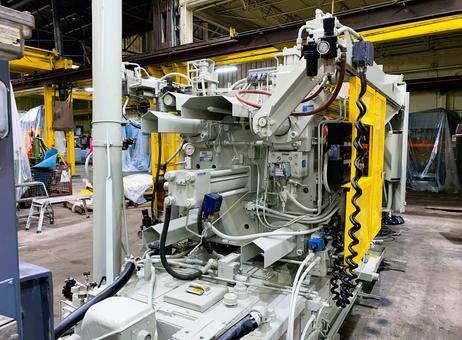

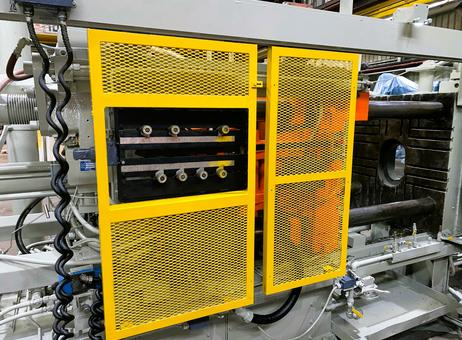

Hydraulic components, including cylinders and pistons painted orange, are visible within the machine, connected by multiple hydraulic hoses and electrical cables. The hydraulic pump and motor assembly are mounted at the base of the machine, facilitating its operation. Safety is addressed with a yellow safety mesh panel on the side, providing protection around moving parts.
Control of the press is managed via an Allen Bradley SLC 5/03 solid-state control system, with a control panel featuring multiple push buttons and indicator lights for operational management. The machine also includes auxiliary hydraulic slide core circuits on both the moving and stationary platens, as well as a hydraulic motorized die height automatic system and a Trabon oil-type automatic lubrication system.

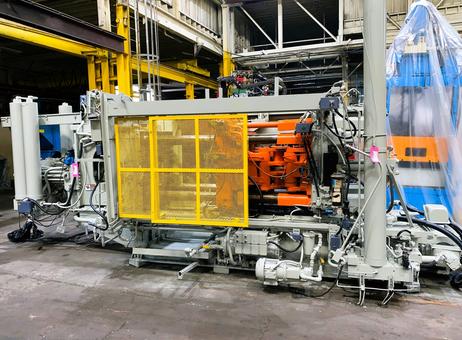

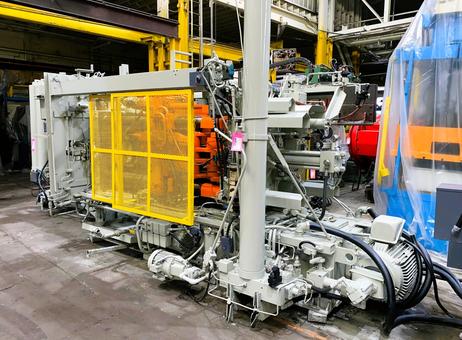

The machine is observed to be clean and well-maintained, showing signs of use but no visible damage, rust, or leaks. It is currently set up indoors on a concrete floor within an industrial environment. This HPM II-400-A press is a heavy-duty, versatile machine suitable for various pressing tasks requiring significant force and precision.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
SPECIFICATIONS IMPERIAL SHOW METRIC
DIE CLOSE
Locking Force 400 tons
Distance Between Tie Bars (W x H) 24 x 24 inch
Tie Bar Diameter: 5 inch
Machine Weight (approx): 38000 lbs
Size (L x W x H): 21.4 x 9.8 x 6.7 ft
ADDITIONAL SPECIFICATIONS
Die Thickness (min-max): 12-30"
Die Stroke: 15"
Moving Platen Size (H x V): 30" x 43.75"
Ejector Stroke & Force: 5" & 12.72 tons
Main Motor Power: 40 HP
Safety Ratchet Device, Manual Operator & Helper Safety Door.
Center Platen Hydraulic Ejection
Fixed Mechanical Ejector Plate
Trabon Oil Type Automatic Lubrication System
One (1) Auxiliary Hydraulic Slide Core Circuit on Moving Platen & One (1) on Stationary Platen.
Hydraulic Motorized Die Height Automatic System.
CONTROL
Allen Bradley SLC 5/03 Solid State Controls
AVAILABILITY AND TERMS
Machine is ready for inspection and/or shipping
Technical data without obligation – subject to prior sale
Specifications and location are subject to change without notice
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
