Loading/unloading dock for sale

hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089
hormann HTL 2 P260529089

3,500 € Price is negotiable

Make an offer
  • - Secured payment for the purchase
  • - Dedicated compliance check of the seller
  • - Logistics and customs support if applicable
  • - After-sale follow up if needed

Contact us to receive an offer.

Manufacturer hormann
Model HTL 2
Year 2019
Location France FR
Raphael
Your dedicated contact
Raphael M.

Specifications

Category Handling - Other material handling machines
Load capacity 6000 kg
worked hours
hours under power
state in working conditions
At local norms ---------
status visible
Last availability date 04/07/2026
Product id P260529089
Language
bg Продава се товаро-разтоварна рампа
cs Prodej nakládací/vykládací rampy
da Læsse-/losserock til salg
de Lade-/Entladerampe zu verkaufen
el Αποβάθρα φόρτωσης/εκφόρτωσης προς πώληση
en Loading/unloading dock for sale
es Muelle de carga/descarga en venta
fr Vente de quai de chargement / déchargement
hr Prodaje se utovarno-istovarna rampa
hu Rakodó/kirakodó dokk eladó
it Banchina di carico/scarico in vendita
lt Pakrovimo/iškrovimo rampa parduodama
nl Laad-/losperron te koop
pl Dok załadunkowo-rozładunkowy na sprzedaż
pt Doca de carga/descarga à venda
ro Platformă de încărcare/descărcare de vânzare
ru Продается погрузочно-разгрузочная платформа.
sr Prodaje se utovarno-istovarna rampa
sv Lastnings-/lossningsbrygga till salu
tr Yükleme/boşaltma iskelesi satılık

Automatic description (AI-Generated)

For sale is a HÖRMANN HTL 2 telescopic lip dock leveller, manufactured in 2019. This model features a self-supporting, hinged steel construction designed to comply with EN 1398 and BGR 233 guidelines, suitable for installation behind a door. It has a standard load capacity of 6000 kg (60 kN) according to EN 1398. When using forklifts with hard tires such as polyurethane or Vulkollan, the permissible load is limited to 40 kN for reach trucks. The dock leveller supports an upward or downward slope of up to 12.5% (approximately 7°) in accordance with relevant standards.

The platform is made from 8/10 mm thick checkered steel plate with a telescopic lip of 12/14 mm thickness, measuring 500 mm in length. The construction is warp-resistant and uses 2-cylinder technology. It is designed for pit installation (Model P) and is mounted by welding. For lengths of 3500 mm and above or higher rated loads, a user-supplied support profile is required.

The steel surfaces are sandblasted and coated with a 2-component polyurethane powder coating in RAL 5002 ultramarine blue, with a layer thickness between 60 and 80 µm. The platform and lip feature an anti-slip checker plate surface. The electro-hydraulic drive includes a 1.1 kW motor with a 400 V / 50 Hz connection and an IP54 protection rating. The standard connection cable length is at least 7.5 meters.

The dock leveller is equipped with a 420 T control unit housed in a shielded IP65-rated box. It supports 400 V or 230 V / 50 Hz or 60 Hz connections and includes a touch keypad for independent activation of the dock leveller and telescopic lip, along with an automatic return function.

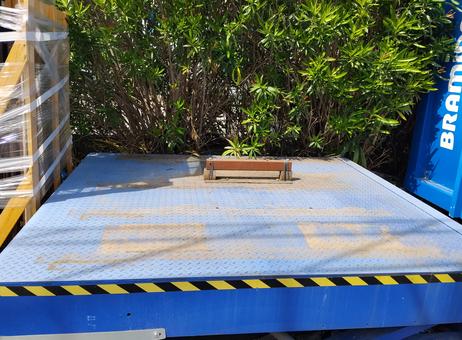

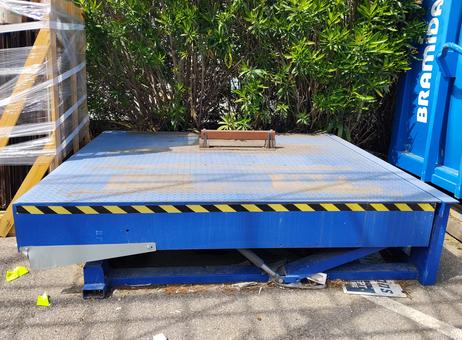

Visible features include a blue metal platform with a diamond plate surface showing some dirt and discoloration, a brown handle or bar mounted at the top center of the platform exhibiting signs of rust and weathering, and black and yellow caution tape along the front edge. A hydraulic or mechanical lift mechanism is visible underneath, along with a supporting frame structure beneath the platform. Some dirt and minor wear are present on the surface and components, consistent with outdoor storage conditions.

The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

Seller's description

For sale: Brand new loading/unloading dock, never used, stored outdoors.
HÖRMANN HTL 2 telescopic lip dock leveller
Self-supporting, hinged steel construction, compliant with EN 1398 and BGR 233 guidelines, also suitable for installation behind a door.

Standard load capacity: 60 kN according to EN 1398.
The use of forklifts equipped with hard tires (polyurethane/Vulkollan) restricts the permissible load to 40 kN for reach trucks.
Upward/downward slope up to 12.5% ​​(approx. 7°) according to EN 1398 and BGR 233 guidelines; for the service range, see the sales documents.

Construction
Warp-resistant dock leveller construction with 2-cylinder technology, platform made of 8/10 mm thick checkered steel plate with a telescopic lip made of 12/14 mm thick checkered steel plate, 500 mm long, optionally 1000 mm (60 kN rated load) or 1200 mm (50 kN rated load), with incline.

Installation
Model for pit P
Mounted by welding.
For lengths of 3500 mm and above, and for higher rated loads, a user-supplied support profile is mandatory.

Surfaces
Sandblasted steel surfaces with a 2-component PU powder coating (60-80 µm layer thickness) in RAL 5002 ultramarine blue.

Temperature range
Standard version suitable for a temperature range (under the dock leveller) of -10 to +50 °C. For lower temperatures, the use of a special oil is mandatory; see accessories.
Anti-slip protection
Platform and lip made of anti-slip checker plate. On request, anti-slip coating class R11 according to DIN 51130, 1 to 2 mm thick, made of polyurethane with injected Twaron fiber, black surface, available for dock levellers in RAL 9017 (black).
Sound insulation
Same as the anti-slip coating, but 3 to 4 mm thick on the platform.
Drive
Electro-hydraulic drive, standard motor power of 1.1 kW, connection voltage 400 V / 50 Hz (other frequencies, see page 14), protection rating IP 54. Standard connection cable, minimum length 7.5 m.

420 T Control Unit (standard)
Shielded control box, IP65 protection rating, 400 V or 230 V / 50 Hz or 60 Hz connection voltage, integrated touch keypad for independent activation of the dock leveller and telescopic lip by continuous pressure, and an "Auto" button for automatic return to the rest position. Multi-pole disconnect switch, restart interlock.

Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.


Client type Factory – small or medium company
Active since 2026
Offers online 1
Last activity July 11, 2026

Seller's description

For sale: Brand new loading/unloading dock, never used, stored outdoors.
HÖRMANN HTL 2 telescopic lip dock leveller
Self-supporting, hinged steel construction, compliant with EN 1398 and BGR 233 guidelines, also suitable for installation behind a door.

Standard load capacity: 60 kN according to EN 1398.
The use of forklifts equipped with hard tires (polyurethane/Vulkollan) restricts the permissible load to 40 kN for reach trucks.
Upward/downward slope up to 12.5% ​​(approx. 7°) according to EN 1398 and BGR 233 guidelines; for the service range, see the sales documents.

Construction
Warp-resistant dock leveller construction with 2-cylinder technology, platform made of 8/10 mm thick checkered steel plate with a telescopic lip made of 12/14 mm thick checkered steel plate, 500 mm long, optionally 1000 mm (60 kN rated load) or 1200 mm (50 kN rated load), with incline.

Installation
Model for pit P
Mounted by welding.
For lengths of 3500 mm and above, and for higher rated loads, a user-supplied support profile is mandatory.

Surfaces
Sandblasted steel surfaces with a 2-component PU powder coating (60-80 µm layer thickness) in RAL 5002 ultramarine blue.

Temperature range
Standard version suitable for a temperature range (under the dock leveller) of -10 to +50 °C. For lower temperatures, the use of a special oil is mandatory; see accessories.
Anti-slip protection
Platform and lip made of anti-slip checker plate. On request, anti-slip coating class R11 according to DIN 51130, 1 to 2 mm thick, made of polyurethane with injected Twaron fiber, black surface, available for dock levellers in RAL 9017 (black).
Sound insulation
Same as the anti-slip coating, but 3 to 4 mm thick on the platform.
Drive
Electro-hydraulic drive, standard motor power of 1.1 kW, connection voltage 400 V / 50 Hz (other frequencies, see page 14), protection rating IP 54. Standard connection cable, minimum length 7.5 m.

420 T Control Unit (standard)
Shielded control box, IP65 protection rating, 400 V or 230 V / 50 Hz or 60 Hz connection voltage, integrated touch keypad for independent activation of the dock leveller and telescopic lip by continuous pressure, and an "Auto" button for automatic return to the rest position. Multi-pole disconnect switch, restart interlock.

Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
