| Manufacturer | Horizon |
|---|---|
| Model | Stitchliner 6000 |
| Year | 2016 |
| Location | Germany
|

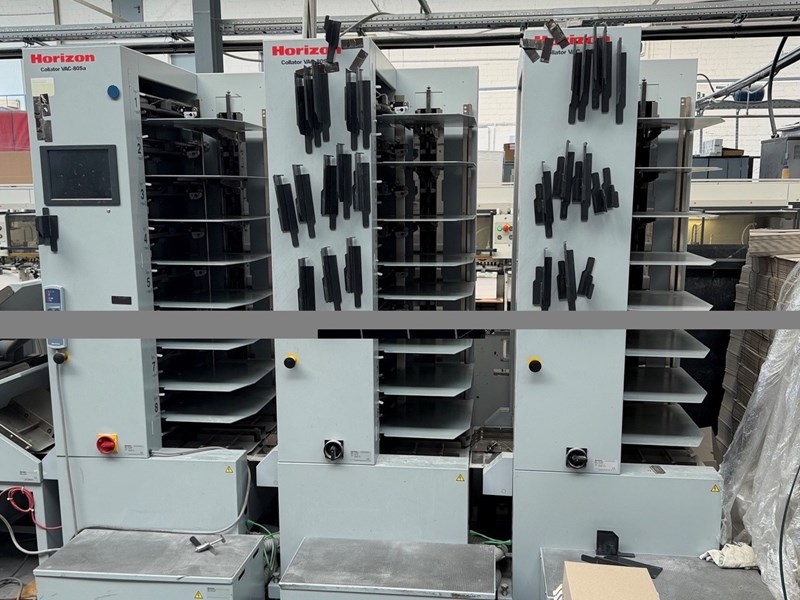

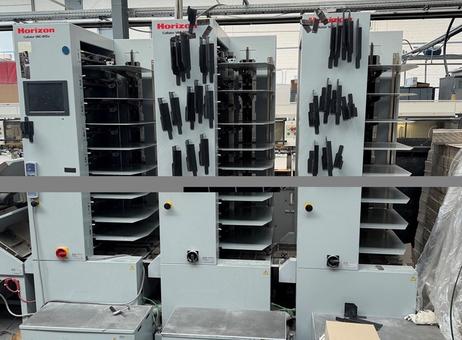

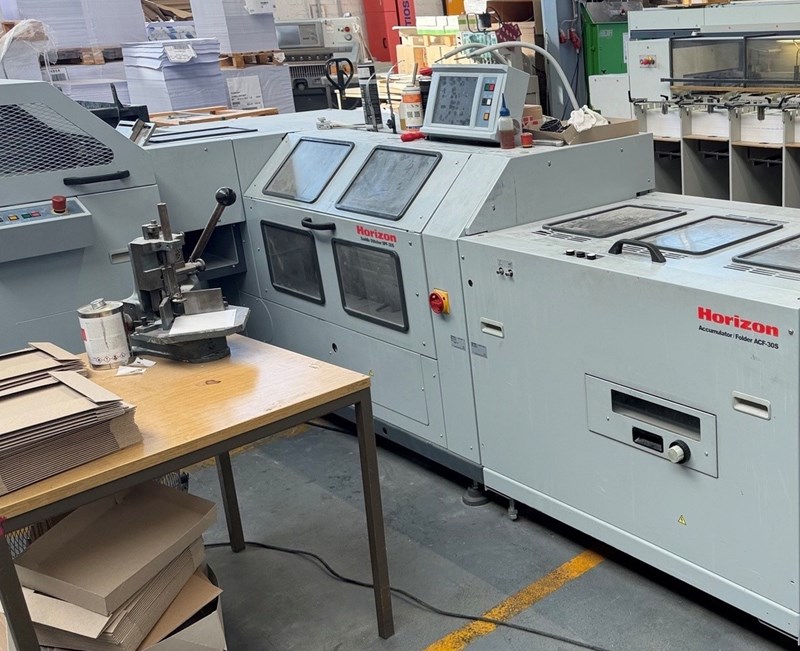

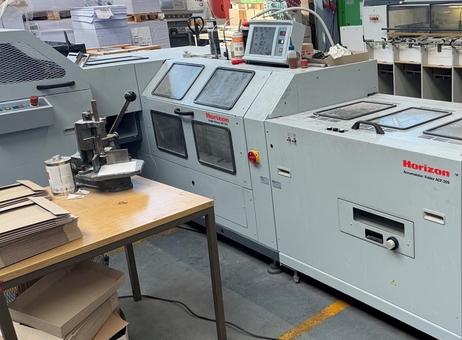

Used Horizon StitchLiner 6000 saddle-stitching system, manufactured in 2016. This inline booklet-production line combines collating, accumulating, folding, saddle stitching and three-side trimming. The listed configuration includes two VAC-80Sm collating towers, one VAC-80Sa collating tower, an ACF-30 accumulating and folding unit, an SPF-30 saddle-stitcher and an HTS-30 three-knife trimmer. The machine has 24 stations in total. Visible sections include Horizon collator units, an accumulator/folder, and enclosed finishing sections with inspection windows and controls. The exterior shows light scuffs and small marks consistent with used equipment.
The system is described as supporting variable-data processing, variable page counts and automatic format adjustment. Its maximum sheet size is 350 × 500 mm, with a minimum size of 120 × 210 mm. The stated paper-weight range is 64–300 g/m², and the maximum processing thickness is 5 mm. Production speed is listed at up to 6,000 booklets per hour. Stitch spacing is 60–150 mm. The listed maximum and minimum untrimmed sizes are 350 × 250 mm and 120 × 85 mm; trimmed sizes are 340 × 240 mm maximum and 85 × 75 mm minimum.
The listed overall dimensions are 7,320 × 2,550 mm, and the weight is 2,300 kg. The stated power supply is 200–240 V, 50/60 Hz, with compressed air specified at 5 bar and 230 l/min. A trimmer is included. Suitable for print shops and bindery operations seeking an integrated booklet-finishing line. Condition is used; no claim is made here about operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used Horizon StitchLiner 6000 Saddle-Stitching System
The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production. It combines collating, scoring, folding, stitching, and three-side trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, binderies, and on-demand printing.
This StitchLiner 6000 consists of the following components:
- 2x VAC-80Sm Collating Towers
- 1x VAC-80Sa Collating Tower
- ACF-30 Accumulating and Folding Unit

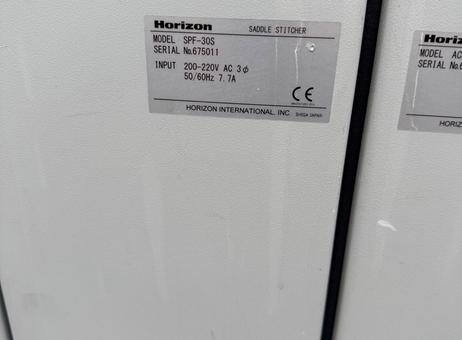

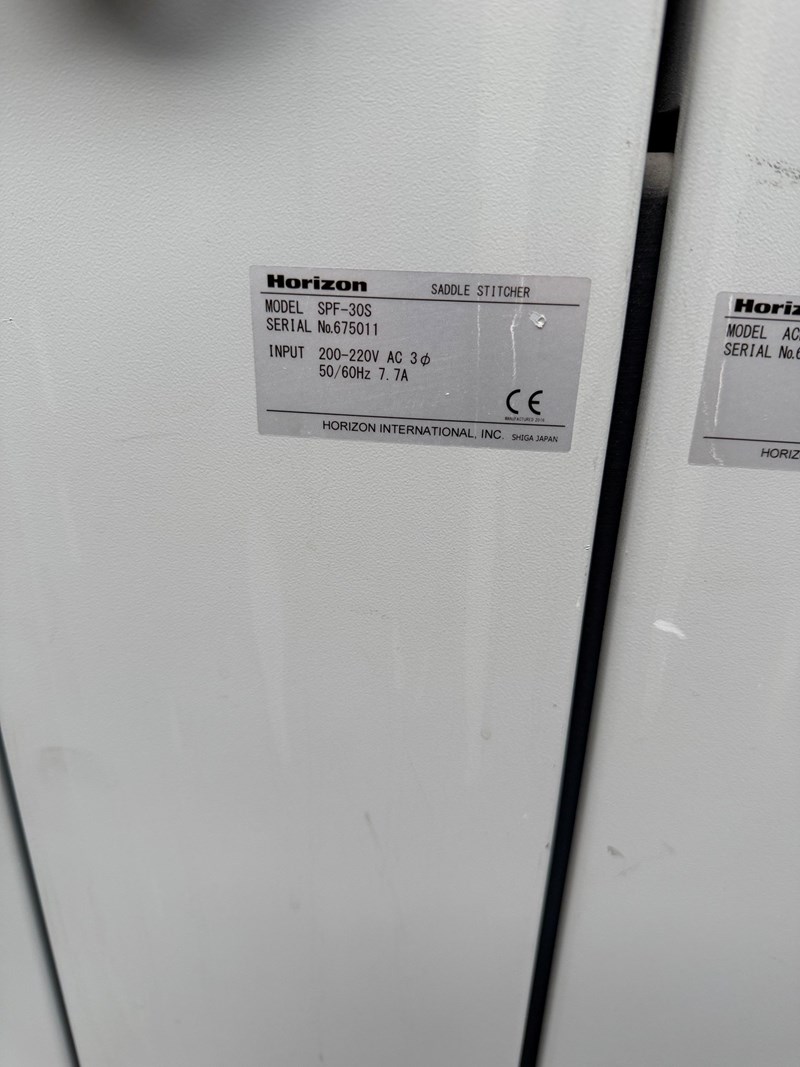

- SPF-30 Saddle-Stitcher

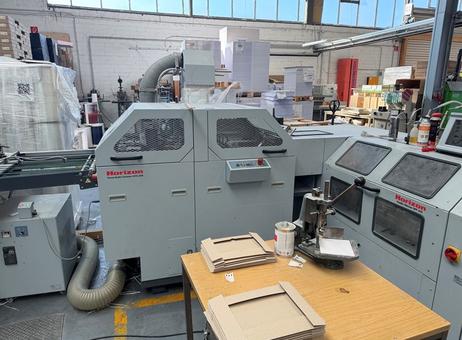

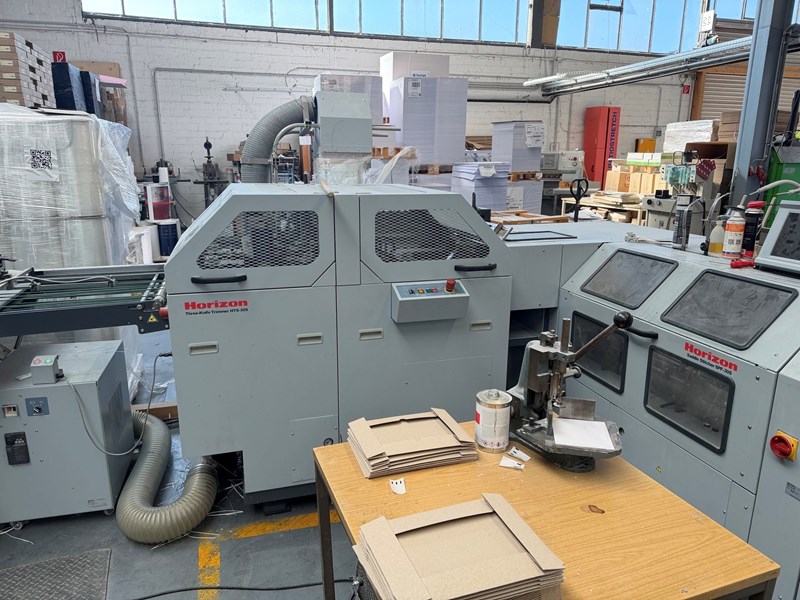

- HTS-30 Three-Knife Trimmer
Key Features:
- 24 stations (3 x 8 stations)
- Inline production from collating to finished product
- Variable data processing: The system can handle personalized prints and variable page numbers, making it ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen for user-friendly operation, even for less experienced operators
Technical Specifications:
- Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm
- Paper weight: 64-300 g/m²
- Processing thickness: Up to 5 mm (approx. 50 sheets of 80 g/m²)
- Production speed: Up to 6,000 booklets/hour
- Stitch spacing: 60-150 mm
- Trimming (untrimmed): Max. 350 x 250 mm, Min. 120 x 85 mm
- Trimming (trimmed): Max. 340 x 240 mm, Min. 85 x 75 mm
- Power supply: 200-240V, 50/60Hz
- Compressed air: 5 bar, 230 l/min
- Floor space: Approx. 7,320 x 2,550 mm (without delivery)
- Total weight: Approx. 2,300 kg
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 88 |
| Last activity | Oct. 26, 2026 |
Founded in 2006 and based in Volkach, Germany, LA‑POSTPRESS is a specialist dealer in high‑quality used postpress machinery aimed at printers, finishing houses, and graphic industry professionals. Their core offering consists of machines like folders, binders, saddle-stitchers, cutters & trimmers, booklet makers and collators — many from the renowned manufacturer Horizon.
With a strong focus on product quality, each machine that arrives is fully refurbished: disassembled, cleaned, tested, and fitted with replacement parts when needed. LA‑POSTPRESS pairs this with a 3‑month warranty, and provides reliable worldwide shipping — inside Germany/Austria even by their own trucks.
The company also emphasizes environmental responsibility by extending the usable life of printing technology — offering cost‑effective alternatives to new machines while reducing waste.
Used Horizon StitchLiner 6000 Saddle-Stitching System
The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production. It combines collating, scoring, folding, stitching, and three-side trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, binderies, and on-demand printing.
This StitchLiner 6000 consists of the following components:
- 2x VAC-80Sm Collating Towers
- 1x VAC-80Sa Collating Tower
- ACF-30 Accumulating and Folding Unit
- SPF-30 Saddle-Stitcher
- HTS-30 Three-Knife Trimmer
Key Features:
- 24 stations (3 x 8 stations)
- Inline production from collating to finished product
- Variable data processing: The system can handle personalized prints and variable page numbers, making it ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen for user-friendly operation, even for less experienced operators
Technical Specifications:
- Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm
- Paper weight: 64-300 g/m²
- Processing thickness: Up to 5 mm (approx. 50 sheets of 80 g/m²)
- Production speed: Up to 6,000 booklets/hour
- Stitch spacing: 60-150 mm
- Trimming (untrimmed): Max. 350 x 250 mm, Min. 120 x 85 mm
- Trimming (trimmed): Max. 340 x 240 mm, Min. 85 x 75 mm
- Power supply: 200-240V, 50/60Hz
- Compressed air: 5 bar, 230 l/min
- Floor space: Approx. 7,320 x 2,550 mm (without delivery)
- Total weight: Approx. 2,300 kg
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Used Horizon StitchLiner 6000 saddle-stitching system, manufactured in 2016. This inline booklet-production line combines collating, accumulating, folding, saddle stitching and three-side trimming. The listed configuration includes two VAC-80Sm collating towers, one VAC-80Sa collating tower, an ACF-30 accumulating and folding unit, an SPF-30 saddle-stitcher and an HTS-30 three-knife trimmer. The machine has 24 stations in total. Visible sections include Horizon collator units, an accumulator/folder, and enclosed finishing sections with inspection windows and controls. The exterior shows light scuffs and small marks consistent with used equipment.
The system is described as supporting variable-data processing, variable page counts and automatic format adjustment. Its maximum sheet size is 350 × 500 mm, with a minimum size of 120 × 210 mm. The stated paper-weight range is 64–300 g/m², and the maximum processing thickness is 5 mm. Production speed is listed at up to 6,000 booklets per hour. Stitch spacing is 60–150 mm. The listed maximum and minimum untrimmed sizes are 350 × 250 mm and 120 × 85 mm; trimmed sizes are 340 × 240 mm maximum and 85 × 75 mm minimum.
The listed overall dimensions are 7,320 × 2,550 mm, and the weight is 2,300 kg. The stated power supply is 200–240 V, 50/60 Hz, with compressed air specified at 5 bar and 230 l/min. A trimmer is included. Suitable for print shops and bindery operations seeking an integrated booklet-finishing line. Condition is used; no claim is made here about operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 88 |
| Last activity | Oct. 26, 2026 |
Founded in 2006 and based in Volkach, Germany, LA‑POSTPRESS is a specialist dealer in high‑quality used postpress machinery aimed at printers, finishing houses, and graphic industry professionals. Their core offering consists of machines like folders, binders, saddle-stitchers, cutters & trimmers, booklet makers and collators — many from the renowned manufacturer Horizon.
With a strong focus on product quality, each machine that arrives is fully refurbished: disassembled, cleaned, tested, and fitted with replacement parts when needed. LA‑POSTPRESS pairs this with a 3‑month warranty, and provides reliable worldwide shipping — inside Germany/Austria even by their own trucks.
The company also emphasizes environmental responsibility by extending the usable life of printing technology — offering cost‑effective alternatives to new machines while reducing waste.
