| Manufacturer | Horizon |
|---|---|
| Model | SPF-200A FC-200A VAC-100a VAC-100m |
| Year | 2010 |
| Location | Germany
|
Overview
Used Horizon booklet production line comprising: SPF-200A stitch-and-fold unit, FC-200A front trimmer, and two collating towers (VAC-100a and VAC-100m) providing a total of 20 feeding stations. Manufacturer: Horizon. Model designation: SPF-200A FC-200A VAC-100a VAC-100m. Year manufactured: 2010.
Key capabilities
- Fully automatic saddle-stitch booklet production with automated format setting and error checks for missing/double sheets and jams.
- Modular layout: collating towers can be added to increase feeding capacity; system supports upgrades such as additional stitching heads (up to 4) and loop stitching options.
- High throughput: collating towers quoted up to 9,500 sets/hour; booklet output quoted up to 4,500 A5 or 4,000 A4 booklets/hour (specs as provided).
Technical specifications (as provided)
- Machine footprint (L × W × H): about 3,450 × 810 × 1,250 mm. Weight: about 1,365 kg.
- Input size: max 508 × 356 mm, min 180 × 105 mm. Final booklet size: max 250 × 356 mm, min 85 × 105 mm.
- Paper weight range: 64–300 gsm. Booklet thickness: up to 25 sheets / 100 pages (80 gsm).
- Stitching: standard 0.4–0.5 mm wire, optional 0.6 mm. Collating tower (each): 10 stations; size max 500 × 350 mm, min 148 × 120 mm; paper 40–250 gsm; capacity 55 mm per station.
- Power: 230 V / 50 Hz.
Included components and visible items

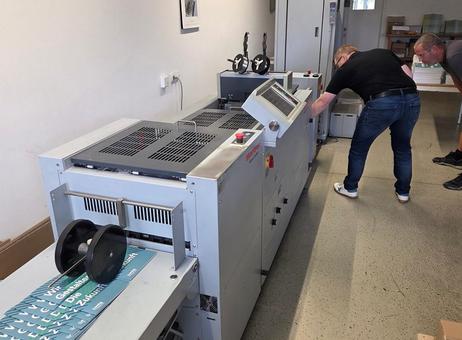

- Angled touchscreen control panel with associated control buttons and a prominent red emergency stop button.

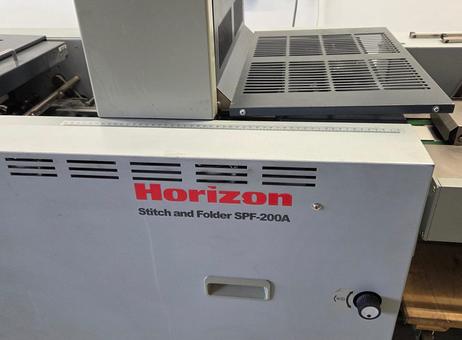

- Front panel bearing Horizon branding and model designation (Stitch and Folder SPF-200A).
- Ventilation grilles along side and top panels, right-side control dial and lower access panel with a small warning label.

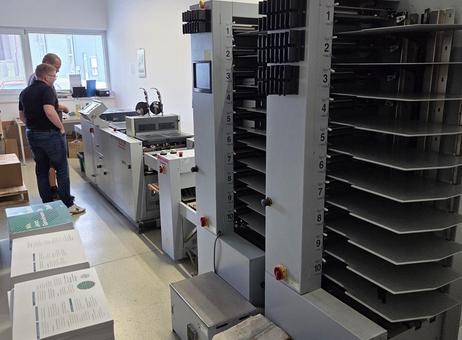

- Tall vertical stacker/tray units for finished sheets.
- Top-mounted spool/roll holders appear present; please confirm presence and condition if these are required for your setup.
Condition note
There are visible signs of external wear on metal housings and panels; please request additional photos or inspection to verify cosmetic and functional condition prior to purchase.
Service and logistics
An all-inclusive service package and customized leasing options are offered (packaging, transport, customs clearance) — contact seller for details and verification.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Booklet Production HORIZON SPF-200A FC-200A VAC-100a VAC-100m
This used Horizon booklet system is a powerful machine for professional production of saddle-stitched booklets. It consists of these main parts:
- SPF-200A stitching unit
- FC-200A front trimmer
- 2 VAC-100a and VAC-100m collating towers with 20 feeding stations total
Key features:
- Fully automatic: Efficient and automated booklet production
- Modular: Can add more collating towers to increase capacity
- Flexible: Handles offset and digital prints, good for small to medium runs
- Automatic format setting: Quick setup for different sizes
- High speed: Up to 9,500 sets per hour
- Error prevention: Checks for missing/double sheets and jams
- Expandable stitching: Can upgrade to 4 stitching heads and loop stitching
Technical specs:
- Input size: max 508 x 356 mm, min 180 x 105 mm
- Final booklet size: max 250 x 356 mm, min 85 x 105 mm
- Paper weight: 64 to 300 gsm
- Booklet thickness: max 25 sheets / 100 pages (80 gsm)
- Speed: Up to 4,500 A5 or 4,000 A4 booklets per hour
- Stitching: Standard 0.4-0.5 mm wire, optional 0.6 mm
- Collating towers (each):
- 10 stations
- Size: max 500 x 350 mm, min 148 x 120 mm
- Paper: 40-250 gsm
- Capacity: 55 mm per station
- Speed: Up to 9,500 sets/hour
- Power: 230V/50Hz
- Weight: About 1,365 kg
- Size: About 3,450 x 810 x 1,250 mm (L x W x H)
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 88 |
| Last activity | Oct. 28, 2026 |
Founded in 2006 and based in Volkach, Germany, LA‑POSTPRESS is a specialist dealer in high‑quality used postpress machinery aimed at printers, finishing houses, and graphic industry professionals. Their core offering consists of machines like folders, binders, saddle-stitchers, cutters & trimmers, booklet makers and collators — many from the renowned manufacturer Horizon.
With a strong focus on product quality, each machine that arrives is fully refurbished: disassembled, cleaned, tested, and fitted with replacement parts when needed. LA‑POSTPRESS pairs this with a 3‑month warranty, and provides reliable worldwide shipping — inside Germany/Austria even by their own trucks.
The company also emphasizes environmental responsibility by extending the usable life of printing technology — offering cost‑effective alternatives to new machines while reducing waste.
Booklet Production HORIZON SPF-200A FC-200A VAC-100a VAC-100m
This used Horizon booklet system is a powerful machine for professional production of saddle-stitched booklets. It consists of these main parts:
- SPF-200A stitching unit
- FC-200A front trimmer
- 2 VAC-100a and VAC-100m collating towers with 20 feeding stations total
Key features:
- Fully automatic: Efficient and automated booklet production
- Modular: Can add more collating towers to increase capacity
- Flexible: Handles offset and digital prints, good for small to medium runs
- Automatic format setting: Quick setup for different sizes
- High speed: Up to 9,500 sets per hour
- Error prevention: Checks for missing/double sheets and jams
- Expandable stitching: Can upgrade to 4 stitching heads and loop stitching
Technical specs:
- Input size: max 508 x 356 mm, min 180 x 105 mm
- Final booklet size: max 250 x 356 mm, min 85 x 105 mm
- Paper weight: 64 to 300 gsm
- Booklet thickness: max 25 sheets / 100 pages (80 gsm)
- Speed: Up to 4,500 A5 or 4,000 A4 booklets per hour
- Stitching: Standard 0.4-0.5 mm wire, optional 0.6 mm
- Collating towers (each):
- 10 stations
- Size: max 500 x 350 mm, min 148 x 120 mm
- Paper: 40-250 gsm
- Capacity: 55 mm per station
- Speed: Up to 9,500 sets/hour
- Power: 230V/50Hz
- Weight: About 1,365 kg
- Size: About 3,450 x 810 x 1,250 mm (L x W x H)
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Overview
Used Horizon booklet production line comprising: SPF-200A stitch-and-fold unit, FC-200A front trimmer, and two collating towers (VAC-100a and VAC-100m) providing a total of 20 feeding stations. Manufacturer: Horizon. Model designation: SPF-200A FC-200A VAC-100a VAC-100m. Year manufactured: 2010.
Key capabilities
- Fully automatic saddle-stitch booklet production with automated format setting and error checks for missing/double sheets and jams.
- Modular layout: collating towers can be added to increase feeding capacity; system supports upgrades such as additional stitching heads (up to 4) and loop stitching options.
- High throughput: collating towers quoted up to 9,500 sets/hour; booklet output quoted up to 4,500 A5 or 4,000 A4 booklets/hour (specs as provided).
Technical specifications (as provided)
- Machine footprint (L × W × H): about 3,450 × 810 × 1,250 mm. Weight: about 1,365 kg.
- Input size: max 508 × 356 mm, min 180 × 105 mm. Final booklet size: max 250 × 356 mm, min 85 × 105 mm.
- Paper weight range: 64–300 gsm. Booklet thickness: up to 25 sheets / 100 pages (80 gsm).
- Stitching: standard 0.4–0.5 mm wire, optional 0.6 mm. Collating tower (each): 10 stations; size max 500 × 350 mm, min 148 × 120 mm; paper 40–250 gsm; capacity 55 mm per station.
- Power: 230 V / 50 Hz.
Included components and visible items
- Angled touchscreen control panel with associated control buttons and a prominent red emergency stop button.
- Front panel bearing Horizon branding and model designation (Stitch and Folder SPF-200A).
- Ventilation grilles along side and top panels, right-side control dial and lower access panel with a small warning label.
- Tall vertical stacker/tray units for finished sheets.
- Top-mounted spool/roll holders appear present; please confirm presence and condition if these are required for your setup.
Condition note
There are visible signs of external wear on metal housings and panels; please request additional photos or inspection to verify cosmetic and functional condition prior to purchase.
Service and logistics
An all-inclusive service package and customized leasing options are offered (packaging, transport, customs clearance) — contact seller for details and verification.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
