Horizon KTU-40 folding machine
| Manufacturer | Horizon |
|---|---|
| Model | KTU-40 |
| Year | 2021 |
| Location | Germany
|
| Category | Folders - gluers / staplers / wire binders |
| Type of feeder | flatpile |
| Length x width x height | 1140.0 × 1620.0 × 1180.0 |
| Weight | 410 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Datasheet | Horizon KTU-40 |
| Product id | P251001358 |
| Language |
Сгъвачна машина Horizon KTU-40
Skládací stroj Horizon KTU-40
Horizon KTU-40 foldemaskine
Horizon KTU-40 Falzmaschine
Μηχανή διπλώματος Horizon KTU-40
Horizon KTU-40 folding machine
Plegadora Horizon KTU-40
Machine à plier Horizon KTU-40
Stroj za savijanje Horizon KTU-40
Horizon KTU-40 hajtogatógép
Piegatrice Horizon KTU-40
Horizon KTU-40 lankstymo mašina
Horizon KTU-40 vouwmachine
Składarka Horizon KTU-40
Máquina de dobrar Horizon KTU-40
Mașină de împăturit Horizon KTU-40
Фальцевальная машина Horizon KTU-40
Mašina za savijanje Horizon KTU-40
Horizon KTU-40 vikmaskin
Horizon KTU-40 katlama makinesi
|

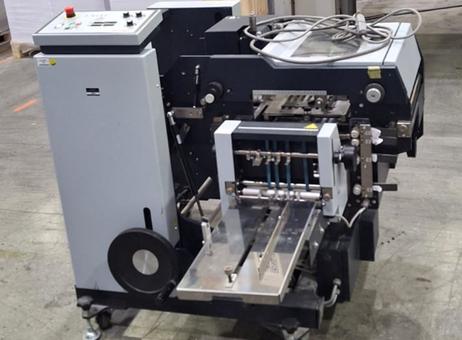

The Horizon KTU-40 is a mobile knife folding unit designed for precise cross and parallel folds, ideally suited for miniature folds. Manufactured in 2021, this compact machine features a robust metal frame with visible rollers on the front, ensuring durability for professional continuous operation. It is equipped with a flatpile type feeder and includes a feeding tray with adjustable guides to facilitate accurate material placement.
The unit comes standard with one knife and a parallel fold plate, which can be positioned on either the right or left side. Its folding unit and delivery system can be swiveled by 45°, a patented feature by Horizon, allowing safe processing and delivery of long and narrow products. The folding rollers have a diameter of 30 mm and are easily adjustable.

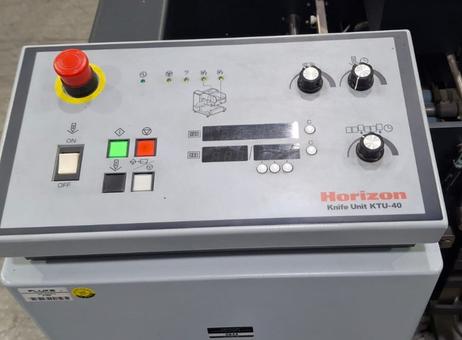

The control panel is well-equipped with buttons, knobs, indicator lights, a digital display, and a red emergency stop button, all of which appear intact and clean. The machine operates with an independent control system, making it compatible with various folding machines.
Technical specifications include an infeed format range for cross folds from 90 x 20 mm up to 400 x 220 mm, and for parallel folds from 40 x 70 mm up to 220 x 200 mm. Finished formats range between 20 x 22 mm and 200 x 150 mm, with fold lengths adjustable manually from 20 mm to 110 mm. It can handle material thicknesses up to 4 mm and operates at speeds between 30 to 180 m/min.
The machine dimensions are 1140 mm in length, 1620 mm in width, and 1180 mm in height, with a weight of approximately 410 kg. It features a vertical stack delivery that is infinitely height-adjustable, with feed height variable between 640 and 880 mm. Noise emission is rated at 70.1 dB Laeq, and heat emission is 1,490 kJ (360 kcal). It runs on single-phase AC 230 V / 50 Hz with a power consumption of 580 W.

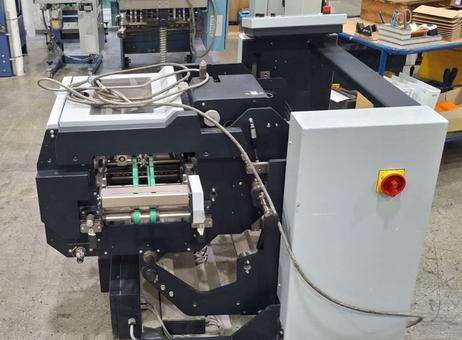

Additional visible features include a black control or adjustment knob on the lower side, green belts on the feeding or transport mechanism, a large red rotary switch on the side panel, and coiled cables on top of the machine. The machine appears clean and well-maintained, with no visible rust or damage.
This Horizon KTU-40 folding unit offers a reliable and versatile solution for folding applications, combining precise mechanical components with user-friendly controls.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizon KTU-40: MOBILE KNIFE FOLDER
Compact knife folding unit for cross and parallel folds, designed for connection to folding machines. Especially suitable for miniature folds. Standard equipment includes one knife and a parallel fold plate, which can be used on the right or left side.
Special Features
- Very robust construction for professional continuous operation
- Standard vertical stack delivery
- Infinitely height-adjustable
- Minimum fold length: 20 mm
- Folding unit including delivery can be swiveled by 45°, enabling safe processing and delivery of long and narrow products (Horizon patent)
- Total and batch counter including kicker
- Easily adjustable folding rollers with 30 mm diameter
- Independent control, operable with various machines
- Variable fold plate after the knife fold
Technical Specifications
- Infeed format (cross fold): Min. W 90 mm x L 20 mm – Max. W 400 mm x L 220 mm
- Infeed format (parallel fold): Min. W 40 mm x L 70 mm – Max. W 220 mm x L 200 mm
- Finished format: Min. W 20 mm x L 22 mm – Max. W 200 mm x L 150 mm
- Fold lengths (folding plate): 20 mm to 110 mm, manual adjustment
- Material thickness: Max. 4 mm
- Speed: 30 to 180 m/min, adjustable manually
- Feed height: Variable between 640 to 880 mm
- Noise emission: 70.1 dB Laeq
- Heat emission: 1,490 kJ (360 kcal)
- Voltage/Frequency: Single-phase AC 230 V / 50 Hz
- Power consumption: 580 W (50 Hz, 220 V)
- Machine dimensions: 1,140 (L) x 1,620 (W) x 1,180 (H) mm
- Machine weight: 410 kg
- Ambient conditions: Temperature 0 to 40 °C
- Relative humidity: 20% to 75%
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 87 |
| Last activity | Oct. 23, 2026 |
Founded in 2006 and based in Volkach, Germany, LA‑POSTPRESS is a specialist dealer in high‑quality used postpress machinery aimed at printers, finishing houses, and graphic industry professionals. Their core offering consists of machines like folders, binders, saddle-stitchers, cutters & trimmers, booklet makers and collators — many from the renowned manufacturer Horizon.
With a strong focus on product quality, each machine that arrives is fully refurbished: disassembled, cleaned, tested, and fitted with replacement parts when needed. LA‑POSTPRESS pairs this with a 3‑month warranty, and provides reliable worldwide shipping — inside Germany/Austria even by their own trucks.
The company also emphasizes environmental responsibility by extending the usable life of printing technology — offering cost‑effective alternatives to new machines while reducing waste.
Horizon KTU-40: MOBILE KNIFE FOLDER
Compact knife folding unit for cross and parallel folds, designed for connection to folding machines. Especially suitable for miniature folds. Standard equipment includes one knife and a parallel fold plate, which can be used on the right or left side.
Special Features
- Very robust construction for professional continuous operation
- Standard vertical stack delivery
- Infinitely height-adjustable
- Minimum fold length: 20 mm
- Folding unit including delivery can be swiveled by 45°, enabling safe processing and delivery of long and narrow products (Horizon patent)
- Total and batch counter including kicker
- Easily adjustable folding rollers with 30 mm diameter
- Independent control, operable with various machines
- Variable fold plate after the knife fold
Technical Specifications
- Infeed format (cross fold): Min. W 90 mm x L 20 mm – Max. W 400 mm x L 220 mm
- Infeed format (parallel fold): Min. W 40 mm x L 70 mm – Max. W 220 mm x L 200 mm
- Finished format: Min. W 20 mm x L 22 mm – Max. W 200 mm x L 150 mm
- Fold lengths (folding plate): 20 mm to 110 mm, manual adjustment
- Material thickness: Max. 4 mm
- Speed: 30 to 180 m/min, adjustable manually
- Feed height: Variable between 640 to 880 mm
- Noise emission: 70.1 dB Laeq
- Heat emission: 1,490 kJ (360 kcal)
- Voltage/Frequency: Single-phase AC 230 V / 50 Hz
- Power consumption: 580 W (50 Hz, 220 V)
- Machine dimensions: 1,140 (L) x 1,620 (W) x 1,180 (H) mm
- Machine weight: 410 kg
- Ambient conditions: Temperature 0 to 40 °C
- Relative humidity: 20% to 75%
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
