Horizon AFC-746 F folding machine
| Manufacturer | Horizon |
|---|---|
| Model | AFC-746 F |
| Year | 2011 |
| Location | Germany
|

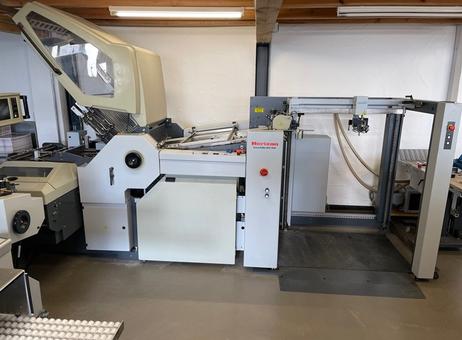

The Horizon AFC-746F is a robust industrial cross folding machine designed for efficient and versatile paper processing. Manufactured in 2011, this model features a pallet feeder that accommodates large paper stacks, facilitating smooth operation directly from the printing press. It supports a wide range of paper sizes, with a maximum paper length of 7380 mm and width of 1300 mm, and minimum dimensions of 210 mm by 297 mm. The machine's dimensions are approximately 4380 mm in length, 1870 mm in width, and 1680 mm in height.
This folding machine includes six fold pockets, a first knife, two pockets under the knife, and a second knife, enabling flexible folding options for various production needs. The feeder section, located on the left side, is equipped with rollers to ensure reliable paper feeding. The control panel is positioned on the front right side and features an emergency stop button for safety.

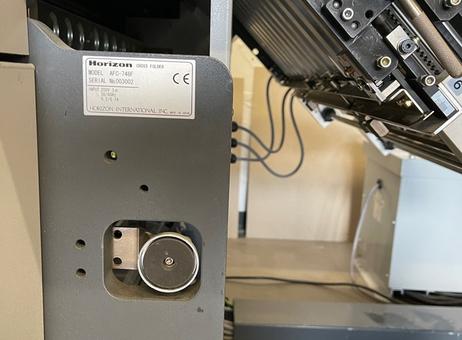

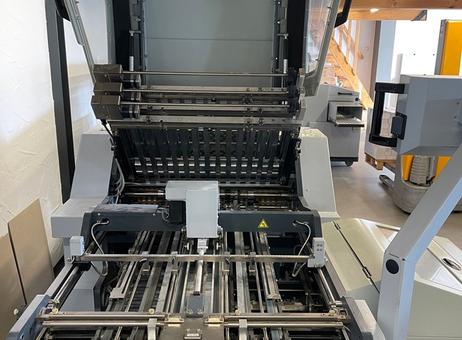

The AFC-746F operates on a three-phase 200V power supply (as indicated on the machine's side panel), suitable for industrial environments. The machine's internal components, including metal rollers and guides, are visible through the open covers, indicating well-maintained folding and feeding mechanisms.
Overall, the machine appears clean and in good condition, with no visible damage, and its internal sections are well maintained. This makes the Horizon AFC-746F a suitable choice for print shops seeking a dependable and versatile folding solution capable of handling large formats and diverse paper weights.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizon AFC-746F Folding Machine with Pallet Feeder, used
The Horizon AFC-746F is an advanced combination folding machine designed for efficient paper processing in various formats and weights. This machine has been thoroughly refurbished and offers a premium solution for demanding folding tasks in print shops.
Key features:
- PFU-74F pallet feeder: allows easy handling of large paper stacks directly from the printing press
- User-friendly operation: The machine has a large, color touchscreen control panel for intuitive operation. All common fold formats and paper sizes can be easily selected.
- Advanced automation: Automatic setup includes up to 47 adjustments, including feed, roller gap, pocket fold, and knife fold. This allows for quick changeovers without tools.
- Versatile folding options: With 6 fold pockets, a first knife and 2 pockets under the knife, plus a second knife, the AFC-746F offers flexible folding options.
Technical specifications:
- Paper formats: Max. 738 x 1,300 mm (pallet feeder); Min. 210 x 297 mm
- Maximum stack height: 1,200 mm when using the pallet feeder
- Paper weight: 35 to 209 g/m²
- Power supply: Three-phase, 400 V, 12.6 A; 5.3 kW
- Dimensions: Length approx. 4,380 mm, Width approx. 1,870 mm, Height approx. 1,680 mm
The Horizon AFC-746F is ideal for print shops looking for a reliable and versatile solution for large format processing. With its advanced technology and high flexibility, it efficiently and precisely meets the requirements of modern production environments.
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 87 |
| Last activity | Oct. 23, 2026 |
Founded in 2006 and based in Volkach, Germany, LA‑POSTPRESS is a specialist dealer in high‑quality used postpress machinery aimed at printers, finishing houses, and graphic industry professionals. Their core offering consists of machines like folders, binders, saddle-stitchers, cutters & trimmers, booklet makers and collators — many from the renowned manufacturer Horizon.
With a strong focus on product quality, each machine that arrives is fully refurbished: disassembled, cleaned, tested, and fitted with replacement parts when needed. LA‑POSTPRESS pairs this with a 3‑month warranty, and provides reliable worldwide shipping — inside Germany/Austria even by their own trucks.
The company also emphasizes environmental responsibility by extending the usable life of printing technology — offering cost‑effective alternatives to new machines while reducing waste.
Horizon AFC-746F Folding Machine with Pallet Feeder, used
The Horizon AFC-746F is an advanced combination folding machine designed for efficient paper processing in various formats and weights. This machine has been thoroughly refurbished and offers a premium solution for demanding folding tasks in print shops.
Key features:
- PFU-74F pallet feeder: allows easy handling of large paper stacks directly from the printing press
- User-friendly operation: The machine has a large, color touchscreen control panel for intuitive operation. All common fold formats and paper sizes can be easily selected.
- Advanced automation: Automatic setup includes up to 47 adjustments, including feed, roller gap, pocket fold, and knife fold. This allows for quick changeovers without tools.
- Versatile folding options: With 6 fold pockets, a first knife and 2 pockets under the knife, plus a second knife, the AFC-746F offers flexible folding options.
Technical specifications:
- Paper formats: Max. 738 x 1,300 mm (pallet feeder); Min. 210 x 297 mm
- Maximum stack height: 1,200 mm when using the pallet feeder
- Paper weight: 35 to 209 g/m²
- Power supply: Three-phase, 400 V, 12.6 A; 5.3 kW
- Dimensions: Length approx. 4,380 mm, Width approx. 1,870 mm, Height approx. 1,680 mm
The Horizon AFC-746F is ideal for print shops looking for a reliable and versatile solution for large format processing. With its advanced technology and high flexibility, it efficiently and precisely meets the requirements of modern production environments.
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Horizon AFC-746F is a robust industrial cross folding machine designed for efficient and versatile paper processing. Manufactured in 2011, this model features a pallet feeder that accommodates large paper stacks, facilitating smooth operation directly from the printing press. It supports a wide range of paper sizes, with a maximum paper length of 7380 mm and width of 1300 mm, and minimum dimensions of 210 mm by 297 mm. The machine's dimensions are approximately 4380 mm in length, 1870 mm in width, and 1680 mm in height.
This folding machine includes six fold pockets, a first knife, two pockets under the knife, and a second knife, enabling flexible folding options for various production needs. The feeder section, located on the left side, is equipped with rollers to ensure reliable paper feeding. The control panel is positioned on the front right side and features an emergency stop button for safety.
The AFC-746F operates on a three-phase 200V power supply (as indicated on the machine's side panel), suitable for industrial environments. The machine's internal components, including metal rollers and guides, are visible through the open covers, indicating well-maintained folding and feeding mechanisms.
Overall, the machine appears clean and in good condition, with no visible damage, and its internal sections are well maintained. This makes the Horizon AFC-746F a suitable choice for print shops seeking a dependable and versatile folding solution capable of handling large formats and diverse paper weights.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
