Contact us to receive an offer.
| Manufacturer | Holzing |
|---|---|
| Model | Suppercut 4022 |
| Year | |
| Location | Lithuania
|
The Holzing Suppercut 4022 is a vertical panel saw designed for precise and efficient cutting tasks. It features a robust frame with horizontal support bars, providing stability during operation. The machine is equipped with a 3.0 kW engine power motor running on a 400V, 50Hz power supply. The main saw blade has a diameter of 250 mm and operates at a speed of 5800 revolutions per minute (rpm), while the scoring blade (podcinaka) rotates at 7800 rpm. The cutting capabilities include a maximum cutting length of 4200 mm and a cutting height of up to 2200 mm, with a cutting thickness range from 0 to 60 mm.
The main saw blade dimensions are Ø 250 x 30 x 3.2 mm with 80 teeth (Z80), and the scoring blade measures Ø 80 x 2.8-3.6 mm with 20 teeth (Z20). The machine dimensions are 5500 mm in length, 3100 mm in width, and 1500 mm in height, with a net weight of 700 kg. The package dimensions are approximately 5200 x 2600 x 1000 mm.

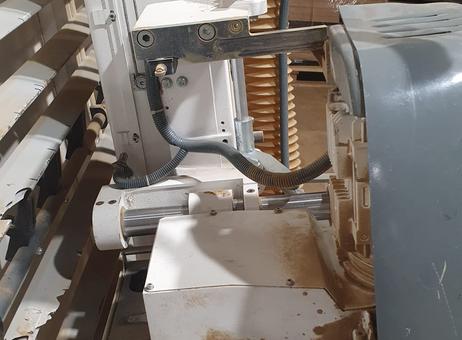

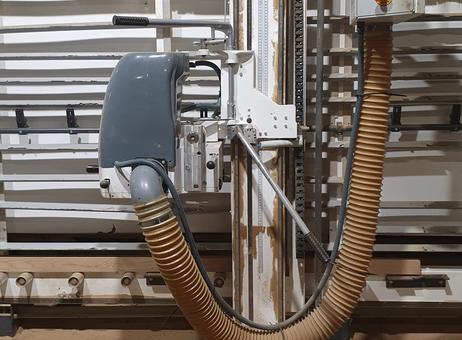

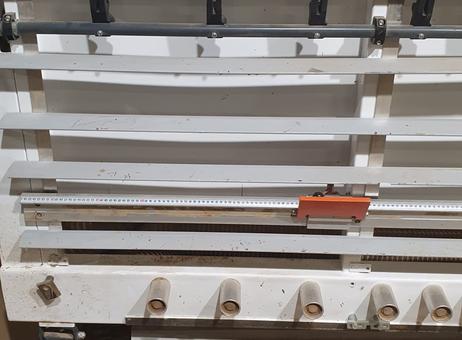

The saw includes a control panel equipped with multiple buttons and an emergency stop for operational safety. Safety instruction labels are present on the control panel. A dust extraction hose is attached to the saw motor housing, aiding in dust management during cutting operations. The machine also has a metal guide rail and an adjustment handle to facilitate precise cutting adjustments.
The Holzing Suppercut 4022 shows signs of use, with some dirt and wear visible on the surfaces, which is typical for used industrial equipment. The brand name 'HOLZIND' is visible on the frame, confirming the manufacturer. This vertical panel saw is suitable for woodworking shops requiring a large cutting capacity with reliable performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
engine power 3kW
tension 400V, 50Hz
sales 3000obr / min
main saw revolutions 5800obr / min
revolutions of the podcinaka 7800obr / min
cutting thickness 0-60 mm
cutting height 2200 mm
cutting length 4200 mm
dimensions of the main saw Ø 250 x 30 x 3.2 mm - Z80
dimensions of the podcinaka Ø 80 x 2.8-3,6 mm - Z20
dimensions 5500x3100x1500mm
dimensions of the package 5200x2600x1000mm
net weight 700kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2024 |
| Offers online | 6 |
| Last activity | Sept. 3, 2026 |
engine power 3kW
tension 400V, 50Hz
sales 3000obr / min
main saw revolutions 5800obr / min
revolutions of the podcinaka 7800obr / min
cutting thickness 0-60 mm
cutting height 2200 mm
cutting length 4200 mm
dimensions of the main saw Ø 250 x 30 x 3.2 mm - Z80
dimensions of the podcinaka Ø 80 x 2.8-3,6 mm - Z20
dimensions 5500x3100x1500mm
dimensions of the package 5200x2600x1000mm
net weight 700kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Holzing Suppercut 4022 is a vertical panel saw designed for precise and efficient cutting tasks. It features a robust frame with horizontal support bars, providing stability during operation. The machine is equipped with a 3.0 kW engine power motor running on a 400V, 50Hz power supply. The main saw blade has a diameter of 250 mm and operates at a speed of 5800 revolutions per minute (rpm), while the scoring blade (podcinaka) rotates at 7800 rpm. The cutting capabilities include a maximum cutting length of 4200 mm and a cutting height of up to 2200 mm, with a cutting thickness range from 0 to 60 mm.
The main saw blade dimensions are Ø 250 x 30 x 3.2 mm with 80 teeth (Z80), and the scoring blade measures Ø 80 x 2.8-3.6 mm with 20 teeth (Z20). The machine dimensions are 5500 mm in length, 3100 mm in width, and 1500 mm in height, with a net weight of 700 kg. The package dimensions are approximately 5200 x 2600 x 1000 mm.
The saw includes a control panel equipped with multiple buttons and an emergency stop for operational safety. Safety instruction labels are present on the control panel. A dust extraction hose is attached to the saw motor housing, aiding in dust management during cutting operations. The machine also has a metal guide rail and an adjustment handle to facilitate precise cutting adjustments.
The Holzing Suppercut 4022 shows signs of use, with some dirt and wear visible on the surfaces, which is typical for used industrial equipment. The brand name 'HOLZIND' is visible on the frame, confirming the manufacturer. This vertical panel saw is suitable for woodworking shops requiring a large cutting capacity with reliable performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2024 |
| Offers online | 6 |
| Last activity | Sept. 3, 2026 |
