| Manufacturer | HILALSAN |
|---|---|
| Model | 1350-3 |
| Year | |
| Location | Germany
|
This listing is for a HILALSAN CNC guillotine shear machine, model RGM 1350-3. It is designed for cutting sheet metal with a cutting length of approximately 1350 mm. The machine can handle a maximum steel sheet thickness of 3 mm. The maximum cutting angle is 2.4°, and it operates at a stroke rate of about 34 strokes per minute. The drive system includes a motor with an approximate power rating of 4 kW.
The machine's dimensions are roughly 1900 mm in length, 1380 mm in width, and 1250 mm in height, with a total weight of about 1300 kg. It is powered by a three-phase electrical supply, with specifications including a working voltage of 3 x 380 V, command voltage of 24 V, and a current rating of 8 A. The frequency is 50 Hz.

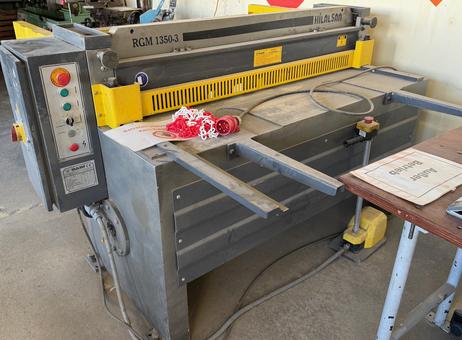

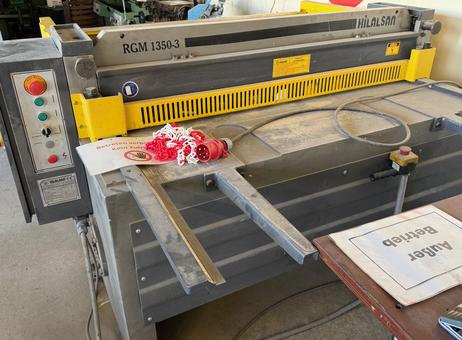

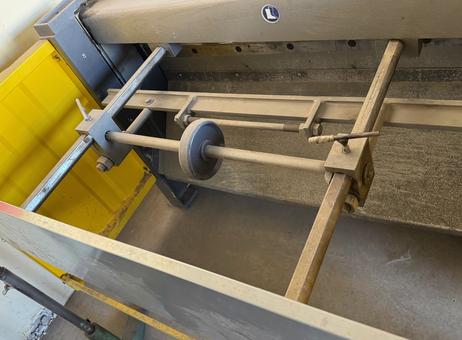

The machine features a control panel located on the left side, equipped with an emergency stop button and operational controls including a selector switch. Two metal support arms extend from the front to aid in material handling during operation. A manual adjustment mechanism with a handwheel and threaded rod is present for fine-tuning. Metal guide bars and support arms are visible inside the machine.
The unit shows signs of use and has some dust accumulation on surfaces and internal components but appears structurally intact. Safety signage indicates the need for protective footwear when operating the machine. Accessories observed include a red and white plastic chain and a red electrical plug placed on the machine.
Manufacturer information plate indicates the machine is made by Hilalsan, located in Konya, Turkey, with contact details available. This CNC guillotine shear is suitable for industrial sheet metal cutting applications requiring precision and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Other machines
Guillotine/shear
HILALSAN RGM 1350-3
Basic machine data
• Cutting length: approx. 1350 mm
• Maximum sheet thickness – steel: 3 mm
• Maximum sheet thickness – stainless steel: 0 mm (not specified/typically no stainless steel)
• Cutting angle (max.): 2.4°
• Stroke rate/strokes per minute: approx. 34 1/min
Drive & power
• Max. motor power: approx. 4 kW
Dimensions & weight
• Length (machine): approx. 1900 mm
• Width: approx. 1380 mm
• Height: approx. 1250 mm
• Weight: approx. 1.3 t (1300 kg)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this HILALSAN 1350-3 CNC shear currently under power?
This HILALSAN 1350-3 CNC shear is available for inspection under power.
What type of equipment is this HILALSAN 1350-3 CNC shear?
This equipment is a used HILALSAN 1350-3 CNC shear.
What is the reference number for the machine?
The machine is referenced as 26009.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
