| Manufacturer | HFE |
|---|---|
| Model | 3i 220.4 L |
| Year | 2016 |
| Location | Germany
|

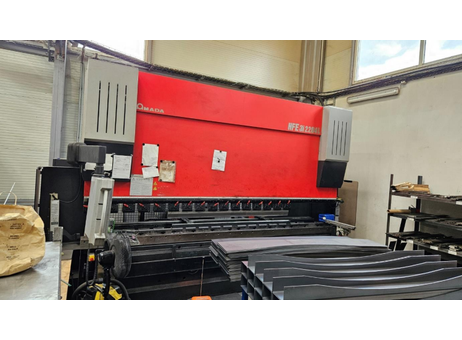

This AMADA 3i 220.4 L CNC press brake, manufactured in 2016, offers a maximum press force of 2200 kN (220 tons) suitable for a variety of metal bending applications. The machine features a bending length of 4100 mm and a distance between uprights of 3760 mm, providing ample workspace for large sheet metal components. It is equipped with a vertical stroke of 350 mm and a folding length of 4100 mm, facilitating precise and versatile bending operations.
The press brake is powered by a 25.5 kW engine and operates on a 400 V / 50 Hz electrical connection. It includes a backgauge with 5 controlled axes, enhancing positioning accuracy during bending tasks. The AMADA AMNC 3i control system allows for advanced CNC programming and operation.
Dimensionally, the machine measures 5740 mm in length, 2660 mm in width, and 3230 mm in height, with a total weight of 18,000 kg. The installation height is 620 mm, the table height is 960 mm, and the table width is 180 mm. It offers adjustable feed, working, and return stroke speeds ranging from 1 to 100 mm/s, depending on the operation phase.

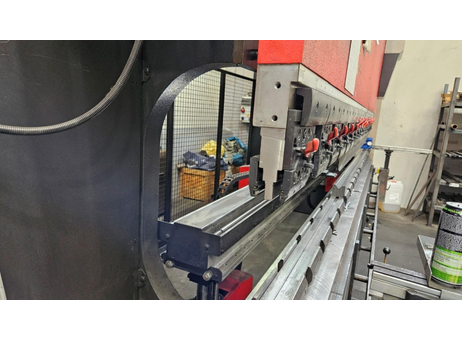

Safety is addressed with the Fiessler AKAS III safety device installed on the machine. Visual inspection shows the press brake to be clean and well-maintained, with no visible rust or damage. The upper beam includes a clamping system with multiple red clamps securing the tooling, which appears to be in good condition without visible wear. The lower bed holds tooling, and metal sheets are stacked in front of the machine. Safety guards and a control panel are partially visible on the left side, and a protective mesh guard is located behind the machine. Some hydraulic or mechanical components are partially visible on the machine frame's side.
Overall, this press brake combines robust technical specifications with visible evidence of careful maintenance, making it a solid candidate for industrial metal forming applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Year of manufacture 11/2016
Machine hours: approx. 19,000 h
Description
Press force 2200 kN
Bending length 4100 mm
Control AMADA AMNC 3i
Backgauge with 5 controlled axes
Fiessler AKAS III safety device
Technical data
Maximum press force 2200 kN
Length of press beam 4280 mm
Clearance between machine stands 3760 mm
Projection 420 mm
Stroke 350 mm
Installation height 620 mm
Width of work table 180 mm
Table height 960 mm
Feed speed 1-100 mm/s
Working speed 1-10 mm/s
Return stroke speed 1-100 mm/s
Oil volume 160 l
Electrical connection 400 V / 50 Hz / 25.5 kW
Dimensions:
Overall length 5740 mm
Overall width 2660 mm
Overall height 3230 mm
Machine weight 18,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
