Contact us to receive an offer.
| Manufacturer | HERMLE |
|---|---|
| Model | UWF 902 H |
| Year | 1995 |
| Location | Germany
|
This listing is for a HERMLE UWF 902 H universal CNC vertical milling machine manufactured in 1995. It features a HEIDENHAIN TNC 426 control system and has accumulated 46,680 operating hours. The machine offers a working area of 600 mm (X) x 450 mm (Y) x 500 mm (Z), with the Y-axis travel reducing to 410 mm when the vertical milling head is tilted for angled machining.
The spindle speed is continuously adjustable in three steps from 20 up to 6,300 rpm, driven by an 8.6 kW spindle motor. The tool holder is ISO 40 DIN 2079 (SK40), with hydromechanical clamping forces of 10,000 N vertically and 12,000 N horizontally. The spindle diameters at the front bearing are 75 mm horizontally and 55 mm vertically, with a quill stroke of 75 mm.
Feed is powered by individual three-phase brushless motors for each axis, allowing manual feed rates from 1 to 2,000 mm/min and programmable feed rates up to 10,000 mm/min. The machine provides a feed force of 6,000 N at 80% duty cycle and rapid traverse speeds of 10 m/min across all axes.
The machine includes a universal clamping table measuring 900 x 458 mm, which tilts from 15° backward to 30° forward, with a tabletop swivel range of ±25° (420 mm diameter) and ±30° (650 x 395 mm). The table weighs approximately 275 kg and supports a maximum load of 500 kg. It has seven T-slots spaced 63 mm apart, each 14 mm wide (H7).
An NC rotary table is also available, offering tabletop swivel ranges of ±30° (500 mm diameter) and ±4° (650 mm diameter). The coolant system holds 170 liters, delivering 40 liters per minute at 3 bar pressure.
The machine weighs around 4,500 kg and measures approximately 2,950 mm in length, 2,200 mm in width, and 2,300 mm in height.

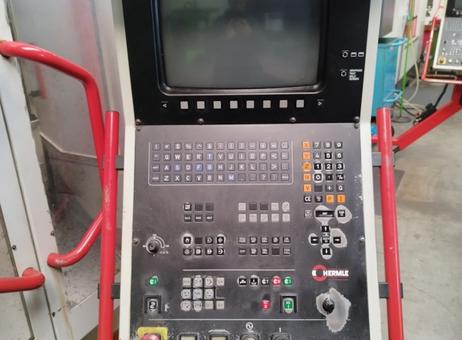

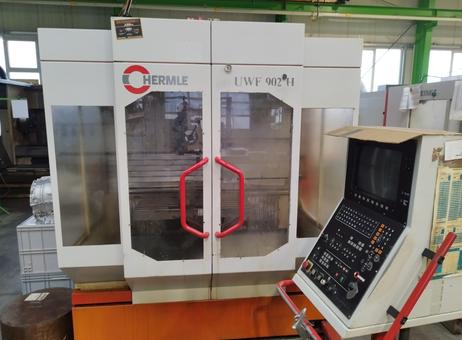

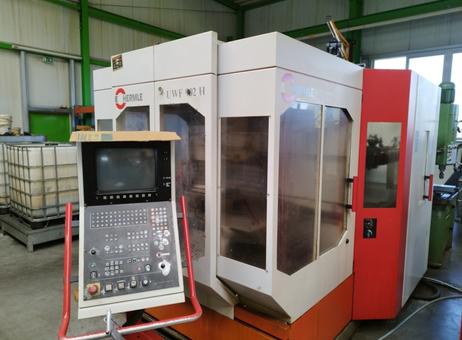

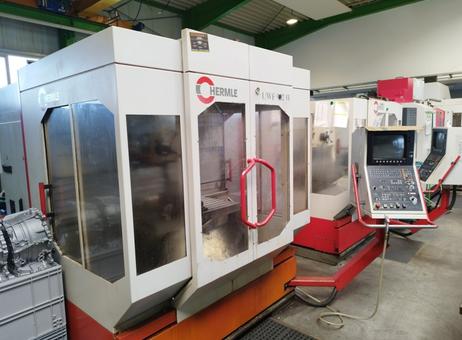

Visually, the machine has a white and orange exterior with red handles on the doors. Large window panels on the front and side provide clear visibility of the machining area. The control panel is mounted on the right side and features multiple buttons and a screen for operation. The machine shows signs of use, with some dirt visible on the windows, consistent with a used condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Universal CNC Milling Machine
Manufacturer: HERMLE
Type: UWF 902 H
Year of manufacture: 1995
Operating hours: 46,680
Control: HEIDENHAIN TNC 426
Working area X/Y/Z: 600 x 450 x 500 mm
Speed range:
Spindle speeds continuously adjustable within 3 switching steps: 20 to 6,300 rpm
Tool holder: SK40
Tool changer
Tool holder, horizontal and vertical: ISO 40 DIN 2079
Hydromechanical tool clamping, clamping force (vertical): 10.000 N
Hydromechanical tool clamping, clamping force (horizontal): 12.000 N
Spindle diameter at the front bearing, horizontal / vertical: 75 / 55 mm
Quill stroke vertical: 75 mm
Renishaw 3D probe
Individual feed motors for each axis – three-phase (brushless)
Feed range in X, Y, and Z, manual/programmable: 1 to 2000 / 10.000 mm/min.
Feed force in all axes (at 80% duty cycle): 6.000 N
Rapid traverse in all axes: 10 m/min.
Angle table: 900 x 458 mm
Universal clamping table, tilt range 15° from and 30° to the machine
Tabletop swivel range +/- 25°: Ø 420 mm
Tabletop swivel range +/- 30°: Ø 650 x 395 mm
Table weight: 275 kg
Maximum table load: 500 kg
Number of T-slots: 7
T-slot spacing: 63 mm
T-slot width: 14 H7
NC rotary table:
Tabletop swivel range +/- 30°: Ø 500 mm
Tabletop swivel range +/- 4°: Ø 650 mm
Coolant tank: 170 liters
Flow rate/pressure: 40 L/min. at 3 bar
Drive power: 8.6 kW
Weight approx.: 4,500 kg
Machine dimensions LxWxH approx.: 2.950 x 2.200 x 2.300 mm
Information:
If you tilt the vertical milling head from its zero position to an angled position +/-,
for example, to produce inclined surfaces or holes, the working range
of the Y-axis is reduced from 450 mm to 410 mm.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 114 |
| Last activity | Oct. 27, 2026 |
