Contact us to receive an offer.
| Manufacturer | HERMLE |
|---|---|
| Model | C 600 V |
| Year | 2000 |
| Location | Switzerland
|

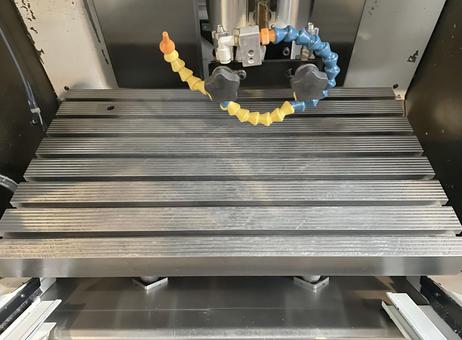

The HERMLE C 600 V is a vertical machining center designed for precision and efficiency in manufacturing. It features a worktable measuring 800 mm in length and 465 mm in width, equipped with T-slots to facilitate secure clamping of workpieces. The machining center offers a travel range of 600 mm along the X-axis, 450 mm along the Y-axis, and 450 mm along the Z-axis, suitable for a variety of machining tasks. It supports a maximum part weight of 200 kg on the table.

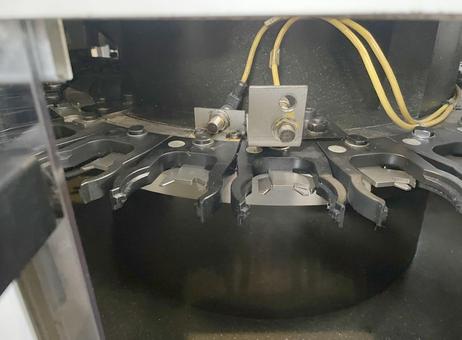

This model is equipped with a 30-pocket tool changer, allowing for a wide range of tooling options to be used without manual intervention. The spindle features an HSK-A 63 nose and operates at speeds ranging steplessly from 20 rpm up to 16,000 rpm. The spindle motor delivers a power output of 15 kW, ensuring robust machining performance.
Additional technical specifications include a feed range of 1 to 30,000 mm/min and a rapid traverse rate of 35 m/min, with a maximum feed force of 6,000 N. The machine incorporates a high-resolution measurement system with 0.1 µm resolution and display step.
The machining center weighs approximately 6,800 kg and measures 2,500 mm in length, 2,020 mm in width, and 2,750 mm in height. It operates on a 50 Hz, 3-phase 400 Volt power supply and requires a total power of 35 kVA. Noise emission is rated at 78 dB(A).

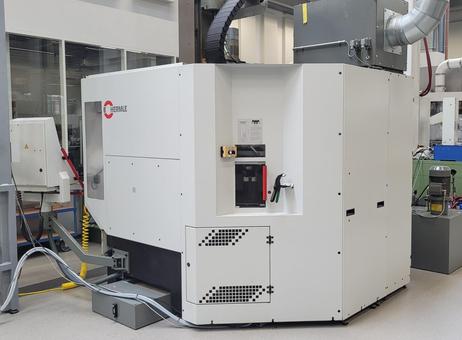

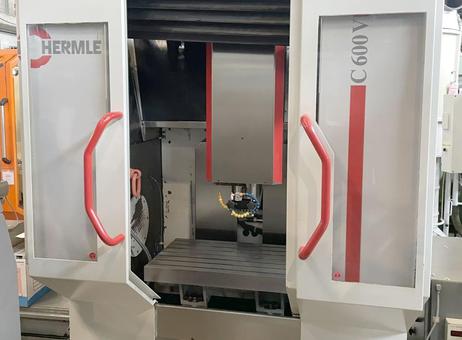

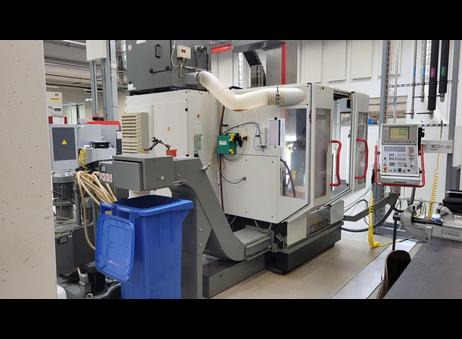

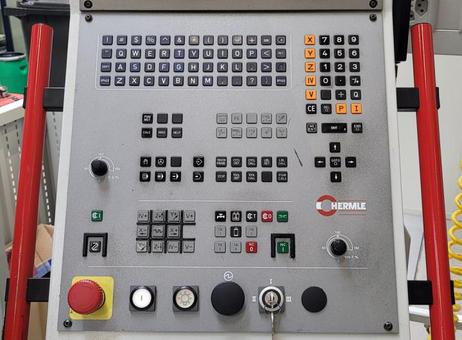

Included accessories visible on the machine are a coolant-through spindle system operating at 40 bar, a chip conveyor with an attached blue chip bin, a lamp for work area illumination, and an oil mist extractor. The enclosure features multiple access panels and ventilation grilles. The control panel is mounted on a stand with red handles and includes a screen, keypad, emergency stop button, key switch, and rotary knobs. The panel displays branding from HERMLE and HEIDENHAIN.

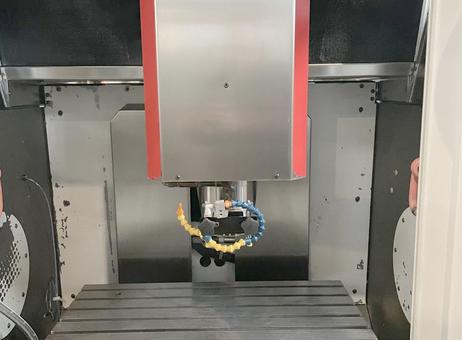

The machine appears clean and well-maintained, with the worktable and tool holders showing only light wear and no major damage. Coolant nozzles are installed above the spindle area. A flexible exhaust duct is connected to the top of the enclosure to assist with ventilation and extraction.
This HERMLE C 600 V vertical machining center offers a comprehensive set of features and accessories suitable for precision machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical data
Time under power 48569 Hour
Operating time 45328 Hour
Working time 12205 Hour
Spindle run time 11586 Hour
Number of axis total 3
Rotary table:diameter 280 mm
Table length 800 mm
Table width 465 mm
Longitudinal travel (X-axis) 600 mm
Transversal travel (y-axis) 450 mm
Vertical travel (z axis) 450 mm
Table load max. 200 kg
C axis
Tool changer:
Number of tools 30
Spindle nose: HSK-A 63
Spindle speeds:
stepless
from 20 rpm
up to 16000 rpm
Feed range 1 -30000 mm/min
Rapid traverse: 35 m/min
Max. Feed force 6000 N
Measurement system:
Resolution 0.1 µm
Input resolution 0.1 µm
Display step 0.1 µm
Voltage 50 Hz 3x 400 Volt
Spindle power 15 / 10 kW
Total power required 35 kVA
Noise level 78 dB (A)
Machine's weight about 6800 kg
Overall dimensions machine:
Length 2500 mm
Width 2020 mm
Height 2750 mm
Various accessories:
Coolant through spindle (cts) 40 bar
Chip conveyor
Lamp
Oil mist extractor
Interface serial port RS 232
Switch cabinet Air conditioner
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this HERMLE C 600 V machining center manufactured?
This HERMLE C 600 V machining center was manufactured in 2000.
How many operating hours does this HERMLE C 600 V have?
This HERMLE C 600 V machining center has 11,586 operating hours.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 256 |
| Last activity | Oct. 28, 2026 |
