Contact us to receive an offer.
| Manufacturer | Heller |
|---|---|
| Model | MCH 450 C |
| Year | 2007 |
| Location | Germany
|
This Heller MCH 450 C is a horizontal 5-axis machining center manufactured in 2007, designed for complex and precise milling tasks. It features a twin pallet changer system with two pallets, each measuring 800 x 1000 mm, capable of handling a maximum part weight of 2500 kg. The pallet changing time is approximately 27 seconds, enhancing productivity for batch processing.
The machine offers generous travel distances of 1600 mm on the X-axis, 1200 mm on the Y-axis, and 1700 mm on the Z-axis, allowing for the machining of large components. It is equipped with a 4th axis NC rotary table (B axis) and a 5th axis NC tilting milling head (C axis), both offering full 360-degree rotation with fine 0.001-degree resolution, enabling complex 5-axis simultaneous machining.
The spindle is powered by a 28 kW motor and can reach speeds up to 6000 rpm, with an ISO 50 DIN 69871 taper. It is supported by a robust spindle front bearing with a 100 mm inner diameter. The machine’s tool magazine holds up to 100 tools, compatible with tool diameters up to 112 mm with adjacent tools or 228 mm without, and tool lengths up to 600 mm from the spindle nose, with a maximum tool weight of 25 kg. Chip-to-chip time ranges between approximately 8.2 to 12.2 seconds.

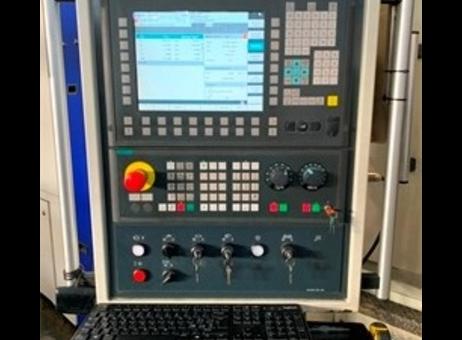

Additional features include linear measurement scales on all axes for precise positioning, tool measurement and breakage control systems, coolant through spindle at 50 bar pressure, and an integrated chip conveyor. The control panel with screen, buttons, and keyboard is visible, indicating an operator-friendly interface.

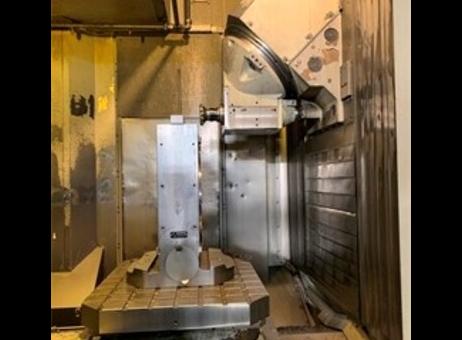

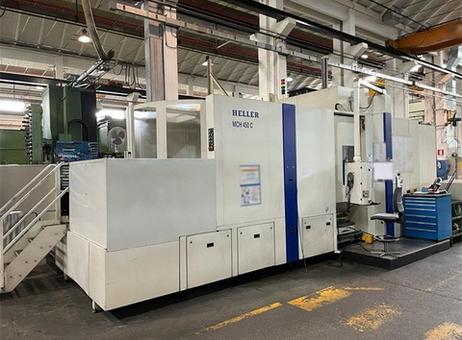

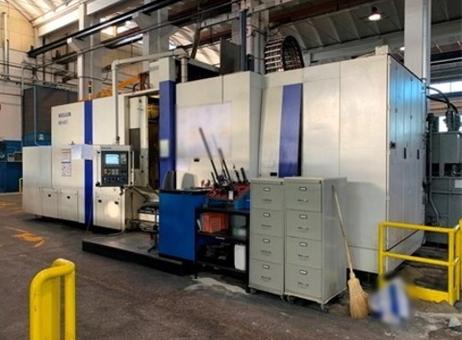

The machine exterior is clean and well-maintained, housed in a large enclosed structure with a white and blue color scheme. The interior shows typical signs of use with some machining residue but remains in good condition. This machining center is suitable for high-precision, heavy-duty milling applications requiring 5-axis simultaneous machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Number of pallets: 2 : Twin pallet changer
Pallet size: 800 x 1000 mm
Pallet load: max. 2500 kg
Pallet changing time: 27 sec.
NC Rotary table 4th axis : B 360000 x 0.001°
NC Tilting milling head 5th axis: C 360000 x 0.001°
Traverses: X 1600 mm
: Y 1200 mm
: Z 1700 mm
Feeds: X/Y/Z 1-40000 mm/min.
Rapids: X/Y/Z 40000 mm/min.
Spindle taper: ISO 50 DIN 69871
Spindle front bearing ID: 100 mm
Spindle drive motor: 28 / 43 (100% / 40% ) KW
Spindle speeds: 45 ~ 6.000 rpm
Spindle torque: max. 536 / 822 (100% / 40%) Nm
Tool taper: ISO 50 DIN 69871
Tool magazine positions: 100
Tool diameter with/without adjacent tools: max. 112 / 228 mm
Tool length: max. 600 from spindle nose mm
Tool weight: max. 25 kg
Chip-to-chip time (H) : approx. 8.2~12.2 sec.
Machine weight: approx. t.b.a. kg
Machine dimensions: L x W x H t.b.a. mm x mm x mm
Equipped with: 5-Axis simultaneous machining
4th axis NC Rotary table
5th Axis NC swivelling milling head
Twin pallet changer
100-station tool magazine
Linear measurement scales X,Y,Z axes
Tool measurement and tool breakage control
Coolant through spindle 50 bar
Chip conveyor
Condition: Very good
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2004 |
| Offers online | 41 |
| Last activity | Oct. 30, 2026 |
Number of pallets: 2 : Twin pallet changer
Pallet size: 800 x 1000 mm
Pallet load: max. 2500 kg
Pallet changing time: 27 sec.
NC Rotary table 4th axis : B 360000 x 0.001°
NC Tilting milling head 5th axis: C 360000 x 0.001°
Traverses: X 1600 mm
: Y 1200 mm
: Z 1700 mm
Feeds: X/Y/Z 1-40000 mm/min.
Rapids: X/Y/Z 40000 mm/min.
Spindle taper: ISO 50 DIN 69871
Spindle front bearing ID: 100 mm
Spindle drive motor: 28 / 43 (100% / 40% ) KW
Spindle speeds: 45 ~ 6.000 rpm
Spindle torque: max. 536 / 822 (100% / 40%) Nm
Tool taper: ISO 50 DIN 69871
Tool magazine positions: 100
Tool diameter with/without adjacent tools: max. 112 / 228 mm
Tool length: max. 600 from spindle nose mm
Tool weight: max. 25 kg
Chip-to-chip time (H) : approx. 8.2~12.2 sec.
Machine weight: approx. t.b.a. kg
Machine dimensions: L x W x H t.b.a. mm x mm x mm
Equipped with: 5-Axis simultaneous machining
4th axis NC Rotary table
5th Axis NC swivelling milling head
Twin pallet changer
100-station tool magazine
Linear measurement scales X,Y,Z axes
Tool measurement and tool breakage control
Coolant through spindle 50 bar
Chip conveyor
Condition: Very good
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Heller MCH 450 C is a horizontal 5-axis machining center manufactured in 2007, designed for complex and precise milling tasks. It features a twin pallet changer system with two pallets, each measuring 800 x 1000 mm, capable of handling a maximum part weight of 2500 kg. The pallet changing time is approximately 27 seconds, enhancing productivity for batch processing.
The machine offers generous travel distances of 1600 mm on the X-axis, 1200 mm on the Y-axis, and 1700 mm on the Z-axis, allowing for the machining of large components. It is equipped with a 4th axis NC rotary table (B axis) and a 5th axis NC tilting milling head (C axis), both offering full 360-degree rotation with fine 0.001-degree resolution, enabling complex 5-axis simultaneous machining.
The spindle is powered by a 28 kW motor and can reach speeds up to 6000 rpm, with an ISO 50 DIN 69871 taper. It is supported by a robust spindle front bearing with a 100 mm inner diameter. The machine’s tool magazine holds up to 100 tools, compatible with tool diameters up to 112 mm with adjacent tools or 228 mm without, and tool lengths up to 600 mm from the spindle nose, with a maximum tool weight of 25 kg. Chip-to-chip time ranges between approximately 8.2 to 12.2 seconds.
Additional features include linear measurement scales on all axes for precise positioning, tool measurement and breakage control systems, coolant through spindle at 50 bar pressure, and an integrated chip conveyor. The control panel with screen, buttons, and keyboard is visible, indicating an operator-friendly interface.
The machine exterior is clean and well-maintained, housed in a large enclosed structure with a white and blue color scheme. The interior shows typical signs of use with some machining residue but remains in good condition. This machining center is suitable for high-precision, heavy-duty milling applications requiring 5-axis simultaneous machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
