| Manufacturer | HELLER |
|---|---|
| Model | 1936 MK5 |
| Year | 2019 |
| Location | China
|

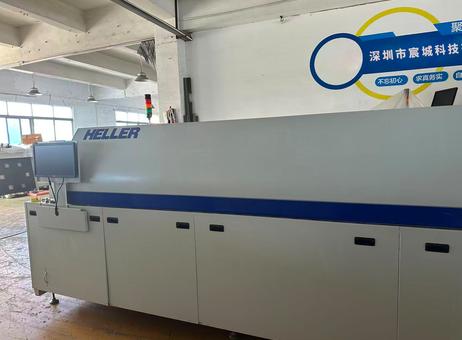

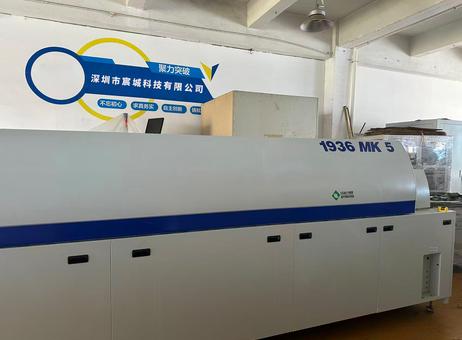

The Heller 1936 MK5 is a large-capacity SMT convection reflow oven suitable for mass production of printed circuit boards (PCBs) and lead-free reflow soldering. The model is part of the MK5 series and is designed to provide efficient heat transfer, good temperature uniformity, and reduced operating costs under high load.
Key Features:
- Manufacturer: Heller
- Model: 1936 MK5
- Equipment type: SMT convection reflow oven
- Heating zones: 10 upper + 10 lower (total 20 zones)
- Cooling zones: 3 standard
- Heating length: approx. 3,600 mm
- Maximum temperature: 350°C
- Conveyor speed: up to 1,880 mm/min
- PCB width: up to approx. 560 mm (depending on conveyor configuration)
- Power supply: 208/240/380/400/415/480 VAC, 3 phase, 50/60 Hz
Application:
Suitable for SMT manufacturing and assembly of electronic devices requiring precise thermal control in reflow processes.
Condition and Additional Information:
Condition: Used / Good working condition. Photos, videos, and additional technical information are available upon request. Please contact us for information regarding price, availability, and delivery options.
Note: The described features and specifications are based on the available machine description. More detailed data or documentation (electrical schematics, manuals, conveyor configuration, etc.) can be requested separately if required.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Heller 1936 MK5 is a high-volume SMT convection reflow oven designed for demanding PCB assembly and lead-free soldering applications.
The system features 10 top and 10 bottom heating zones, providing a total of 20 heating zones for stable and uniform thermal processing. It also includes 3 standard cooling zones and a heated tunnel length of approximately 3,600 mm.
The Heller MK5 series is designed to provide efficient heat transfer, excellent temperature uniformity and reduced operating costs, making it suitable for high-throughput electronics manufacturing.
Technical Specifications:
Manufacturer: Heller
Model: 1936 MK5
Equipment Type: SMT Convection Reflow Oven
Heating Zones: 10 Top + 10 Bottom
Total Heating Zones: 20
Cooling Zones: 3 standard
Heated Length: Approx. 3,600 mm
Maximum Temperature: 350°C
Conveyor Speed: Up to 1,880 mm/min
PCB Width: Up to approximately 560 mm, depending on conveyor configuration
Power Supply: 208/240/380/400/415/480 VAC, 3 Phase, 50/60 Hz
Suitable for: SMT / PCB Assembly / Lead-Free Reflow Soldering
Condition: Used / Good Working Condition
The machine can be inspected and tested before shipment. Photos, videos and additional technical information are available upon request.
Please contact us for price, availability, shipping options and further details.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 2 |
| Last activity | Oct. 24, 2026 |
Heller 1936 MK5 is a high-volume SMT convection reflow oven designed for demanding PCB assembly and lead-free soldering applications.
The system features 10 top and 10 bottom heating zones, providing a total of 20 heating zones for stable and uniform thermal processing. It also includes 3 standard cooling zones and a heated tunnel length of approximately 3,600 mm.
The Heller MK5 series is designed to provide efficient heat transfer, excellent temperature uniformity and reduced operating costs, making it suitable for high-throughput electronics manufacturing.
Technical Specifications:
Manufacturer: Heller
Model: 1936 MK5
Equipment Type: SMT Convection Reflow Oven
Heating Zones: 10 Top + 10 Bottom
Total Heating Zones: 20
Cooling Zones: 3 standard
Heated Length: Approx. 3,600 mm
Maximum Temperature: 350°C
Conveyor Speed: Up to 1,880 mm/min
PCB Width: Up to approximately 560 mm, depending on conveyor configuration
Power Supply: 208/240/380/400/415/480 VAC, 3 Phase, 50/60 Hz
Suitable for: SMT / PCB Assembly / Lead-Free Reflow Soldering
Condition: Used / Good Working Condition
The machine can be inspected and tested before shipment. Photos, videos and additional technical information are available upon request.
Please contact us for price, availability, shipping options and further details.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Heller 1936 MK5 is a large-capacity SMT convection reflow oven suitable for mass production of printed circuit boards (PCBs) and lead-free reflow soldering. The model is part of the MK5 series and is designed to provide efficient heat transfer, good temperature uniformity, and reduced operating costs under high load.
Key Features:
- Manufacturer: Heller
- Model: 1936 MK5
- Equipment type: SMT convection reflow oven
- Heating zones: 10 upper + 10 lower (total 20 zones)
- Cooling zones: 3 standard
- Heating length: approx. 3,600 mm
- Maximum temperature: 350°C
- Conveyor speed: up to 1,880 mm/min
- PCB width: up to approx. 560 mm (depending on conveyor configuration)
- Power supply: 208/240/380/400/415/480 VAC, 3 phase, 50/60 Hz
Application:
Suitable for SMT manufacturing and assembly of electronic devices requiring precise thermal control in reflow processes.
Condition and Additional Information:
Condition: Used / Good working condition. Photos, videos, and additional technical information are available upon request. Please contact us for information regarding price, availability, and delivery options.
Note: The described features and specifications are based on the available machine description. More detailed data or documentation (electrical schematics, manuals, conveyor configuration, etc.) can be requested separately if required.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 2 |
| Last activity | Oct. 24, 2026 |
