| Manufacturer | HEDELIUS |
|---|---|
| Model | C60 - 2000 |
| Year | 2007 |
| Location | Germany
|
This listing is for a HEDELIUS C60 - 2000 5-axis machining center, manufactured in 2007. The machine offers substantial travel distances with an X-axis travel of 2000 mm, a Y-axis travel of 620 mm, and a Z-axis travel of 520 mm, suitable for a wide range of machining tasks. It features a maximum spindle speed of 8000 RPM and supports a maximum tool weight of 8.5 kg. The machine weighs approximately 10,500 kg.

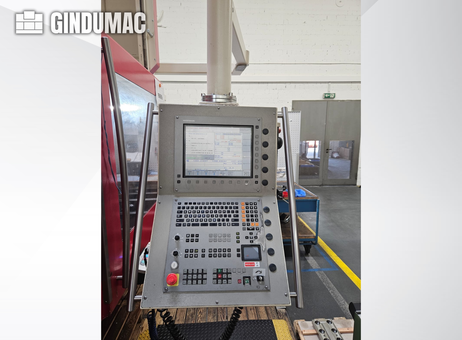

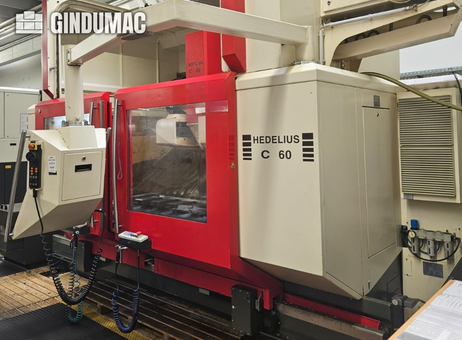

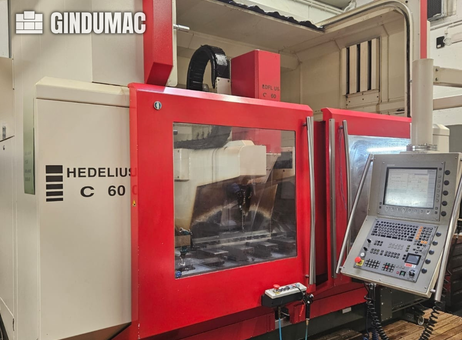

The HEDELIUS C60 - 2000 is equipped with a full enclosure featuring a red and white design and an electric roller door, ensuring a safe and clean working environment. The control panel is located on the right side of the machine and includes a screen and multiple buttons for operation. Additionally, there is a handheld control pendant attached below the control panel, providing flexible control options.

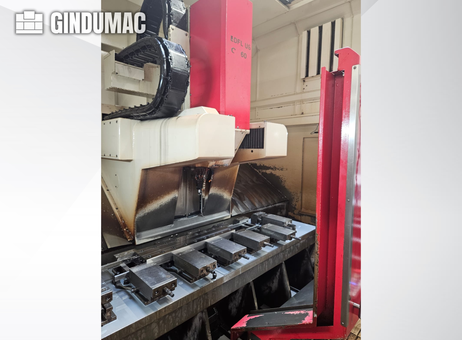

The interior of the machine is visible through a window, and the machine appears clean and well-maintained. This machining center is designed with digital AC servo motors and ball screws, and it uses glass scales on the X, Y, and Z axes for precise positioning. The control system is a HEIDENHAIN iTNC 530, supporting programming in Heidenhain plain text and DIN/ISO.

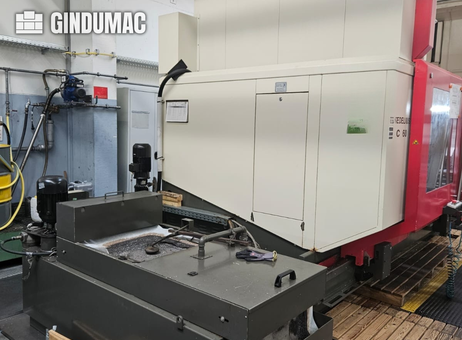

Additional equipment includes a scraper belt chip conveyor and a MultiAir exhaust filter system with a capacity of 1200 m³/h. The coolant system features central coolant through the spindle, with a 780-liter coolant tank and filtration at 25 µm.
Overall, the HEDELIUS C60 - 2000 is a robust and precise 5-axis machining center suitable for complex machining operations, offering extensive travel, a high spindle speed, and a comprehensive control system.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis HEDELIUS C60 - 2000 vertical machining centre was manufactured in 2007. It features an impressive X-axis travel of 2000 mm, Y-axis travel of 620 mm, and Z-axis travel of 520 mm. The machine is equipped with a powerful 18.5 kW spindle and a tool magazine capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the HEDELIUS C60 - 2000 machine we have for sale. Contact us for further details.Pendulum operation area: 2 × 775 × 620 mm
Main spindle torque: 165 Nm (optional 198 Nm)
Tool holder: HSK A63
Max tool length: 330 mm
Max tool diameter: 80 mm
Tool change time: approx. 3.0 s
Chip-to-chip time: approx. 6.0 s
Table: cast iron machine table with 5 T-slots DIN 650-18
Coolant system: central coolant through spindle
Coolant tank capacity: 780 liters
Filter grade: 25 µm
Filter capacity: 130 l/min
Pump A: 20 bar / 30 l/min
Pump B: 2.5 bar / 150 l/min
Electrical connection: 3 × 400 V, 50 Hz
Total connected load: 20 kVA
Compressed air requirement: minimum 7 bar
Weight: 10500 kg
Machine enclosure: full enclosure with electric roller door
Positioning system: glass scales on X/Y/Z axes
Drive system: digital AC servo motors with ball screws
Programming: Heidenhain plain text and DIN/ISO
Additional equipment
Chip conveyor: scraper belt type, discharge height approx. 1150 mm
Extraction system: MultiAir exhaust filter, 1200 m³/h
3D probe: Renishaw RMP 60
Repeatability: ±2 µm
Probe stylus length: 50 mm
Probe ball diameter: 6 mm
Vises (optional)
Control Brand: HEIDENHAIN
Control Model: iTNC 530
Machine Weight: 10500 kg
Max. Tool Weight: 8.5 kg
Number of Axes: 3
Number of Tools: 30
Spindle Power: 18.5 kW
Spindle Speed: 8000 RPM
X-axis Travel: 2000 mm
Y-axis Travel: 620 mm
Z-axis Travel: 520 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
