| Manufacturer | HAITIAN |
|---|---|
| Model | ZE2300 |
| Year | 2019 |
| Location | Romania
|
This HAITIAN ZE2300 injection molding machine, manufactured in 2019, offers a clamping force of 230 tons (2300 kN) suitable for a variety of molding applications. The machine dimensions are approximately 5871 mm in length and 2160 mm in height, with a total weight of 12,000 kg. It features a platen size of 920 mm by 920 mm and a platen opening stroke of 1150 mm, allowing for flexible mold installation and operation.
The machine is equipped with a screw diameter of 55 mm and a maximum injection volume of 570 cm³, providing efficient material handling. Tie bar spacing measures 620 mm both horizontally and vertically, ensuring stability during the molding process. The minimum and maximum mold heights supported are 220 mm and 600 mm, respectively.
Additional technical specifications include a centering ring diameter of 160 mm and an injection nozzle tip radius of R10. The motor power is rated at 47 kW, complemented by a heater power of 25 W. The machine supports a Euromap 67 robot interface and comes with an installed robot, enhancing automation capabilities.

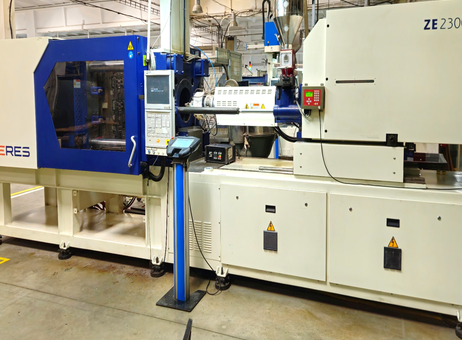

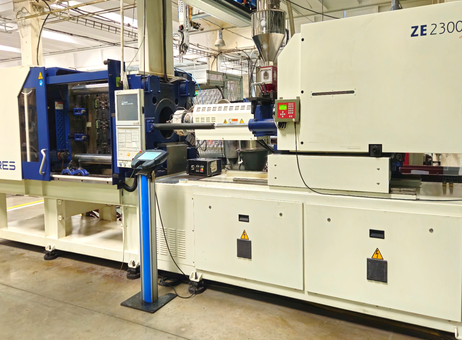

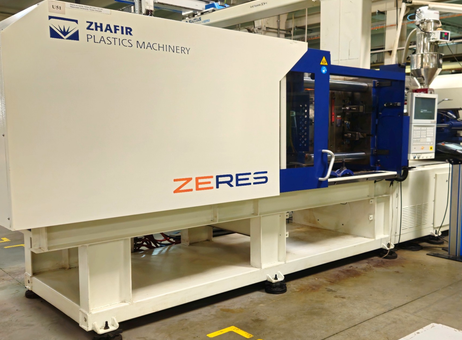

The exterior features a cream-colored main body with a blue protective casing around the mold area, which includes a handle for access to the mold section. This design facilitates maintenance and mold changes. The machine has 32 electrical connection pins.
This model remains in production and has logged approximately 31,732 operating hours. The overall condition is described as excellent, making it a reliable choice for high-quality injection molding needs. For further information or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This HAITIAN ZE2300 was manufactured in 2019. It features a clamping force of 2300 kN, a platen opening stroke of 1150 mm, and a screw diameter of 55 mm. Equipped with a robot and Euromap 67 interface, it remains in excellent condition and is still in production. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN ZE2300 machine we have for sale. Contact us for more information.Platen opening stroke: 1150 mm
Minimum mould height: 220 mm
Maximum mould height: 600 mm
Tie-bar distance: 620 × 620 mm
Platen dimensions: 920 × 920 mm
Centering ring diameter: 160 mm
Maximum injection volume: 570 cm³
Injection nozzle radius (tip): R10
Motor power: 47 kW
Heater power: 25 W
Number of electrical connection pins: 32
Robot interface: Euromap 67
Operating hours: 31,732 h
Condition: Excellent
Status: In production
Additional equipment
Robot (installed)
Clamping Force: 2300 kN
Machine Height: 2160 mm
Machine Length: 5871 mm
Machine Weight: 12000 kg
Screw Diameter: 55 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
