| Manufacturer | Haco ERM |
|---|---|
| Model | 135 ton x 4600 mm CNC |
| Year | |
| Location | Belgium
|

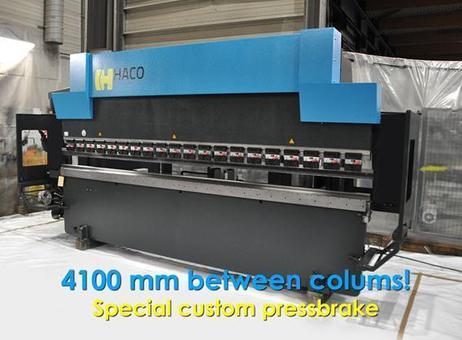

This Haco ERM press brake is a CNC-controlled hydraulic bending machine designed for precise metal forming tasks. It offers a bending capacity of 135 tons across a working length of 4600 mm, making it suitable for handling large sheet metal components. The machine features a specially designed wide passage between uprights measuring 4100 mm, which is greater than standard models, allowing for the bending of wider parts.

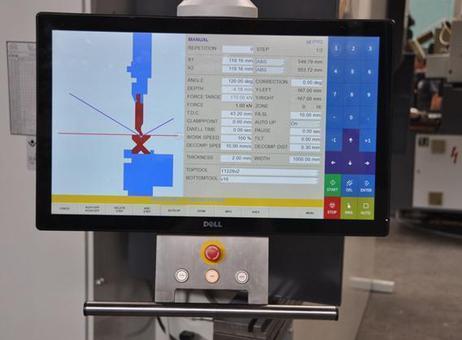

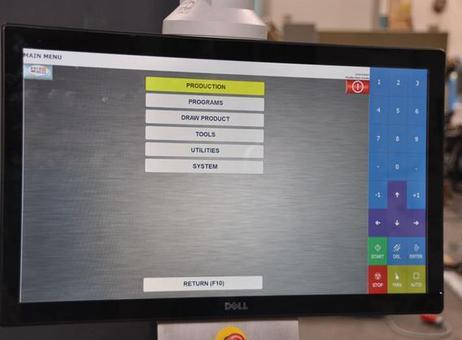

The press brake is equipped with a CNC backgauge system and a 2D touchscreen control panel manufactured by Dell. The control interface provides access to multiple menus including production programs, drawing tools, utilities, and system settings, facilitating flexible and efficient operation. Operators can manage bending parameters such as angle, thickness, and width directly from the touchscreen. The control panel also includes an emergency stop button and several control buttons for operational safety and convenience.

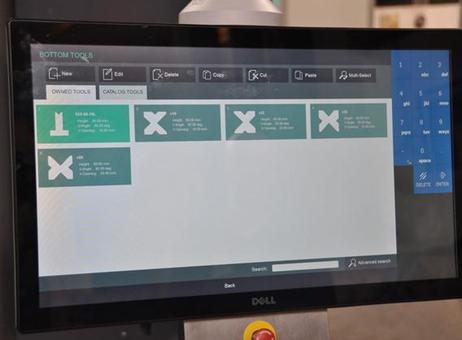

This model operates with seven CNC axes: Y1, Y2, X, R, Z1, Z2, and V, enabling complex and precise bending sequences. It uses Amada system tooling, which is known for reliability and compatibility with various tooling options. The maximum stroke of the ram is 200 mm, with a maximum distance between the table and ram of 400 mm and a throat depth of 250 mm.
The machine’s locking speed is 100 mm/sec, working speed is 10 mm/sec, and returning speed is 80 mm/sec, powered by a 15 kW electric motor. It has overall dimensions of 5000 mm in length, 1700 mm in width, and 2850 mm in height, and weighs approximately 15,500 kg.

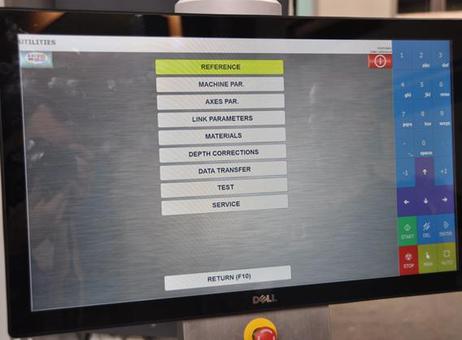

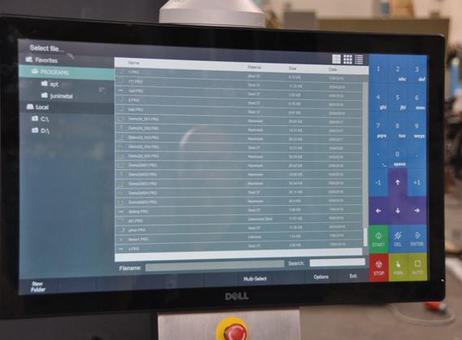

This press brake is designed for industrial use where high precision and versatility are required. The control system supports program file management, including storage and editing of bending programs for different materials such as steel and aluminum. The machine's utilities menu offers options for machine parameter adjustments, data transfer, and service functions, supporting maintenance and customization needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Haco ERM 135 ton x 4600 mm CNC Press brake cnc/nc
Technical information
Capacity135 ton x 4600 mm
BackgaugeCNC
Control2D Touch
Passage between uprights4100 mm !! (special made, not standard machine)
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat250 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed80 mm/sec
Electric motor (power)15 kW
Length5000 mm
Depth1700 mm
Height2850 mm
Weight15,5 ton
Additional info
7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V (CNC bombation)
Amada systemtooling
Type/Model: 135 ton x 4600 mm CNC
Stocknumber: O.01 13934
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic press brakes
Brand: Haco ERM
» Request a personalised quote
7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V (CNC bombation)
Amada systemtooling
