| Manufacturer | HAAS |
|---|---|
| Model | VF-8 |
| Year | 2015 |
| Location | Poland
|

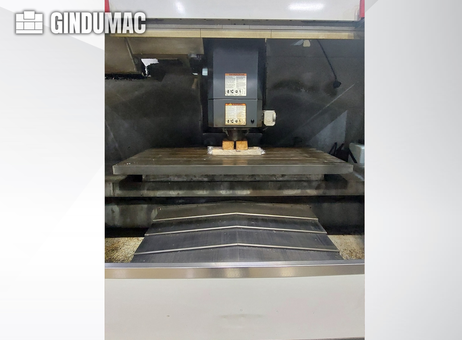

2015 HAAS VF-8 three-axis vertical machining centre with an enclosed work area and Haas CNC control. The machine has X-axis travel of 1,626 mm, Y-axis travel of 1,016 mm and Z-axis travel of 762 mm. The T-slot table measures 1,626 × 914 mm, and the supplied information lists a maximum evenly distributed table load of 1,814 kg. Overall dimensions are 4,827 × 4,039 × 3,282 mm, with a listed machine weight of 11,250 kg.
The machine is equipped with a 40-position side-mounted tool changer, an ISO 40 spindle taper and a maximum spindle speed of 8,100 rpm. The listed spindle motor power is 22.4 kW. Other described equipment and features include a two-speed gearbox, spindle cooling, spindle taper air blast, rigid tapping and through-spindle coolant. The coolant system is described as having a pull-out tank, programmable coolant nozzle and screw-type chip auger.

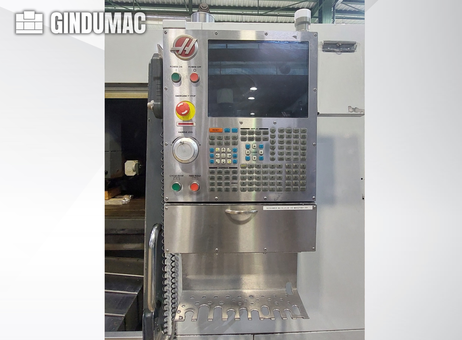

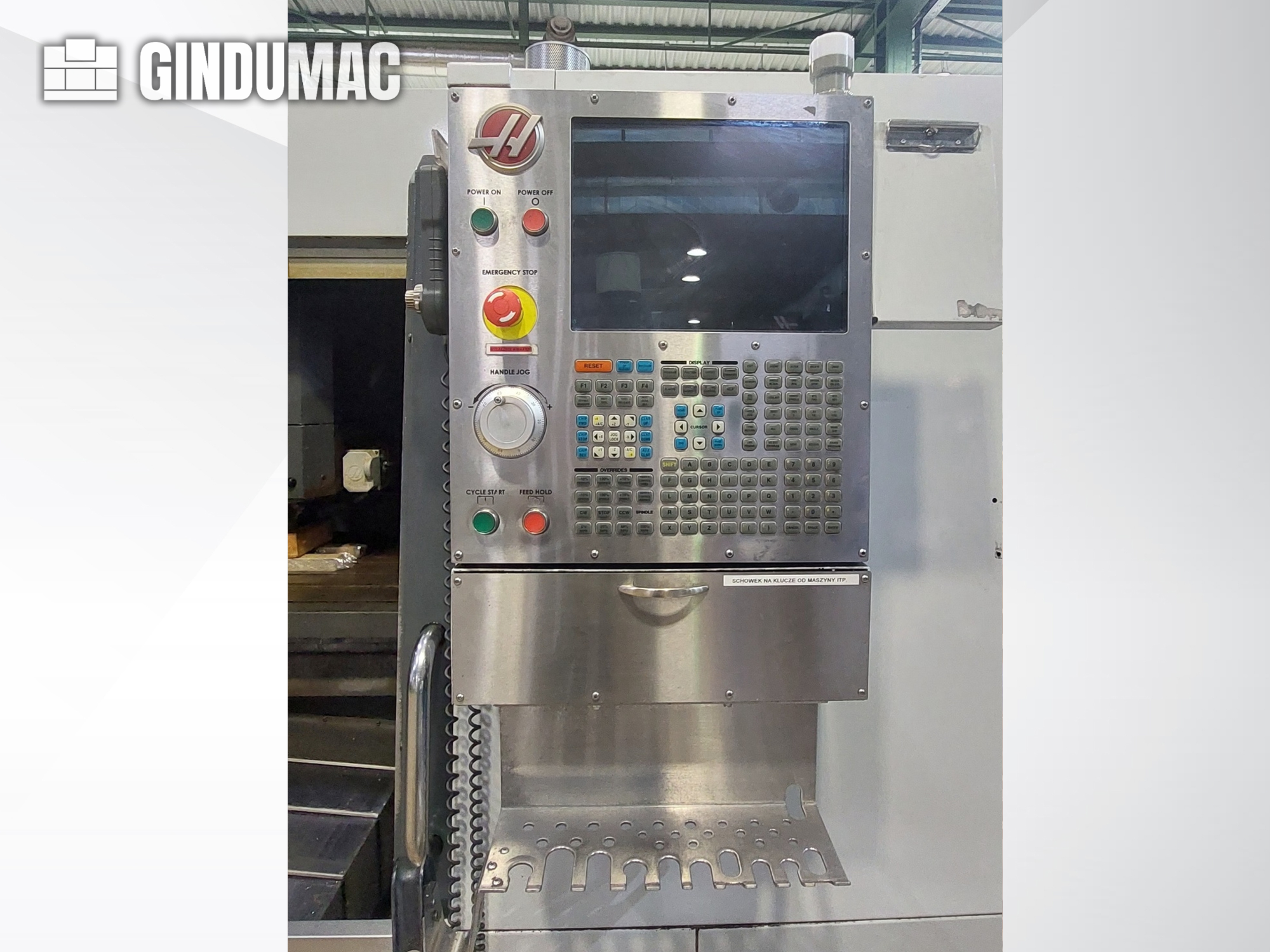

The listed control equipment includes a 15-inch colour LCD, USB port, remote jog handle with colour display and 1 MB program memory. Described options include WIPS-R wireless probing, tool and workpiece measurement cycles, high-speed machining, fourth-axis preparation and automatic pallet changer preparation; rotary table and pallet changer are not specified as included. Additional listed equipment includes automatic central lubrication, ball screw thermal compensation, machine lighting and a control-cabinet cooling unit.

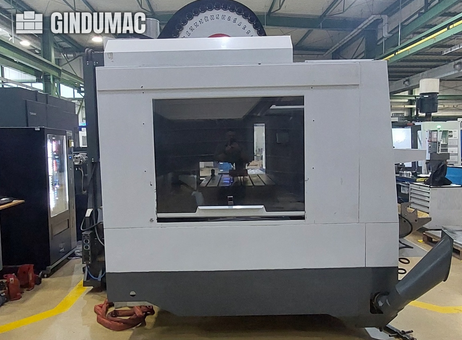

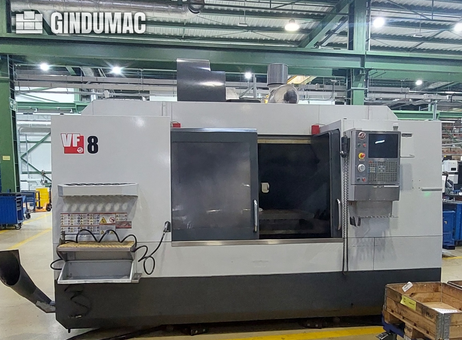

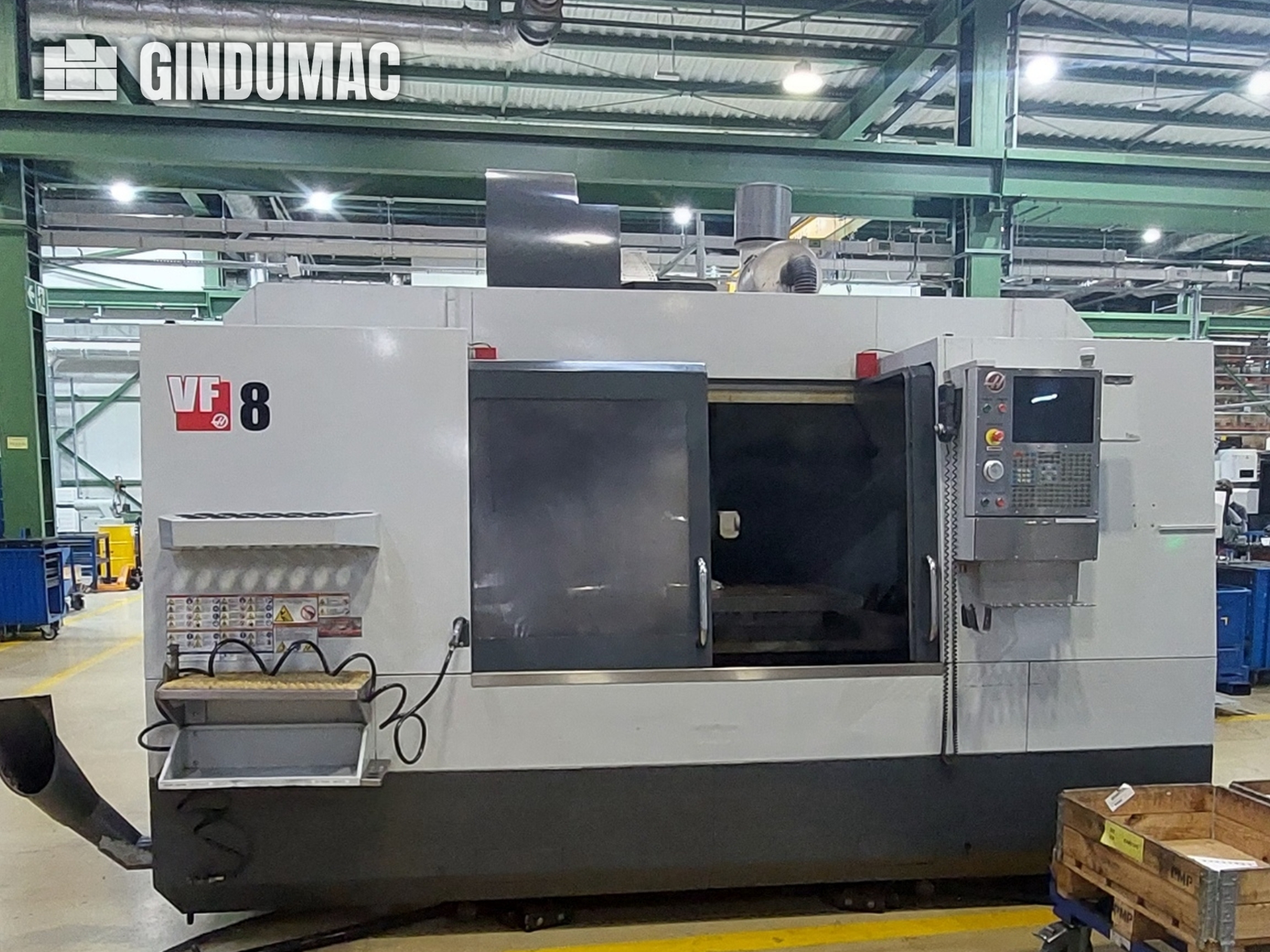

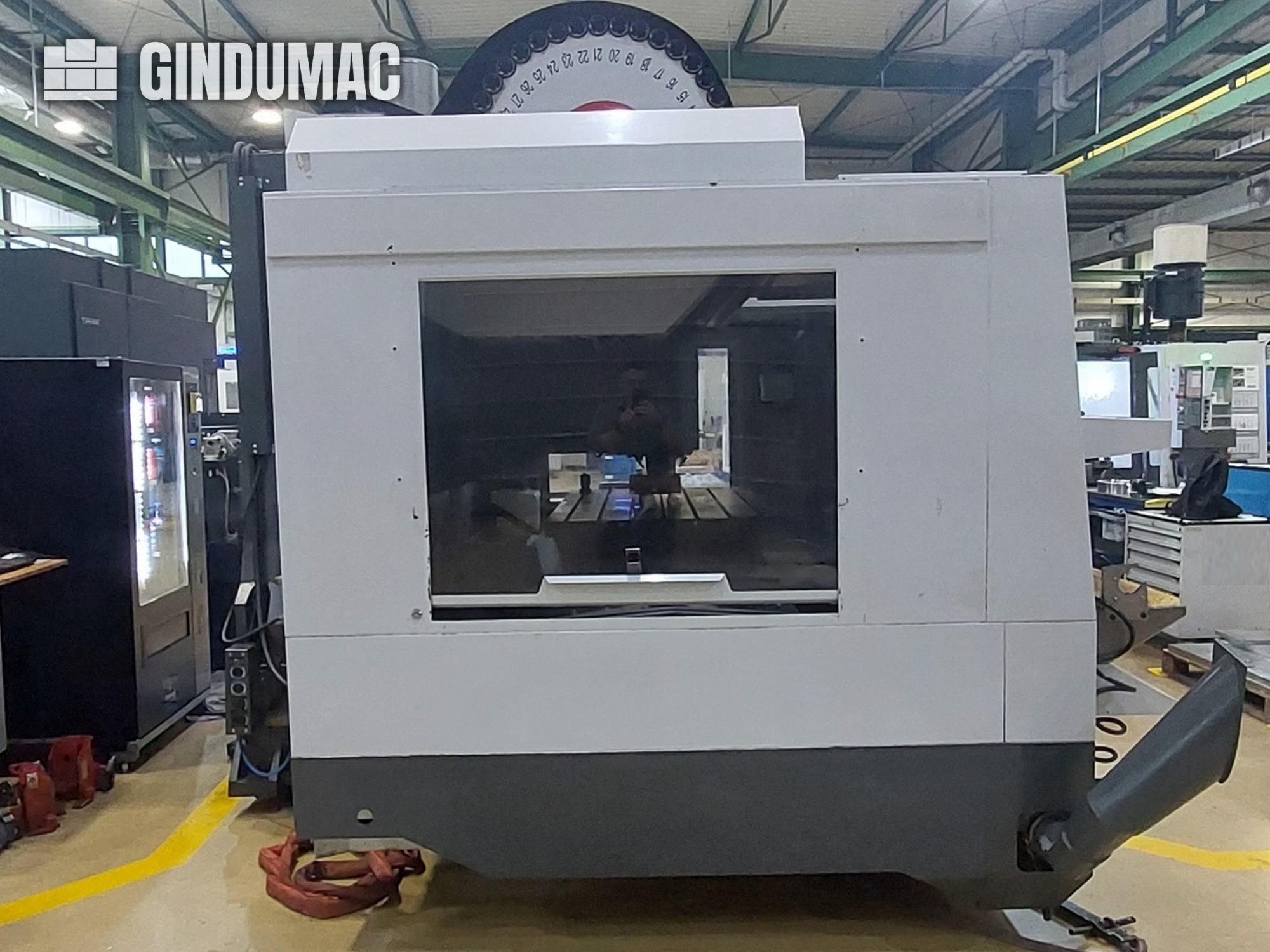

The machine is enclosed, with sliding front doors and hinged side windows. A coolant or chip collection trough and hoses are present at the lower front. The exterior panels and control-panel face show scuffs and marks. The control display appears dark in the provided view; operational status is not confirmed.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Haas VF-8 vertical machining centre was manufactured in 2015. It features an impressive X-axis travel of 1626 mm, Y-axis travel of 1016 mm, and Z-axis travel of 762 mm. The machine includes a robust table size of 1626 x 914 mm and a maximum table load of 1814 kg. If you are looking to get high-quality machining capabilities, consider the Haas VF-8 vertical machining centre we have for sale. Contact us for further details.CNC control
Haas CNC control, Classic generation
15-inch colour LCD
USB port
Program memory: 1 MB
Remote jog handle with colour display
Axis travels and feed rates
Spindle nose to table distance: 102–864 mm
Rapid traverse (X/Y/Z): 15.2 m/min
Maximum cutting feed rate: 12.7 m/min
Worktable

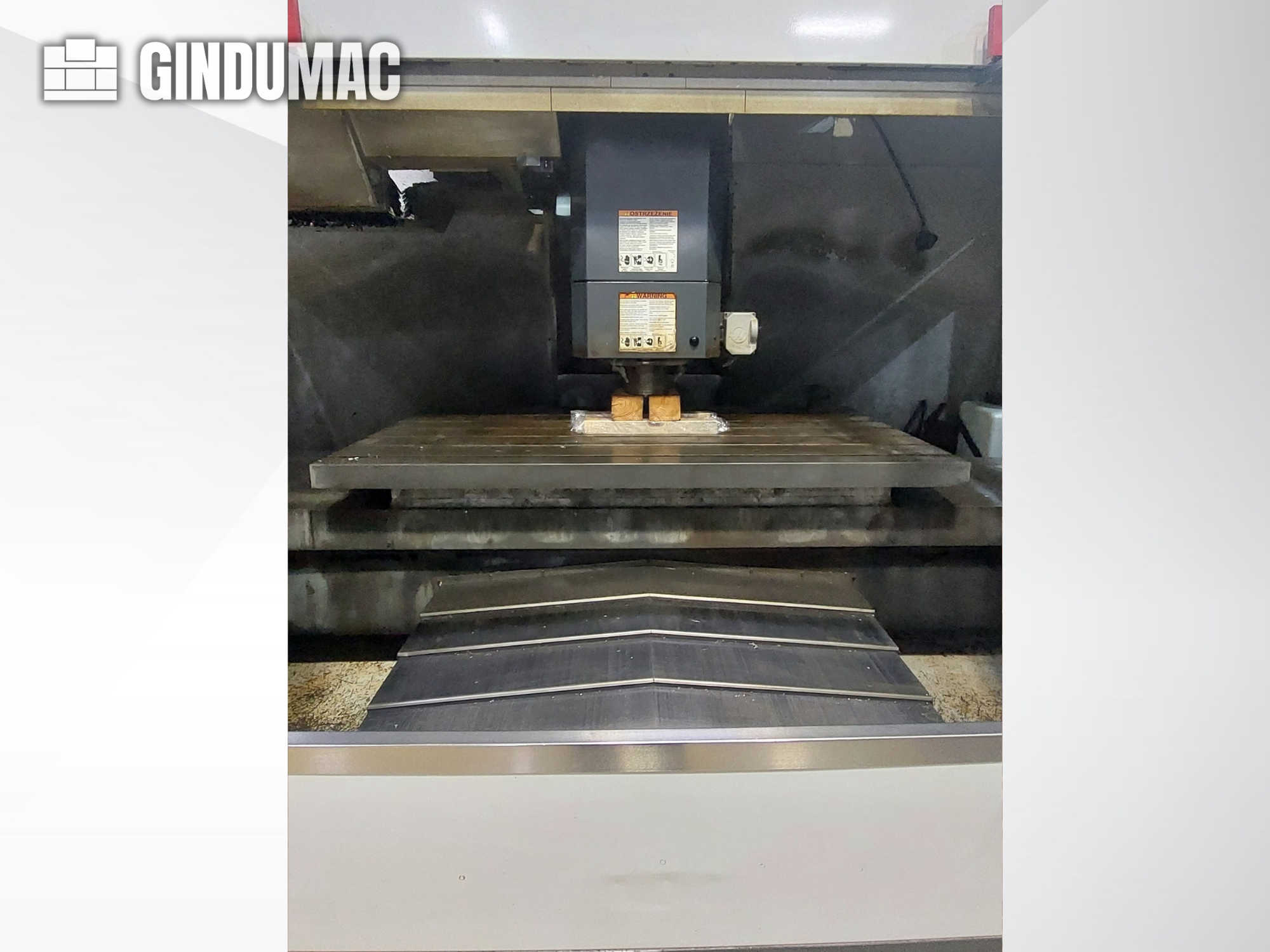

Table dimensions: 1626 × 914 mm
Max evenly distributed table load: 1814 kg
Spindle
Spindle taper: 40 taper
Maximum spindle speed: 8,100 rpm
Spindle power: 15 kW
Two-speed gearbox
Spindle cooling system
Spindle taper air blast
Rigid tapping
Tool changer
Side-mounted tool changer: 40 positions
Coolant and chip removal
Through-spindle coolant: 20 bar, 22 L/min
ACF additional coolant filtration system: 25 µm
Programmable coolant nozzle position
Coolant system with pull-out coolant tank
Screw-type chip auger
Probing and machining options
WIPS-R wireless workpiece and tool probing system
Tool length and radius measurement
Workpiece measurement and setting cycles
PMDS probe interface, internal power supply and wiring
Spindle orientation, coordinate rotation and macros
VQC Visual Quick Code conversational programming
HSM High-Speed Machining with look-ahead for machining complex contours using three-axis interpolation
4AXD fourth-axis preparation, including connections and wiring. Rotary table not included
APC-READY automatic pallet changer preparation, including eight additional functions, macro support and wiring. Pallet changer not specified as included
Additional equipment
Ball screw thermal compensation
Fully enclosed machining area with sliding front doors and hinged side windows
Program memory lock
Compressed-air connection
EPFDM early power failure detection module
Automatic central lubrication
Machine lighting
CABCOOL CNC control cabinet cooling unit
Control Brand: HAAS
Machine Height: 3282 mm
Machine Length: 4827 mm
Machine Weight: 11250 kg
Machine Width: 4039 mm
Max. Tool Weight: 5.4 kg
Number of Axes: 3
Tool Stations: 40
Spindle Power: 22.4 kW
Spindle Speed: 8100 RPM
Table Length: 1626 mm
Table Load: 1814 kg
Table Width: 914 mm
Taper Size: ISO 40
Through-spindle Coolant: yes
X-axis Travel: 1626 mm
Y-axis Travel: 1016 mm
Z-axis Travel: 762 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
