| Manufacturer | HAAS |
|---|---|
| Model | ST-20Y CNC Turning Center with Y-Axis & Live Tooling Brand New Never Used |
| Year | 2025 |
| Location | USA
|

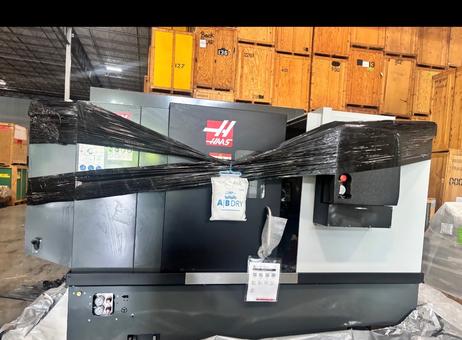

This listing is for a brand new, never used 2025 HAAS ST-20Y CNC Turning Center equipped with Y-axis and live tooling capabilities. Manufactured by HAAS, this machine offers a robust 20 HP spindle motor with a maximum spindle speed of 4,000 rpm, utilizing an A2-6 spindle type. It features an 8.3-inch 3-jaw hydraulic chuck and supports a bar capacity of 2.5 inches with a spindle bore diameter of 3.5 inches.
The machine is equipped with a 12-station BMT65 turret, providing flexibility for various tooling needs. It offers an X-axis travel of 8.4 inches, Y-axis travel of ±2.0 inches, and Z-axis travel of 22.5 inches, allowing for a maximum turning length of 22.5 inches. The maximum cutting diameter is 11.75 inches, and the maximum swing is 21 inches.
Additional features include one radial and one axial live tool holder, rigid tapping, spindle orientation, advanced tool management, and a programmable tailstock. The control system includes 1 GB of memory, with connectivity options via WiFi and Ethernet, supporting HAAS Connect for remote monitoring. Media display and M-code functionalities are included, along with a phone charging station for operator convenience.
The machine offers rapid traverse rates of 945 inches per minute on the Z-axis and 472 inches per minute on the X and Y axes. It is equipped with an internal high voltage isolated transformer and a 55-gallon coolant tank with a multistage coolant pump for efficient thermal management. The unit comes with the HAAS factory warranty, ensuring coverage as a brand new machine. This CNC turning center is suitable for precision machining applications requiring advanced tooling and multi-axis capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: 2025 HAAS ST-20Y CNC Turning Center with Y-Axis & Live Tooling Brand New Never Used
Manufacturer: HAAS
Model: ST-20Y CNC Turning Center with Y-Axis & Live Tooling Brand New Never Used
Year of Manufacture: 2025
Technical Condition: As-is, where-is
Spindle Speed: 4,000 rpm
Spindle Type: A2-6
Chuck: 8.3" 3-Jaw Hydraulic Chuck
Bar Capacity: 2.5"
Spindle Bore Diameter: 3.5"
Turret: 12 Station BMT65
X-Axis Travel: 8.4"
Y-Axis Travel: ± 2.0"
Z-Axis Travel: 22.5"
Maximum Turning Length: 22.5"
Maximum Cutting Diameter: 11.75"
Maximum Swing: 21"
Live Tooling: 1 Radial & 1 Axial Live Tool Holder
Additional Features: Rigid Tapping, Spindle Orientation, Advanced Tool Management, Programmable Tailstock
Memory: 1 GB
Connectivity: Wifi / Ethernet, HAAS Connect
Media Display: Included
M-Code: Supported
Phone Charging Station: Included
Spindle Motor Power: 20 HP
Live Tooling Motor Power: 5 HP
Rapid Rate Z Axis: 945 IPM
Rapid Rate X & Y Axis: 472 IPM
Electrical: Internal High Voltage Isolated Transformer
Coolant System: 55 Gallon Coolant Tank & Multistage Coolant Pump
Warranty: HAAS Factory Warranty
Condition: Brand New, Never Used
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
