| Manufacturer | HAAS |
|---|---|
| Model | EC-1600ZT |
| Year | 2020 |
| Location | Poland
|
The HAAS EC-1600ZT is a horizontal CNC machining center manufactured in 2020 by HAAS AUTOMATION INC. in the United States. This machine is engineered for processing large and heavy parts, with a maximum part weight capacity of 4536 kg. It features a spacious workspace with axis travels of 1626 mm (X), 1270 mm (Y), and 1016 mm (Z), complemented by a rotary table (B axis) capable of 360° rotation. The worktable measures 1626 mm in length and 914 mm in width, with a clamping plate diameter of 762 mm. The machine’s total weight is approximately 13,472 kg.
The spindle is powered by a 22.4 kW motor and can reach speeds up to 7500 rpm, utilizing a 2-speed gearbox and a CT or BT 50 taper. It delivers a maximum spindle torque of 460 Nm at 700 rpm. The tool magazine holds 50+1 tools, supporting maximum tool diameters of 102 mm when adjacent sockets are occupied and 254 mm when empty, with a maximum tool length of 508 mm and weight of 13.6 kg. Tool change times average 8 seconds, with chip-to-chip times around 12.6 seconds.
The machine features seven T-slots on the table, each 15.9-16 mm wide and spaced 125 mm apart. It has a coolant tank capacity of 360 liters and requires an air supply of 255 l/min at 6.9 bar minimum pressure of 5.5 bar. Power supply is 3-phase 440 V at 50/60 Hz.

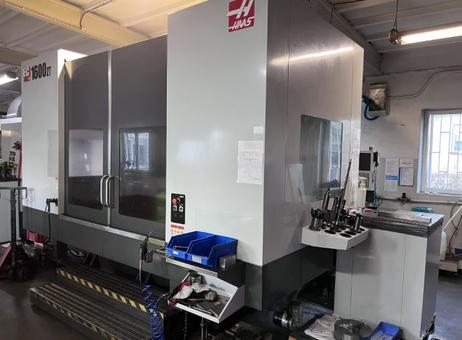

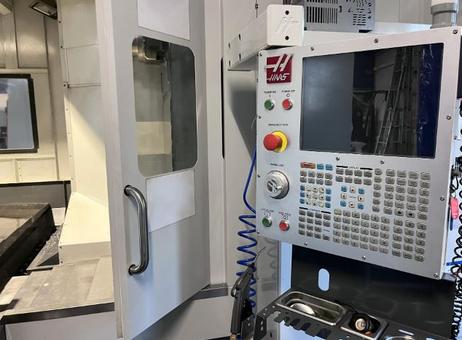

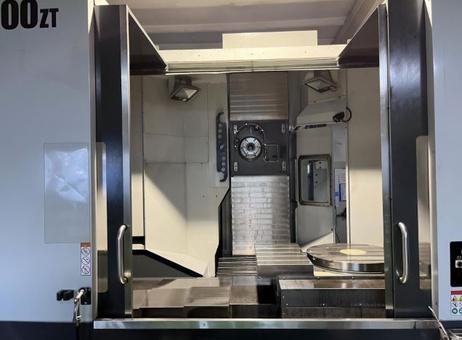

The HAAS EC-1600ZT is equipped with a control panel featuring a screen, keypad, and emergency stop button. The machine has a closed enclosure with sliding doors providing access to the machining area, which includes a rotary table and spindle. The interior and exterior of the machine appear clean and well-maintained. Additional visible accessories include tool holders and an air hose near the control panel, as well as blue plastic bins and cleaning cloths on a shelf attached to the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The HAAS EC-1600ZT CNC horizontal machining center was manufactured in 2020 in the United States by HAAS AUTOMATION INC. The machine is designed to process large parts weighing up to 4536 kg, and is an ideal combination of functionality, productivity, and precision. Machining is carried out inside a large workspace, which includes a rotary table (4th axis), a two-stage spindle, and a capacious magazine with an automatic tool changer. During the entire period of use, the machine worked for less than 3 minutes. The HAAS EC 1600ZT CNC machining center weighs about 13472 kg.
- X/Y/Z axis feed: 1626/1270/1016 mm
- B axis feed: 360°
- X, Y, Z axis feed speed: 15.2 m/min
- worktable surface (length x width): 1626 x 914 mm
- clamping plate diameter (rotary table): 762 mm
- maximum workpiece weight: 4536 kg
- maximum spindle rotation speed: 7500 rpm
- spindle drive type: 2-speed gearbox
- spindle taper: CT or BT 50
- spindle drive power: 22.4 kW
- maximum spindle torque (at 700 rpm): 460 Nm
- tool magazine capacity: 50+1
- maximum tool diameter (adjacent socket occupied/adjacent socket empty): 102/254 mm
- maximum tool length (from riveting line): 508 mm
- maximum tool weight: 13.6 kg
- average tool change time: 8 s
- average chip-to-chip tool change time: 12.6 s
- spindle centerline from table: 304 mm
- number of T-slots: 7
- T-slot width: 15.9-16 mm
- T-slot spacing: 125 mm
- power-on time: 6391 h
- coolant tank capacity: 360 l
- air demand (6.9 bar): 255 l/min
- minimum air pressure: 5.5 bar
- power supply: 3x 440 V; 50/60 Hz - HAAS EC-1600ZT
machine weight : approx. 13472 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 426 |
| Last activity | Oct. 30, 2026 |
The HAAS EC-1600ZT CNC horizontal machining center was manufactured in 2020 in the United States by HAAS AUTOMATION INC. The machine is designed to process large parts weighing up to 4536 kg, and is an ideal combination of functionality, productivity, and precision. Machining is carried out inside a large workspace, which includes a rotary table (4th axis), a two-stage spindle, and a capacious magazine with an automatic tool changer. During the entire period of use, the machine worked for less than 3 minutes. The HAAS EC 1600ZT CNC machining center weighs about 13472 kg.
- X/Y/Z axis feed: 1626/1270/1016 mm
- B axis feed: 360°
- X, Y, Z axis feed speed: 15.2 m/min
- worktable surface (length x width): 1626 x 914 mm
- clamping plate diameter (rotary table): 762 mm
- maximum workpiece weight: 4536 kg
- maximum spindle rotation speed: 7500 rpm
- spindle drive type: 2-speed gearbox
- spindle taper: CT or BT 50
- spindle drive power: 22.4 kW
- maximum spindle torque (at 700 rpm): 460 Nm
- tool magazine capacity: 50+1
- maximum tool diameter (adjacent socket occupied/adjacent socket empty): 102/254 mm
- maximum tool length (from riveting line): 508 mm
- maximum tool weight: 13.6 kg
- average tool change time: 8 s
- average chip-to-chip tool change time: 12.6 s
- spindle centerline from table: 304 mm
- number of T-slots: 7
- T-slot width: 15.9-16 mm
- T-slot spacing: 125 mm
- power-on time: 6391 h
- coolant tank capacity: 360 l
- air demand (6.9 bar): 255 l/min
- minimum air pressure: 5.5 bar
- power supply: 3x 440 V; 50/60 Hz - HAAS EC-1600ZT
machine weight : approx. 13472 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The HAAS EC-1600ZT is a horizontal CNC machining center manufactured in 2020 by HAAS AUTOMATION INC. in the United States. This machine is engineered for processing large and heavy parts, with a maximum part weight capacity of 4536 kg. It features a spacious workspace with axis travels of 1626 mm (X), 1270 mm (Y), and 1016 mm (Z), complemented by a rotary table (B axis) capable of 360° rotation. The worktable measures 1626 mm in length and 914 mm in width, with a clamping plate diameter of 762 mm. The machine’s total weight is approximately 13,472 kg.
The spindle is powered by a 22.4 kW motor and can reach speeds up to 7500 rpm, utilizing a 2-speed gearbox and a CT or BT 50 taper. It delivers a maximum spindle torque of 460 Nm at 700 rpm. The tool magazine holds 50+1 tools, supporting maximum tool diameters of 102 mm when adjacent sockets are occupied and 254 mm when empty, with a maximum tool length of 508 mm and weight of 13.6 kg. Tool change times average 8 seconds, with chip-to-chip times around 12.6 seconds.
The machine features seven T-slots on the table, each 15.9-16 mm wide and spaced 125 mm apart. It has a coolant tank capacity of 360 liters and requires an air supply of 255 l/min at 6.9 bar minimum pressure of 5.5 bar. Power supply is 3-phase 440 V at 50/60 Hz.
The HAAS EC-1600ZT is equipped with a control panel featuring a screen, keypad, and emergency stop button. The machine has a closed enclosure with sliding doors providing access to the machining area, which includes a rotary table and spindle. The interior and exterior of the machine appear clean and well-maintained. Additional visible accessories include tool holders and an air hose near the control panel, as well as blue plastic bins and cleaning cloths on a shelf attached to the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 426 |
| Last activity | Oct. 30, 2026 |
