| Manufacturer | Haas |
|---|---|
| Model | EC-1600-3X |
| Year | 2007 |
| Location | USA
|
This listing is for a Haas EC-1600-3X horizontal machining center, manufactured in 2007. The machine features a Haas CNC control system and is equipped with a 50-position side-mounted automatic tool changer, allowing for efficient tool management during machining operations. It has a 30 HP, 2-speed geared head drive system, providing robust power for various machining tasks. The machine includes a thru-spindle coolant system and a Haas probe for enhanced precision.
The machine's table measures 64 inches by 36 inches and can support a maximum load capacity of 10,000 lbs. It offers substantial travel ranges with 64 inches on the X-axis (column longitudinal travel), 40 inches on the Y-axis (head vertical travel), and 32 inches on the Z-axis (table cross travel). The spindle taper is a #50, supporting tool diameters up to 3 inches at full capacity and up to 10 inches when adjacent positions are empty. Spindle speeds range from 0 to 6000 RPM, with a cutting feed rate of 500 inches per minute and a rapid traverse rate of 540 inches per minute.
Overall dimensions of the machine are 143 inches wide by 173 inches deep, with a height of 119 inches, and it weighs approximately 31,000 lbs. The machine comes with a large quantity of 50 taper tooling, including approximately 63 tool holders.

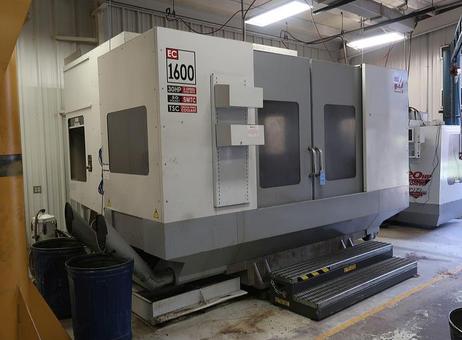

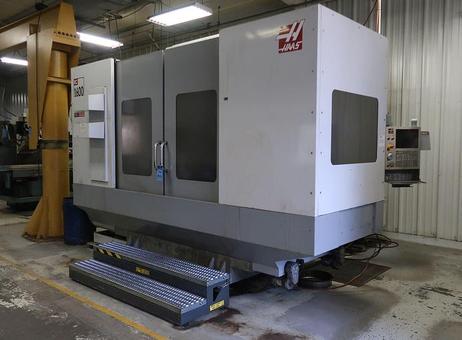

The exterior of the machine is in good condition, showing only minor surface dirt and wear consistent with normal use. The front doors have two large windows for viewing the machining area, and the control panel is mounted on the right side, featuring a display and various buttons for operation. A metal steps/platform is placed in front of the machine to facilitate operator access. This robust machining center is suitable for a wide range of industrial machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
EQUIPPED WITH:
Haas CNC Control

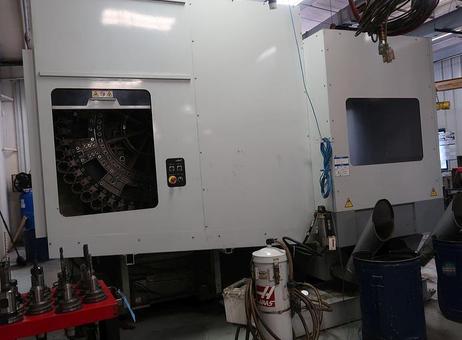

50-Position Side-Mounted Automatic Tool Changer
30 HP 2-Speed Geared Head Drive System

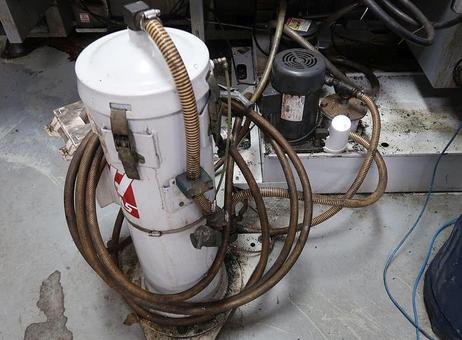

Thru-Spindle Coolant System
Haas Probe
Large Quantity of 50 Taper Tooling (Approximately 63 Tool Holder)
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 64" x36"
Table Load Capacity, Maximum 10000 LBS
X-Axis Column Longitudinal Travel 64"
Y-Axis Head Vertical Travel 40"
Z-Axis Table Cross Travel 32"
Spindle Taper #50
Tool Diameter Full, Maximum 3"
Tool Diameter Adjacent Empty, Maximum 10"
Spindle Speeds, Range 0 to 6000 RPM
Cutting Feedrate Range 500 IPM
Rapid Traverse Rate 540 IPM
Motor Horsepower 30 HP
Overall Dimensions, W x D 143" x 173"
Overall Height 119"
Weight Approximately 31000 LBS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
