| Manufacturer | Guowang |
|---|---|
| Model | C 106 Y |
| Year | 2017 |
| Location | USA
|
| Category | Die-cutters / Embossers / Hot foil |
| Max. paper length | 106 cm |
| Max. paper width | 76 cm |
| Min. paper length | 45 cm |
| Min. paper width | 37 cm |
| Max sheets/hour | 7500 |
| Honeycomb Chase | Yes |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | in production |
| Last availability date | 21/10/2026 |
| Product id | P241206041 |
| Language |
щанцоване Guowang C 106 Y
Vysekávací stroj Guowang C 106 Y
Guowang C 106 Y Udstanser
Guowang C 106 Y Stanze
Κόφτης Guowang C 106 Y
Guowang C 106 Y Die-cutter
Troqueladora Guowang C 106 Y
Presse de découpe Guowang C 106 Y
Izrezivač Guowang C 106 Y
Guowang C 106 Y Vágószerszám
Fustellatrice Guowang C 106 Y
Štampas Guowang C 106 Y
Guowang C 106 Y Stansmachine
Maszyna sztancująca Guowang C 106 Y
Cortador Guowang C 106 Y
Decupator Guowang C 106 Y
Guowang C 106 Y Высекальная машина
Die-cutter Guowang C 106 Y
Guowang C 106 Y Skärare
Kesim Guowang C 106 Y
|
The Guowang C 106 Y is a large industrial die-cutting machine manufactured in 2017, designed for efficient processing of various paper and cardboard materials. It supports a maximum sheet size of 106 x 76 cm and a minimum sheet size of 45 x 37 cm, accommodating a wide range of production needs. The machine offers a maximum die-cutting size of 104.5 x 74.5 cm and a maximum stamping size of 102 x 74 cm. It operates at speeds up to 7,500 sheets per hour for die-cutting, 6,500 for stamping, and 5,500 for hologram applications. It handles paper thicknesses from 90 to 2000 g/m² and cardboard thicknesses from 0.1 to 3 mm, with the capability to process corrugated board up to 4 mm thick (E and B flute) during die-cutting. The machine features a maximum pressure of 320 tons and includes 20 heating zones to support various applications.
Key equipment includes a non-stop function, double sheet detector, and side lays with both pull and push modes on each side for precise alignment. It is equipped with a die-cutting unit, a centerline system, micro adjustment capabilities, and a foil stamping unit. Accessories provided with the machine include two honeycomb chases, two cutting chases, cutting plates in 1, 3, and 4 mm thicknesses, a gripper bar, a chase changer, and an automatic foil rewinder.

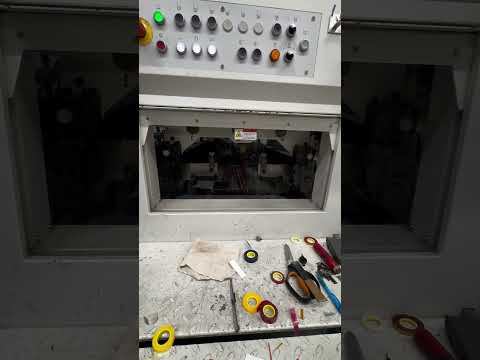

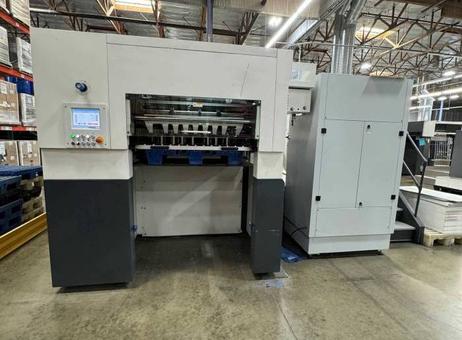

The machine has a white and dark gray color scheme with a blue Guowang logo. It includes a control panel with a touchscreen and various buttons, positioned on the left side, facilitating user-friendly operation. Safety features include a safety cage or mesh on the top section and an emergency stop button with a lockout tag on the side panel. The operator platform is accessible via small metal stairs and includes steps and a control area. Multiple rollers are visible inside the machine, showing some signs of use but no visible damage.

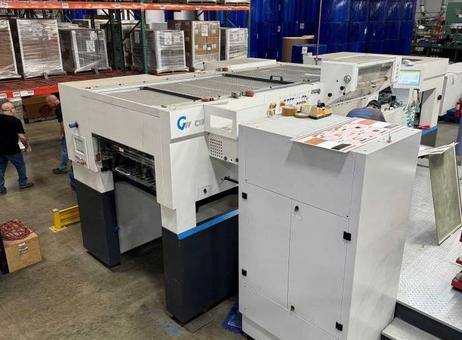

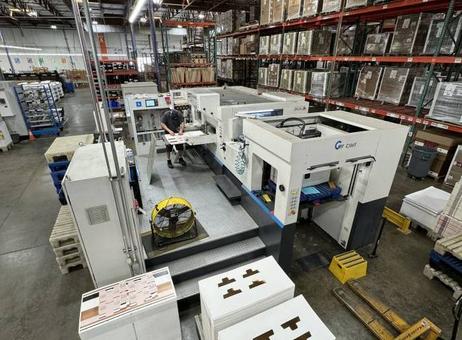

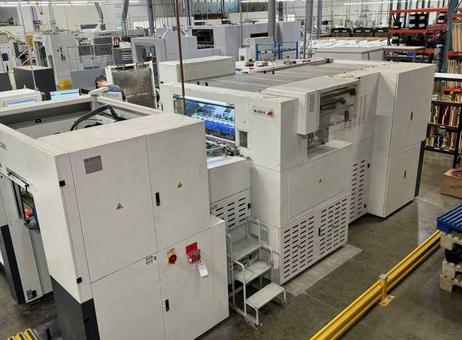

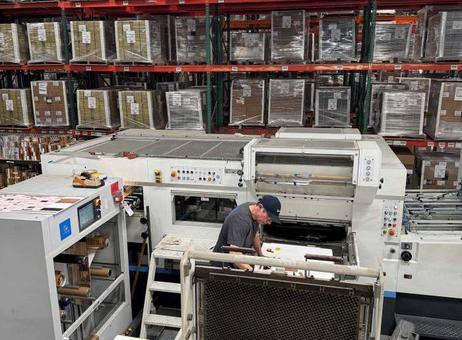

The machine is located in a clean and well-maintained warehouse environment with concrete flooring, pallets, boxes, shelving, and safety barriers nearby. Overall, the Guowang C 106 Y offers a robust and versatile solution for high-speed die-cutting and stamping operations in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max. sheet size : 106 x 76 cms
Min. sheet size : 45 x 37 cms
Max. Die-cutting size : 104.5 x 74.5 cms
Max. Stamping size : 102 x 74 cms
Max. speed (Die-cutting / Stamping / Hologram) : 7500 / 6500 / 5500 (s/h)
Paper thickness: 90 – 2000 g/m2
Cardboard thickness: 0.1 – 3 mm
Corrugated board (only in die-cutting) : < 4mm, E, B Flute
Max pressure : 320T
Heating zone : 20
Main equipment :
Non stop
Double sheet detector
Side lays : pull and push mode on both sides
Die-cutting unit
Centerline system
Micro adjustment
Foil stamping unit
Accessories :
2x Honeycomb Chase
2x Cutting Chase
1,3,4mm Cutting Plates
1x Gripper Bar
1x Chase Changer

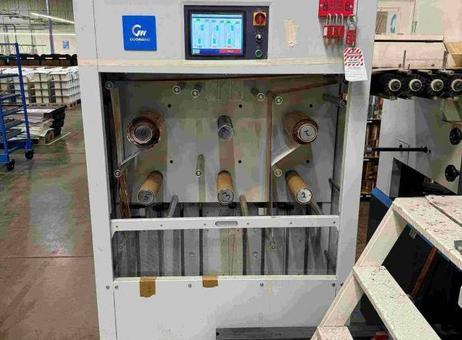

Automatic foil rewinder
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the maximum sheet size for this Guowang C-106Y?
This Guowang C-106Y die cutting and foil stamping machine has a maximum sheet size of 106 x 76 cm.
What is the minimum sheet size for the machine?
This die cutting machine has a minimum sheet size of 45 x 37 cm.
What is the maximum die-cutting size for this Guowang C-106Y?
This Guowang C-106Y die cutter features a maximum die-cutting size of 104.5 x 74.5 cm.
What is the maximum stamping size for the machine?
This equipment offers a maximum stamping size of 102 x 74 cm.
What are the maximum speeds for this Guowang C-106Y?
This Guowang C-106Y die cutting machine has a maximum speed of 7500 sheets per hour for die-cutting, 6500 sheets per hour for stamping, and 5500 sheets per hour for hologram.
What is the paper thickness range for the machine?
This die cutting machine can process paper thickness ranging from 90 to 2000 g/m2.
What cardboard thickness can this Guowang C-106Y handle?
This Guowang C-106Y die cutter can handle cardboard thickness from 0.1 to 3 mm.
What is the counter reading for the machine?
This equipment has a counter reading of 9 million cycles.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
