Contact us to receive an offer.
| Manufacturer | GUILLEMIN |
|---|---|
| Model | GM12 |
| Year | 2004 |
| Location | France
|
| Category | Miscellaneous machines |
| Engine power | 0.75 kW |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | visible |
| Datasheet | GUILLEMIN GM12 |
| Last availability date | 09/10/2026 |
| Product id | P260604036 |
| Language |
Радиален нитовател GUILLEMIN GM12
Radiální nýtovací kleště GUILLEMIN GM12
GUILLEMIN GM12 radial nittejern
GUILLEMIN GM12 Radialnietgerät
Ακτινικό πριτσίνι GUILLEMIN GM12
GUILLEMIN GM12 radial riveter
Remachadora radial GUILLEMIN GM12
Riveteuse radiale GUILLEMIN GM12
GUILLEMIN GM12 radijalni zakivač
GUILLEMIN GM12 radiális szegecshúzó
Rivettatrice radiale GUILLEMIN GM12
GUILLEMIN GM12 radialinis kniediklis
GUILLEMIN GM12 radiale klinknageltang
Nitownica promieniowa GUILLEMIN GM12
Rebitadeira radial GUILLEMIN GM12
Mașină de nituit radială GUILLEMIN GM12
Радиальный заклепочный инструмент GUILLEMIN GM12
GUILLEMIN GM12 radijalni zaklepnik
GUILLEMIN GM12 radiell nitverktyg
GUILLEMIN GM12 radyal perçin tabancası
|
The GUILLEMIN GM12 is a vertical radial riveting machine manufactured in 2004, designed for precise and gentle deformation of rivets using a rosette (hypocycloid) trajectory. This method progressively and evenly deforms the rivet, minimizing the risk of microcracks and deformation, particularly beneficial when working with brittle materials.
The machine features an electric spindle motor with a power rating of 0.75 kW. It operates with a pneumatic thrust motor requiring an air pressure between 4 to 6 bar to deliver a thrust force of 1900 daN. The adjustable stroke ranges from 0 to 50 mm, accommodating rivets with a maximum diameter of 12 mm.

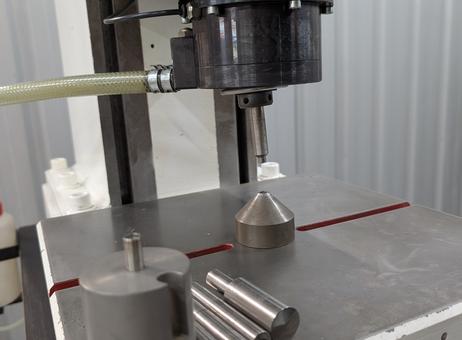

The GM12 is equipped with a flat metal worktable that includes red grooves and several metal cylindrical components, likely tooling attachments for riveting operations. The spindle and tooling area include a conical fixture and appear to have a sensor or wire attached near the tool holder, which may assist in operational control or monitoring.

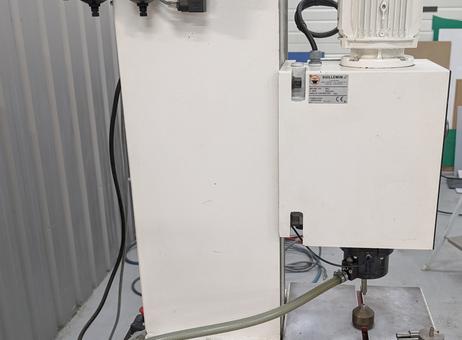

Control is facilitated by a panel featuring multiple colored buttons and a key switch located on the right side of the machine. Pneumatic components, including Parker Pneumatic branded pressure regulators and valves with gauges, are mounted on the upper left side, ensuring regulated air supply. A transparent flexible hose connects to a white container positioned beside the machine, likely part of the pneumatic or lubrication system.

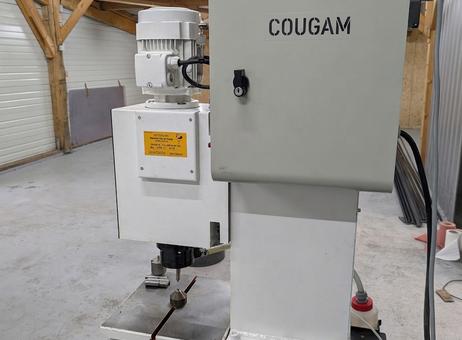

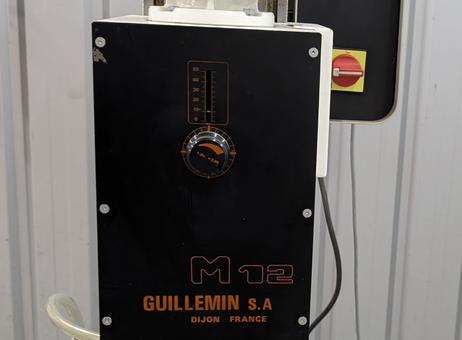

The machine's body is painted black and white, displaying the model label "M 12 GUILLEMIN S.A DIJON FRANCE" prominently. An electrical cabinet labeled "COUGAM" is attached at the rear, housing power cables and control boxes with green and red buttons near the base.

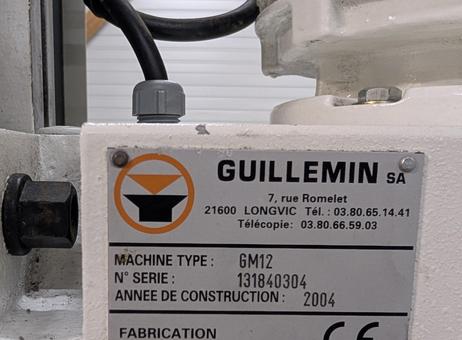

Overall, the machine appears clean and well-maintained, with minor wear such as slight paint chipping on the worktable edges and minimal paint wear on the body. The machine bears the CE mark and French manufacturing identification, confirming compliance with relevant standards.
This GUILLEMIN GM12 radial riveting machine is suitable for industrial applications requiring controlled and delicate riveting processes, especially where material integrity is critical.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Radial riveting relies on a rosette (hypocycloid) trajectory that deforms the rivet progressively and evenly. Unlike conventional or orbital riveting, this process applies forces gently, reducing the risk of microcracks and deformation in brittle materials.
Thrust force: 1900 daN
Max. rivet diameter: 12 mm
Pneumatic thrust motor: 4 to 6 bar
Adjustable stroke: 0 to 50 mm
Electric spindle motor: 0.75 kW
Machine in excellent condition with very little use.
Lot of several COUGAM riveting tools.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2014 |
| Offers online | 1 |
| Last activity | Oct. 17, 2026 |
Radial riveting relies on a rosette (hypocycloid) trajectory that deforms the rivet progressively and evenly. Unlike conventional or orbital riveting, this process applies forces gently, reducing the risk of microcracks and deformation in brittle materials.
Thrust force: 1900 daN
Max. rivet diameter: 12 mm
Pneumatic thrust motor: 4 to 6 bar
Adjustable stroke: 0 to 50 mm
Electric spindle motor: 0.75 kW
Machine in excellent condition with very little use.
Lot of several COUGAM riveting tools.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
