| Manufacturer | GSD |
|---|---|
| Model | 1200S |
| Year | 2020 |
| Location | Poland
|
The GSD 1200S is a film bag and sack production line manufactured in 2020 by Wuxi Hongchang Precision Machinery Co., Ltd. in China. This machine is designed for the fully automatic, mass production of side and bottom sealed film bags, capable of processing materials with a maximum thickness of 1.5 mm. It weighs 9000 kg and is built with a robust metal frame incorporating rollers and adjustment knobs to facilitate precise handling and processing of packaging materials.
The machine features a comprehensive set of components to ensure high process reliability and excellent product quality. It includes Panasonic PLC control and a WEINVIEW touchscreen control panel with a colored display and buttons for easy operation. The control system is complemented by red and green indicator lights, a three-color signal tower light, and gauges for monitoring various parameters. The sealing mechanisms consist of bottom and longitudinal sealers, with a vertical sealer movement driven by a SEW asynchronous motor.
Material handling is managed through two unwinders controlled by YASKAWA inverters, with tension regulated by a YANXIN powder brake and an AIR TAC pneumatic unit. Feeding is powered by two Mitsubishi 5 kW AC servo motors. The machine also includes a cutting knife, trim winder, photocells (KT5, KOTEC), an OMRON encoder, a solenoid valve, a synchronizing belt, NSK main bearings, a thermocouple, and a mechanical rheostat. A cooling device is integrated to maintain optimal sealing conditions.

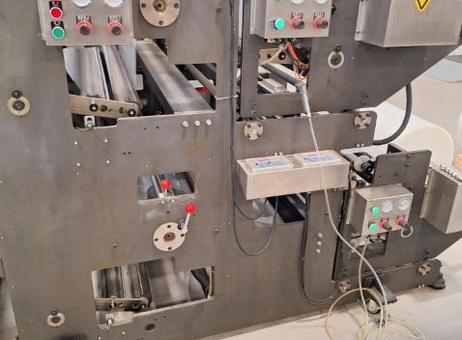

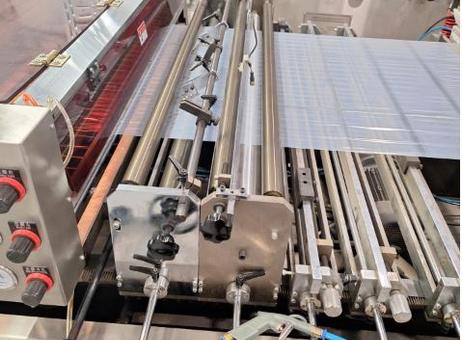

The production line is equipped with rollers and guides for plastic film or packaging material and features four black adjustment handwheels at the front for fine-tuning. The sealing or cutting mechanism is partially covered by a red protective cover. The machine appears clean, well-maintained, and in good condition, with no visible damage. A warning label indicating electrical hazards is present, emphasizing safety considerations.

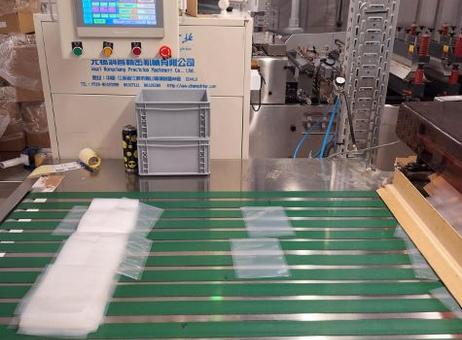

Finished bags are stacked on a work table to create small packages, with a conveyor belt carrying the plastic bags or pouches. The area around the machine is organized and clean, supporting efficient operation. This complete film packaging machine represents a reliable solution for high-volume bag production.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The GSD-1200S film bag and sack production line was manufactured in 2020 in China by Wuxi Hongchang Precision Machinery Co., Ltd. The machine designed for fully automatic, mass production of side and bottom sealed film bags has been equipped with components from the best brands, offering high process reliability and excellent quality of manufactured products. Material with a maximum thickness of 1.5 mm is unwinded from rolls using two unwinders controlled by YASKAWA inverters to the workspace, where it is precisely measured, properly cut and welded. The finished bags then go to the work table, where they are stacked one on top of the other to create small packages. The GSD-1200 S film packaging machine weighs 9000 kg.
The GSD 1200 S film bag making machine is fully complete and consists of the following components:
- PANASONIC PLC control
- bottom and longitudinal sealer
- sealer vertical movement mechanism: SEW asynchronous motor
- unwinding unit: horizontal shaft, tension control system with powder brake
- feeding mechanism: MITSUBISHI 5 kW AC servo motor (2 pcs.)
- cutting knife
- trim winder
- YASKAWA inverter
- WEINVIEW control panel
- photocells (KT5, KOTEC)
- YANXIN powder brake
- cooling device
- AIR TAC pneumatic unit
- OMRON encoder
- solenoid valve
- synchronizing belt
- NSK main bearing
- thermocouple
- mechanical rheostat
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
