Contact us to receive an offer.
| Manufacturer | Gruedelbach Schuetter |
|---|---|
| Model | B50 |
| Year | |
| Location | Sweden
|
This Gruedelbach Schuetter B50 radial drilling machine is designed for versatile drilling operations with a capacity to drill up to 50 mm in steel and 60 mm in cast iron. It supports metric threads up to M60 and features a spindle speed range from 5.6 to 1050 rpm, driven by a spindle motor rated at approximately 4.1 kW (5.5 hp). The machine's total motor power is about 8.3 hp. The quill feed ranges between 0.1 and 0.6 mm per revolution, with a quill travel distance of 300 mm, allowing for precise depth control. Rapid traverse speed is up to 1800 mm per minute, facilitating efficient positioning during operations. The machine weighs approximately 4100 kg, indicating a robust and stable construction suitable for heavy-duty industrial use.

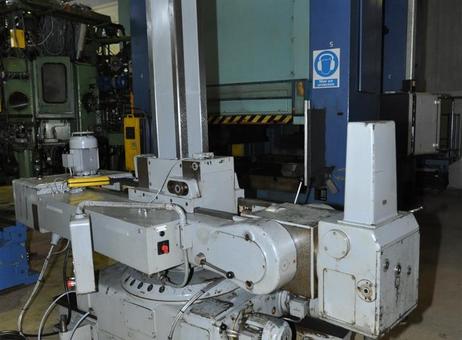

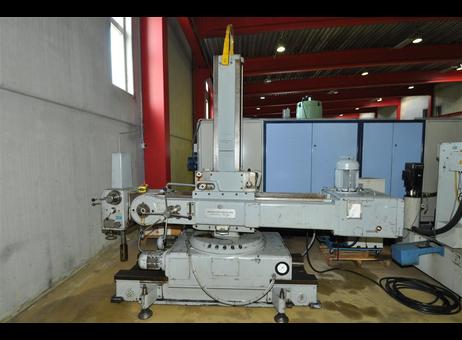

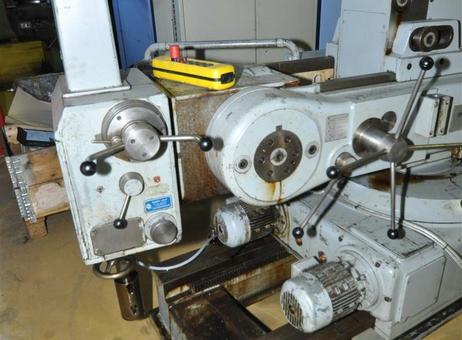

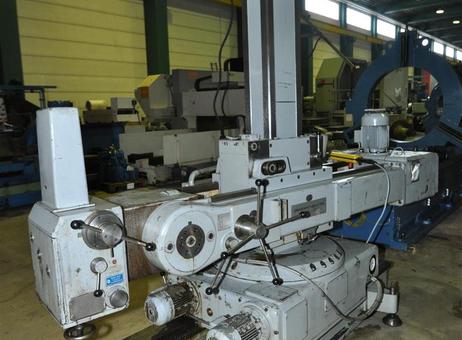

The radial drilling machine features a vertical column and a horizontal arm mounted on a rotary base with adjustment markings for precise arm positioning. Two motors are mounted on the base to power the machine, and the setup includes handwheels and levers for manual control of both the arm and the drilling head, enabling flexible operation. A drill chuck is attached at the end of the drilling spindle, ready for various drilling tasks.
Additional components include a control box and electrical wiring mounted on the arm, as well as yellow lifting hooks attached to the top of the vertical column for ease of handling. A yellow control pendant is also present, resting on the machine arm, which may assist in operational control.
The machine shows signs of use, with visible surface rust stains around the drilling head and base area, as well as wear marks and some dirt accumulation on various surfaces. These conditions are typical for used industrial machinery and should be considered during evaluation.
Overall, the Gruedelbach Schuetter B50 is a substantial and capable radial drilling machine suitable for a range of drilling applications, offering manual control features and a solid construction for industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity in steel: 50 mm
In Cast iron: 60 mm
Threads metric: M60
Radius: 1000-1900 mm
Spindle taper:
Spindle speed: 5,6-1050 rpm
Quill feed: 0,1-0,6 mm/r
Quill travel: 300 mm
Rapid traverse: 1800 mm/min
Spindle motor: 5,5 hp
Motors in total: 8,3 hp
Weight: 4100 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the condition of this Gruedelbach Schuetter B50?
This Gruedelbach Schuetter B50 Radial drilling machine is in very good condition.
Does this equipment require any refurbishment?
This equipment does not need any refurbishment.
Does this Gruedelbach Schuetter B50 include any tooling?
This Gruedelbach Schuetter B50 Radial drilling machine comes without any tooling.
Is this machine currently under power?
This machine can be seen under power.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
