| Manufacturer | GROB |
|---|---|
| Model | G 350 |
| Year | 2008 |
| Location | Germany
|
GROB G 350 five-axis machining center, manufactured in 2008, with Heidenhain iTNC 530 control system. The machine has X, Y and Z travels of 600 mm, 770 mm and 805 mm respectively. It is equipped with a motor spindle rated at 36 kW, with a maximum speed of 18,000 rpm and stated torque of 47 Nm. The spindle uses an HSK 63 tool holder.
The NC swivel rotary table has A-axis travel of 240° and B-axis travel of 360°. The pallet size is 400 × 400 mm, with a stated maximum table load of 300 kg and a 600 mm clearance circle. The machine has a two-pallet changer. Its wheel-type tool magazine has 40 stations, with a pick-up tool changer. Stated tool limits are 365 mm maximum length and 72 mm maximum diameter, or 160 mm with the specified allowance noted in the listing.

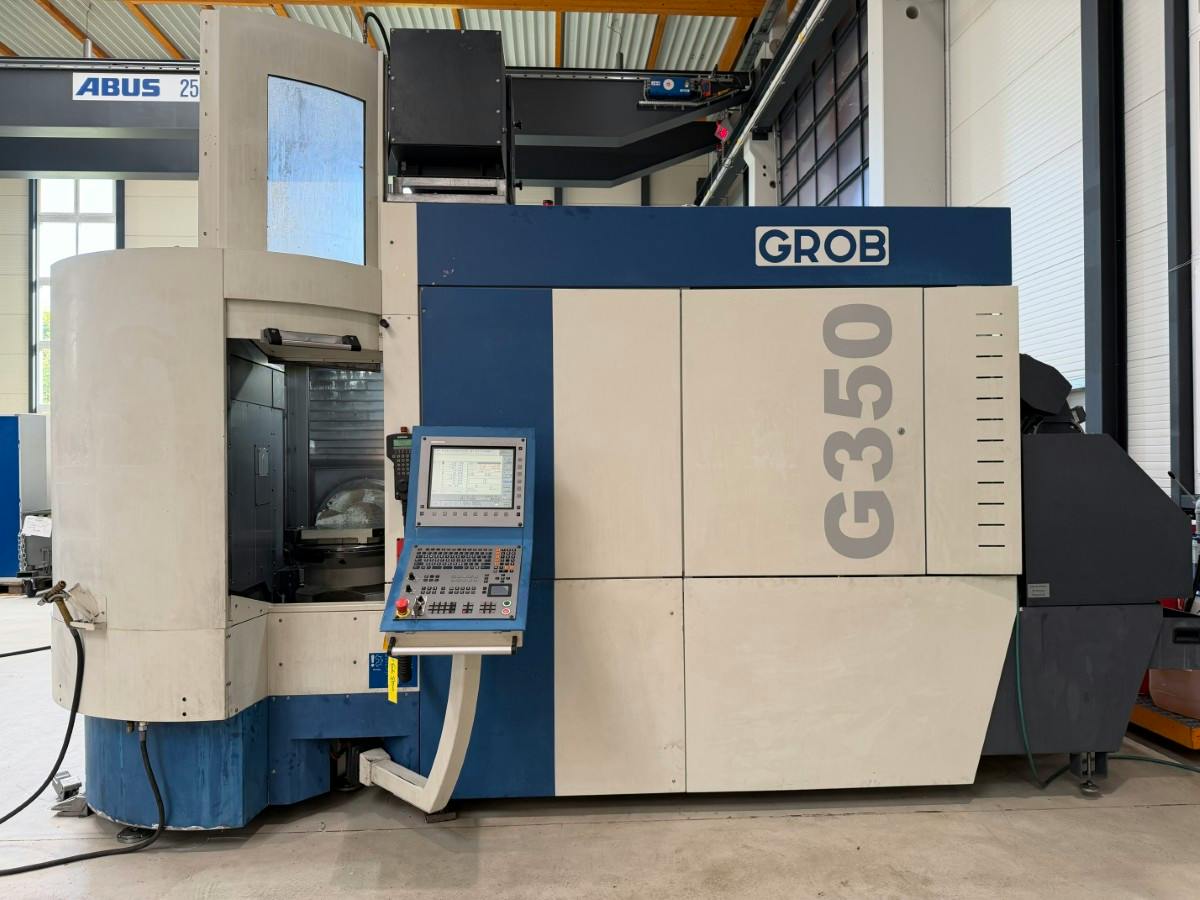

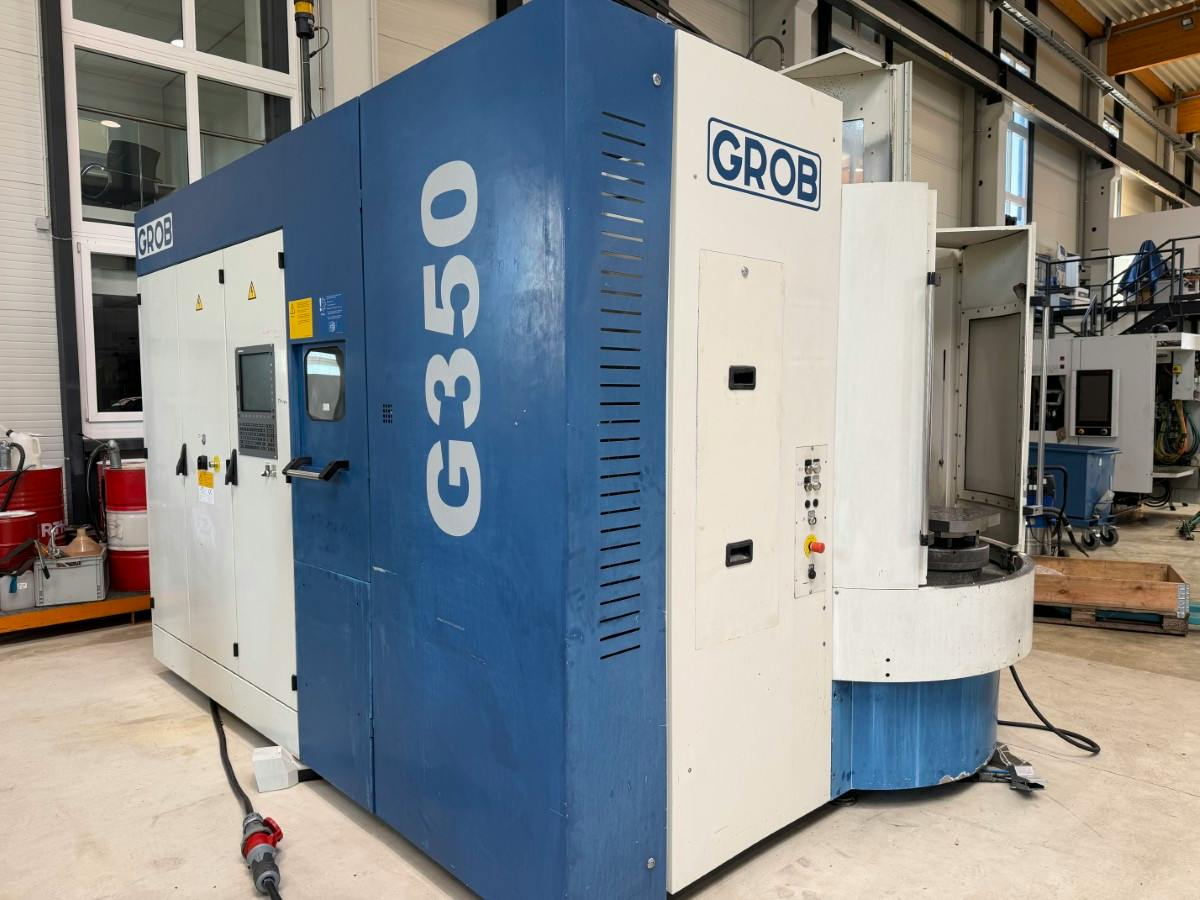

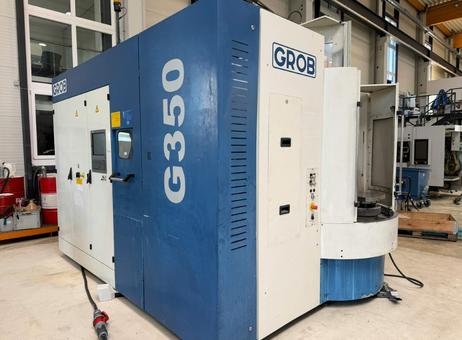

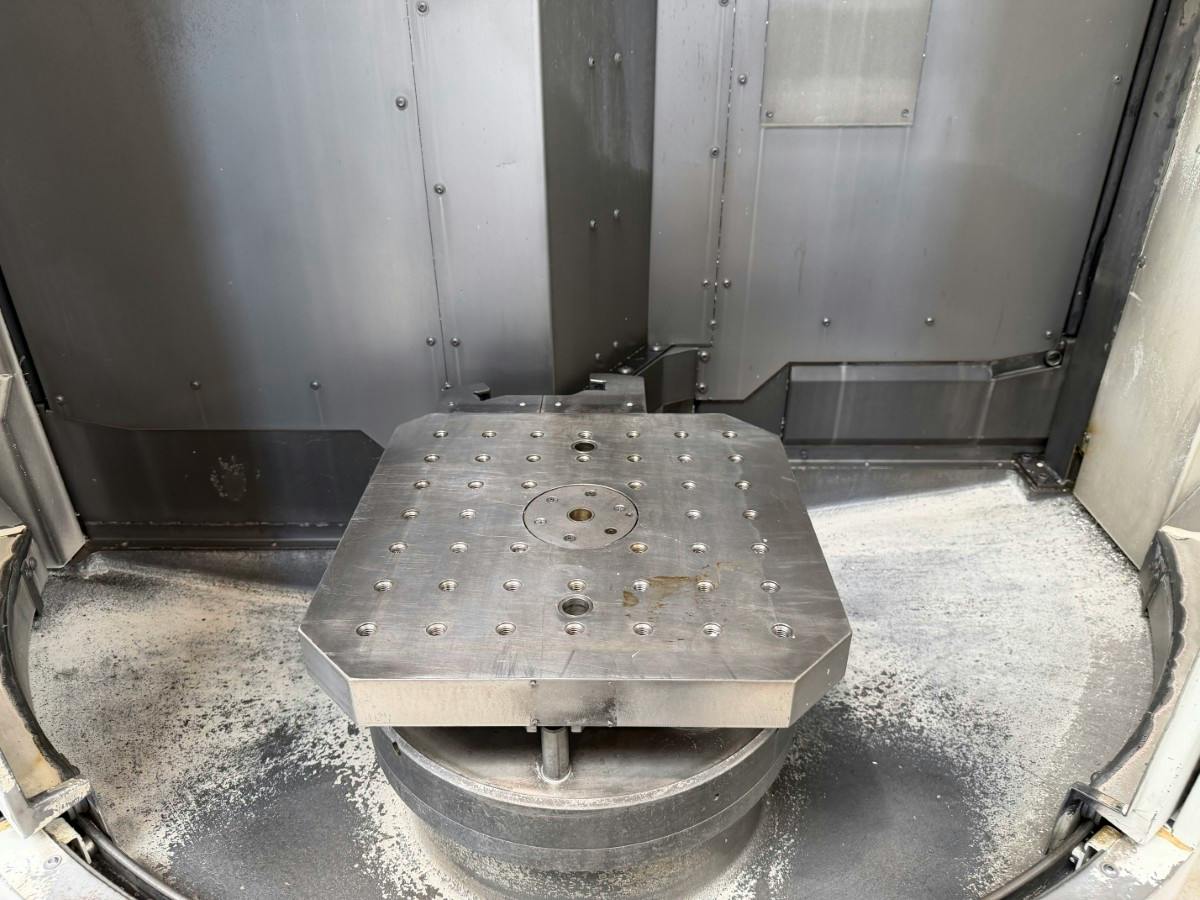

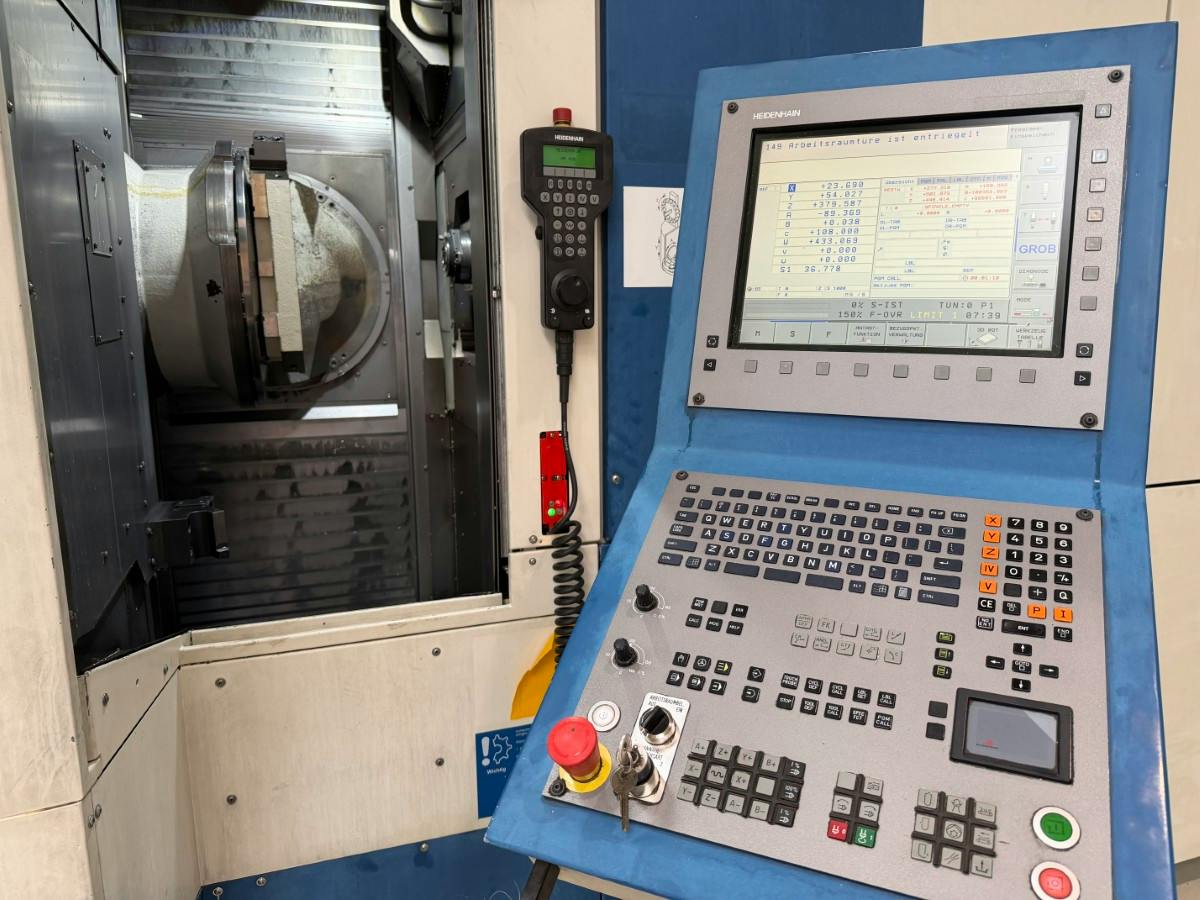

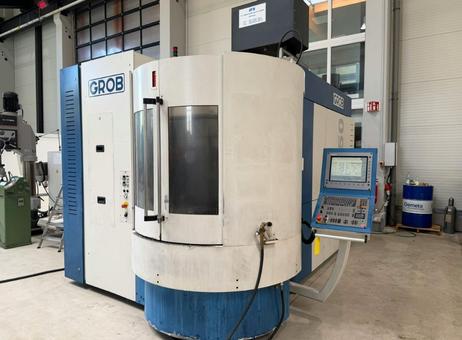

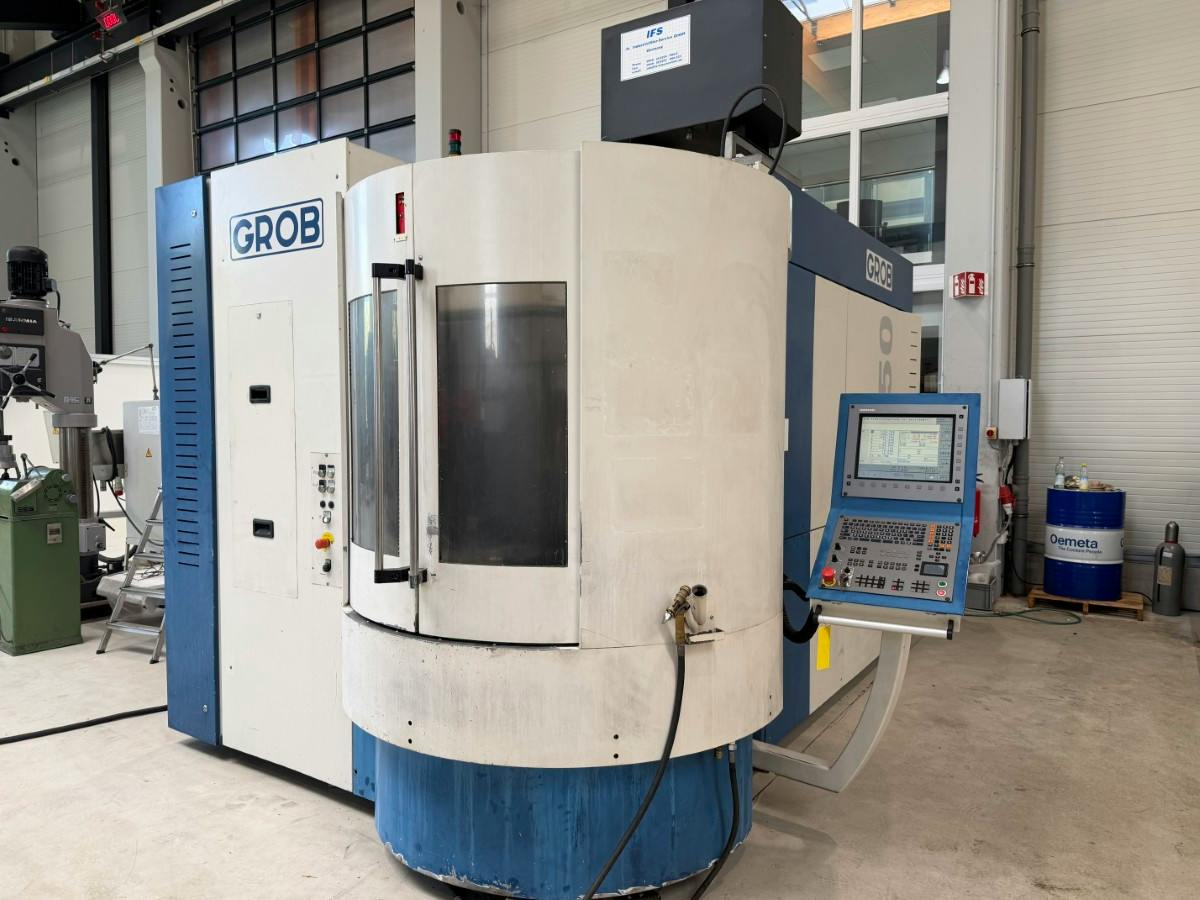

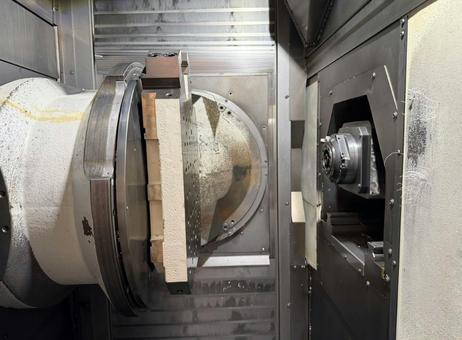

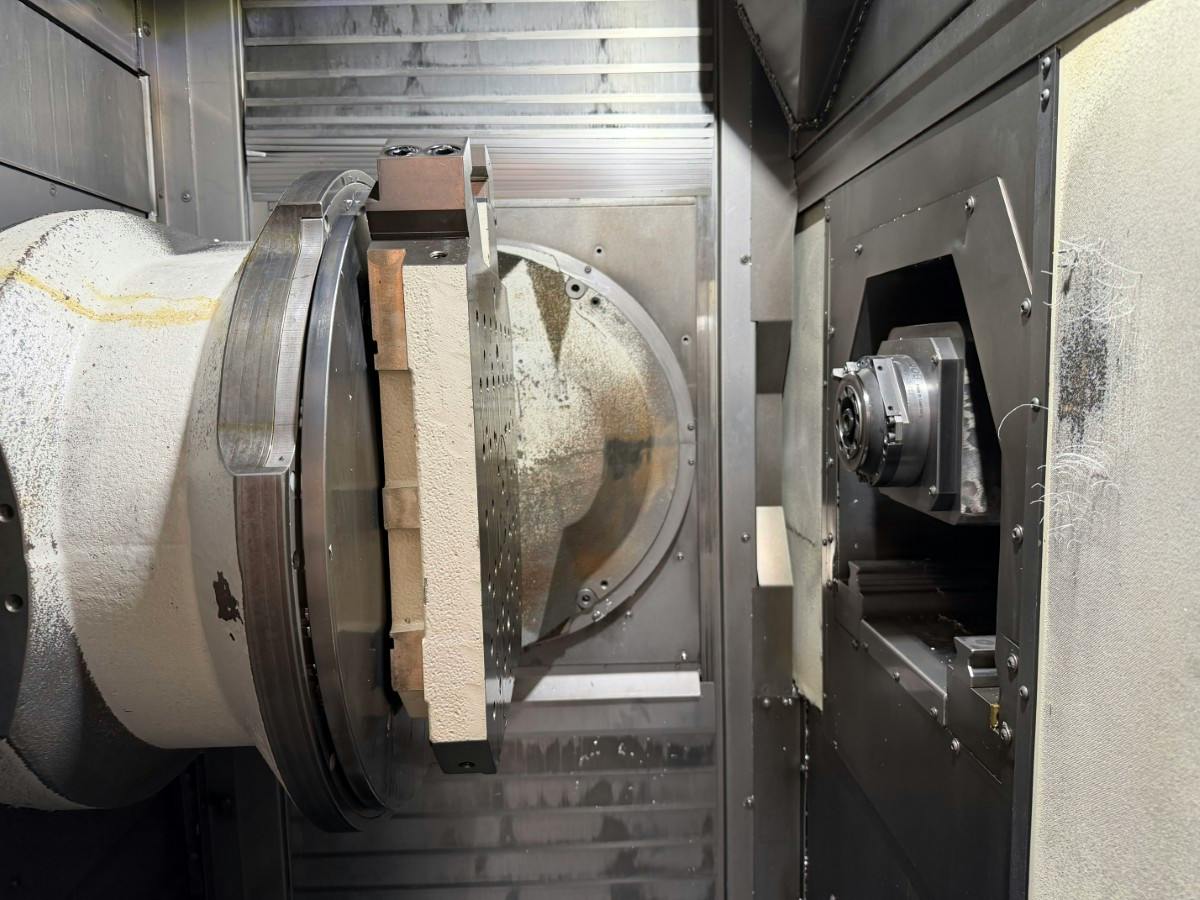

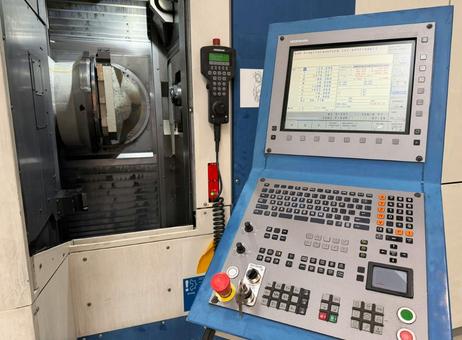

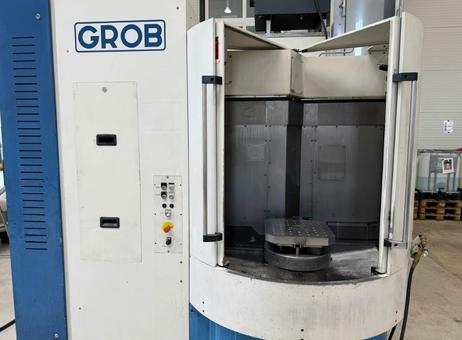

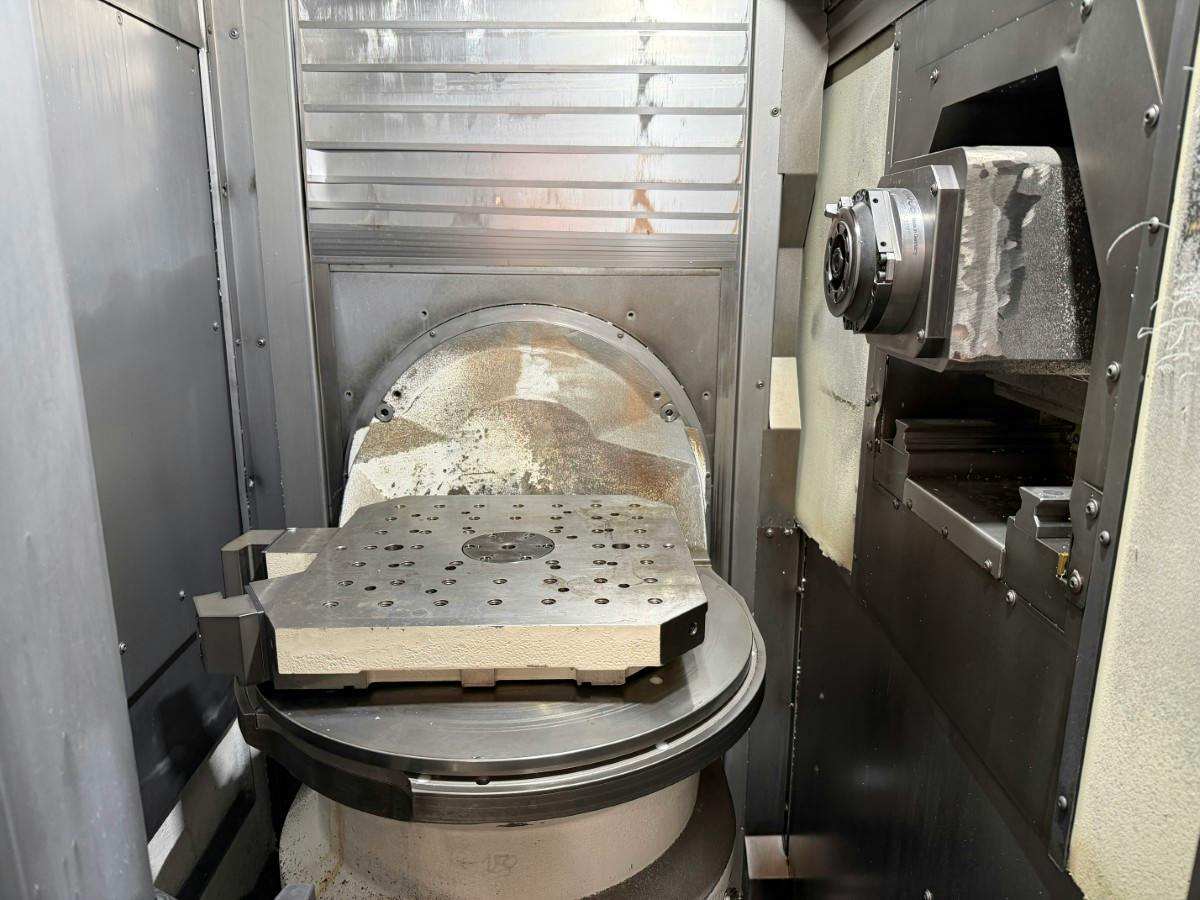

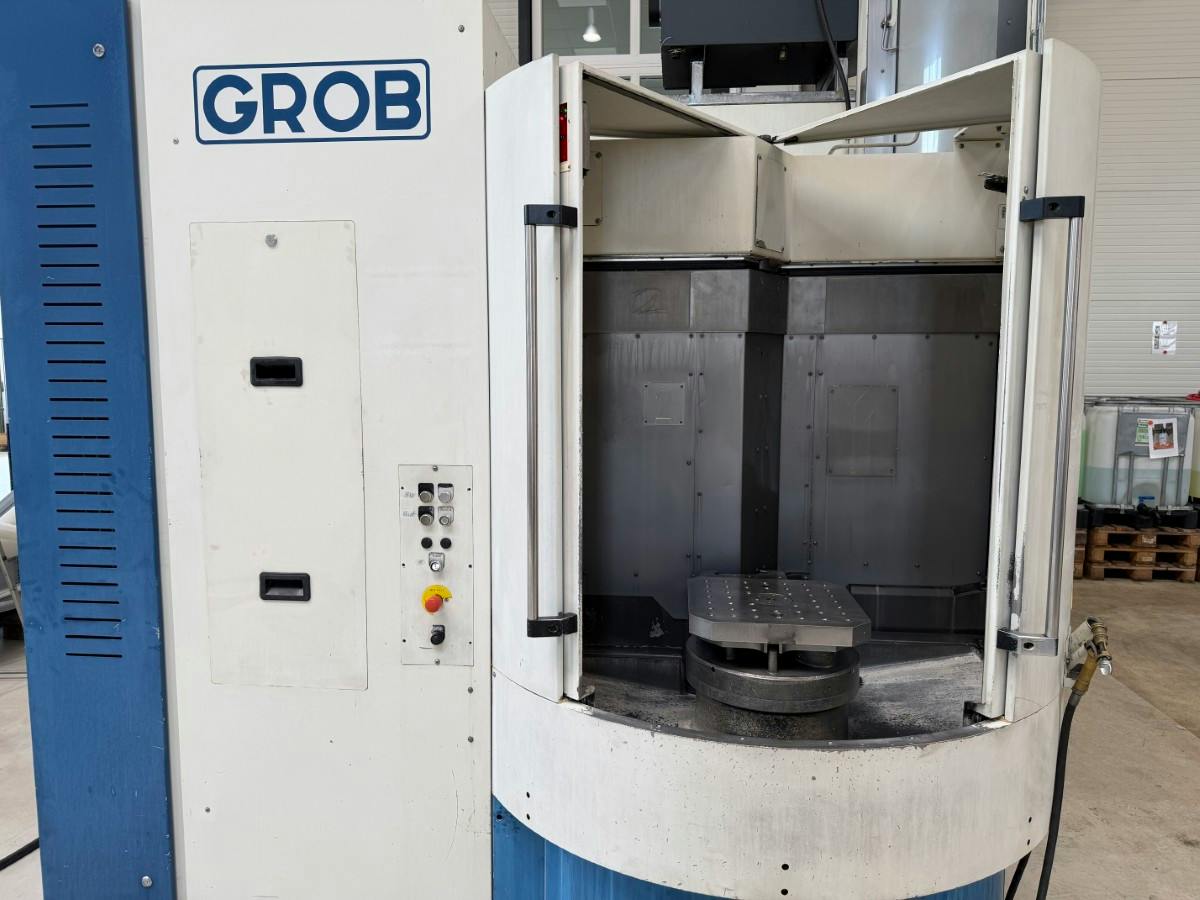

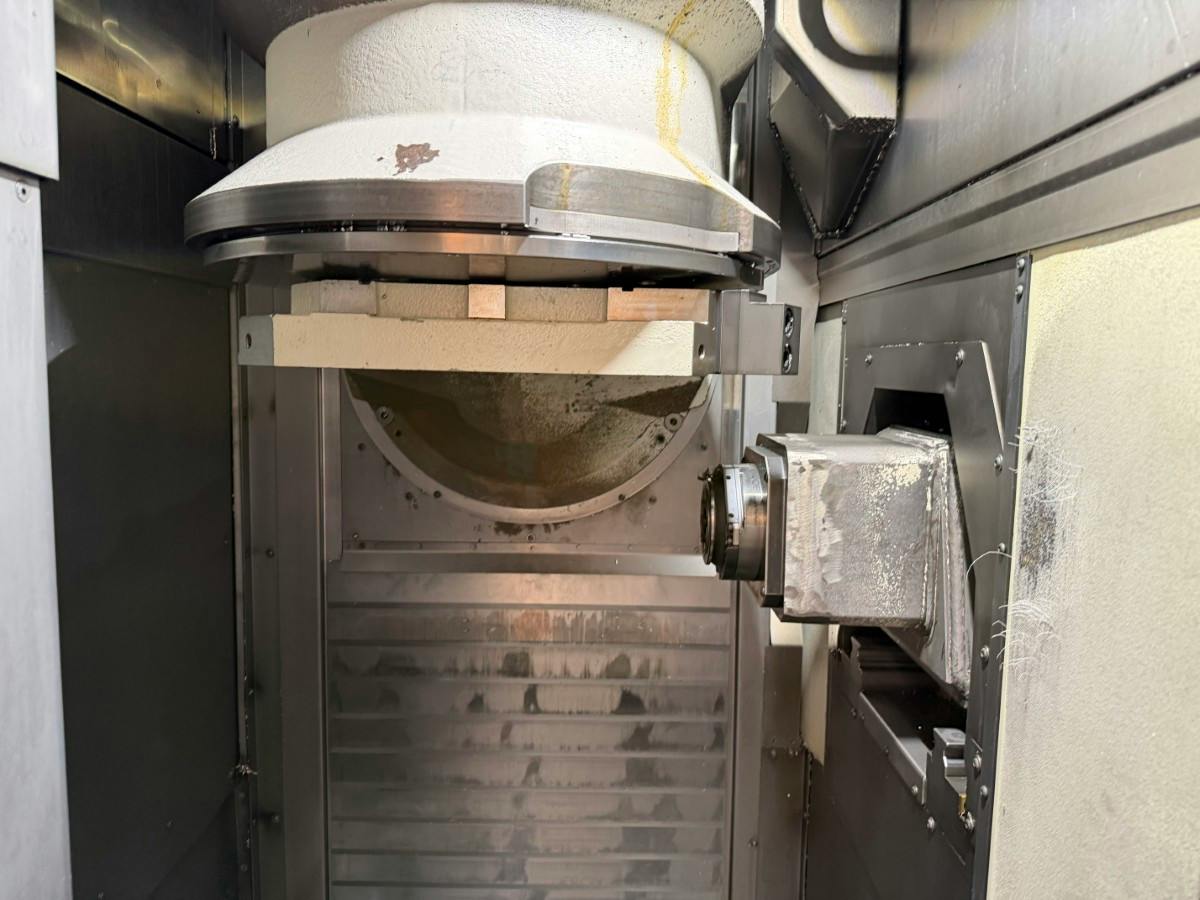

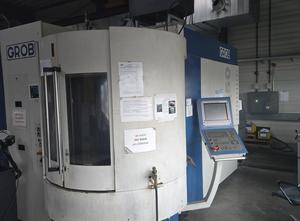

Equipment and features include direct measuring systems with glass scales on all axes, a chip conveyor, through-spindle coolant, probe preparation for workpiece measurement, a mechanical emulsion mist separator and an electronic handwheel for setup. The enclosed machine has white and blue exterior panels and a separate operator console with display and keyboard. Inside the work area are a large rotary assembly, rectangular tooling plate and spindle head. The lower blue base panel has scuffing and chipped paint along its bottom edge. Interior surfaces and the fixture show visible staining, residue and discoloration.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
GROB G 350
Year of manufacture: 2008
Control system: Heidenhain iTNC 530
Speed: 18,000 rpm
X/Y/Z travel: 600/770/805 mm
Tool holder: HSK 63
____________
Description:
General:
Year of manufacture: 2008
Control system: Heidenhain iTNC 530
X/Y/Z travel: 600/770/805 mm
Speed: 18,000
Tool holder: HSK 63
Spindle:
Technology: Motor spindle
Speed: 18,000 rpm
Power: 36 kW
Torque: 47 Nm
Tool holder: HSK 63
NC swivel rotary table:
A-axis: 240°
B-axis: 360°
Pallet size: 400 x 400 mm
Max. table load: 300 kg
Clearance circle: 600 mm
Tool magazine:
Technology: Wheel magazine
Tool changer: Pick-up
Number of stations: 40
Max. tool length: 365 mm
Max. tool diameter: 72 (160) mm
Equipment / accessories:
Measuring systems: Direct on all axes (glass scales)
Automation: 2-pallet changer

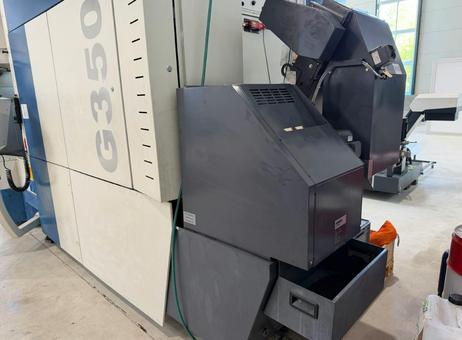

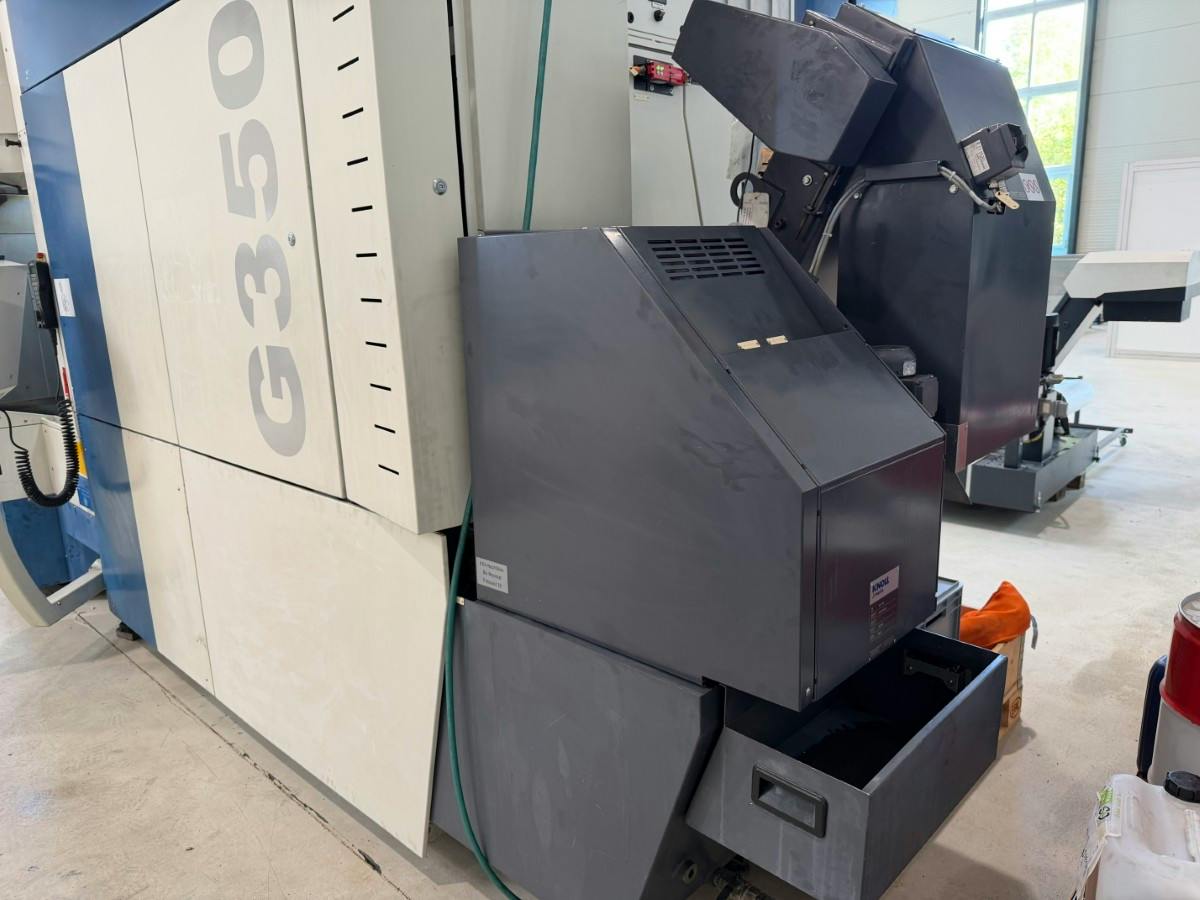

Chip disposal: Chip conveyor
Coolant supply: Through-spindle coolant system
Workpiece measurement: Probe preparation
Emulsion mist separator: Mechanical
Setup mode: Electronic handwheel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
