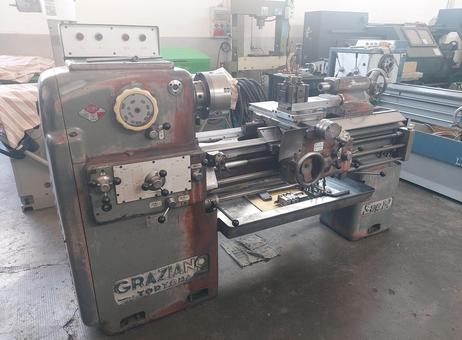

The GRAZIANO SAG 14 is a used, Italian-made conventional parallel lathe. The supplied description identifies it as a machine intended for machining workpieces, including larger diameters under the headstock. Its listed center distance is 1000 mm, and the listed distance on the bed is 180 mm.
Specifications - Manufacturer: GRAZIANO - Model: SAG 14 - Type: Conventional parallel lathe - Condition: Used - Center-to-center distance on the bed: 180 mm - Center distance: 1000 mm - Bed width: 280 mm - Maximum diameter on the cross slide: 220 mm - Spindle connection: Cam-lock DIN 55029, 5-inch - Spindle speed range: 40–1,500 rpm - Number of spindle speeds: 12 - Spindle bore: 51 mm - Tailstock taper: 4 cm - Spindle motor power: 4 kW - Tailstock sleeve diameter: 50 mm - Approximate net weight: 1,400 kg

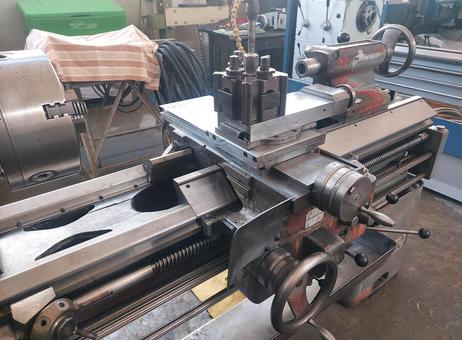

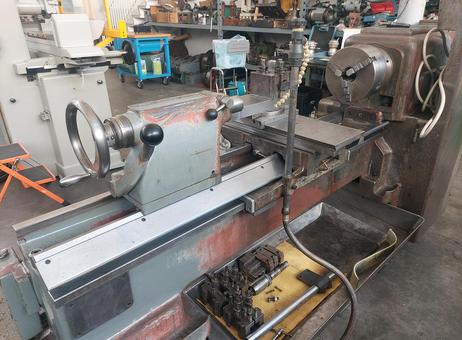

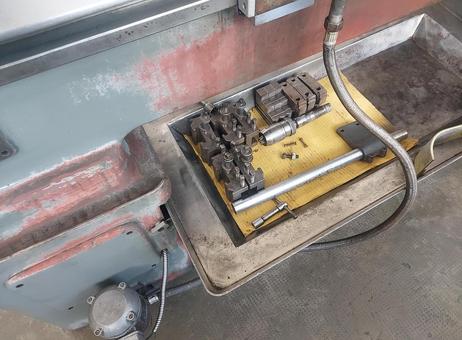

The listed spindle speed range and number of speeds describe the machine’s stated spindle-speed options. The tailstock is specified with a 50 mm sleeve diameter and a 4 cm taper. The supplied description also lists a tool turret and a self-centering spindle as accessories. No other accessories or condition details are specified. The specifications above are transcribed from the available product description; no additional operating, service, or inspection information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Seller's description
Description GRAZIANO SAG 14 Conventional Parallel Lathe - 180x1000 mm The Graziano SAG 14 lathe is an Italian-made parallel lathe, renowned for its high rigidity, precision, and long-term reliability; it is ideally suited for machining large diameters under the headstock.
Specifications Manufacturer: GRAZIANO Model: SAG 14 Condition: Used Inventory Number: T547 Center-to-center distance on the bed: 180 mm Center distance: 1000 mm Bed width: 280 mm Maximum diameter on the cross slide: 220 mm Spindle connection: Cam-lock DIN 55029 5" Spindle speed: 40–1,500 rpm Number of spindle speeds: 12 Spindle bore: 51 mm Tailstock taper: 4 cm Spindle motor power: 4 kW Tailstock sleeve diameter: 50 mm Serial number: SAG14N12042 Approximate net weight: 1,400 kg Accessories: Tool turret, self-centering spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Savio Macchine Utensili SRL is a leading Italian manufacturer specializing in high-quality machine tools and equipment. With decades of experience in the industry, Savio has established itself as a trusted name, known for its commitment to innovation and excellence. The company focuses on providing advanced solutions tailored to meet the diverse needs of its clients, ensuring that they remain competitive in a rapidly evolving market. At Savio, the emphasis is on precision engineering and cutting-edge technology. Their extensive product range includes a variety of machine tools designed for various applications, from metalworking to automation. Each product is crafted with meticulous attention to detail, ensuring reliability and performance that clients can depend on. The company’s dedication to quality is reflected in its rigorous testing processes and adherence to international standards. Savio Macchine Utensili SRL not only prioritizes product excellence but also values customer relationships. The company offers comprehensive support and services, ensuring that clients receive the guidance they need throughout their purchasing journey. By fostering strong partnerships, Savio aims to empower businesses to achieve their operational goals and enhance productivity. In a world where technology is constantly advancing, Savio remains at the forefront, continuously innovating and adapting to meet the challenges of the future. With a strong foundation built on quality, service, and innovation, Savio Macchine Utensili SRL is poised to lead the way in the machine tool industry.
Seller's description
Description GRAZIANO SAG 14 Conventional Parallel Lathe - 180x1000 mm The Graziano SAG 14 lathe is an Italian-made parallel lathe, renowned for its high rigidity, precision, and long-term reliability; it is ideally suited for machining large diameters under the headstock.
Specifications Manufacturer: GRAZIANO Model: SAG 14 Condition: Used Inventory Number: T547 Center-to-center distance on the bed: 180 mm Center distance: 1000 mm Bed width: 280 mm Maximum diameter on the cross slide: 220 mm Spindle connection: Cam-lock DIN 55029 5" Spindle speed: 40–1,500 rpm Number of spindle speeds: 12 Spindle bore: 51 mm Tailstock taper: 4 cm Spindle motor power: 4 kW Tailstock sleeve diameter: 50 mm Serial number: SAG14N12042 Approximate net weight: 1,400 kg Accessories: Tool turret, self-centering spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The GRAZIANO SAG 14 is a used, Italian-made conventional parallel lathe. The supplied description identifies it as a machine intended for machining workpieces, including larger diameters under the headstock. Its listed center distance is 1000 mm, and the listed distance on the bed is 180 mm.
Specifications - Manufacturer: GRAZIANO - Model: SAG 14 - Type: Conventional parallel lathe - Condition: Used - Center-to-center distance on the bed: 180 mm - Center distance: 1000 mm - Bed width: 280 mm - Maximum diameter on the cross slide: 220 mm - Spindle connection: Cam-lock DIN 55029, 5-inch - Spindle speed range: 40–1,500 rpm - Number of spindle speeds: 12 - Spindle bore: 51 mm - Tailstock taper: 4 cm - Spindle motor power: 4 kW - Tailstock sleeve diameter: 50 mm - Approximate net weight: 1,400 kg
The listed spindle speed range and number of speeds describe the machine’s stated spindle-speed options. The tailstock is specified with a 50 mm sleeve diameter and a 4 cm taper. The supplied description also lists a tool turret and a self-centering spindle as accessories. No other accessories or condition details are specified. The specifications above are transcribed from the available product description; no additional operating, service, or inspection information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Savio Macchine Utensili SRL is a leading Italian manufacturer specializing in high-quality machine tools and equipment. With decades of experience in the industry, Savio has established itself as a trusted name, known for its commitment to innovation and excellence. The company focuses on providing advanced solutions tailored to meet the diverse needs of its clients, ensuring that they remain competitive in a rapidly evolving market. At Savio, the emphasis is on precision engineering and cutting-edge technology. Their extensive product range includes a variety of machine tools designed for various applications, from metalworking to automation. Each product is crafted with meticulous attention to detail, ensuring reliability and performance that clients can depend on. The company’s dedication to quality is reflected in its rigorous testing processes and adherence to international standards. Savio Macchine Utensili SRL not only prioritizes product excellence but also values customer relationships. The company offers comprehensive support and services, ensuring that clients receive the guidance they need throughout their purchasing journey. By fostering strong partnerships, Savio aims to empower businesses to achieve their operational goals and enhance productivity. In a world where technology is constantly advancing, Savio remains at the forefront, continuously innovating and adapting to meet the challenges of the future. With a strong foundation built on quality, service, and innovation, Savio Macchine Utensili SRL is poised to lead the way in the machine tool industry.
