Contact us to receive an offer.
| Manufacturer | GLEASON |
|---|---|
| Model | Phoenix 275G |
| Year | 2009 |
| Location | France
|
This listing is for a Gleason PHOENIX II 275 G gear grinding machine, manufactured in 2009. It is a CNC-controlled machine equipped with a SIN 840 Siemens control system. The machine is designed for precision gear grinding and features a spindle speed of up to 6000 rpm, with the workpiece spindle speed reaching 1200 rpm. It accommodates gears with a minimum of 3 teeth and a maximum of 200 teeth, supporting a tooth size range of approximately 20 mm. The maximum gear width capacity is 58 mm. Tool diameters can range from 69.85 mm to a maximum of 230 mm.
The machine offers a workpiece table diameter of 212.71 mm and has axis travels of 325 mm (X-axis), 350 mm (Y-axis), and 470 mm (Z-axis). The B-axis tilts from +90.1° to -1°, allowing for flexible grinding angles. It has a power requirement of 75 kW and weighs approximately 10,000 kg. The machine's overall dimensions are about 6.10 m in length, 4.40 m in width, and 3.30 m in height.

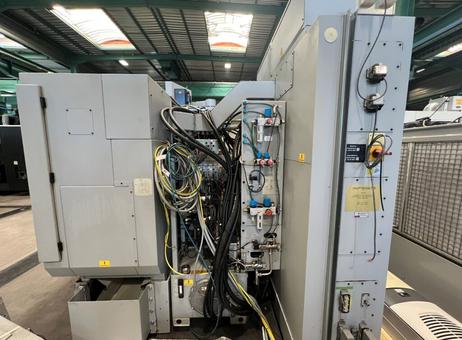

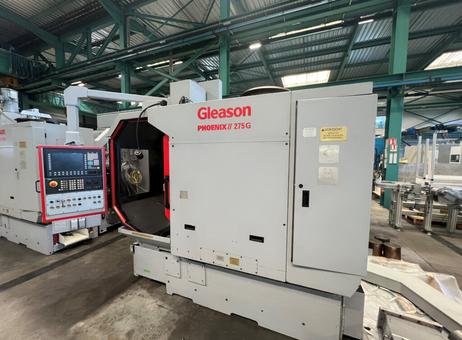

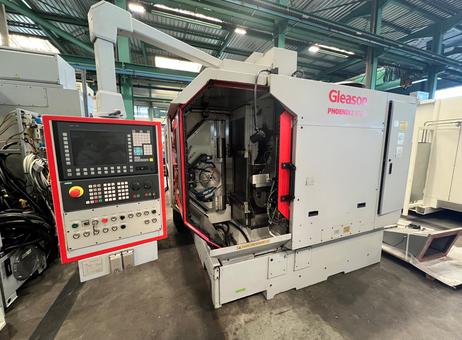

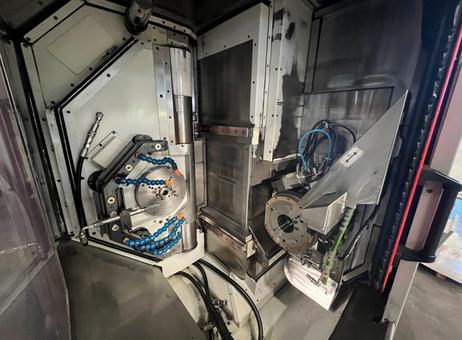

The gear grinder is housed within an enclosure and comes with a control panel mounted on the left side, which includes a display screen, buttons, knobs, and an emergency stop button. The interior grinding components and chuck are accessible via a front door. Inside, the machine features coolant nozzles and clean, well-maintained metal surfaces. The rear side shows multiple cables, hoses, and pneumatic components, all appearing intact and free from visible damage or leaks.
Overall, the machine appears clean and well-maintained with no visible exterior or interior damage. This robust gear grinding machine is suitable for precise and varied gear manufacturing tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Ratio of transmission : 10:1
Minimum number of teeth : 3
Maximum number of teeth : 200
Range of tooth size : 20 mm
tooth width maximuml : 58 mm
Spindle speed : 6000U/min
Work piece spindle speed : 1200U/min
Diameter of tools maximum : 230 mm
Diameter of tools minimum : 69,85 mm
X-axis : 325 mm
Y-axis : 350 mm
Z-axis : 470 mm
B-axis : + 90,1 / - 1 °
work piece table - Ø : 212,71 mm
Control : SIN 840 D SIEMENS
Total power requirement : 75 kW
weight of the machine ca. : 10t
dimensions of the machine ca. : 6,10 x 4,40 x 3,30 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What materials can this GLEASON Phoenix 275G grind?
This GLEASON Phoenix 275G gear grinding machine is capable of grinding from solid materials.
Does the machine have a fire suppression system?
This equipment is equipped with a fire suppression system.
What type of filtration system does this GLEASON Phoenix 275G have?
This GLEASON Phoenix 275G includes an upgraded filtration system to handle the volume when grinding from solid materials.
When was this GLEASON Phoenix 275G manufactured?
This GLEASON Phoenix 275G was manufactured in 2009.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
