| Manufacturer | GLEASON |
|---|---|
| Model | 600HTL |
| Year | 2018 |
| Location | France
|

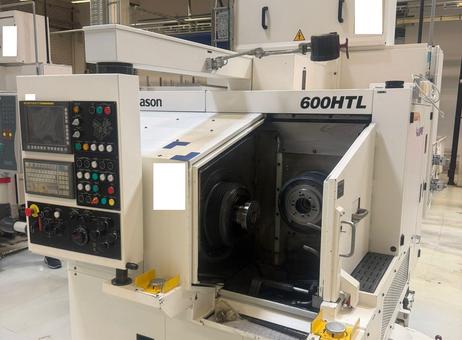

CNC Bevel Gear Lapping — GLEASON 600HTL
Overview:
This listing describes a GLEASON 600HTL bevel gear lapping machine with FANUC CNC control (Year: 2018). The machine’s specifications and operating ranges are provided below to support evaluation for bevel gear finishing and lapping applications.
Key specifications:
- Brand / Model: GLEASON 600HTL

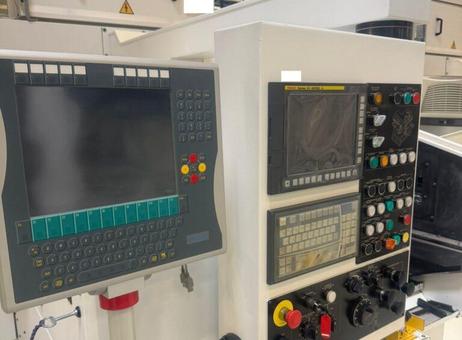

- CNC: FANUC
- Year: 2018
- Maximum gear outside diameter: 600 mm
- Maximum pinion outside diameter: 254 mm
- Maximum gear drive speed: 3100 rpm
- Maximum pinion drive speed: 3100 rpm
- Offset range (vertical): 76 mm
Spindle and cone ranges:
- Pinion cone range: 165 to 356 mm
- Gear cone range: 89 to 267 mm

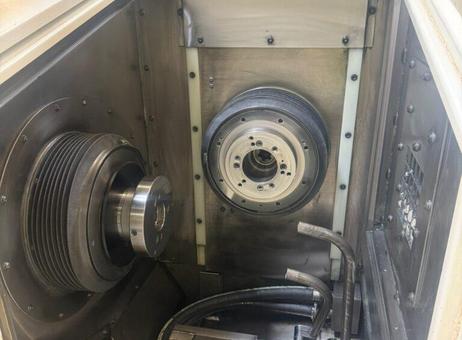

- Pinion spindle bore (large end): 99.2 mm
- Pinion spindle bore taper per ft: 15.478 mm
- Work spindle bore (large end): 58.34 mm
- Work spindle bore taper per ft: 12.7 mm
Lapping and drive capabilities:
- Lapping torque load: 2 to 22 Nm
- Servo drive motors:
- H (Pinion Cone): 6 Nm
- V (Vertical Offset): 12 Nm
- G (Gear Cone): 6 Nm
- A (Pinion Spindle): 14 kW
- C (Gear Spindle): 14 kW
Notes and listing information:
All information above is taken from the provided product specification. No additional components, accessories, operational status, service history, hours, or condition details are specified in the listing. If you need verification of operational condition, tooling, or additional pictures/specs, request those details from the seller before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Bevel Gear Lapping – GLEASON 600HTL
Brand : GLEASON
Model : 600HTL
Year : 2018
CNC : FANUC
Maximum Gear Outside Diameter : 600mm
Maximum Pinion Outside Diameter : 254mm
Max Pinion Drive Speed : 3100 rpm
Maximum Gear Drive Speed : 3100 rpm
Offset range : 76mm
Pinion Cone Range : 165 to 356mm
Pinion spindle bore (large end) : 99.2mm
Pinion spindle bore, (taper per ft) : 15.478mm
Work spindle bore, (large end) : 58.34mm
Work spindle bore, (taper per ft) : 12.7mm
Gear Cone Range : 89 to 267mm
Lapping Torque Load : 2 to 22 Nm
H (Pinion Cone) Servo Drive Motor : 6 Nm
V (Vertical Offset) Servo Drive Motor : 12 Nm
G (Gear Cone) Servo Drive Motor : 6 Nm
A (Pinion Spindle) Servo Drive Motor : 14 kW
C (Gear Spindle) : 14 kW
