Contact us to receive an offer.
| Manufacturer | Gildemeister |
|---|---|
| Model | Twin 42 RG1 |
| Year | 2004 |
| Location | Slovenia
|

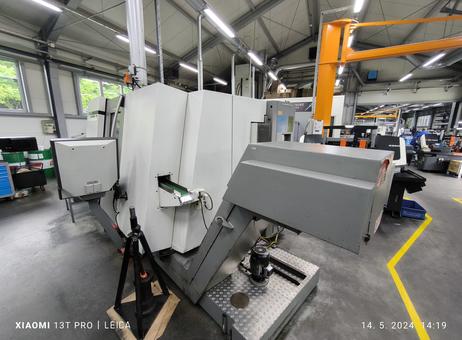

This listing features a Gildemeister Twin 42 RG1 CNC lathe, manufactured in 2004. It is designed for turning bar material up to 42 mm in diameter with a maximum turning length of 580 mm. The machine is equipped with two 12-station VDI 25 turrets, each featuring driven tools, allowing for versatile machining operations. It includes a main spindle and a sub-spindle, with turning speeds ranging from 2x 25 to 8,000 rpm and 31 to 6,300 rpm respectively. The machine offers precise positioning with two C-axes capable of 0.001° increments. The control system is a Sinumerik 840 D POWERline, supporting complex 8-axis turning and milling operations, including X1, Z1, X2, Z2, Z3, C1, C2, and Y axes. Additional features include a tailstock located on the right side and collet devices on both the main and sub-spindles. The machine is equipped with a parts conveyor and a chip conveyor system to facilitate efficient material handling and chip removal.

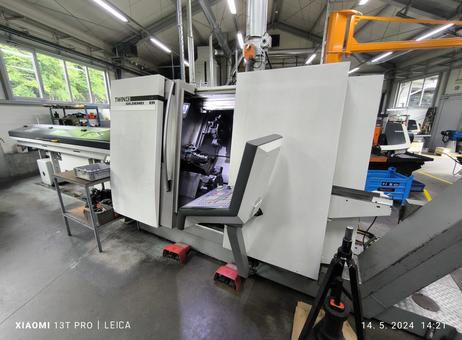

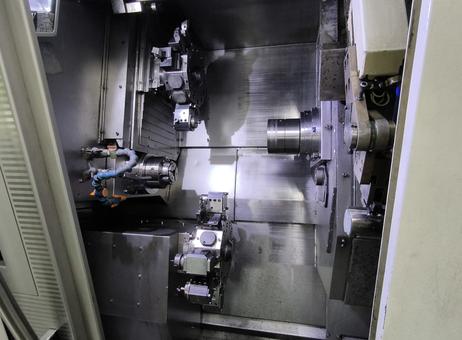

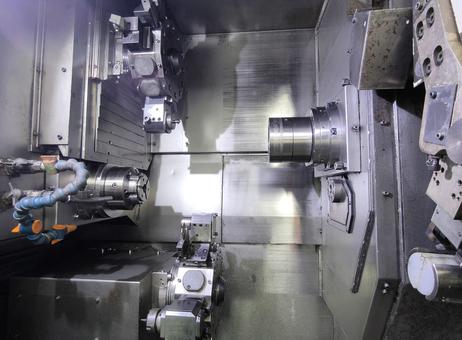

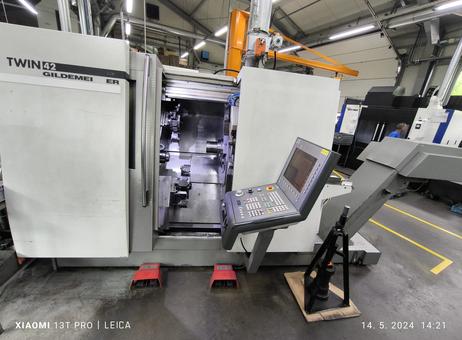

The machine's interior machining area is accessible via an open front door, revealing two tool turrets and a chuck mounted on the right spindle. Coolant nozzles with flexible hoses are installed inside the machining area to support cooling during operations. The control panel is mounted on an arm to the right side of the machine and can be angled outward for operator convenience. Two red foot pedals are positioned on the floor in front of the machine for operational control. The overall appearance of the machine is clean and well-maintained, with the surrounding floor area also organized and free of debris.
The total power requirement for the machine is approximately 50 kVA, and it weighs around 6 tonnes. Its dimensions are approximately 4.8 meters in length, 2.2 meters in width, and 2 meters in height. This machine is suitable for complex turning and milling tasks in industrial settings, offering a robust and precise solution for bar machining needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine can be seen in operational phase and tested.
Gildemeister Twin 42 RG1 Years 2004, with a tool holders

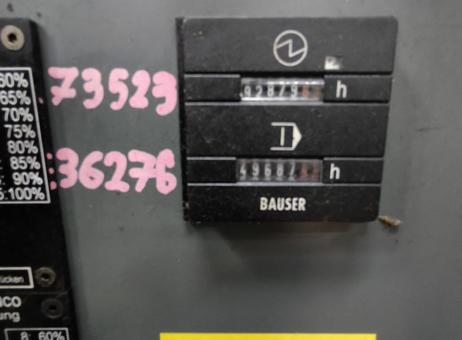

82.879 hours "machine on", 49.687 hours "spindle on
-Main spindel NEW in 2020 (aprox. 5.000 operating hours) , New sub-spindel in 2023 (aprox. 1000 operating hours) (all bills awailable)
- In 2023 NEW Live tool clutch and bearings on turred C1 and C2 (all bills awailable)
bar material dia.:42 mm
turning length:580 mm
turning speeds:2x 25-8.000 1/min
positive location each:2xC-Achse, 0,001° Grad
Sub spindle:ja/yes
turret (x-stations):2x 12-fach VDI 25
driven tools:2x 12
turning speeds:31-6.300 1/min
control:Sinumerik 840 D POWERline
total power requirement:50 kVA
weight of the machine ca.:6 t
dimensions of the machine ca.:4,8 x 2,2 x 2 m
turning- milling center with 8-axis (X1:220mm, Z1:320mm, X2:120mm, Z2:340mm, Z3:380mm, C1, C2, Y-axis)
tailstock on right side,
collet device on main and subspindle,
parts conveyor,
chip conveyor,
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2018 |
| Offers online | 1 |
| Last activity | Oct. 29, 2026 |
Machine can be seen in operational phase and tested.
Gildemeister Twin 42 RG1 Years 2004, with a tool holders
82.879 hours "machine on", 49.687 hours "spindle on
-Main spindel NEW in 2020 (aprox. 5.000 operating hours) , New sub-spindel in 2023 (aprox. 1000 operating hours) (all bills awailable)
- In 2023 NEW Live tool clutch and bearings on turred C1 and C2 (all bills awailable)
bar material dia.:42 mm
turning length:580 mm
turning speeds:2x 25-8.000 1/min
positive location each:2xC-Achse, 0,001° Grad
Sub spindle:ja/yes
turret (x-stations):2x 12-fach VDI 25
driven tools:2x 12
turning speeds:31-6.300 1/min
control:Sinumerik 840 D POWERline
total power requirement:50 kVA
weight of the machine ca.:6 t
dimensions of the machine ca.:4,8 x 2,2 x 2 m
turning- milling center with 8-axis (X1:220mm, Z1:320mm, X2:120mm, Z2:340mm, Z3:380mm, C1, C2, Y-axis)
tailstock on right side,
collet device on main and subspindle,
parts conveyor,
chip conveyor,
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
