Contact us to receive an offer.
| Manufacturer | GILDEMEISTER |
|---|---|
| Model | GMX 250 linear |
| Year | 2005 |
| Location | Germany
|
The GILDEMEISTER GMX 250 linear is a robust horizontal machining center manufactured in 2005, designed for precision and efficiency in industrial machining applications. It features a Siemens SINUMERIK 840D control system, providing advanced CNC capabilities for complex machining tasks. The machine is equipped with a powerful main spindle motor delivering 36 kW of power and a maximum spindle speed of 12,000 rpm, suitable for a wide range of materials and cutting conditions.
The machine's dimensions are approximately 8.5 meters in length, 4.5 meters in width, and 3.1 meters in height, with a total weight of around 20,000 kg, reflecting its solid construction. It offers a turning diameter of 640 mm and a turning length of 1,185 mm, supported by a tool magazine with 46 pockets, allowing for extensive tooling options and reduced downtime during tool changes.
Key features include a main spindle ISM90 with a hollow clamping device and C-axis capability, fitted with a 3-jaw hydraulic chuck by SMW-AUTOBLOK. The counter-spindle ISM76 also features a closed center clamping device with C-axis and a similar hydraulic chuck, enabling efficient simultaneous machining on both spindles. The machine incorporates multiple slides with extensive travel ranges, including X and Z axes, and a B-axis with 240° rotation, enhancing machining versatility.
Additional equipment comprises a chip conveyor and a dust exhauster to maintain a clean working environment. It also includes a pump frame for coolant delivery with three pumps of varying flow rates and pressures; however, the coolant unit itself is not included as the machine was connected to a central coolant system. Accessories such as a Hainbuch collet chuck with a range of collet sizes and a workpiece pick-up gripper for the turret are included.

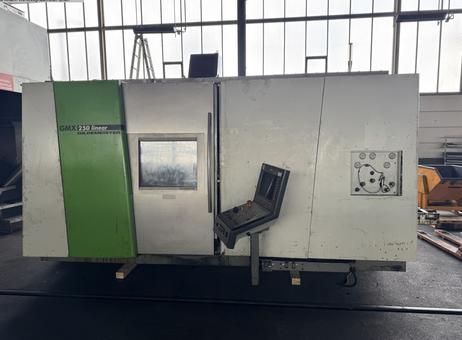

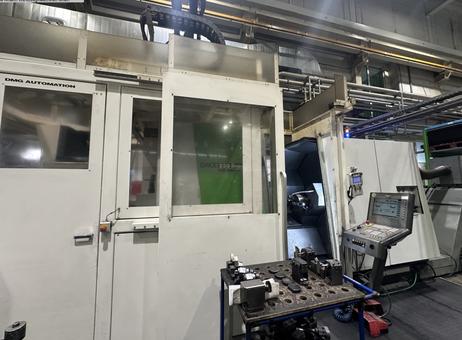

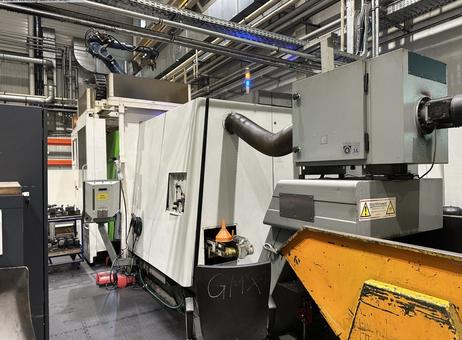

The machine is installed indoors in an industrial setting and features white and green exterior panels. Visible components include a flexible exhaust or ventilation hose connected to the machine and red electrical or hydraulic components near the base. A black chair labeled 'GMX' is positioned in front of the machine, indicating operator workspace. This machine is suited for demanding machining operations requiring high precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Description

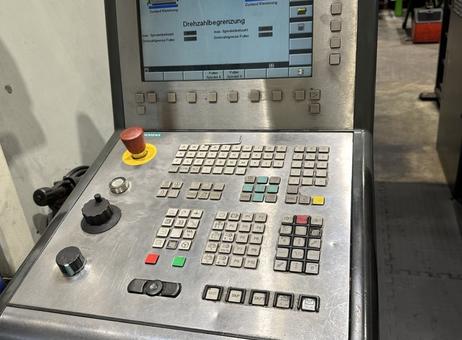

Machine with SIEMENS SINUMERIK 840D control, main- and counter-spindle,
chip conveyor, dust exhauster, DMG-automation WH10top.

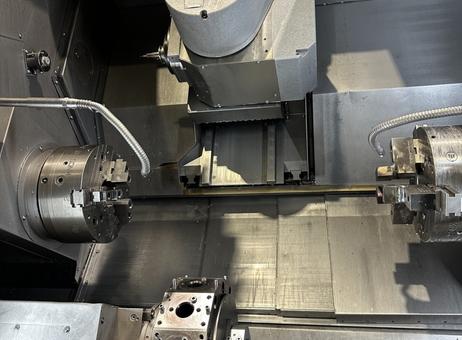

Main-spindle ISM90: hollow clamping device, C-axis,

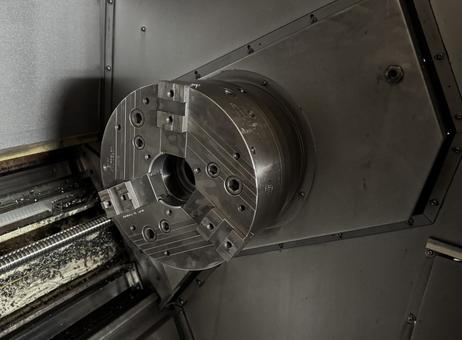

3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91
Counter-spindle ISM76: closed center clamping device, C-axis,
3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91
Pick-up device with integrated conveyor belt, automatic protective cover,
differential pressure clamps.
Incl. pump-frame for coolant
- Pump 1: 17 l/min at 80bar
- Pump 2: 20 l/min at 8bar
- Pump 3: 40 l/min at 20bar
Without coolant unit. Was connected to a central coolant-system.
Accessories:
Hainbuch collet chuck incl. collets Ø30,45,50,55,60,65,72,82,85,90
1 piece workpiece pick-up-gripper for turret
Changes and errors in the technical details and information reserved.
Technical details
turning diameter 640 mm
turning length 1.185 mm
control SINUMERIK 840D
swing diameter 640 mm
distance of spindle heads 1500 mm

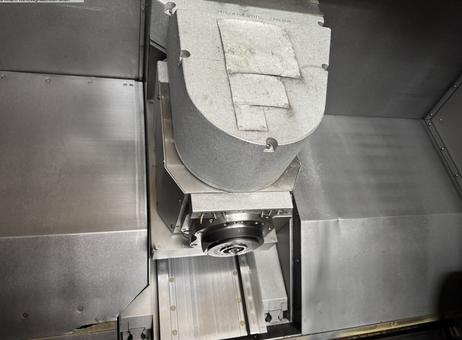

slide I: X1 / Y1 / Z1 / B
slide travel X-axis 550 mm
slide travel Z-axis 180 mm
Z- Travel 1.185 mm
B - axis 240 °
feed x-axis 0 - 40.000 mm/min
feed y- axis 1 - 24.000 mm/min
Feed z- axis 1 - 70.000 mm/min
feed B-axis 1 - 20 1/min
rapid traverse X/Y/Z 40 / 24 / 70 m/min
feed capacity X/Y/Z S6: 7,00/11,00/7,50 kN
tool taper HSK 63
turning speed milling-spindle 10 - 12.000 1/min
power capacity at 100 % load 13,20 kW
power capacity at 40 % load 22,00 kW
torque milling spindle 60 / 100 Nm
tool magazin:
no. of workpieces in the magazine 46 Stück
tool length - max. 350 / 200 mm
tool diameter 80 mm
wotkpiece diameter with 2 vacant positions 120 mm
weight of tools max. 6 / 10 kg
slide II: X2 / Z2
slide travel X-axis 180 mm
Z- Travel 1.050 mm
feed x-axis 1 - 24.000 mm/min
Feed z- axis 1 - 36.000 mm/min
rapid traverse x + z axis 24 / 36 m/min
feeding force S6: 11,00/9,00 kN

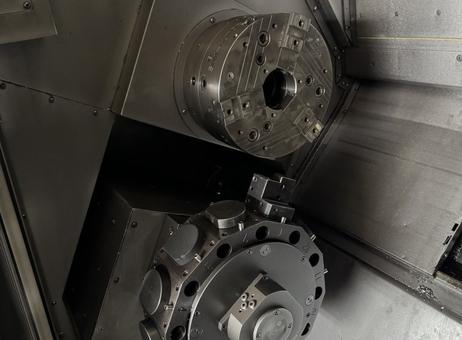

turret (x-stations) 12
tool taper DIN 69880 Ø40
Driven tools - quantity 12
Driven tool turning speed 1 - 4.000 1/min
power capacity at 100 % load 10,70 kW
torque S1: 32 Nm
Slide III - longitudial travel Z3 mm
Z- Travel 1.150 mm
Feed z- axis 1 - 36.000 mm/min
rapid traverse Z-axis 36,00 m/min
feed capacity Z - axes S6: 13,00 Nm
Main spindle ISM90
turning speed main-spindle 10 - 4.000 1/min
power capacity at 100 % load 36,00 kW
power capacity at 40 % load 45,00 kW
max. torque at 40% / 100% load 800 / 630 Nm
spindle bore 80 mm
Opposed spindle
turning speed opposed-spindle 10 - 5.000 1/min
power capacity at 100 % load 21,00 kW
power capacity at 40 % load 28,00 KW
max. torque at 40% / 100% load 320 / 240 Nm
spindle bore 80 mm
total power requirement 70,00 kW
weight of the machine ca. 20,00 t
dimensions of the machine ca. 8,50 x 4,50 x H3,10 m
