Contact us to receive an offer.
| Manufacturer | GETINGE |
|---|---|
| Model | GE 700X1450X1350-1 |
| Year | 2008 |
| Location | Italy
|
| Category | Industrial autoclaves / drying stoves |
| Operating t° | 143 °C |
| Pressure | 3 bar |
| worked hours | 0 hours |
| hours under power | 0 hours |
| state | like new |
| At local norms | yes |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P240213132 |
| Language |
Автоклав GETINGE GE 700X1450X1350-1
Autokláv GETINGE GE 700X1450X1350-1
Autoklav GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Autoklav
Αεροστεγής λέβης βρασμού GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Autoclave
Autoclave GETINGE GE 700X1450X1350-1
Autoclave GETINGE GE 700X1450X1350-1
Autoklav GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Autokláv
Autoclave GETINGE GE 700X1450X1350-1
Autoklavas GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Autoclaaf
Autoklaw GETINGE GE 700X1450X1350-1
Autoclave GETINGE GE 700X1450X1350-1
Autoclavă GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Автоклав
Autoklav GETINGE GE 700X1450X1350-1
GETINGE GE 700X1450X1350-1 Autoklav
Otoklav GETINGE GE 700X1450X1350-1
|
The Getinge GE 700X1450X1350-1 Autoclave is an industrial sterilization unit designed for porous and laboratory materials that can withstand steam at temperatures exceeding 100°C. Manufactured in 2008, this model operates at a maximum temperature of 143.0 °C and a design pressure of 3.0 bar (g), with the capability to maintain full vacuum conditions. The sterilizer features a rectangular chamber constructed from acid-proof AISI 316L stainless steel, with internal dimensions of 700 mm width, 1450 mm height, and 1350 mm depth. The internal chamber surfaces are ground and polished to a high lustre, achieving an internal Ra value of 0.6 microns, ensuring hygienic conditions and ease of cleaning.
The unit is equipped with a fully automatic, horizontal sliding door made from AISI 316L stainless steel, operated by a pneumatic motor with safety features including automatic stop and reverse if obstructed, and an isolation keyswitch to prevent door closure during chamber access. The autoclave supports multiple process cycles including Vacuum Cycle, Leak Test, and a combined WarmUp and ALRT cycle.
The mechanical enclosure includes fascia panels on the loading side only, designed for recessed installation. The external surfaces are made from stainless steel 1.4301 (AISI 304) with a tetra polished finish (Ra < 1.2 micrometers) and a thickness of 1.0 mm. The loading height from floor to chamber bottom is 300 mm, and no plantroom barrier is required.

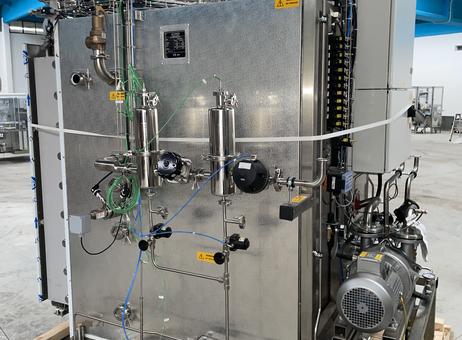

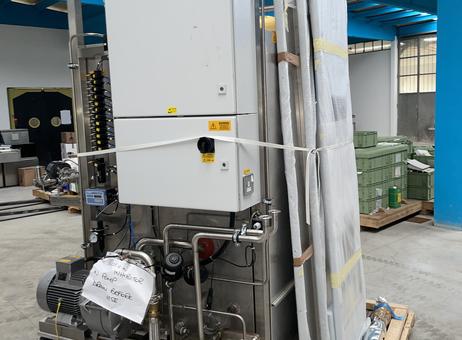

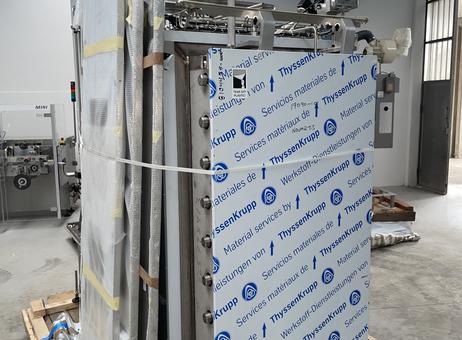

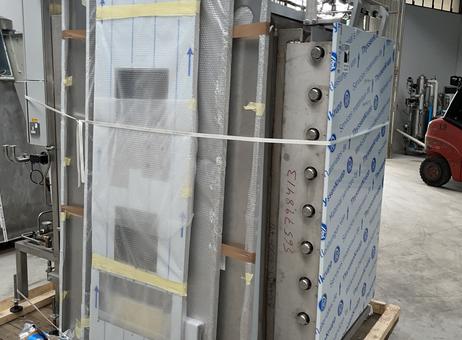

Utility requirements include steam, compressed air, potable water, cooled water, and condensate, with detailed specifications available in the installation drawing. The autoclave is mounted on a wooden pallet and is currently protected with bubble wrap and plastic packaging, indicating careful handling and storage. Visible components include stainless steel bolts and fasteners, metal piping, a structural frame, an electric motor and pump assembly, and an electrical control box mounted on top with warning labels. The control interface features a Siemens SIMATIC Multi Panel touch screen with user and administrator password protection.

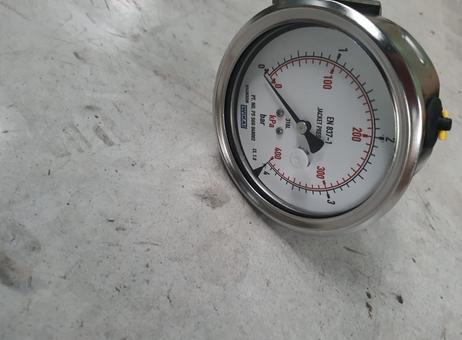

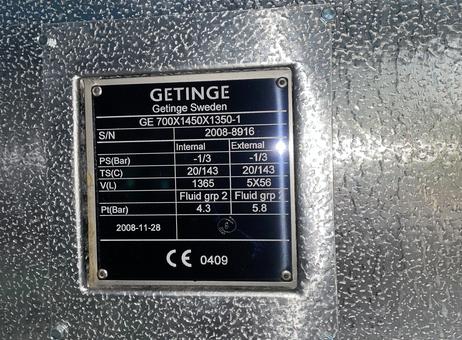

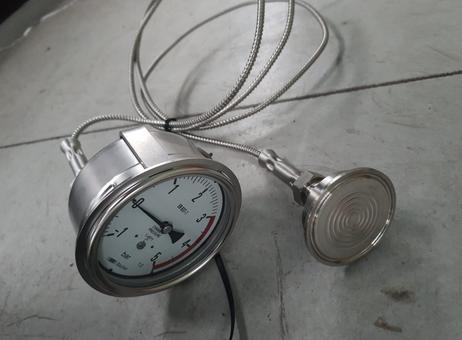

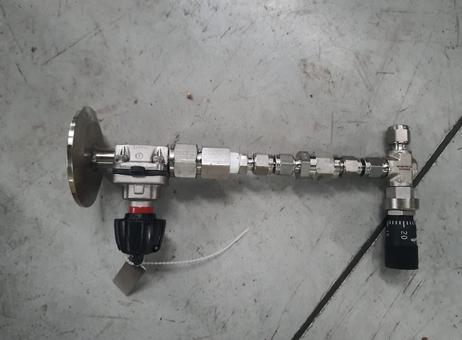

Additional visible instrumentation includes sensors, valves with adjustment knobs, and control devices mounted on the back panel. A handwritten note attached to the pump drain advises the use of corrosion inhibitor before operation. The unit bears CE marking and a nameplate confirming the manufacturer as Getinge, model GE 700X1450X1350-1, and serial number 2008-8916.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The Getinge Autoclave is designed for the sterilization of porous or laboratory materials, which are capable of withstanding seam at high temperatures in excel of 100°C.
The Autoclave is supplied with the following process cycles and test facilities:
1. Vacuum Cycle
2. Leak Test
3. WarmUp and ALRT combined
Mechanical Enclosure
Fascia Panels
the sterilizer is a recessed installation with fascia panels to the loading side only.
Material: Stainless steel 1.4301 (AISI 304).
Front surface texture: Tetra polished Ra< 1,2 micrometer
Thickness 1.0 mm.
Loading area / Plantroom area Barrier
There is no requirement for a barrier.
Pressure Vessel
Loading Height: 300 mm from floor to the chamber bottom.
Chamber
Internal Dimensions
Useable width 700 mm
Useable height 1450 mm
Useable depth 1350 mm
Construction:
Cross section: Rectangular
Material: AISI 316L acid proof stainless steel
Design pressure: 3 bar (g) & full vacuum
Design temperature: 143 °C
Welds: Robotic or semi-automatic whenever possible
Internal Chamber and Ports Finish
internal surface ground and polished to a high lustre
Internal Ra value 0.6 microns
1 Door
Design: Fully automatic, horizontal sliding
Opening and closing: Automatic button controlled
Door operation: Pneumatic motor
Door safety: Stops and reverses if obstructed. Door close isolation keyswitch to prevent door closing if access to chamber is required.
Internal door surface: AISI 316L stainless steel
Door pins: AISI 316 stainless steel
Media (Utility) Requirements
Please refer to the installation drawing for details of sizes & consumptions.
Requirements:
Steam
Compressed Air Supply
Potable Water Supply
Cooled Water Supply
Condense
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 28, 2026 |
