Contact us to receive an offer.
| Manufacturer | Genevoise |
|---|---|
| Model | Hydroptic 5 |
| Year | |
| Location | Italy
|

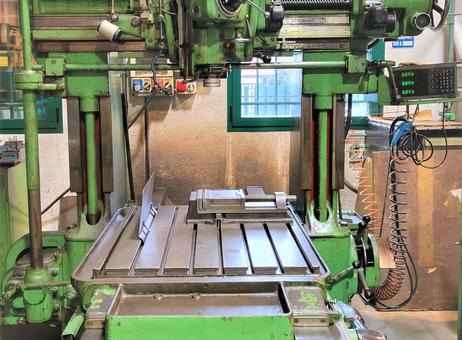

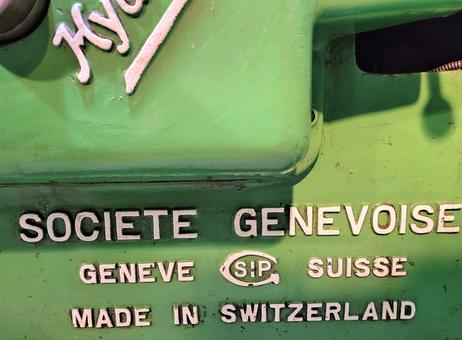

The Genevoise Hydroptic 5 is a robust table-type milling-boring machine designed for precision machining tasks. Manufactured in Switzerland by Société Genevoise, this machine features a solid green-painted frame supported by two vertical columns that uphold a horizontal arm. The machine dimensions are approximately 2720 mm in length, 2480 mm in width, and 2740 mm in height, with a total weight of 5500 kg.
The worktable measures 1000 mm by 700 mm and is equipped with T-slots, facilitating the secure mounting of workpieces and accessories. A vise is mounted on the table, enhancing the machine's capability for stable and precise operations. The spindle travel is noted to be 600 mm, providing ample range for various machining applications.

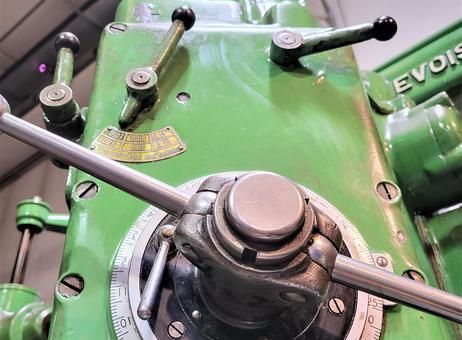

For manual adjustments, the machine is fitted with handwheels and a rotary handwheel featuring degree markings and a locking lever, allowing for fine control of positioning. The vertical spindle head includes a hand crank and adjustment levers to further aid in precise machining.

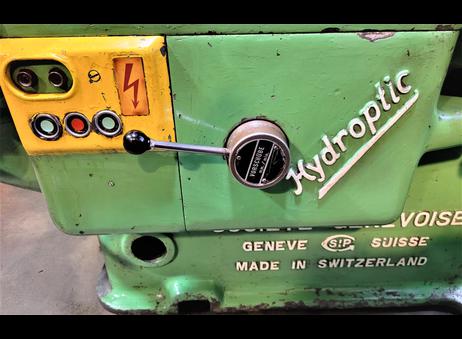

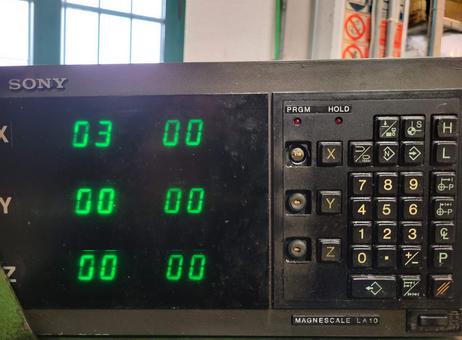

The machine is equipped with a digital readout display, MAGNESCALE LA10, which provides coordinate readings for the X, Y, and Z axes, enhancing accuracy and ease of use during operations. The control panel includes buttons and a lever labeled 'VORSCHUBE m/m/min', indicating feed rate control functions.
Cosmetic condition shows visible wear with paint chipping and some surface scratches on the green-painted surfaces. There is also some evidence of surface rust or dirt on the machine body, particularly around the control panel area. A high voltage warning symbol is present, indicating the presence of electrical components requiring caution.
This Genevoise Hydroptic 5 milling-boring machine is suitable for users seeking a precision machine with manual and digital controls, capable of handling a variety of machining tasks with a guaranteed precision of 5 μm as previously specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Milling-Boring machine Genevoise Hydroptic
Table size: 1000x700
Travel spindle: 600 mm
Precision guaranteed: 5 μm
Spindle motor: 7.5 hp.
Digital display on all axes: SONY LA10
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2008 |
| Offers online | 1 |
| Last activity | Nov. 12, 2025 |
Milling-Boring machine Genevoise Hydroptic
Table size: 1000x700
Travel spindle: 600 mm
Precision guaranteed: 5 μm
Spindle motor: 7.5 hp.
Digital display on all axes: SONY LA10
