| Manufacturer | Future Tech |
|---|---|
| Model | Model 105/65/45 |
| Year | 2012 |
| Location | Poland
|
| Category | Complete lines - Plastic extrusion |
| Screw diameter | 105 mm |
| Output | 350 kg/h |
| Type | Single screw |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | under power |
| Last availability date | 09/08/2026 |
| Product id | P230529063 |
| Language |
Future Tech Model 105/65/45
Vytlačovací linka Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45 Extrusionsanlage
Future Tech Model 105/65/45
Single Screw PS / PP Extrusion Line 105/65/45
Línea de extrusión Future Tech Model 105/65/45
Ligne d'extrusion Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Linea di estrusione Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Linia do wytłaczania Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45 Экструзионная линия
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Ekstrüzyon hattı Future Tech Model 105/65/45
|
This listing features a Future Tech Model 105/65/45 single screw plastic extrusion line manufactured in 2012. The main extruder is a 105 mm diameter single screw design with an air-cooled 120 kW AC motor and inverter, capable of processing PS and PP granulate materials. The line includes two co-extruders: one with a 65 mm single screw driven by a 30 kW AC motor and inverter, and a second with a 45 mm single screw powered by a 20 kW AC motor and inverter. The extrusion line is designed to produce sheets with thicknesses ranging from 0.18 mm to 1.2 mm and a maximum net sheet width of 750 mm, delivering an output capacity of up to 350 kg per hour.
Additional features include a vented 105 mm extruder equipped with a liquid ring vacuum pump system, screen changers utilizing GOODI systems, and a feed block with selector plugs. The sheet die is a manual T-die with a flexible bottom lip and a fixed upper lip, configured as a single manifold to produce sheets up to 750 mm wide.
The line also incorporates a 1100 mm wide three-roll polishing stack arranged horizontally with roll diameters of 300 mm, 450 mm, and 450 mm respectively. Each roll has an individual inverter speed drive, supporting a maximum roll weight of 200 kg and a maximum roll diameter of 500 mm.

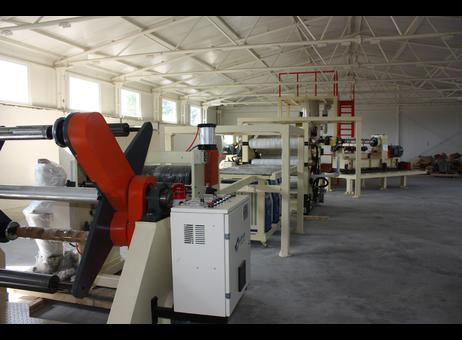

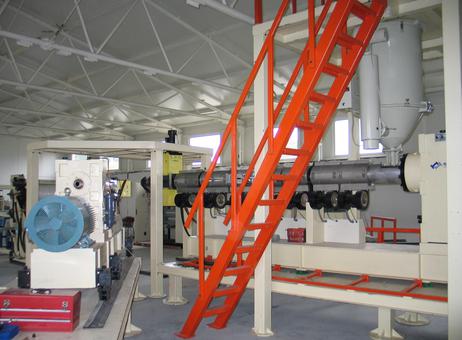

From the images, the extrusion line is installed indoors within a spacious, well-lit factory environment. Visible components include a large orange and black unwinding or feeding mechanism located at the front left of the line, a white cabinet housing a control panel with buttons and indicators adjacent to the feeding mechanism, and a conveyor or roller section with a white frame positioned mid-line. An elevated platform with red railings and an access ladder is also present in the background.
This extrusion line is suitable for processing a mix of virgin and regranulated PS and PP materials and is available for immediate purchase. Payment terms specify 20% due upon order with the full balance payable prior to loading.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Model: Single Screw PS/PP Extrusion Line
Year: 2012
Condition: Excellent
Availability: Immediately
Materials: PS-PP grnulate
Material Width Range: 0.18mm – 1,2mm
Max Sheet Width: 750mm
Output: 350kg/hour
Main Extruder: 105mm single screw extruder air cooled 120kW ac motor & inverter
Co-Extruder-1: 65mm single screw with 30kW ac motor & inverter
Co-Extruder-1: 45mm single screw with 20kW ac motor & inverter
Running from 0.18mm to 1.2mm thick PS/PP up to 450kg/hr.
Mix of virgin an regranulate
Vented 105 mm extruder with liquid ring vacuum pump system.
Screen changers with GOODI systems.
Feed block with selector plugs.
750mm wide flex lip single manifold sheet die.
Max net width of the sheet is 750mm.
Manual T- die. Flex bottom lip. Fixed uper lip.
1100mm wide 3 roll polishing stack with horizontal configuration ( 300mm x 450mm x
450mm diameter). Individual inverter speed drives.
Max roll weight 200kG. Max roll diameter 500mm.
Payment Terms: 20% with order and full balance before loading.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of extrusion line is this Future Tech Model 105/65/45?
This Future Tech Model 105/65/45 is a single screw PS/PP extrusion line.
When was this extrusion line manufactured?
This extrusion line was manufactured in the year 2012.
Is this Future Tech Model 105/65/45 extrusion line operational?
This Future Tech Model 105/65/45 extrusion line is currently under power and operational.
Is this equipment available for inspection?
This equipment is available for inspection.
What is the condition of this Future Tech Model 105/65/45?
This Future Tech Model 105/65/45 extrusion line is in good working condition.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 2 |
| Last activity | Sept. 14, 2026 |
Model: Single Screw PS/PP Extrusion Line
Year: 2012
Condition: Excellent
Availability: Immediately
Materials: PS-PP grnulate
Material Width Range: 0.18mm – 1,2mm
Max Sheet Width: 750mm
Output: 350kg/hour
Main Extruder: 105mm single screw extruder air cooled 120kW ac motor & inverter
Co-Extruder-1: 65mm single screw with 30kW ac motor & inverter
Co-Extruder-1: 45mm single screw with 20kW ac motor & inverter
Running from 0.18mm to 1.2mm thick PS/PP up to 450kg/hr.
Mix of virgin an regranulate
Vented 105 mm extruder with liquid ring vacuum pump system.
Screen changers with GOODI systems.
Feed block with selector plugs.
750mm wide flex lip single manifold sheet die.
Max net width of the sheet is 750mm.
Manual T- die. Flex bottom lip. Fixed uper lip.
1100mm wide 3 roll polishing stack with horizontal configuration ( 300mm x 450mm x
450mm diameter). Individual inverter speed drives.
Max roll weight 200kG. Max roll diameter 500mm.
Payment Terms: 20% with order and full balance before loading.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of extrusion line is this Future Tech Model 105/65/45?
This Future Tech Model 105/65/45 is a single screw PS/PP extrusion line.
When was this extrusion line manufactured?
This extrusion line was manufactured in the year 2012.
Is this Future Tech Model 105/65/45 extrusion line operational?
This Future Tech Model 105/65/45 extrusion line is currently under power and operational.
Is this equipment available for inspection?
This equipment is available for inspection.
What is the condition of this Future Tech Model 105/65/45?
This Future Tech Model 105/65/45 extrusion line is in good working condition.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Category | Complete lines - Plastic extrusion |
| Screw diameter | 105 mm |
| Output | 350 kg/h |
| Type | Single screw |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | under power |
| Last availability date | 09/08/2026 |
| Product id | P230529063 |
| Language |
Future Tech Model 105/65/45
Vytlačovací linka Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45 Extrusionsanlage
Future Tech Model 105/65/45
Single Screw PS / PP Extrusion Line 105/65/45
Línea de extrusión Future Tech Model 105/65/45
Ligne d'extrusion Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Linea di estrusione Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Linia do wytłaczania Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Future Tech Model 105/65/45 Экструзионная линия
Future Tech Model 105/65/45
Future Tech Model 105/65/45
Ekstrüzyon hattı Future Tech Model 105/65/45
|
This listing features a Future Tech Model 105/65/45 single screw plastic extrusion line manufactured in 2012. The main extruder is a 105 mm diameter single screw design with an air-cooled 120 kW AC motor and inverter, capable of processing PS and PP granulate materials. The line includes two co-extruders: one with a 65 mm single screw driven by a 30 kW AC motor and inverter, and a second with a 45 mm single screw powered by a 20 kW AC motor and inverter. The extrusion line is designed to produce sheets with thicknesses ranging from 0.18 mm to 1.2 mm and a maximum net sheet width of 750 mm, delivering an output capacity of up to 350 kg per hour.
Additional features include a vented 105 mm extruder equipped with a liquid ring vacuum pump system, screen changers utilizing GOODI systems, and a feed block with selector plugs. The sheet die is a manual T-die with a flexible bottom lip and a fixed upper lip, configured as a single manifold to produce sheets up to 750 mm wide.
The line also incorporates a 1100 mm wide three-roll polishing stack arranged horizontally with roll diameters of 300 mm, 450 mm, and 450 mm respectively. Each roll has an individual inverter speed drive, supporting a maximum roll weight of 200 kg and a maximum roll diameter of 500 mm.
From the images, the extrusion line is installed indoors within a spacious, well-lit factory environment. Visible components include a large orange and black unwinding or feeding mechanism located at the front left of the line, a white cabinet housing a control panel with buttons and indicators adjacent to the feeding mechanism, and a conveyor or roller section with a white frame positioned mid-line. An elevated platform with red railings and an access ladder is also present in the background.
This extrusion line is suitable for processing a mix of virgin and regranulated PS and PP materials and is available for immediate purchase. Payment terms specify 20% due upon order with the full balance payable prior to loading.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 2 |
| Last activity | Sept. 14, 2026 |
