| Manufacturer | Funke Gronau |
|---|---|
| Model | C-300 (High Pressure; 32,5 m2) |
| Year | 2009 |
| Location | Netherlands
|

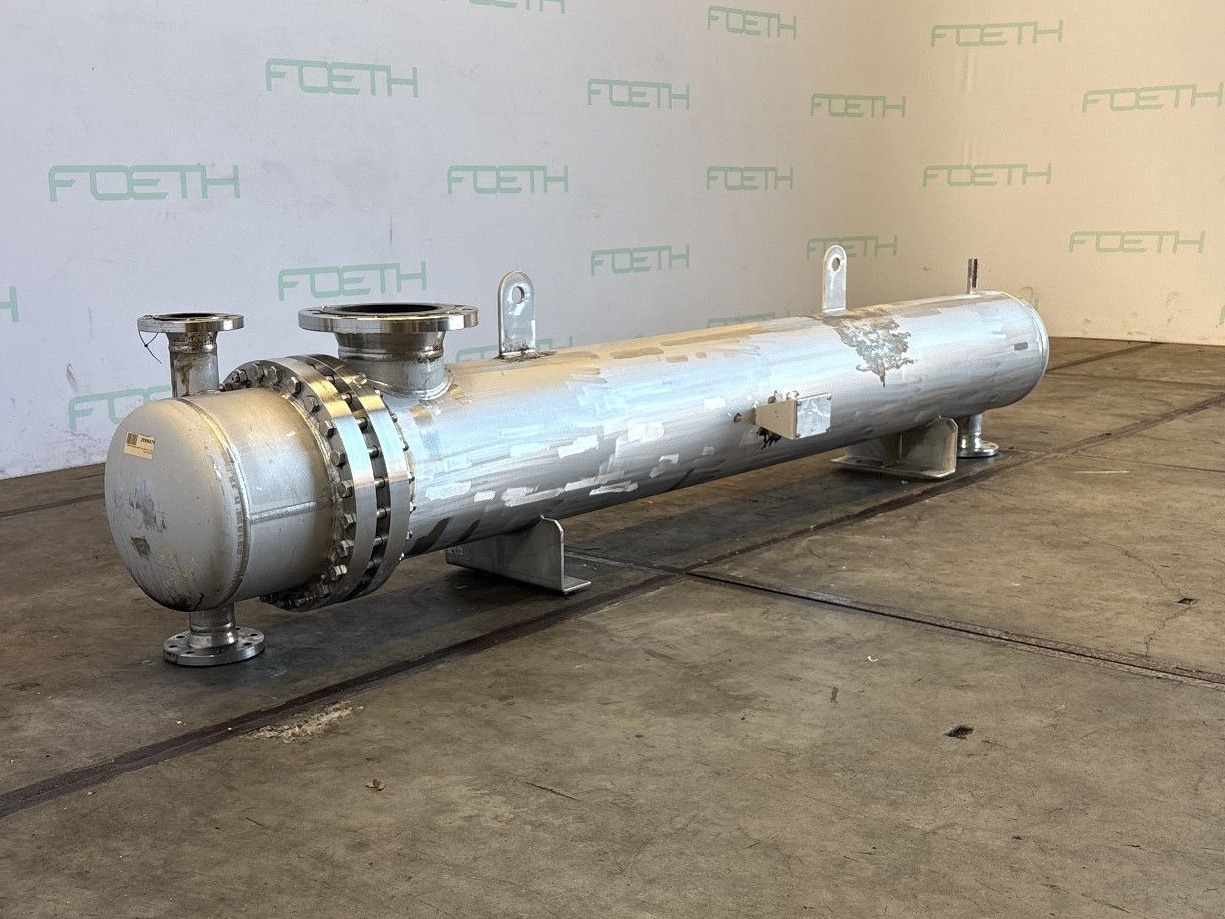

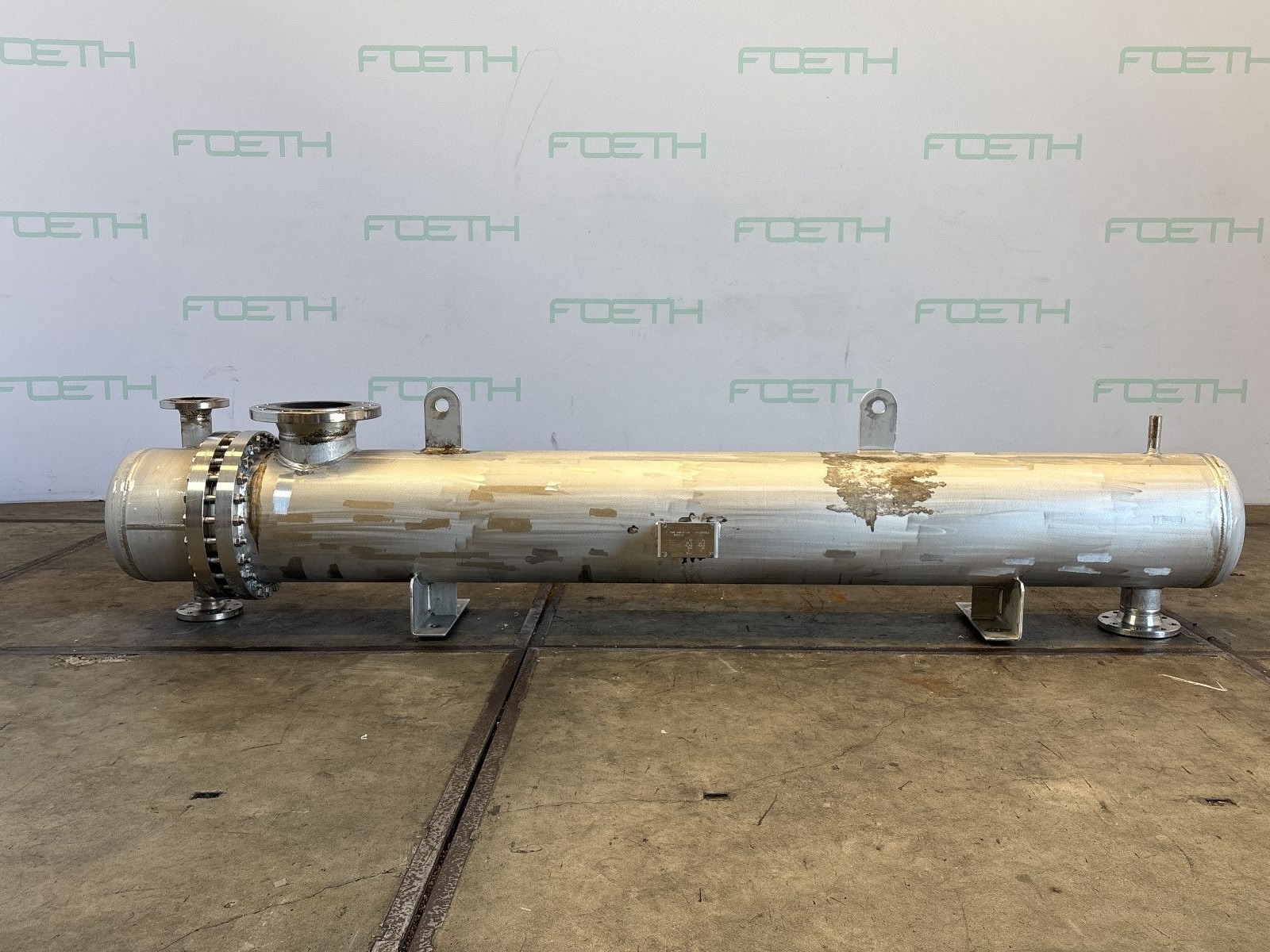

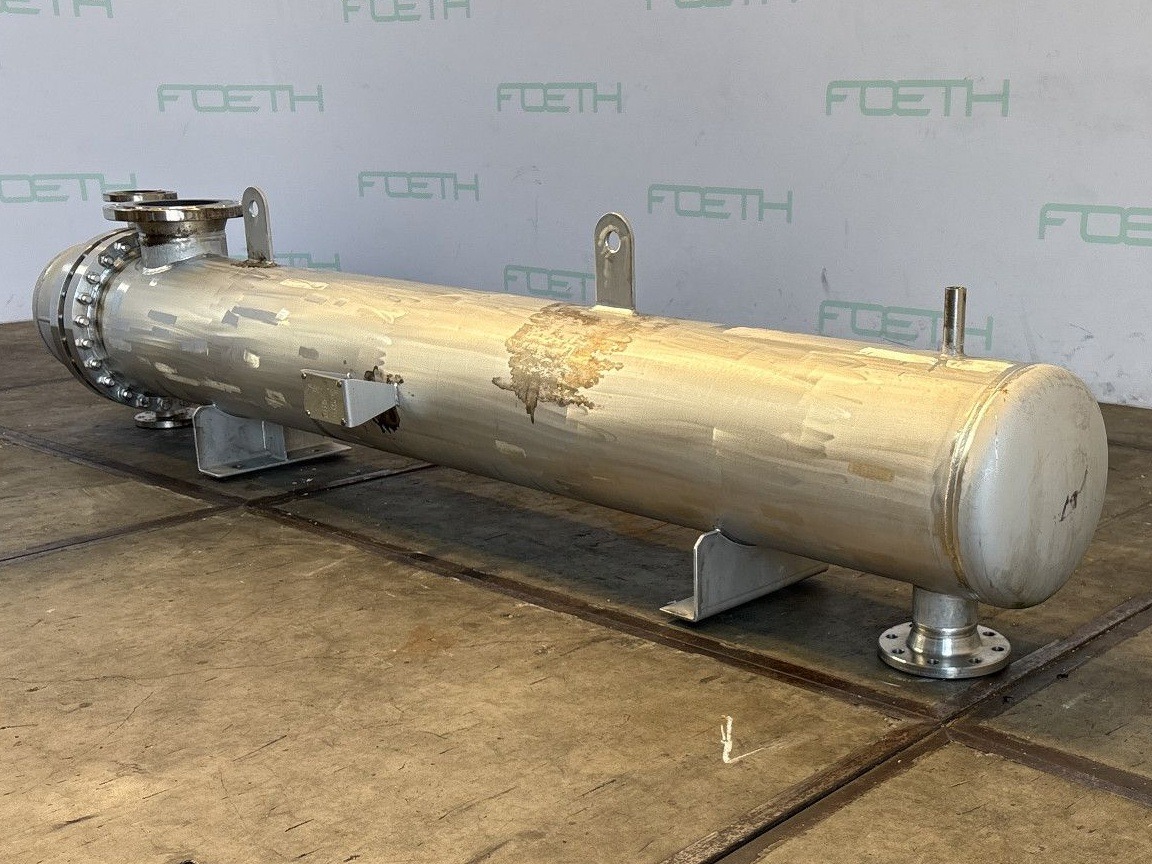

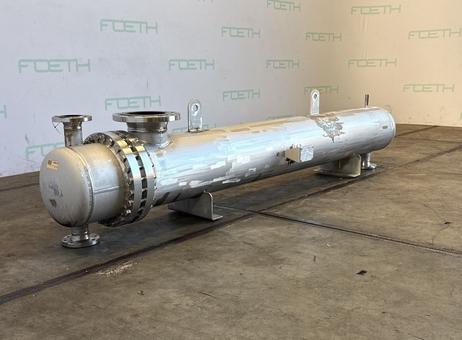

Funke Gronau C-300 high-pressure shell-and-tube heat exchanger, identified with a heating surface of 32.5 m². The unit is described as horizontal and U-type, with stainless steel specified for both the shell and tubes. The stated stainless-steel grade is 1.4404 (316L).
The equipment has a shell-and-tube arrangement, with tube and shell capacities, tube count and tube dimensions specified in the listing. It also has shell connections and cover connections. These details describe the unit’s heat-transfer construction and connection arrangement; connection sizes and other construction figures are not repeated here.
The listed maximum temperature is 240 °C. Overall dimensions are 3400 mm in length, 500 mm in width and 700 mm in height, with a stated weight of 700 kg. These measurements and the temperature limit are the available specifications for this listing.
The model designation is C-300, with the high-pressure and heat-transfer-surface details included in the model information. The manufacturer is Funke Gronau. The supplied specification identifies stainless steel as the material for the shell and tubes and gives the grade as 1.4404 (316L). No condition, operating status, testing, refurbishment or warranty information is specified. The year of manufacture is not provided in the known product fields.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General

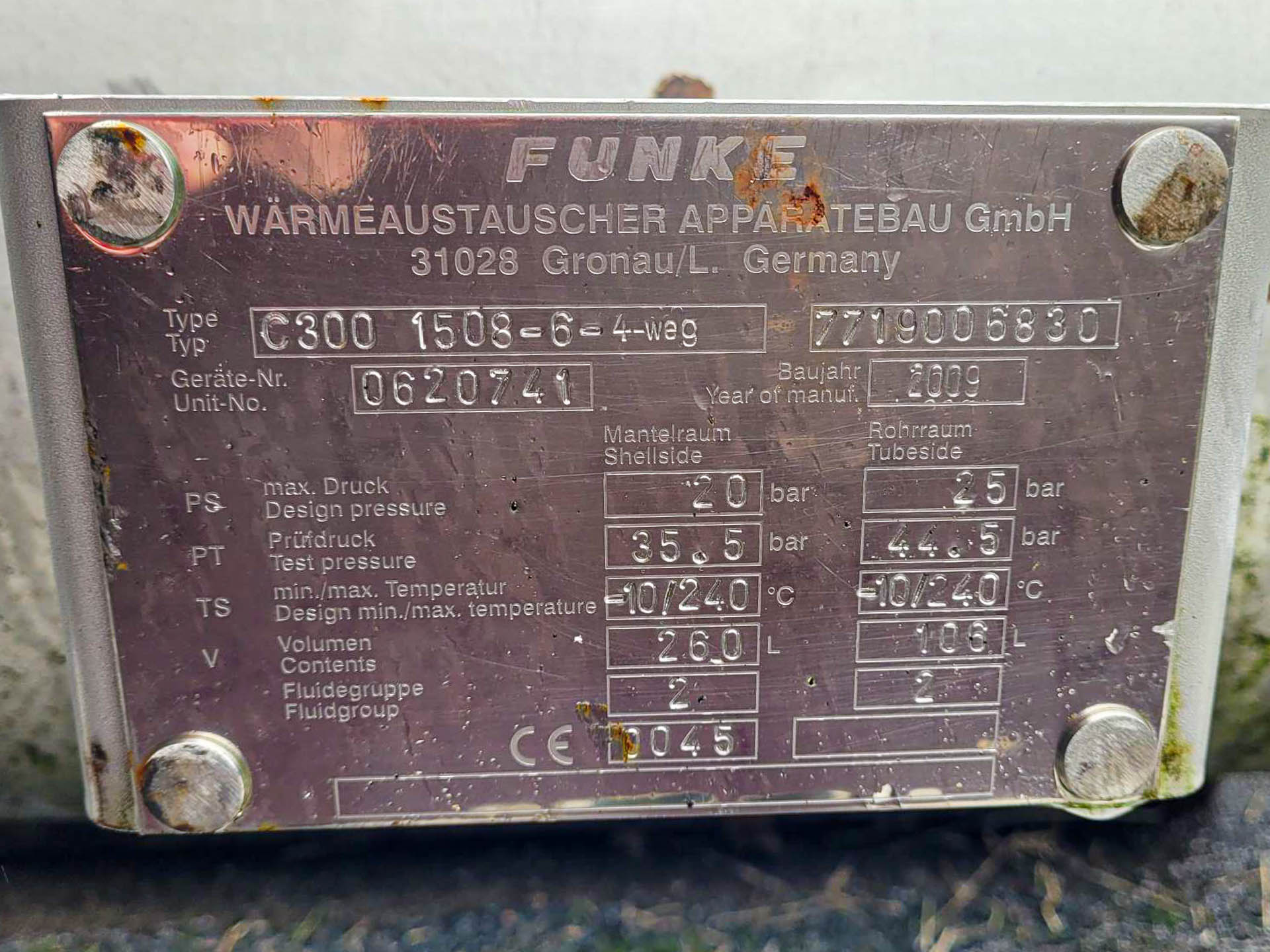

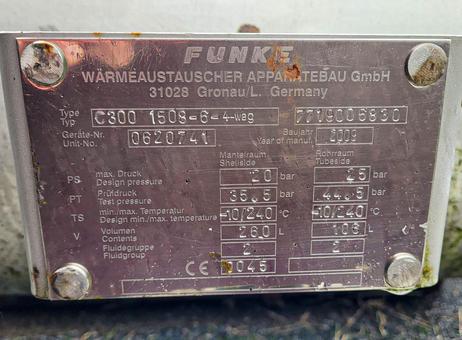

SKU: 289N419
Make: Funke Wärmetauscher Apparatebau Gmbh Gronau (DE)
Type: C-300 1508-6-4- Weg
No.: 0620741
Year of construction: 2009
Location: Barneveld
Material
Shell material: Stainless steel 1.4404 (316L)
Pressure
Working pressure shell: 20 Bar
Working pressure tubes: 25 Bar
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 32.5 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 32,5 m²
Tube capacity: 106 l.
U-type: ✓
Number of tubes:: 234
Tube diameter: 8 mm
Tube length: (2x) 2750 mm
Max. temperature: -10/+240°C
Shell capacity: 260 l.
Shell diameter: 400 mm
Shell length: 3400 mm
Max. temperature: -10/+240°C

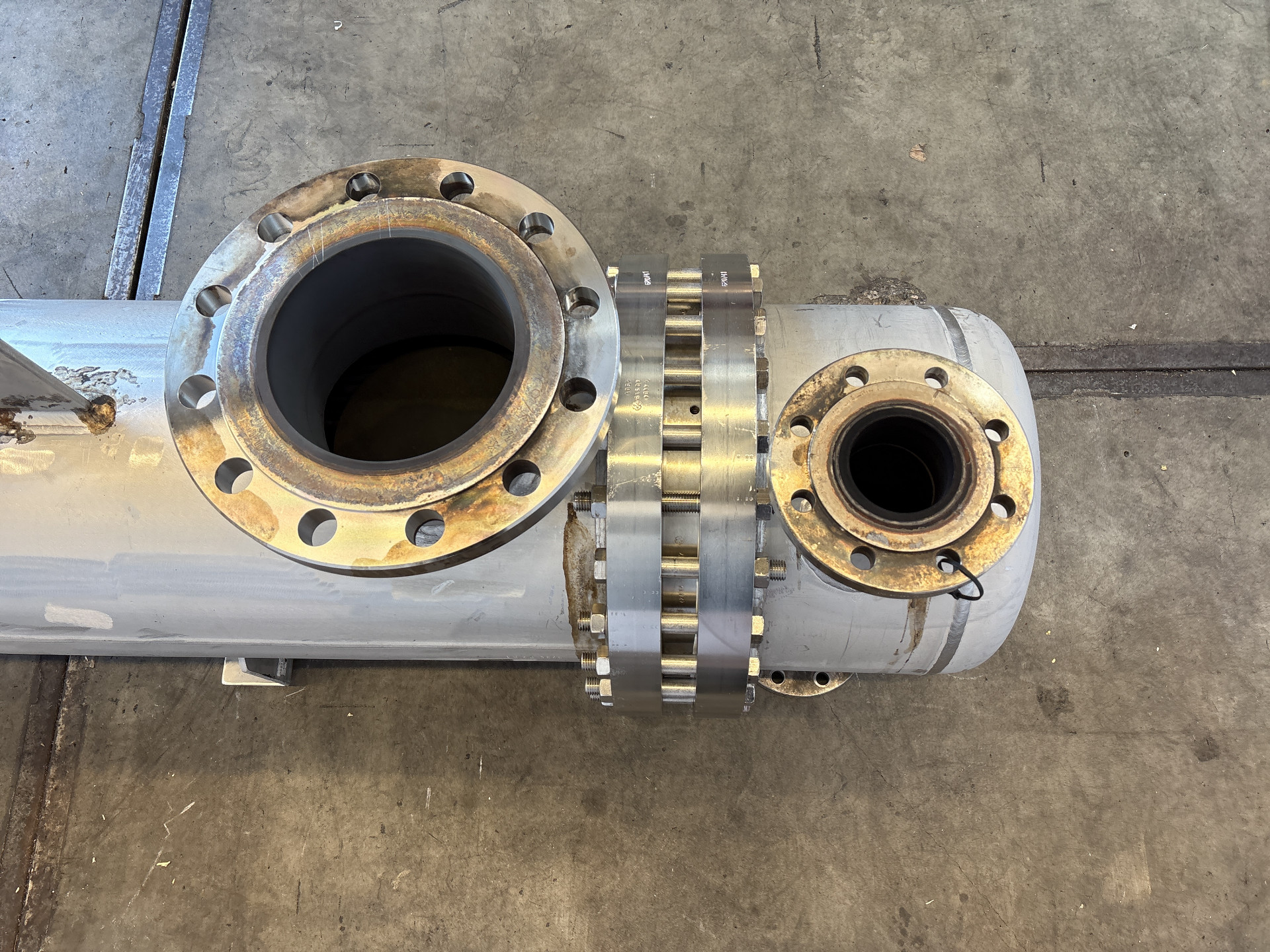

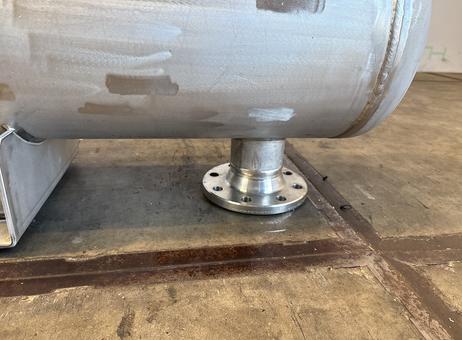

Shell connections: dia.200mm, dia.100mm
Cover connections: (2x) dia.80mm
Material: Stainless steel 1.4404 (316L)
General
Floorspace: 3,4 x 0,5 m
Total height: 0,7 m
Weight: 700 kg
CE: ✓
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
