Contact us to receive an offer.
| Manufacturer | Fritz Mueller |
|---|---|
| Model | ZE 625 |
| Year | 2020 |
| Location | Poland
|

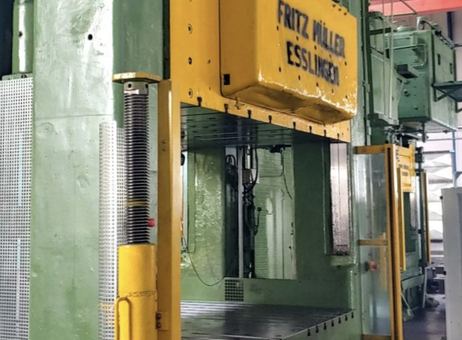

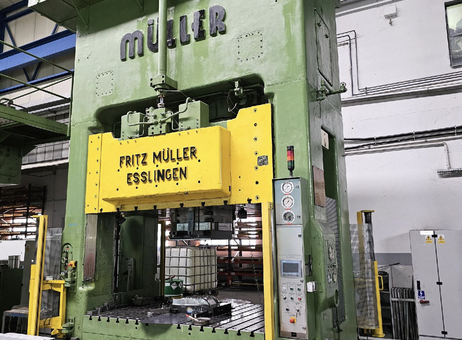

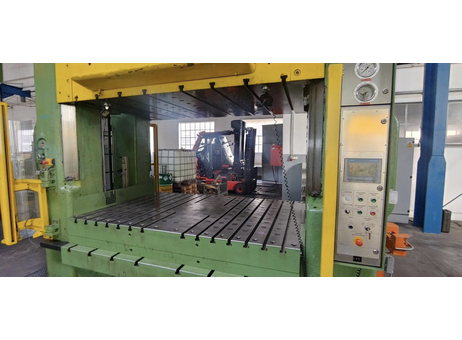

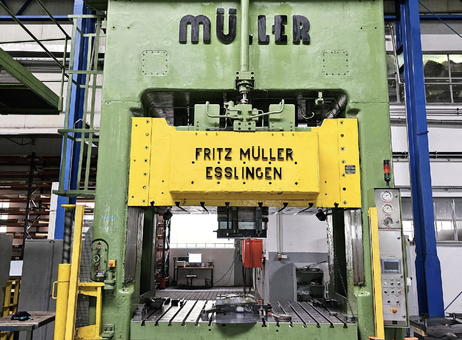

The Fritz Mueller Esslingen ZE 625-4 hydraulic press was manufactured by the German company Fritz Mueller Esslingen. The first major overhaul of the press was performed by the manufacturer’s service department, Machinenfabrik Mueller-Weingarten AG, in 1988. The Mueller 625-ton press underwent its second overhaul in 2020, during which it was adapted to current safety requirements. A new control system based on a Siemens Simatic S7 controller and a Siemens Simatic HMI touchscreen operator panel was designed; the entire electrical system and seals were replaced, and safety curtains were added.
The Fritz Müller Esslingen ZE 625 hydraulic press is a heavy-duty industrial press designed for metal forming. With a maximum pressing force of 620 tons, this hydraulic press is primarily used in die forging, stamping, and deep drawing processes. Thanks to its high pressing force and large worktable surface, the press enables the forming of large steel, aluminum, and other metal components used in the machine and automotive industries. The machine is used in the production of forgings, structural components, machine parts, and automotive components. Hydraulic presses of this type are also used for straightening large workpieces, calibrating component dimensions, re-pressing material after previous processing operations, and for deep drawing of sheet metal. Thanks to the hydraulic drive, precise control of the ram’s speed is possible, and full pressing force is achieved throughout the entire working stroke, allowing for the execution of demanding manufacturing operations while maintaining high process accuracy.
Specifications of the Fritz Mueller Esslingen ZE 625 press
- Type: P127
- Maximum pressing force: 620 tons (6200 kN)
- Table surface: 2500 × 1600 mm
- Maximum distance between tables: 1600 mm
- Upper table stroke: 900 mm
- Pull-back force: 250 tons (2500 kN)
- Cushion stroke: 400 mm
- Ejector force: 63 tons (630 kN)
- Ejector stroke: 65 mm
- Machine weight: 100 tons
- Press dimensions (height x width x depth): 7300 x 4900 x 2400 mm
Safety parameters
- Travel distance: 80 mm
- Travel time: 210 ms
- Minimum safety distance: 340 mm (light curtains)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
