| Manufacturer | Freude Titan |
|---|---|
| Model | 13 m2 Hastelloy C-22 |
| Year | 2010 |
| Location | Netherlands
|

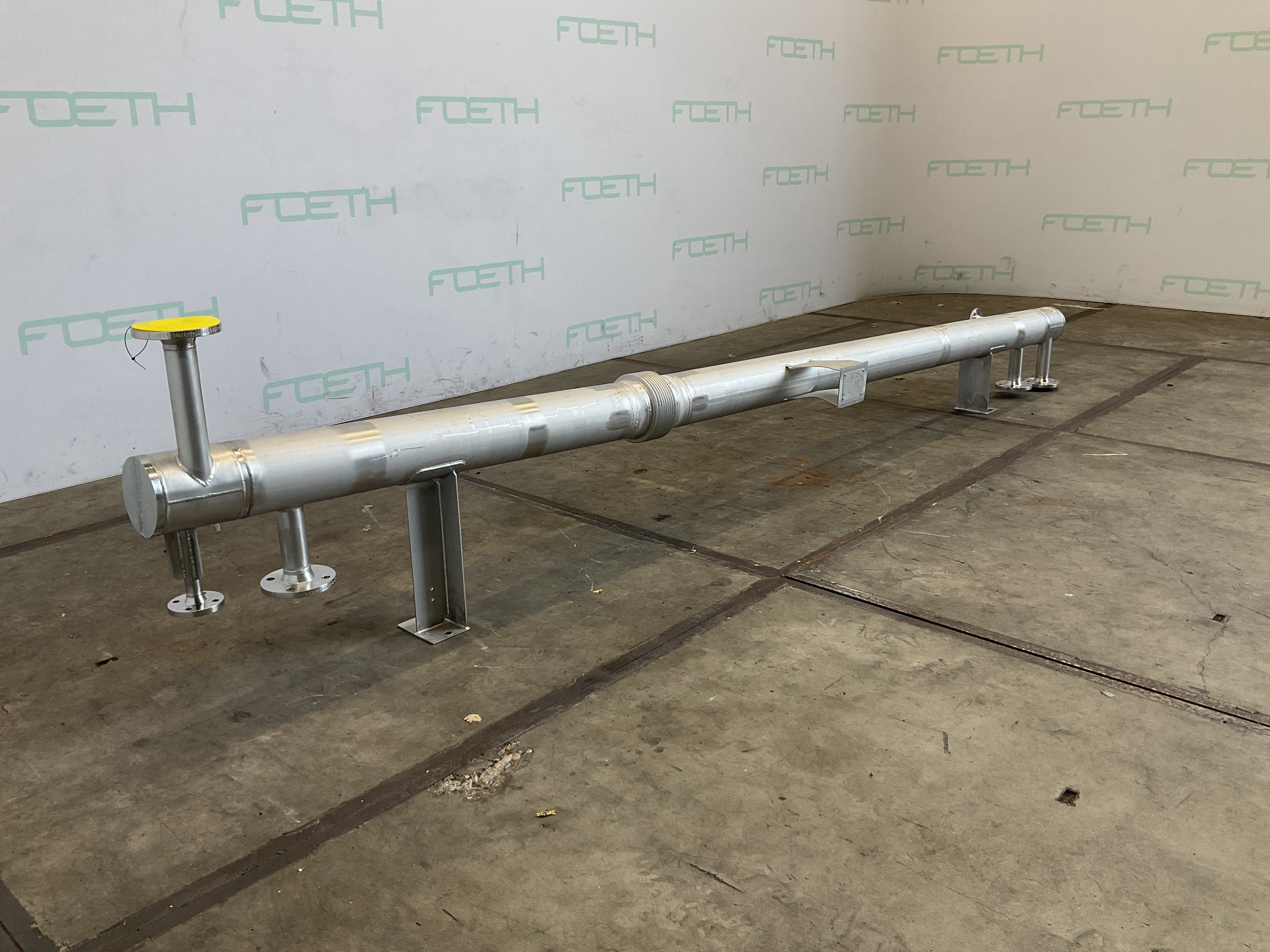

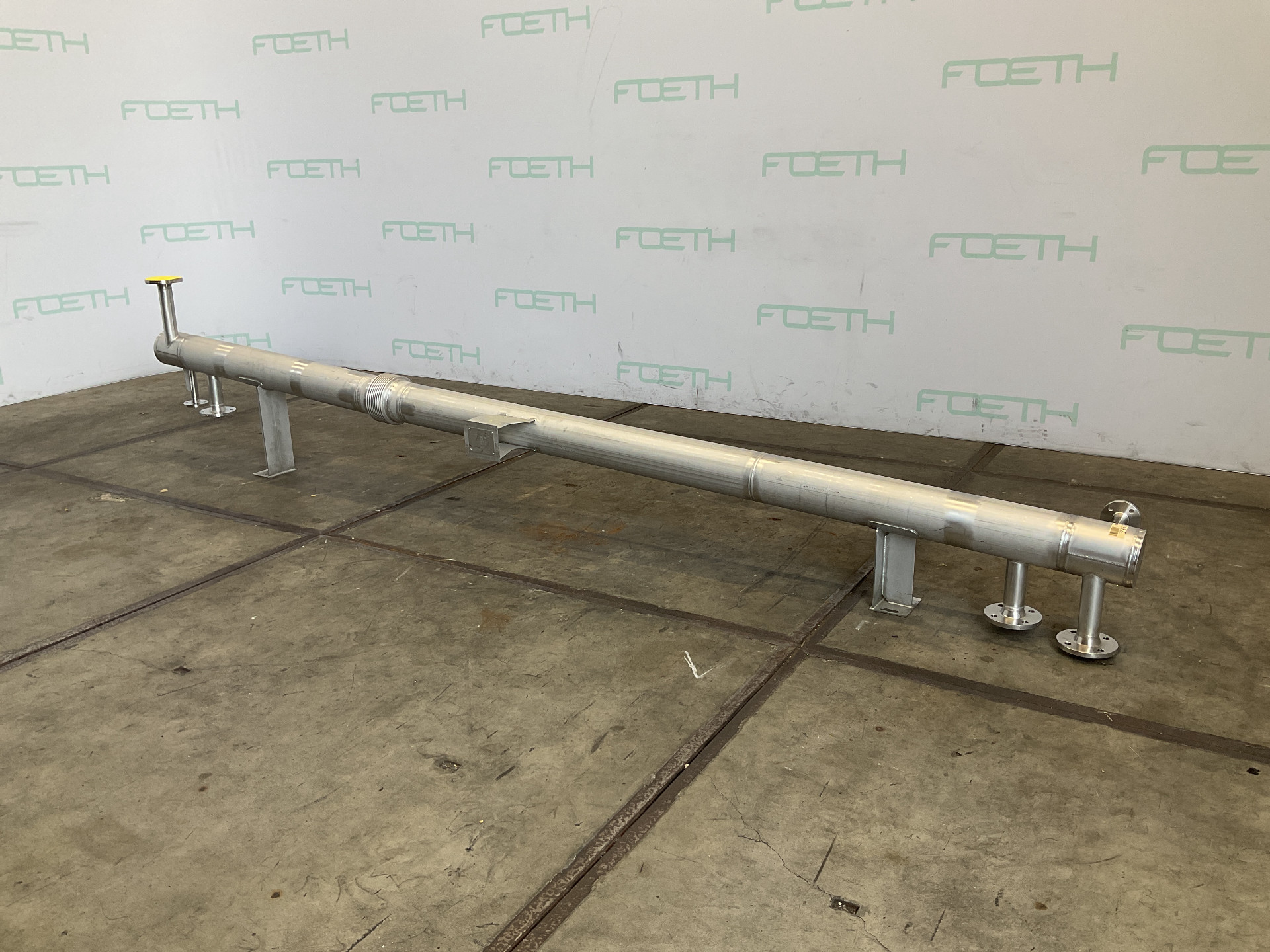

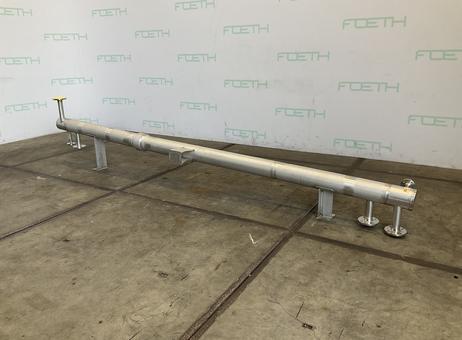

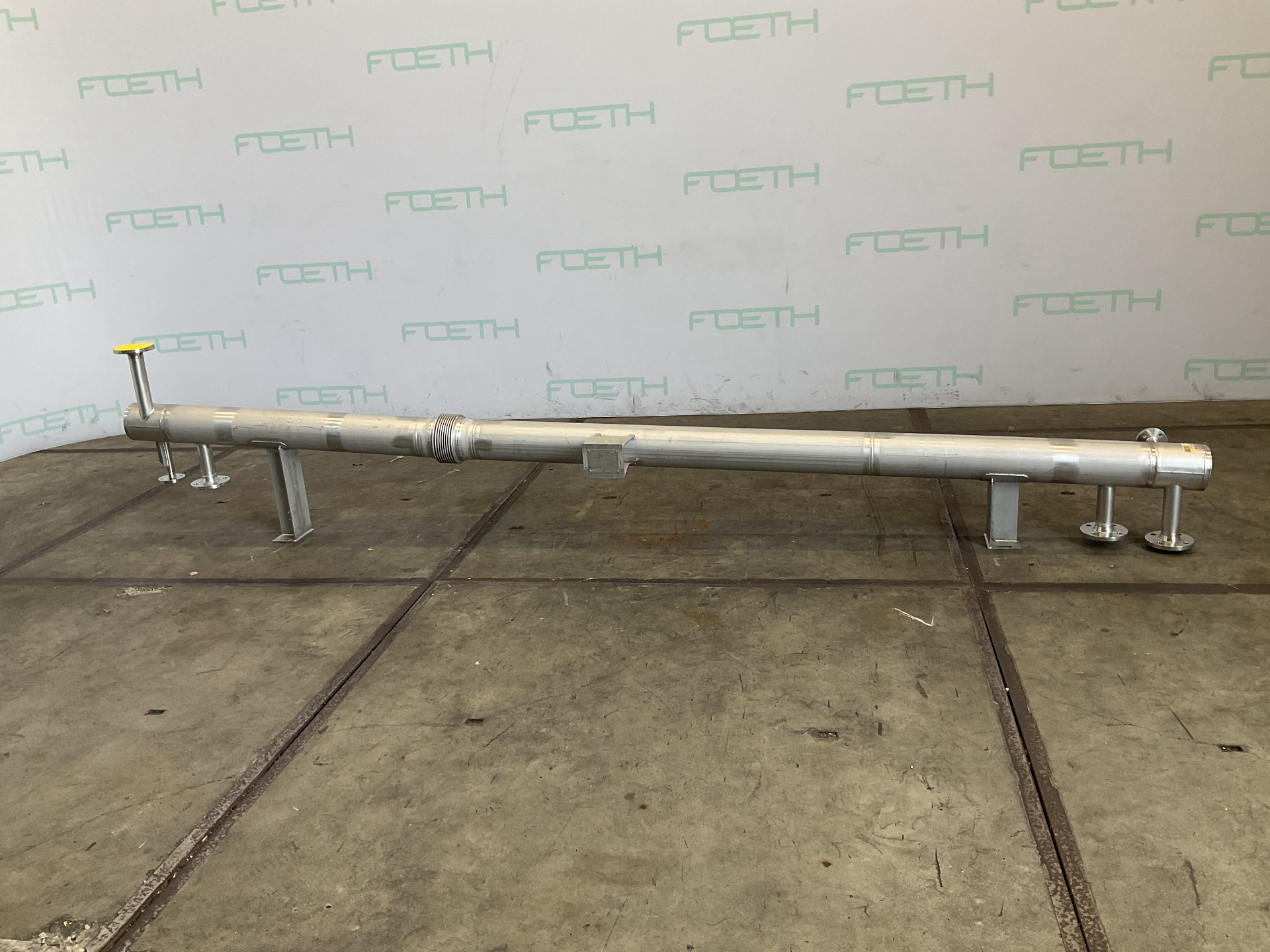

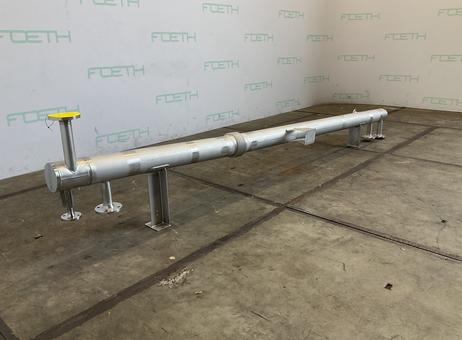

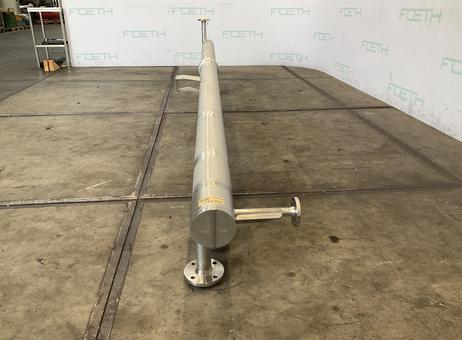

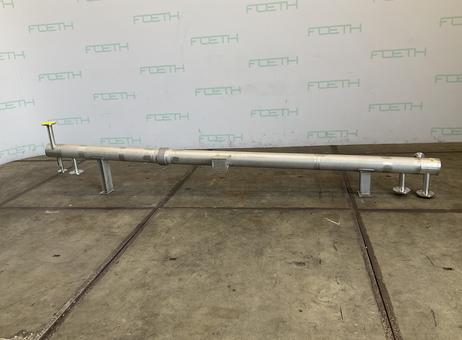

Freude Titan shell-and-tube heat exchanger, model 13 m2 Hastelloy C-22. The exchanger is designed for heat-transfer service and has a stainless-steel shell with Hastelloy C-22 tubes. It is arranged horizontally and is mounted on legs. The shell is fitted with an expansion joint, and connection points are provided on both the shell and the covers. The unit is also described as capable of tubular vacuum operation.
The stated heating surface is 13 m2. Overall dimensions are 4500 mm long, 400 mm wide and 900 mm high, with a listed weight of 200 kg. The current specification identifies the shell and tube materials as stainless steel and Hastelloy respectively, with the tube material specified as Hastelloy C-22. This configuration may be relevant to buyers seeking a heat exchanger with a corrosion-resistant tube material; suitability should be assessed against the intended process and operating conditions.
The equipment is categorized as a heat and surface treatment unit, with the treatment type listed as others. It is described as a shell-and-tube heat exchanger. The available description identifies connection points on the shell and covers, as well as the expansion joint and leg-mounted support. No condition, service history, or operational test information is provided, so these should not be assumed. The stated details are limited to the configuration and specifications listed here; verify compatibility with your process requirements before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 026F110

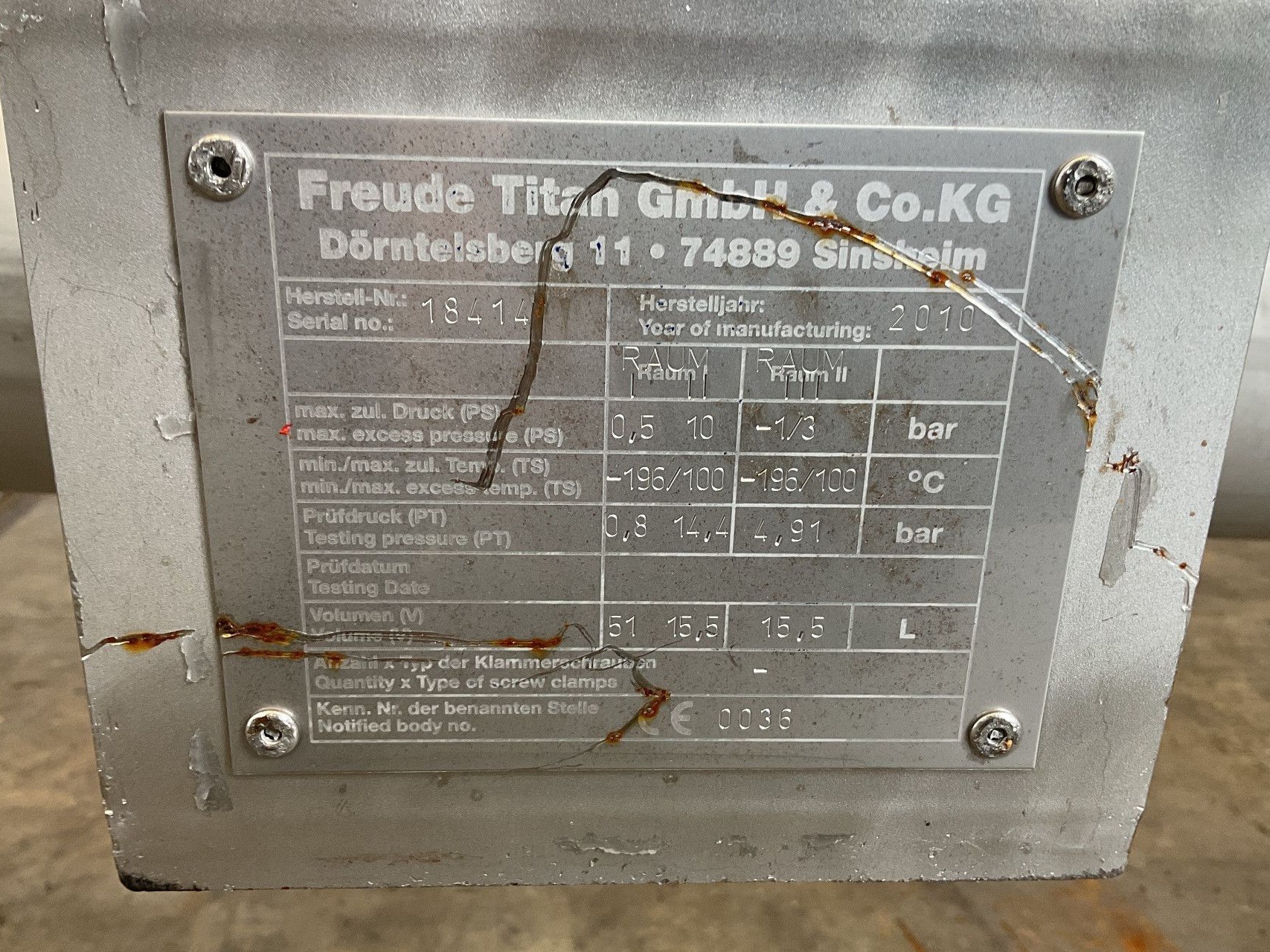

Make: Freude Titan GmbH & Co. KG Sinsheim

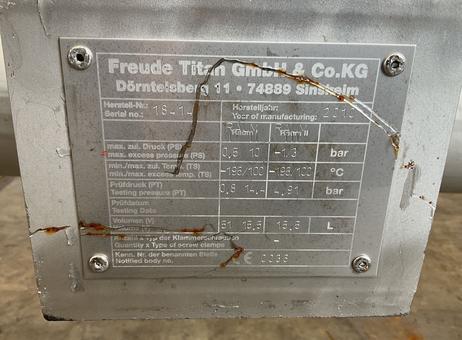

No.: 18414
Year of construction: 2010
Mounted on legs: ✓
Pressure
Working pressure shell: 0.5 Bar
Working pressure tubes: 3 Bar
Tubular vacuum possible: ✓
Main Features
Shell (Material): Stainless steel
Tube (Material): Hastelloy
Surface: 13 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 13 m2
Tube capacity: 2x 15,5 Ltr

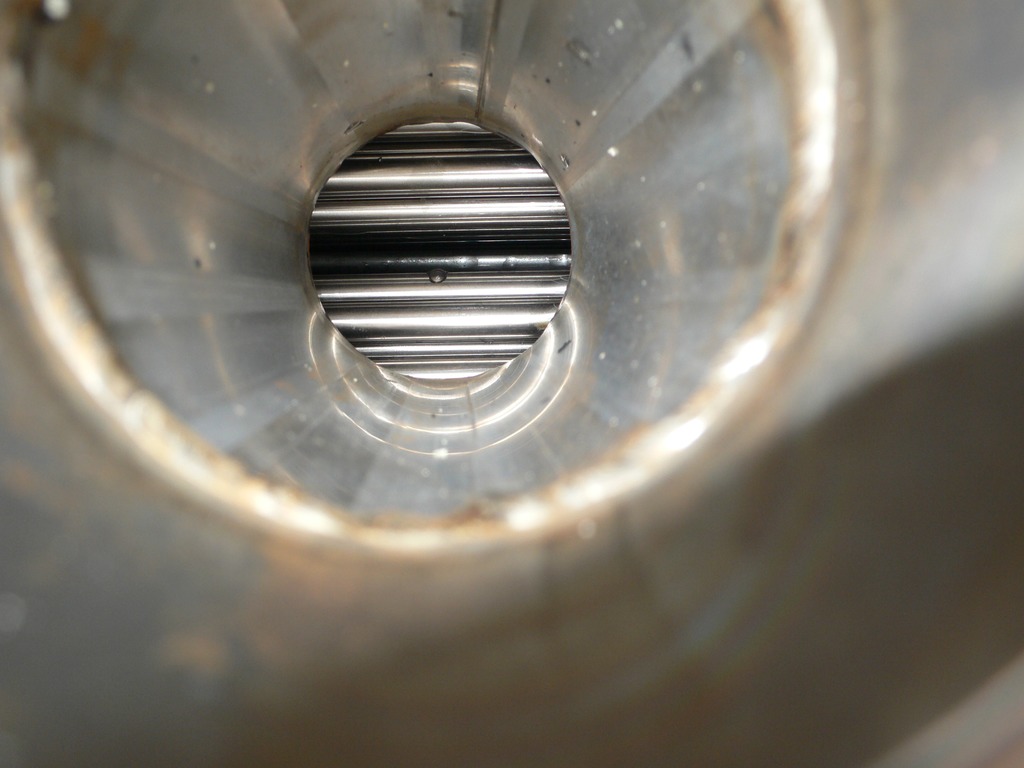

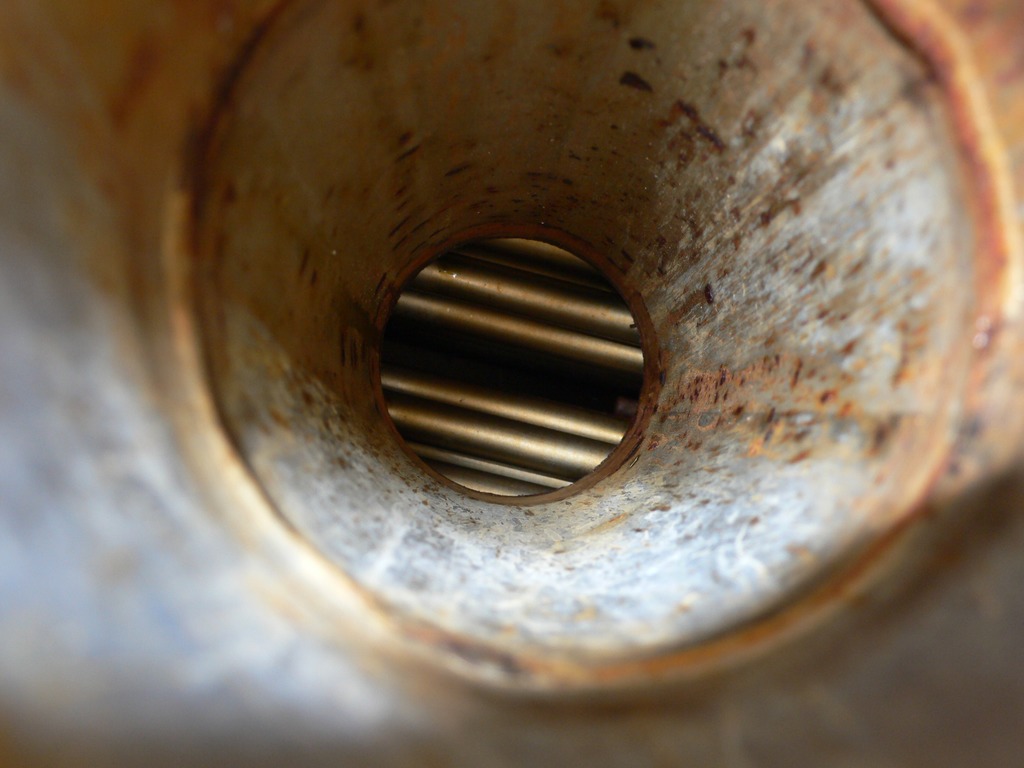

Number of tubes:: 106
Tube diameter: 10mm
Tube length: 4000mm
Wall thickness tubes: 1 mm
Max. temperature: -196/+100 Degr. C.
Shell capacity: 51 Ltr
Max. temperature: -196 / +100°C

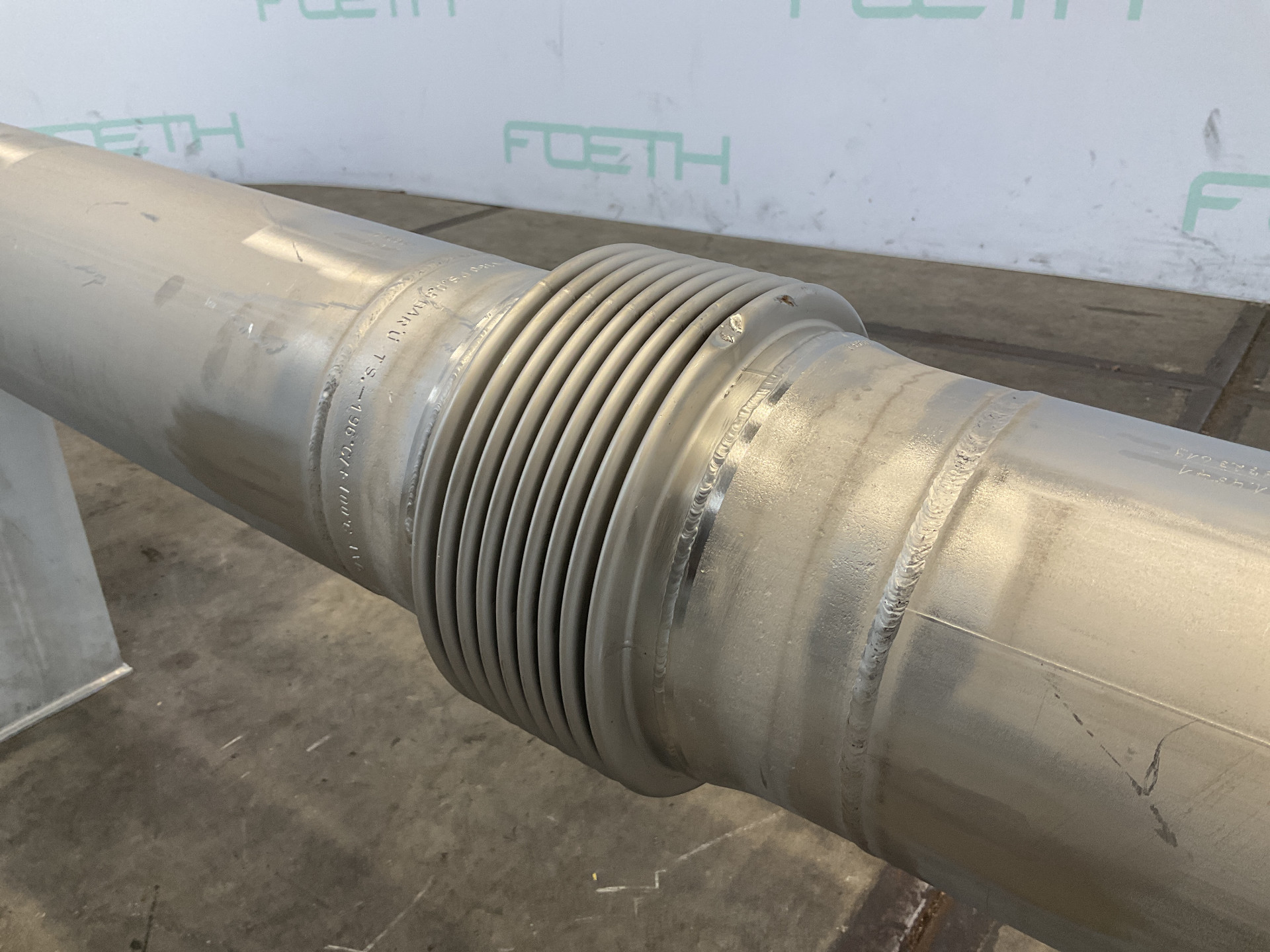

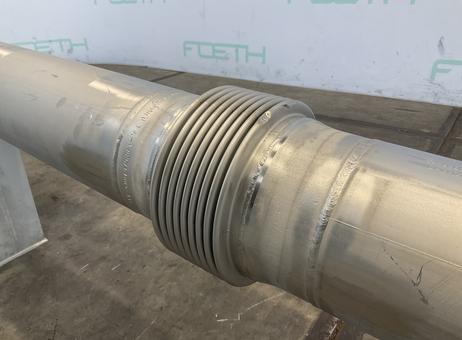

Shell with expansion joint: ✓

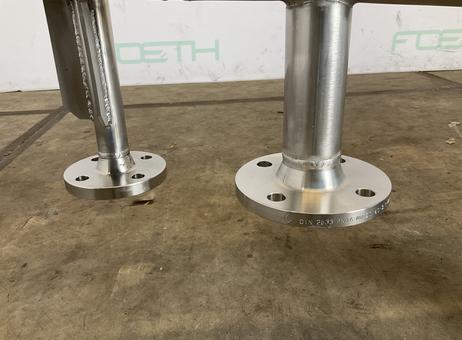

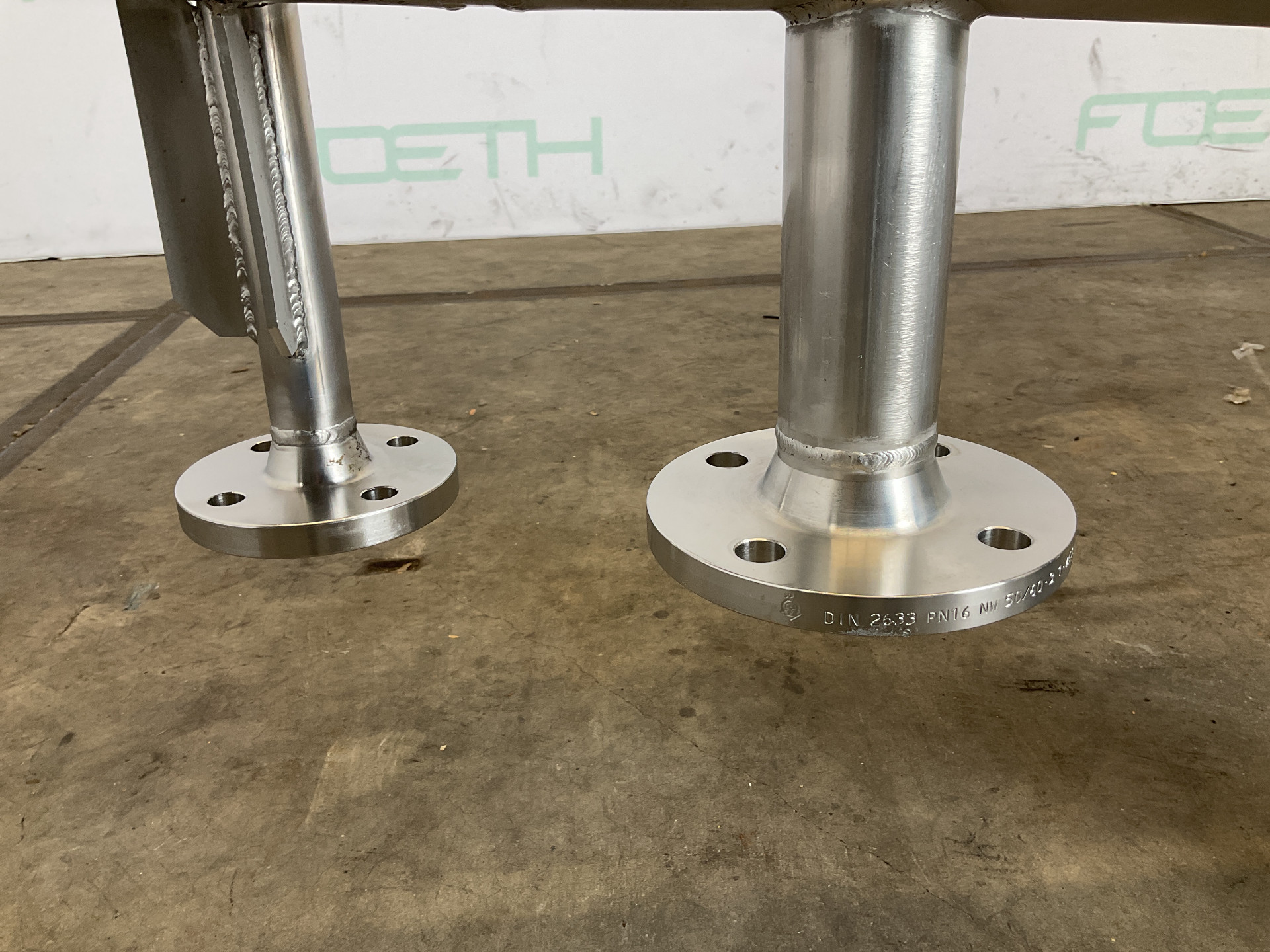

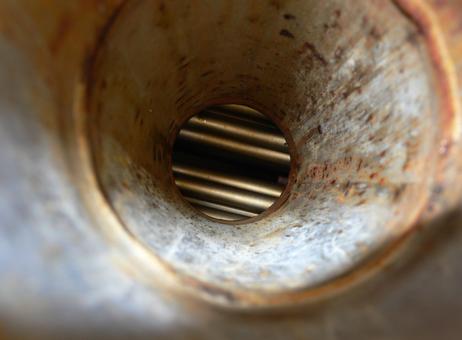

Shell connections: 2x dia. 50mm

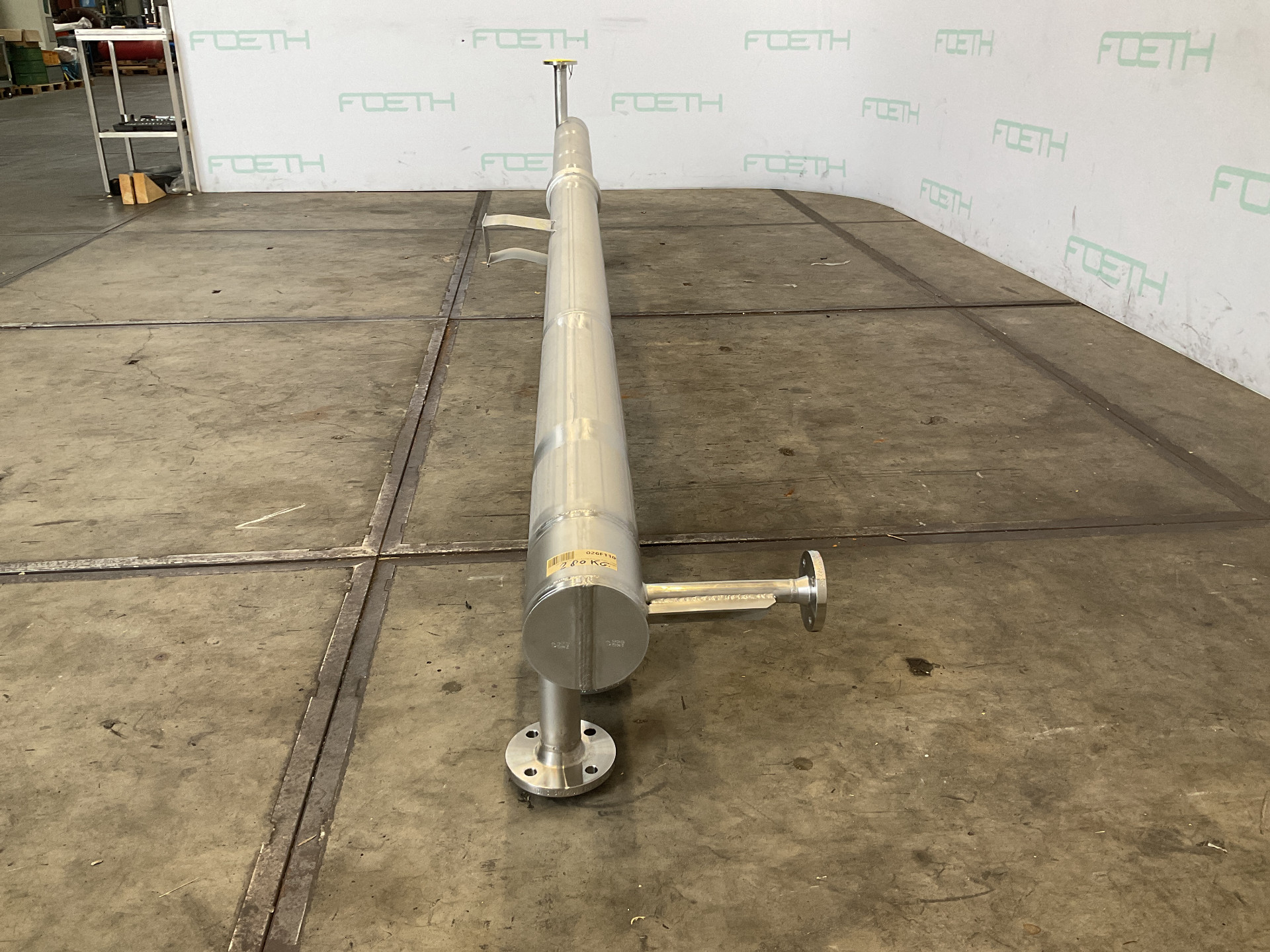

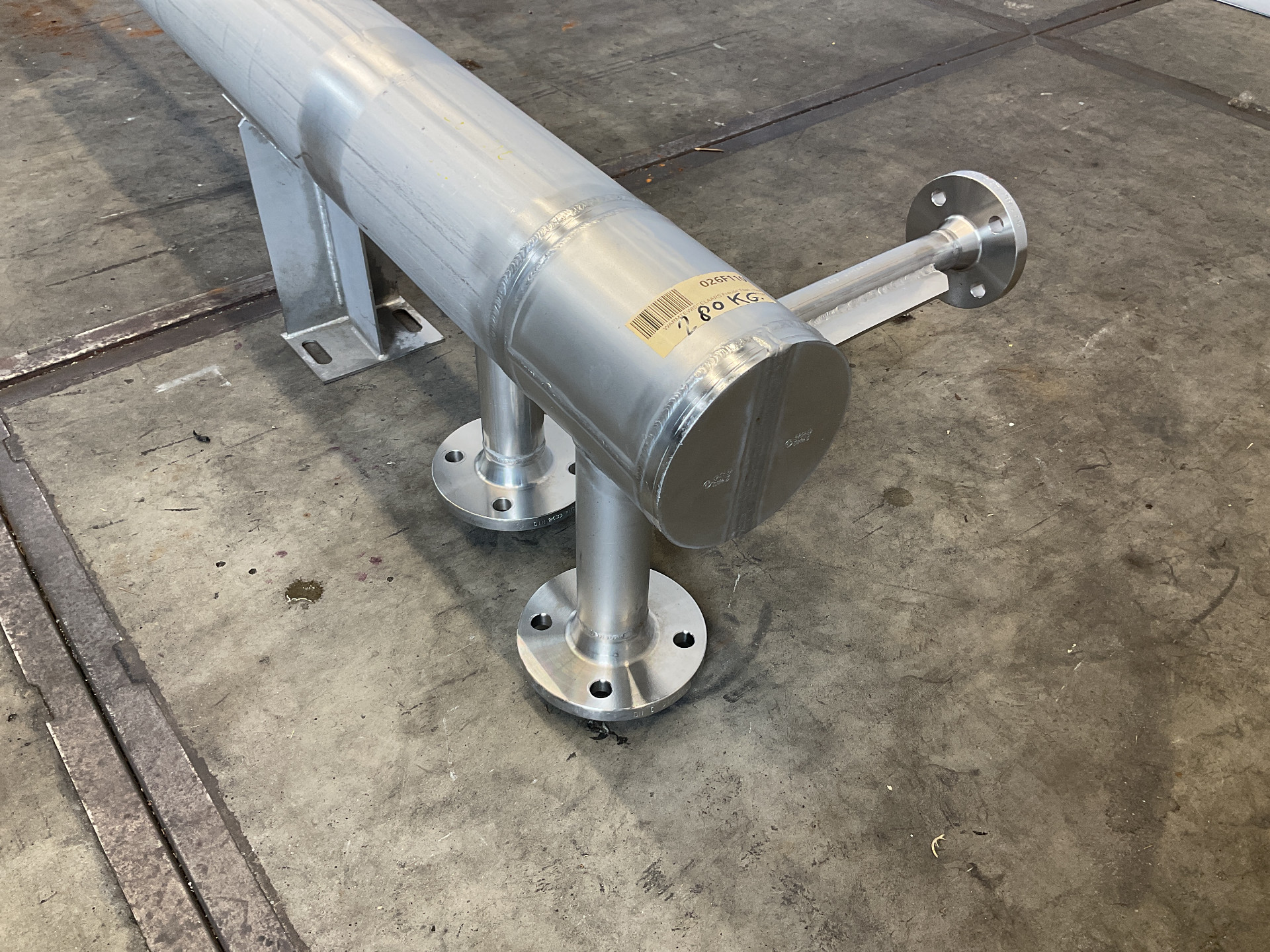

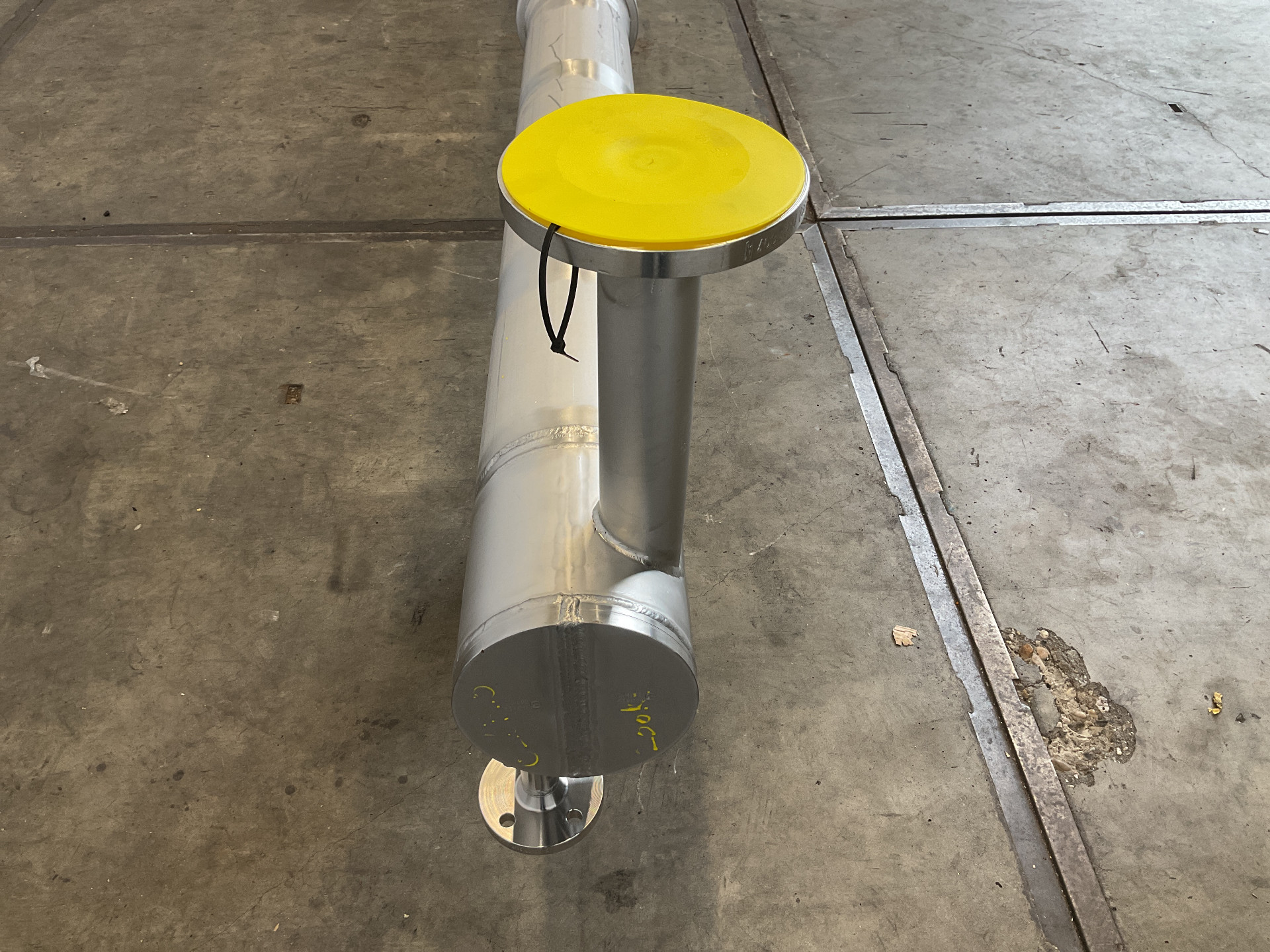

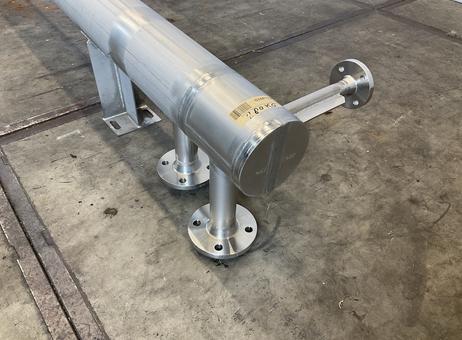

Cover connections: 2x dia. 50mm + 2x dia. 25mm
Material: Stainless steel 2.4602 (Hastelloy C-22)
General
Location: Barneveld
Floorspace: 4,5 x 0,4 m
Total height: 0,9 m
Weight: 200 kg
CE: ✓
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2026 |
| Offers online | 1771 |
| Last activity | Oct. 20, 2026 |
Since 1908, we have been active in the purchase and sale of pre-owned process equipment. Today, Foeth is the largest dealer in Europe, with more than 2,800 items in stock at our premises in Barneveld, some 60 kilometers southeast of Amsterdam and Schiphol.
We serve the (specialty) chemical, food, recycling, and pharmaceutical industries worldwide with our high-quality used and refurbished A-brand process machines. Sustainability is the driving force behind all our activities. Together with our clients and partners, we aim to reduce worldwide CO2 emissions, benefiting our climate and that of our future generations.
