Price on request
View price| Nbr of rolls | 6 |
| CNC | no |
| CNC type | |
| ------------------- | |
| Length x width x height | 2700.0 × 600.0 × 1430.0 |
| Weight | 1150 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Framecad FrameMaster F300i |
| Last availability date | 03/06/2026 |
The Framecad FrameMaster F300i is a profile bending machine designed for the rapid and precise production of lightweight steel structures. Manufactured in 2009, this model originates from New Zealand and is tailored for creating walls, roofs, and floors using cold-formed steel. It is especially suited for producing partitions and bulkheads in residential buildings, bathroom modules, halls, public buildings, and office constructions.
This machine features a compact design with dimensions of 2700 mm in length, 600 mm in width, and 1430 mm in height, weighing approximately 1150 kg. It is equipped with six main roll profiling stations and three lip forming rolls, allowing it to profile C-profiles measuring 89 mm wide with thicknesses ranging from 0.7 mm to 1.2 mm. The machine includes tooling punches and a motorized uncoiler capable of handling coils up to 1500 kg with a diameter of 1400 mm.
Operation is facilitated through an industrial CAD/CAM controller featuring an intuitive touchscreen interface running on Linux, enabling easy control over the entire production process. The machine runs on 380–480 V with a current of 40A and is powered by a 4 kW main drive and a 4 kW hydraulic system with a 40-liter hydraulic tank. It also includes two 7-point print heads for marking components.
The FrameMaster F300i integrates with advanced FRAMECAD software options such as FRAMECAD Detailer, ProDesign, and Architekt, alongside factory software solutions like FRAMECAD Factory and FactoryPro for streamlined design and production management.

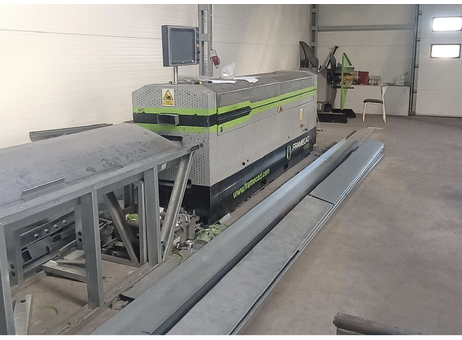

Visible components include the control panel with a mounted screen and a metal feeding or support table aligned with the machine. The machine body displays the www.framecad.com website and FRAMECAD FL3D branding. The machine appears to be in good physical condition with no visible damage, while the support table shows some dust and minor debris but remains intact. Various small items, including a green bowl, cardboard box, and plastic bag, are present on the table.
This profile bending machine is optimized for manufacturers of building frames and panels, offering precise forming, cutting, punching, trimming, and marking of steel elements ready for direct assembly with screws. Typical production capacity ranges from 190 to 500 meters per hour, depending on the project.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The Framecad FrameMaster F300i profile line was manufactured in New Zealand in 2009. The FRAMECAD F 300 sheet metal forming machine is a modern and compact production line specifically designed for the rapid and precise production of lightweight steel structures. It is ideal for the production of walls, roofs, and floors using cold-formed steel. This custom-sized profile is primarily used for the construction of partitions and bulkheads in residential buildings and bathroom modules. It is used in both interior building systems for halls and public buildings, as well as office buildings. Integration with the advanced FRAMECAD Detailer and FRAMECAD ProDesign software enables rapid design and automated production of finished components. Each element is precisely formed, cut, punched, trimmed to size, and marked – ready for direct assembly with screws. FrameMaster technology is based on robust, high-quality components and operated by an experienced team of technicians, ensuring reliability and support at every stage of production. Full integration of advanced FRAMECAD design software with FrameMaster F 300 production machine control systems creates one of the most intelligent and efficient building systems on the market. Combining design, technical documentation, and production management capabilities with the speed, precision, and reliability of FrameMaster equipment allows for new levels of productivity and profitability. The FRAMECAD F300 cold-formed profile line is a solution designed for manufacturers of building frames and panels. This sheet metal profiling line is optimized for the production of 89 mm (3.5 in) wide C-profiles with thicknesses ranging from 0.7 mm to 1.2 mm. The machine is equipped with a motorized uncoiler and an industrial CAD/CAM controller with an intuitive touchscreen for easy operation and control of the entire production process
Software options: FRAMECAD Detailer, FRAMECAD ProDesign, FRAMECAD Architekt
- Factory software: FRAMECAD Factory, FRAMECAD FactoryPro
- Number of available profiles: 1 (C 89x1.2mm)
- Thickness range: 0.7 - 1.2 mm (22-18 g)
- Element length and punching accuracy: (±0.5 mm)
- Roll profiling stations: 6 main rolls, 3 lip forming rolls
- Tooling punches: 5
- Typical production capacity (depending on the project): 190 - 500 m/h
- Main drive power: 4 kW
- Hydraulic power: 4 kW
- Hydraulic tank: 40 l
- Width: 600 mm
- Length: 2700 mm
- Height: 1430 mm
- Approximate weight: 1150 kg
- Voltage: 380 – 480 V
- Current: 40A
- Printer: 2 x 7-point print heads
- Controller: 1 x Touchscreen, Linux
- unwinder properties: 1500 kg, diameter 1400 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 446 |
| Last activity | June 9, 2026 |
The Framecad FrameMaster F300i profile line was manufactured in New Zealand in 2009. The FRAMECAD F 300 sheet metal forming machine is a modern and compact production line specifically designed for the rapid and precise production of lightweight steel structures. It is ideal for the production of walls, roofs, and floors using cold-formed steel. This custom-sized profile is primarily used for the construction of partitions and bulkheads in residential buildings and bathroom modules. It is used in both interior building systems for halls and public buildings, as well as office buildings. Integration with the advanced FRAMECAD Detailer and FRAMECAD ProDesign software enables rapid design and automated production of finished components. Each element is precisely formed, cut, punched, trimmed to size, and marked – ready for direct assembly with screws. FrameMaster technology is based on robust, high-quality components and operated by an experienced team of technicians, ensuring reliability and support at every stage of production. Full integration of advanced FRAMECAD design software with FrameMaster F 300 production machine control systems creates one of the most intelligent and efficient building systems on the market. Combining design, technical documentation, and production management capabilities with the speed, precision, and reliability of FrameMaster equipment allows for new levels of productivity and profitability. The FRAMECAD F300 cold-formed profile line is a solution designed for manufacturers of building frames and panels. This sheet metal profiling line is optimized for the production of 89 mm (3.5 in) wide C-profiles with thicknesses ranging from 0.7 mm to 1.2 mm. The machine is equipped with a motorized uncoiler and an industrial CAD/CAM controller with an intuitive touchscreen for easy operation and control of the entire production process
Software options: FRAMECAD Detailer, FRAMECAD ProDesign, FRAMECAD Architekt
- Factory software: FRAMECAD Factory, FRAMECAD FactoryPro
- Number of available profiles: 1 (C 89x1.2mm)
- Thickness range: 0.7 - 1.2 mm (22-18 g)
- Element length and punching accuracy: (±0.5 mm)
- Roll profiling stations: 6 main rolls, 3 lip forming rolls
- Tooling punches: 5
- Typical production capacity (depending on the project): 190 - 500 m/h
- Main drive power: 4 kW
- Hydraulic power: 4 kW
- Hydraulic tank: 40 l
- Width: 600 mm
- Length: 2700 mm
- Height: 1430 mm
- Approximate weight: 1150 kg
- Voltage: 380 – 480 V
- Current: 40A
- Printer: 2 x 7-point print heads
- Controller: 1 x Touchscreen, Linux
- unwinder properties: 1500 kg, diameter 1400 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Nbr of rolls | 6 |
| CNC | no |
| CNC type | |
| ------------------- | |
| Length x width x height | 2700.0 × 600.0 × 1430.0 |
| Weight | 1150 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Framecad FrameMaster F300i |
| Last availability date | 03/06/2026 |
The Framecad FrameMaster F300i is a profile bending machine designed for the rapid and precise production of lightweight steel structures. Manufactured in 2009, this model originates from New Zealand and is tailored for creating walls, roofs, and floors using cold-formed steel. It is especially suited for producing partitions and bulkheads in residential buildings, bathroom modules, halls, public buildings, and office constructions.
This machine features a compact design with dimensions of 2700 mm in length, 600 mm in width, and 1430 mm in height, weighing approximately 1150 kg. It is equipped with six main roll profiling stations and three lip forming rolls, allowing it to profile C-profiles measuring 89 mm wide with thicknesses ranging from 0.7 mm to 1.2 mm. The machine includes tooling punches and a motorized uncoiler capable of handling coils up to 1500 kg with a diameter of 1400 mm.
Operation is facilitated through an industrial CAD/CAM controller featuring an intuitive touchscreen interface running on Linux, enabling easy control over the entire production process. The machine runs on 380–480 V with a current of 40A and is powered by a 4 kW main drive and a 4 kW hydraulic system with a 40-liter hydraulic tank. It also includes two 7-point print heads for marking components.
The FrameMaster F300i integrates with advanced FRAMECAD software options such as FRAMECAD Detailer, ProDesign, and Architekt, alongside factory software solutions like FRAMECAD Factory and FactoryPro for streamlined design and production management.
Visible components include the control panel with a mounted screen and a metal feeding or support table aligned with the machine. The machine body displays the www.framecad.com website and FRAMECAD FL3D branding. The machine appears to be in good physical condition with no visible damage, while the support table shows some dust and minor debris but remains intact. Various small items, including a green bowl, cardboard box, and plastic bag, are present on the table.
This profile bending machine is optimized for manufacturers of building frames and panels, offering precise forming, cutting, punching, trimming, and marking of steel elements ready for direct assembly with screws. Typical production capacity ranges from 190 to 500 meters per hour, depending on the project.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 446 |
| Last activity | June 9, 2026 |
