| Manufacturer | FPT |
|---|---|
| Model | STINGER |
| Year | |
| Location | Italy
|

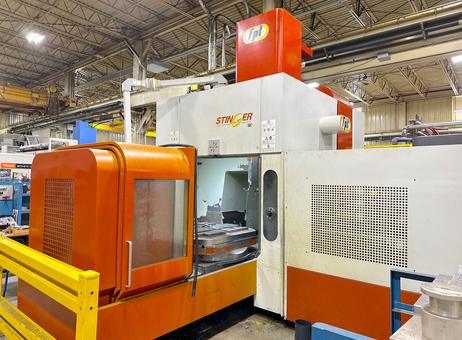

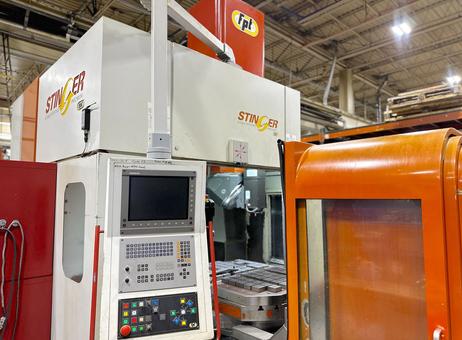

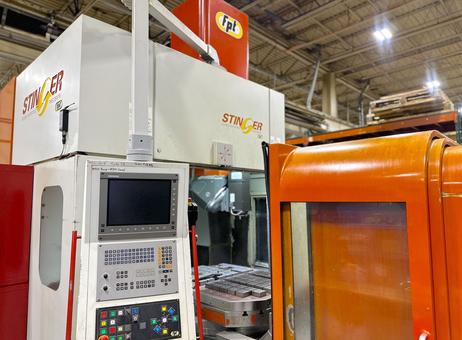

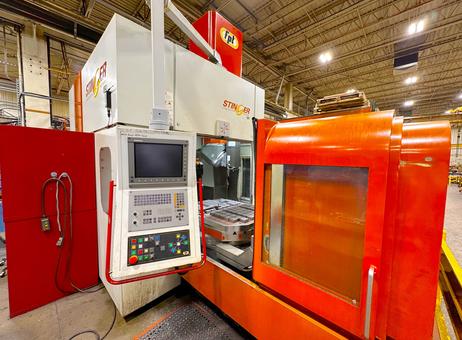

This FPT STINGER machining center is a 5-axis or more CNC machine designed for high-precision and complex machining tasks. It features a substantial working range with longitudinal (X) travel of 1750 mm (68.90 in), transverse (Y) travel of 1400 mm (55.12 in), and vertical (Z) travel of 600 mm (23.62 in). The machine is equipped with a rotary table offering infinite rotation (B-axis) and a head oscillation (A-axis) with a resolution of 0.001°, allowing for versatile multi-axis machining capabilities.

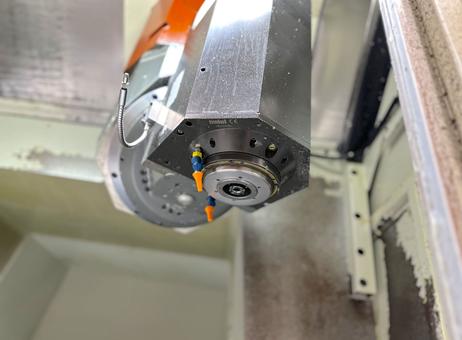

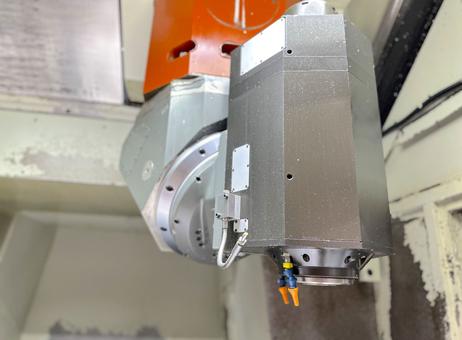

The spindle system includes a TULCE type head with an HSK63A taper, capable of reaching speeds up to 18,000 RPM and delivering a maximum torque of 101 Nm. The spindle power ranges between 18 and 22 kW, driven by an electrospindle with internal coolant supplied at 60 bar pressure. The machine utilizes Siemens drives and is controlled via a Heidenhain iTNC530 CNC system.

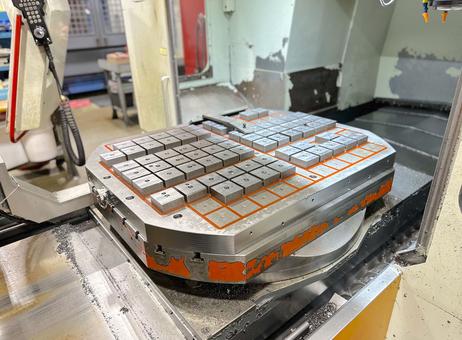

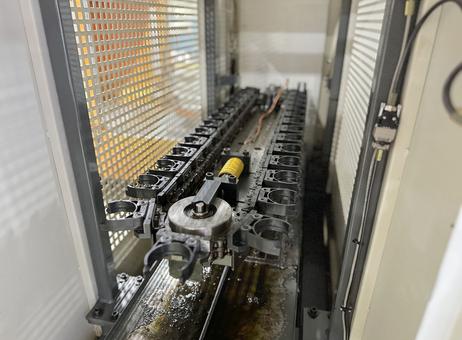

The machining center's table measures 1200 x 1000 mm (47.24 x 39.37 in) and supports a load capacity of up to 5000 kg, suitable for heavy workpieces. It includes a 30-station automatic tool changer (ATC) compatible with tools up to 70 mm in diameter, 300 mm in length, and 10 kg in weight, using HSK63A tool holders.
Additional features include a workpiece probe from M&H and a Marposs laser tool presetting system, enhancing setup accuracy. The machine has approximate overall dimensions of 6000 x 4000 x 3900 mm and a total weight of around 21,000 kg. It comes with use and maintenance manuals and holds CE certification. The machine is fully enclosed with fairing for operational safety.
This machining center is suitable for demanding manufacturing environments requiring precision and flexibility across multiple axes. Prospective buyers are encouraged to verify all specifications and inspect the equipment to ensure it meets their operational needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Machining Center
Type
5-Axis or More
Brand
FPT
Model
STINGER
Capacity
1750 x 1400 x 600 mm 68.90 x 55.12 x 23.62 in
Technical Specifications
Convert to Metric Imperial
WORKING RANGE
Longitudinal (X)
1750 mm 68.90 in
Vertical (Z)
600 mm 23.62 in
Transverse (Y)
1400 mm 55.12 in
Table Rotation (B)
∞°
Cylinder Swing Capacity
1300 mm 51.18 in
Head Oscillation (A)
∞ / 0.001°
Distance Between Columns
1430 mm 56.30 in
CNC
CNC

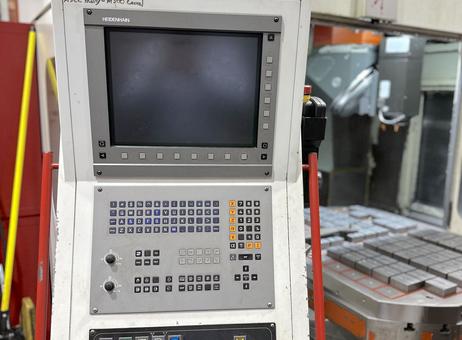

Heidenhain iTNC530
Drives
Siemens

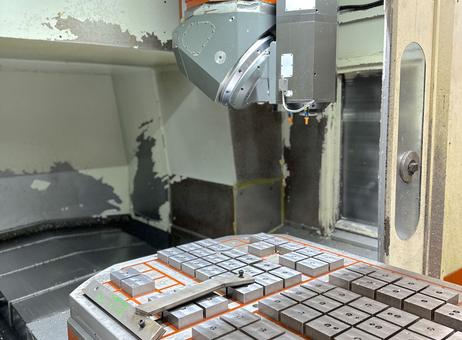

HEAD 1
Type
TULCE
Spindle Taper
HSK63A
A-Axis
∞ /0.001°
Maximum Torque
101 Nm
Maximum Speed
18,000 RPM
Maximum Power
18/22 kW
Coolant
CTS60 Bar
SPINDLE
Spindle Power
18/22 kW
Rotation Speed
18,000 RPM
Torque
101 Nm
Morse Taper
HSK63A
Spindle Drive
Electrospindle
Internal Coolant
CTS60 Bar
FEEDS
Rapid X
35 m/min 1,377.95 ipm
Rapid Y
35 m/min 1,377.95 ipm
Rapid Z
35 m/min 1,377.95 ipm
Axis acceleration
6 m/s2

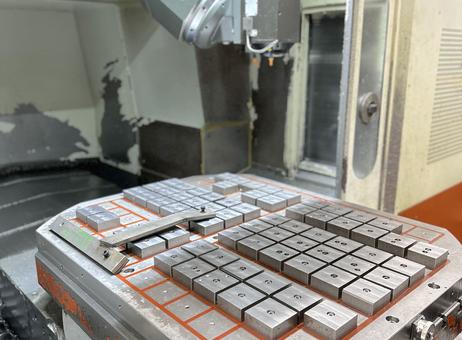

TABLE
Dimensions (LxWxH)
1200x1000 mm 47.24x39.37 in
Load capacity
5000 kg
Resolution (B-axis)
0.001 °
ATC
Work stations
30
Maximum tool diameter
70 mm 2.76 in
Maximum tool length
300 mm 11.81 in
Maximum tool weight
10 kg
Tool holder
HSK63A
EXTRA
Motor power
≈67 kW
Total machine weight
≈21,000 kg
Machine dimensions
≈6000x4000x3900 mm ≈236.22x157.48x153.54 in
High pressure
60 Bar

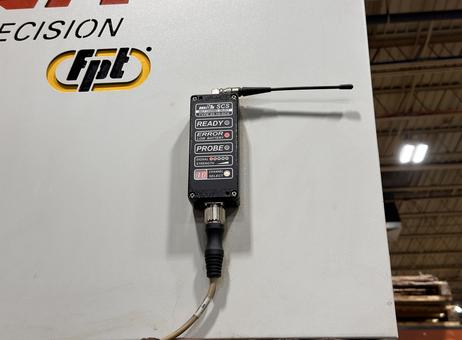

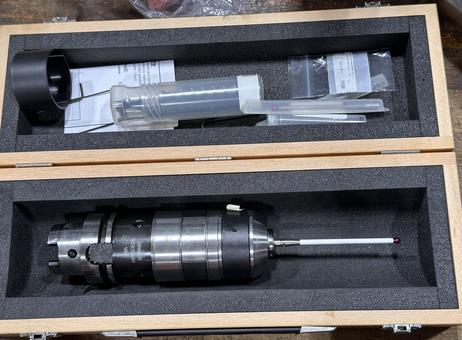

Workpiece probe
M&H

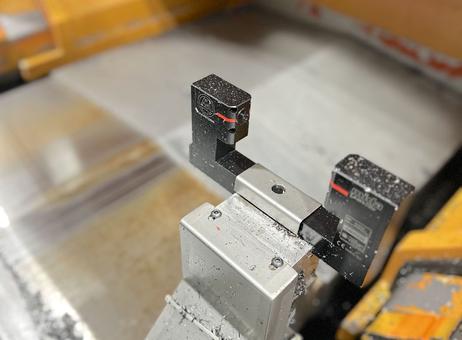

Presetting Tools
Marposs Laser
Use and Maintenance Manuals
Yes
CE Certification
Yes
Fairing
Full
The data shown is based on the information in our possession, obtained where possible from the manufacturers. Therefore, despite good faith, due to the nature and complexity of the goods, such data may be incomplete and/or inaccurate. Its accuracy cannot be guaranteed under any circumstances and therefore does not constitute a contractual obligation. We always encourage you to view the goods and request confirmation of the data.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
