Contact us to receive an offer.
| Manufacturer | FPT |
|---|---|
| Model | Dinospin |
| Year | 2019 |
| Location | Germany
|

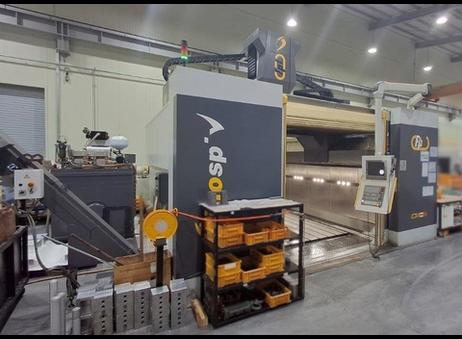

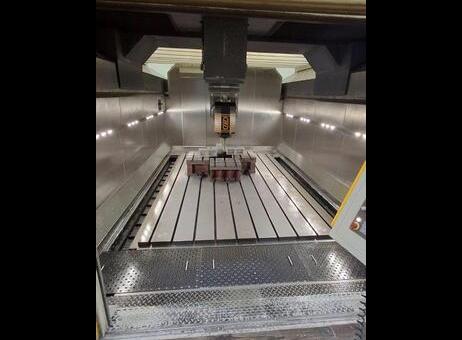

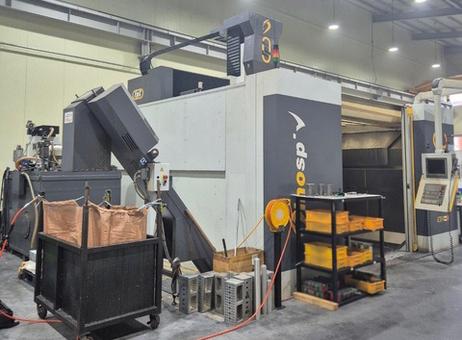

FPT Dinospin Gantry Milling Machine, manufactured in 2019, is a robust and precise CNC machine designed for demanding applications such as model and mold making and high-performance aluminum machining. The machine weighs approximately 44,280 kg and features a large working table measuring 4000 mm in length and 2500 mm in width, with a maximum load capacity of 10 tons per square meter.
This gantry milling machine is equipped with a 2-axis NC milling head, offering a rotational C axis with ±270° movement and a tilting A axis with ±185° travel. The head provides a maximum working torque of 450 Nm and braking torque of up to 1400 Nm. The working travels include a gantry longitudinal (X) travel of 4000 mm, ram saddle cross (Y) travel of 2500 mm, and ram vertical (Z) travel of 1300 mm.
Axis feed rates reach up to 40,000 mm/min for X, Y, and Z, while the C and A axes can rotate at speeds up to 30 rpm. The spindle motor is rated between 22 kW and 33 kW, with a spindle speed range from 10 to 18,000 rpm and spindle torque of 84 Nm (S1) to 128 Nm (S6).
The machine includes an 80-position automatic tool changer (ATC) with HSK-A63 taper tools. It supports tools weighing up to 10 kg, with a maximum length of 600 mm, and tool diameters ranging from 75 mm minimum to 125 mm maximum, depending on adjacent tool spacing.
Additional features include a tool measuring system, touch probe, chip conveyor, and dust extractor. The machine is CE marked, ensuring compliance with European safety standards.

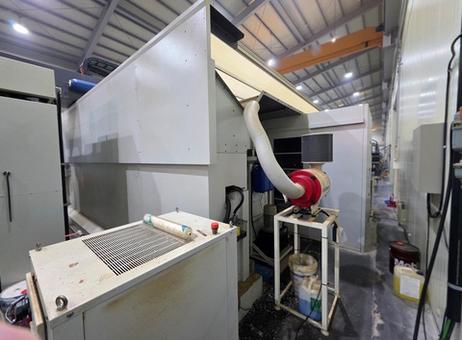

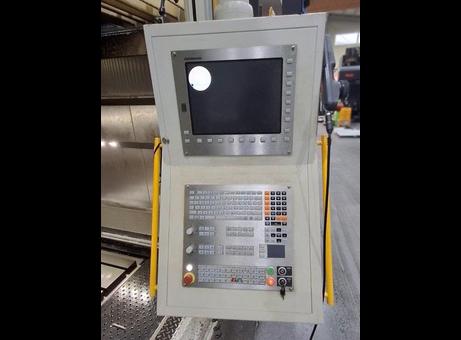

The exterior of the machine shows some dirt and wear marks but remains structurally sound. It includes a control panel with buttons and switches, as well as ventilation openings on the gantry body. A white flexible hose connected to a red circular component is also present on the machine side.
This FPT Dinospin gantry milling machine offers a combination of precision, power, and flexibility, making it a valuable asset for advanced industrial machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: FPT Dinospin Gantry Milling Machine
Manufacturer: FPT
Model: Dinospin
Year of Manufacture: 2019
Technical Condition: As-is, where-is
Machine Weight: Approximately 44280 kg
CNC: Yes
Table Size: 4000 x 2500 mm
Table Load: Maximum 10t/m²
2-Axis NC Milling Head:
- Rotational Axis: C +/-270°
- Tilting Axis: A +/-185°
- Head Torque (Working/Braking): Maximum 450/1400 Nm
Working Travels:
- Gantry Longitudinal Travel: X 4000 mm
- Ram Saddle Cross Travel: Y 2500 mm
- Ram Vertical Travel: Z 1300 mm
Axes Speeds:
- Feeds to Maximum: X/Y/Z 40000 mm/min
- C/A 30 rpm
Spindle:
- Spindle Motor Rating: 22/33 KW
- Spindle Speed Range: 10-18000 rpm
- Spindle Torque: S1/S6 84/128 Nm
Tool Magazine and Automatic Tool Changer (ATC):
- Tool Taper: HSK-A63
- Tool Magazine Positions: 80 Station ATC
- Tool Weight: Maximum 10 kg
- Tool Length: Maximum 600 mm
- Tool Diameter with/without Adjacent Tools: Minimum/Maximum 75/125 mm/mm
Equipped With:
- Tool Measuring System
- Touch Probe
- Chip Conveyor
- Dust Extractor
- CE Marked
Condition: Excellent
This machine combines precision, power, and flexibility, making it ideal for demanding model and mold making as well as high-performance aluminum machining. Due to its latest technology, specification, condition, and year of manufacture, this is an exceptionally rare opportunity on the used market.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
