| Manufacturer | FPT |
|---|---|
| Model | DINOMAX 1 HIGH-SPEED 5-AXIS GANTRY MILLING |
| Year | 2016 |
| Location | Italy
|
The FPT DINOMAX 1 is a high-speed 5-axis gantry milling machine designed for precision machining tasks. Manufactured in 2016, this model features a robust working table measuring 4500 mm in length, 2500 mm in width, and 300 mm in height, providing a substantial surface area for various machining operations. The machine is equipped with a powerful spindle motor delivering 37 kW of power, capable of reaching a maximum spindle speed of 22,000 rpm, suitable for high-speed milling applications.
This gantry milling machine offers a significant working range with longitudinal (X-axis) travel of 4000 mm, transverse (Y-axis) travel of 2200 mm, and vertical (Z-axis) travel of 1100 mm. It supports a maximum speed of 50 m/min with interpolating axes, enabling efficient and precise multi-axis machining. The working table includes T-slots for workpiece clamping, oriented parallel to the Y-axis movement, facilitating secure and flexible fixturing.
The machine incorporates a continuous positioning universal head with an electric spindle, allowing automatic indexing to 360,000 positions with fine resolution. This head supports C-axis rotation of ±270° and A-axis rotation of ±185°, with maximum axis rotation speeds of 30 rpm and clamping torque of 1400 Nm. It features HSK-A63 and HSK-A100 tool holders and comes with a 55-position chain tool magazine accommodating various tool sizes and weights.
Additional features include a Heidenhain iTNC 640 CNC control system with a control panel mounted on the right side of the machine, high-pressure water and air through the spindle, a semi-automatic spindle changer, Renishaw probe, BLUM laser presetting, and an automatic head calibration system (AUTOCAL). The machine also has an electrical cabinet air conditioner and cooling systems for all axes and the electric spindle.

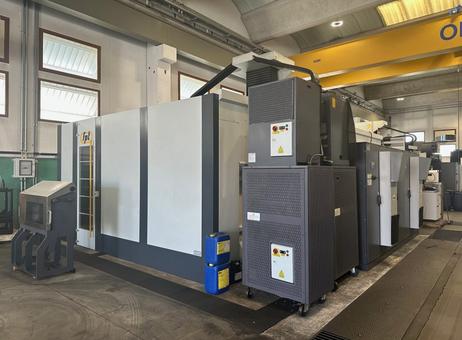

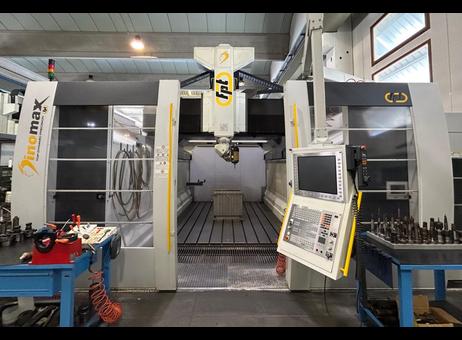

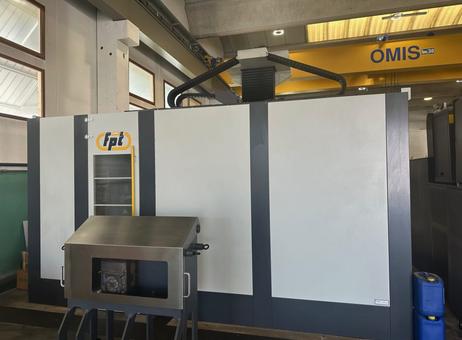

From the images, the machine appears clean and well-maintained, with visible components such as the control panel with screen and keyboard, the worktable with T-slots, and the spindle head with tool holder. The work area is shown to be free of debris, and fixtures or vices are mounted on the worktable, indicating readiness for machining operations.
This FPT DINOMAX 1 gantry milling machine is a versatile and high-performance solution suitable for demanding 5-axis machining tasks in industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
FPT DINOMAX 1 HIGH-SPEED 5-AXIS GANTRY MILLING MACHINE
TECHNICAL SPECIFICATIONS:
Heidenhain iTNC 640 CNC
WORKING RANGE
Longitudinal X-axis travel: 4,000 mm
Transverse Y-axis travel: 2,200 mm
Vertical Z-axis travel: 1,100 mm
Maximum speed with interpolating axes: 50 m/min
WORKING TABLE
Dimensions: 4,500 x 2,500 mm
Height: 300 mm
Load capacity: 15 kg/m²
T-slots for workpiece clamping: 28 mm DIN 650 (H12), complete with leveling pads. T-slot orientation parallel to the Y-axis movement.

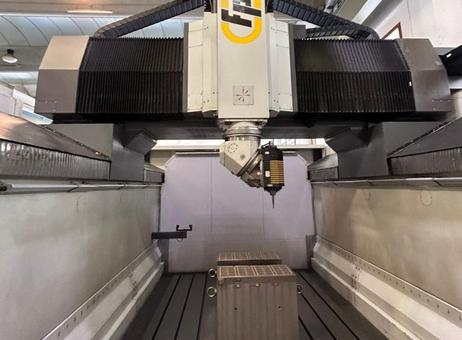

CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTRIC SPINDLE
Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct-drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows for a 10° undercut. Internal cooling system for bearings and axis motors.
C-axis rotation range: +/- 270°
A-axis rotation range: +/- 185°
Maximum axis rotation speed: 30 rpm
Maximum torque available during A/C axis operation: 450 Nm
Axis clamping torque: 1,400 Nm
Available spindle power (S1/S6): 22/33 kW
Available spindle torque (S1/S6): 84/128 Nm
Maximum spindle rotation speed: 22,000 rpm
Rotation speed at constant power: 3,000 to 18,000 rpm
Rotation speed at constant torque: 10 to 3,000 rpm
Tool holder: HSK – A63 DIN 69893
HSK – A100 ELECTRIC SPINDLE WITH SEMI-AUTOMATIC TOOL CHANGING SYSTEM:
Power available at the spindle (S1/S6): 37/43 kW
Torque available at the spindle (S1/S6): 140/165 Nm
Maximum spindle speed: 15,000 rpm
Constant power speed range: 2,500 to 12,000 rpm
Constant torque speed range: 10 to 2,500 rpm
Tool holder: HSK – A100 DIN 69893
55-POSITION CHAIN TOOL MAGAZINE, HSK – A100 / HSK – A63:
Fixed floor-mounted chain magazine located at the rear of the machine, enclosed for operator protection, with an arm for vertical tool change and automatic tool preparation. “Fixed-position” management.
Hydraulically controlled axis clamping
Total tools: 55
Tool type: HSK-A63 DIN 69893
Tools: 30
Max. tool diameter: 90 mm
Max. tool diameter with adjacent slots free: 160 mm
Max. tool length: 300 mm
Max. tool weight: 10 kg
Tool type: HSK-A100 DIN 69893
Tools: 25
Max. tool diameter: 100 mm
Max. tool diameter with adjacent positions free: 160 mm
Max. tool length: 450 mm
Max. tool weight: 20 kg
REQUIRED CONNECTIONS:
Max. installed power: 177 kVA
Max. current required: 235 A
Machine includes:
Heidenhain HR550 remote electronic handwheel
High-pressure water and air through the spindle
Semi-automatic spindle changer, with HSK-A63 and HSK-A100 mounts
Various tools included with the machine
Renishaw probe
BLUM laser presetting
AUTOCAL automatic head calibration system
Visormax subscription for remote monitoring
Electrical cabinet air conditioner
Cooling system for all axes and the electric spindle
User and maintenance manual and CE declaration of conformity
Year of manufacture: 2016
The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this FPT DINOMAX 2 manufactured?
This FPT DINOMAX 2 HIGH-SPEED 5-AXIS GANTRY MILLING was manufactured in 2018.
When was this FPT DINOMAX 1 manufactured?
This FPT DINOMAX 1 HIGH-SPEED 5-AXIS GANTRY MILLING was manufactured in 2016.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
