| Manufacturer | FPT |
|---|---|
| Model | DINO |
| Year | 2002 |
| Location | Italy
|
The FPT DINO is a large portal/gantry milling machine manufactured in 2002, designed for heavy-duty machining tasks. It features a CNC control system, providing precise and automated operation. The machine has substantial axis travels with 2800 mm on the X axis, 1600 mm on the Y axis, and 800 mm on the Z axis, enabling it to handle large workpieces.
The worktable measures 3000 mm in length and 1200 mm in width, with a maximum load capacity of 6000 kg, suitable for heavy and large components. The spindle is powered by an 18 kW motor and can reach speeds up to 18,000 rpm, allowing for high-speed machining. The machine is equipped with a vertical spindle and an automatic bi-rotary head, enhancing its versatility in machining complex parts.
Additional features include roller guides for smooth and precise movement, and a high refrigerant pressure system operating at 20 bar to ensure effective cooling during operations. The machine supports a tool holder type HSK A 63 and accommodates up to 24 tools.

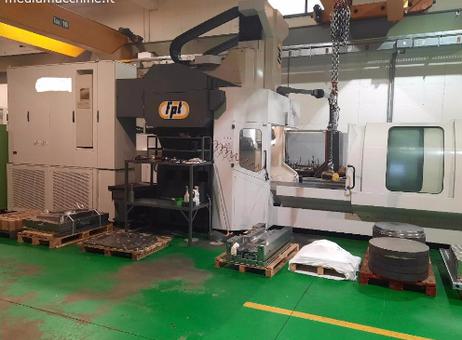

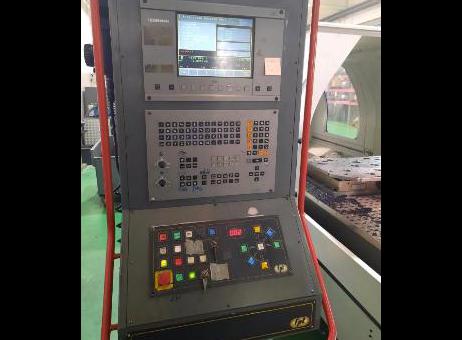

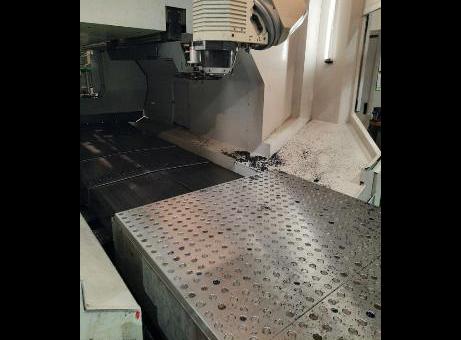

The milling machine is housed within a large enclosed work area with windows on the sides, providing visibility while maintaining safety. The control panel includes a screen with multiple buttons and switches, facilitating user-friendly operation. The worktable has been observed with a large metal plate secured on it, and some metal debris and chips are present in the surrounding area, indicating recent use.

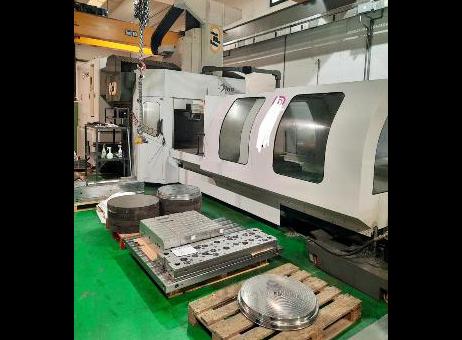

The machine and its surroundings appear well maintained and clean, with a clean, painted green floor marked with yellow safety lines. Several pallets with machining parts and equipment are placed in front of and near the machine, suggesting an organized workspace. Overall, the FPT DINO portal milling machine is a robust and capable piece of equipment suitable for demanding industrial milling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Heidenein CNC model
CNC 530 version
Tool holder HSK A 63
Spindle power 18 Kw
Number of spindle revolutions 18000
Number of tools 24
X axis travel 2800 mm
Axis travel Y 1600 mm
Z axis travel 800 mm
Rapid feeds linear axes X Y Z 35 m / min
Table dimensions 3000 x 1200 mm
Table capacity 6000 Kg
Roller guides
High refrigerant pressure
Pressure value 20 bar
Heads type Vertical spindle
Automatic bi-rotary head
Chip evacuator
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
